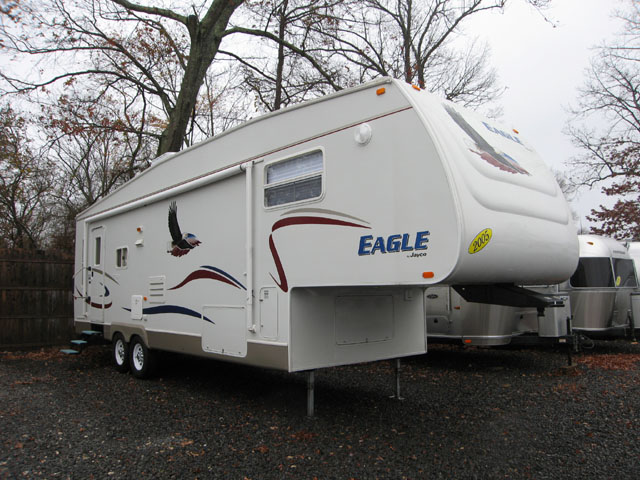

Model: 2005 Jayco Eagle 301 RLS 33'4" Fifth Wheel

VIN#1UJCJ02R351LY0202

Original MSRP: $36,428.00

DIMENSIONS & CAPACITIES
Exterior Length 33'4", Exterior Height 13'2", Bedroom Interior Height 87", Unloaded Vehicle Weight 9,232 lbs, Dry Hitch Weight 2,220 lbs, Gross Vehicle Weight Rating 12,000 lbs, Cargo Carrying Capacity 2,768 lbs, Fresh Water Capacity 46 gallons, Gray Wastewater Capacity 74 gallons, Toilet/Black Wastewater Capacity 37 gallons.

INTERIOR EQUIPMENT
24" flat screen CRT TV, Cable TV hookup with RG6 Coax, Carpeting with padding in living area and bedroom, Rugged furniture designed and hand-crafted by Jayco, Crank-up antenna for TV with signal booster, Day/night shades, Decorative brass light at sofa and dinette, Fabric-covered box valances with lambrequin legs, Fairfield Oak raised-paneled doors and drawers, 12V high-intensity lighting package, J-Steel convertible sofa (queen size hide-a-bed) with foot rest, Linoleum floor in entryway , kitchen and bath areas, Nickel/brass cabinetry hardware, Oak trim round main entrance door, Overhead cabinet for bedroom TV, Overhead cabinetry in slideout rooms, Quilted bedspread with throw pillows, Sliding windows in slideout end walls, Solid hardware interior grab handle for entry assistance, 2 swivel rockers.

KITCHEN EQUIPMENT
3-burner range with 9,000-BTU SuperBurner & piezo igniter, 8 cu.ft. flush-mount refrigerator with double door, Bi-fold range cover, Sink cover cutting board, Deep residential-style sink, Drawer for silverware, divided for utensils, Knife holder is recessed in countertop, Large oak freestanding dinette table with four chairs, Oversized oven, Range hood with light and exhaust fan, Wallpaper border, White mixing high-rise faucet, Extra large picture window at dinette.

HEAT, POWER AND WATER EQUIPMENT
110 G.F.C.I. protected exterior receptacle, 12V demand water pump, 12V electrical system with deluxe 110V 45-amp power, converter and charger, 30-amp power cord, Double 30-lb LP gas bottles with regulator, High efficiency LP gas furnaceAuto-ignition furnace with wall thermostat, Hook-up for city water, In-floor ducted heat, Monitor panel for all systems, Outside shower, Water heater bypass system, Winterization kit.

SAFETY EQUIPMENT
Break-away switch, Fire extinguisher, Lock and deadbolt on entrance door, LP gas leak detector, Carbon monoxide detector, Multiple egress windows, Smoke detector, Clear safety glass windows.

EXTERIOR EQUIPMENT
12V light for hitch, 16" radial tires, Galvanized steel wheel wells with chrome hub caps, ABS fender skirts, Spare tire and tire carrier with vinyl tire cover, Lockable, radius-cornered baggage doors with heavy-duty grab handle, Dual battery box for two batteries, Bumper with drain hose carrier and end caps, Egress windows with screens, Electric-powered front jacks, Fiberglass, radius cornered entrance door and screen door, E-Z Lube axles, Galvanized steel wheel wells, Jack Plate adjustable axle hangers, Roof ladder, Painted bottom radius skirting, Patio light with inside switch, Molded rain guttering with drip spouts, Shock clips on frame and axles, Quick-release pins on front jacks, Stabilizer jacks on rear (1 pair), Triple retractable entrance step, Toilet/black wastewater holding tank sprayer, Roof mount radio antenna.

CONSTRUCTION FEATURES
2" x 3" longitudinal floor joists on 16"-18' centers, 5/8" tongue and groove plywood main floor decking, 81" living room ceiling height, Bead-foam insulation in sidewalls (R-9), Enclosed, insulated and heated underbelly, Filon fiberglass sidewall exteriors, Platform for bed is constructed of .5" plywood, One piece, seamless, TPO roof, Roof rafters constructed of residential-style tapered 4-1/2" trusses tubular-aluminum sidewall framework, TuffShell vacuum-bond laminated sidewalls, Two electric powered slideouts, 6' front bedroom slide, 13' living room/dinette slide.

Prices and Specs Subject to Change Canadian Specs May Differ From U.S. All Above Specs Taken from 2005 Eagle by Jayco Sales Information, some items may have been removed , changed or upgraded or not completely accurate.
