VIN#1F6NF53Y760A02357

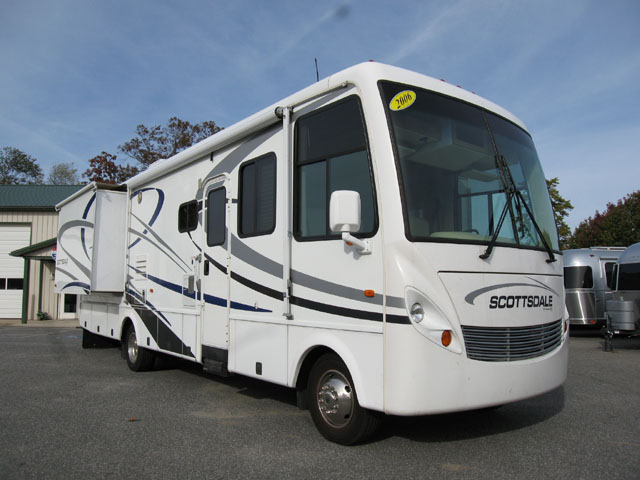

Model: 2006 Newmar Scottsdale 3303 34'

Weights & Measures
34' Overall Length, 101.5" Width, 12'8" Overall Height, 95.5" Interior Width, 84" Interior Height, 50 gal Grey Water, 50 gal Black Water, 75 gal Fresh Water, 25 gal LP, 35,000 BTU Furnace, 10 gal Water Heater.

Chassis Specifications
Chassis Information 362 Engine HP, 5.38 Axle Ratio, 75 gal Fuel Capacity, 208” Wheel Base, 7,000 lb Front GAWR (Gross Axle Weight Rating is the maximum permissible weight for an axle), 13,500 lb Rear GAWR, 20,500 GVWR (Gross Vehicle Weight Rating is the maximum permissible weight of a fully loaded motorhome), 26,000 lb GCWR (Gross Combination Weight Rating is the value specified by the manufacturer of the vehicle as the maximum allowable loaded weight of this motorhome and any towed trailer or towed vehicle), 17,666 lb UVW (Unloaded Vehicle Weight is the weight of this motorhome as built at the factory with full fuel, engine oil and coolants. The UVW does not include cargo, fresh water, LP gas or dealer installed accessories), 2,834 lb NCC (Net Carrying Capacity is the maximum weight of all occupants, including the driver, personal belongings, food, fresh water, waste water, LP gas, tools, tongue weights of towed vehicle, dealer installed accessories, etc. that can be carried by the motorhome.).

Chassis Features
Ford F-53 Chassis, Electric Leveling Jacks with Touch Control, Cruiser Control, Tilt Steering Wheel, Stainless Steel Wheel Simulators.

Air Conditioning & Heating
Two 13.5M Penguin Central Air Conditioners, LP Furnace with in-floor Ducted Heat, Dash Heater and High Output Air Conditioner, LP Leak Detector.

Appliances & Accessories
Three-burner Recessed Range with Glass Oven Door and Piezo Ignition, Solid Surface Range Cover, Norcold 10 Cu.Ft Refrigerator, Hardwood Raised-Panel Refrigerator Front, Spacemaker Microwave Oven, 10 Gal. Gas/Electric Water Heater with Direct Spark Ignition, Sony Flatscreen Color TV in Living Area, Panasonic Flatscreen Color TV in Bedroom, AM/FM Dash Radio with Cassette and CD Player, DVD Player, Rearview Monitor System, TV Antenna with Power Booster and Two Interior Jacks, Satellite Prep-Phone, TV Jack and Receptacle, Exterior TV Jack on Door Side, Telephone Connection with Phone Jacks in Living and Dash Area, Two Bedroom Radio Speakers with On/Off Switch, Cooler Located in Entrance Step Compartment, 10 Bc Fire Extinguisher, Carbon Monoxide and Smoke Detectors.

Cabinets & Furniture
Oak Hardwood Raised-Panel Cabinet Doors, Booth Dinette with Forward-facing Seatbelts, Solid-Surface Countertop in Kitchen with Undermounted Acrylic Sink and Flush Sink Covers, Laminate Countertop in Bathroom with Porcelain Bowl, Drawers with Metal Guides, Ultraleather Cirrus Driver/Passenger Seats with Six-way Power, Power Lumbar and Ergo-Flex Arms, Lifts on Bed Top to Access Storage Area, Tufted Mattress with Quilted Bedspread.

Electrical Features
6.5KW Guardian Generator with Remote Switch and Automatic Changeover, 50 Amp Electrical Service with Flexible Cord, Two 12 Volt House Batteries on Pullout Tray, Battery Disconnect Switch, 110 Volt Exterior Receptacle on Door Side, 5 Watt Solar Panel, 55 Amp Converter, Daytime Headlight System, Emergency Start Switch, Exterior Security Lights, One on Each Side, Fluorescent Lights Throughout, Lighted Wardrobe, Slideout Information Voice Module, Manually Operated Hold-to-Run Slideout Switch.

Exterior Features
Convex Exterior Mirrors with Remote Control, Defrost and Turn Signals, Automatic Entrance Door with Triple Step, Lighted Exterior Storage Compartments Controlled by Interior Master Switch, 5,000 lb. Towing Hitch, Lighted Acrylic Assist Handle at Entrance Door, Rear Ladder, Undercoating.

Interior Features
Padded Vinyl Ceiling, Day/Night Pleated Window Shades and Lambrequins, Mini-blinds in Kitchen and Bath Areas, Woodgrain Fascia with Decorative Accents on Living Area and Bedroom Slideouts, Vinyl Floor in Kitchen and Bathroom Areas, Deluxe Carpeting with High Density Padding in Living Room and Bedroom, Flat-panel Interior Passage Doors, Interior Assist Handle at Main Entrance Door, Sun Shades on Driver and Passenger side Windows.

Plumbing & Bath Features
Sewage hose Holder, Easy access, Flip Down Tray, Sewage Holding Tank Rinse, Water Heater Bypass System, Thetford Aqua Magic Plus China Stool with Spray Attachment, Towel Bars and Tissue Holder, Towel Ladder on Hinged Bathroom Door Only, Tub/Shower Surround with Shower Door, Monitor Panel, Exterior Shower.

Windows, Awnings & Vents
Double-pane Tinted Safety Glass Windows, Fan-Tastic Vent with Rain Sensor in Kitchen Area, Power Vent with Wall Switch in Bathroom, A&E 9000 Side Awning.

Prices and Specs Subject to Change Canadian Specs May Differ From U.S. All Above Specs Taken from 2006 Newmar Sales Information, some items may have been removed , changed or upgraded or not completely accurate.
