VIN#1F6NF53Y260A03299

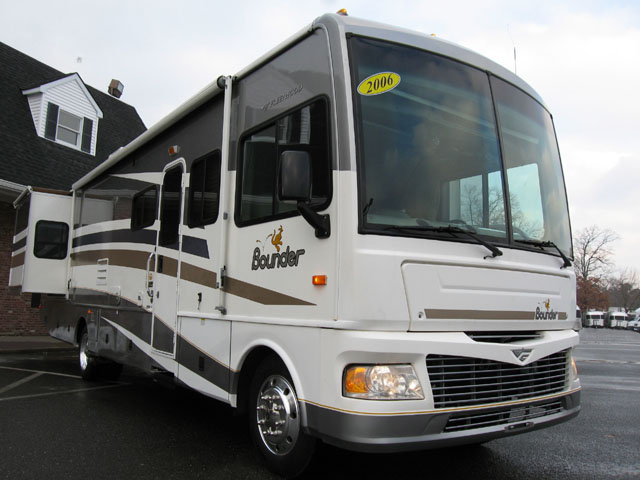

Model: 2006 Fleetwood Bounder 36Z 37'3"

Weights and Measurements
6.8 Engine Displacement (Liters), 228 inch Wheelbase, 22,000 lb GVWR,7,500 lb Front GAWR, 14,500 lb Rear GAWR, 18,150 lb Base Weight, 26,000 lb GCWR, 5,000 Height Weight Rating,500 lb Tongue Weight, 75 gal Fuel Capacity.

Dimensions and Capacities
37' 3" Overall Length, 12' 10" Overall Height (with A/C), 102" Overall Width (Maximum), 84" Interior Height (Maximum), 96" Interior Width (Maximum), 85 gal Fresh Water Holding Tank, 58 gal Grey Water Holding Tank, 42 gal Black Water Holding Tank, 25 gal Appliance Propane Tank, 6 gal Water Heater Tank.

Chassis
Ford, 4 Speed Automatic with Overdrive, 6.8L Triton V10, 457 lb-ft @4750 RPM Torque, 130 Amp Alternator Amps, 362 HP Horsepower, 245/70R 19.5 (F)/ 245/70R 19.5 (G)/32W/ 235/80R 22.5 (G) (33R, 34F, 35E & 36Z).

Standard Features
Interior Throughout Deluxe Roller Bearing, Full Extension Drawer Guides, Plush Wall-to-Wall Carpet w/Carpet Pad, Whole Coach Water Filtration System, 6 Gallon Quick-Recovery Water Heater w/Direct Spark Ignition, 120V/12V AC/DC Converter, 120V/12V Wire Raceways, 3 Interior Decors, 34,000 BTU Furnace, 3 Way Water Pump Switch, Central Electrical Panel, Coordinated Cabinet Hardware, Decor Lighting, Dual 6V Deep Cycle House Batteries, Dual Roof A/C High Efficiency w/Solar Panel on Front A/C, Energy Management System, Flourescent Lighting, Incandescent Lighting, Radius Corner Cabinetry, Solid Divider Doors, Telephone Jack in Dash, TV Antenna, Wall Switches, Water Heater Bypass, Wood Drawers.

Driver Convenience
AM/FM Radio w/CD Player, Satellite Radio Ready, Double Swivel Sun Visors w/Map Pockets, Driver/Front Passenger Captain's Chairs with Reclining Back/Slide Controls, 3-Point Seat Belts at Driver & Front Passenger Seats, Auto A/C Heater Combo, Auxiliary Start Circuit, Battery Shut-Off Switch, CB Radio Ready, Cruise Control, Dash Fans, Intermittent Wiper Control, Low Profile Engine Cover, Monitor Panel in Dash, Radio Switch-Main/Auxiliary Power, Soft-Surface Automotive Dash, Tilt Steering Wheel.

Living Room
Front 27" Flat Screen Stereo TV in Overhead, Entry Assist Handle, Hi-Fi VCR, Lounge Recliner, Residential Seat Styling.

Galley
8 cu.ft. Dometic Double Door Refrigerator, Large, Double Stainless Steel Sink, 1.4 cu ft Over the Range Microwave Oven w/Electronic Touch Pad, 3 Burner Cook Top, Adjustable Cabinet Shelves (Select Cabinets), Demand Water Pump with Filter, Fan-Tastic Power Roof Vent, Flat Panel Base Cabinet Doors, Folding Range Cover, Large Drawers Under Dinette, Raised-Panel Cabinet Doors, Single Lever Galley Faucet w/Pullout Sprayer, Sink Cover Cutting Board, Vinyl Flooring, Waste Basket.

Bedroom
20" Flat Screen TV, Deluxe Mattress, Bedspread w/Decor Pillows, Pleated Shades, Rear Speakers, Restonic Innerspring Mattress, Second Phone Jack, Wardrobe Lighting.

Bathroom
Glass Shower w/Skylight and Lower-Step Threshold, Coordinated Bath Accessories, Fan-Tastic Power Roof Vent, Hardwood Bath Door/Trims, Molded Tub/Shower Enclosure, Porcelain Toilet w/Water Saver, Skylight in Tub/Shower, Toilet Tank San-T-Flush System.

Safety/Convenience
10 ABC Fire Extinguisher, Carbon Monoxide Detector/ Alarm, Propane Detector/Alarm, Smoke Detector/Alarm.

Fleetwod Advantages
Complete TuffPex Plumbing System, Tuff-Ply UV-Resistant Heat/Cold Insulated Roofing Technology, Vacu-Bond Upper/Lower Floors, Vacu-Bond Walls w/Smooth High Gloss Exterior Tuff-Coat Fiberglass, Power Platform Construction.

Exterior
Heated Water & Holding Tank Compartments, 3 Colorway Graphics to Match Decor, 5.5kW Onan Generator, 50 Amp Service (Optional on 32W & 33R, 30 Amp Standard on 32W and 33R), ABS Wheel Well Trims, Awning Rail/Drip Molding (Both Sides), Dual Battery Charge Control, Dual Pane Windows w/Screens, Dual Patio Receptacles, Fiberglass Front/Rear Caps, Large Headlamps, Mud Flaps, Park Cable Receptacle, Patio Awning, Single Motor Windshield Wipers with Wet Arm, TV/12V Jack in Doorside Compartment, Utility Compartment with Exterior Shower, Valve Extenders, Wheel Simulators (Aluminum Wheels on Ford Chassis 36Z)

Automotive
4 Point Automatic Electric Levelers, Large, Curved Aerodynamic Bonded in Windshield, Steel Surface on Bulkhead, Trailer Hitch with 7 Point Electrical Hook-Up, Underhood Utility Light (The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing.)

Safety/Convenience
Remote Heated Rear View Mirrors, Entry Door w/Screen Door & Deadbolt Lock, Porch Light (Doorside), Power Entry Step, Roof Ladder, Spare Tire (32W Only).

Body Structure
Basement Floor Configuration, Vacu-bond Upper/Lower Floors, Vacu-bond Walls with Smooth High Gloss Exterior Fiberglass, Aluminum Interlocking Floor/Wall/Ceiling Framing, Radius Roof w/Ducted A/C, Royal Tuff-Ply Radius Roof w/Ducted A/C.

Storage
EZ-Store Compartment on Living Area Slide-Outs, Rotomolded Polyethylene Luggage Compartments, Continuous One-Piece Compartments Bulb Seal, Gas-Lift Strut Supports, Hidden, Stainless Steel Latch Rods, Insulated Aluminum Luggage Doors w/Single Paddle Metal Latches & Stainless Steel Hinges, Lighted Luggage Compartments.

Prices and Specs Subject to Change Canadian Specs May Differ From U.S. All Above Specs Taken from 2006 Fleetwood Sales Information, some items may have been removed , changed or upgraded or not completely accurate.
