Chassis Vin # 5B4KPE75693436842

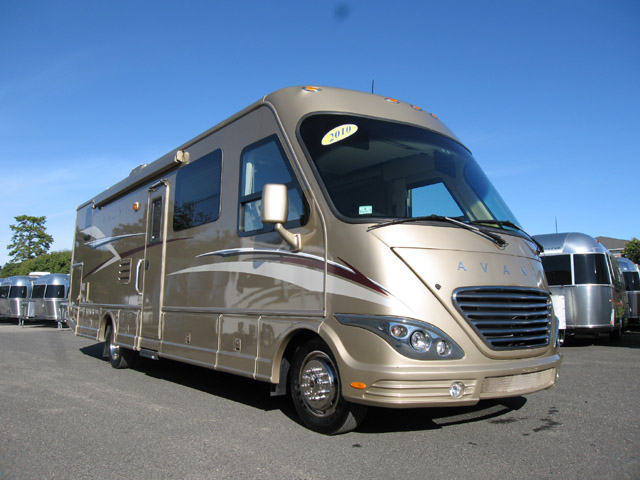

2010 Damon Avanti 3106 31'10"

Weights & Measures
Freightliner Chassis, 208" Wheelbase, 31'10" Overall Length, 94" Overall Width, 10'11" Overall Height (W/AC), 78" Interior Height, 18,000# GVWR, 7,500# GAWR Front, 10,500# GAWR Rear, 26,000# GCWR, 60 Gal Fuel Capacity, 50 Gal Fresh Water, 6 Gal Water Heater, 40 Gal Grey Water, 40 Gal Black Water, 80# Propane, Sleeping Capacity for 4, 121.5 cu/ft Exterior Storage.

Chassis
Freightliner MC-L Front Engine Chassis, 200 HP Cummins Engine, Allison Automatic Transmission With Overdrive, 19.5 Tires, Wheel Simulators, Front & Rear Mud Flaps, 5,000# Trailer Hitch/500# Tongue, Emergency Start Circuit, Under Hood Light, One Touch Fully Automatic 4 Point Leveling Jacks.

Chassis Option
Workhorse W16D MaxxForce™ 5 V6 diesel engine, Allison 1000 Series transmission, 200 horsepower, 440 ft.-lbs. of torque, Brembo 4-wheel disc brakes, 50-degree wheel cut and electronic instrument cluster with full instrumentation and information center. Leading edge technology makes the MaxxForce 5 a “clean diesel” engine that improves both emission levels and fuel efficiency. That and the relatively light weight of the Workhorse chassis both contribute to the Avanti’s fuel economy and payload capacity.

Exterior
Radius Corner Domed TPO Roof, Fiberglass Front & Rear Caps, Tinted One Piece Wraparound Windshield, Dual Pane Windows, Painted Fiberglass Exterior With Graystone Graphics, Smooth High Gloss Fiberglass Wall, Invisible Bra, Electric Patio Box Awning, Patio Light, Locking Exterior Storage Doors with Gas Strut Supports, Lighted Rotocast Storage Compartments, Electric Entrance Step.

Cockpit
Windshield Privacy Shade, Sun Visors, 6 Way Power Driver Captain's Chair, Reclining Swivel Passenger Captain's Chair, 3 Point Wall Mounted Seat Belts, Tilt Steering Wheel, Cruise Control, Map Lights, Automotive Styled Dash, Electronically Controlled Dash Air Conditioning, Side Mount Power Mirrors With Heat, Drink Holders.

Multimedia
17" High Definition Ceiling Mounted LCD TV (12 Volt) With DVD Player in Bedroom, Digital Touch-Screen Multi-Media System with 5.1 Home Theater w/DVD, AM/FM/CD/MP3, iPod Interface, SD Card Reader, USB, Bluetooth, GPS Navigation Ready, Satellite Radio Ready & Back Up Color Camera Monitor System, Cable TV/Satellite Control Center, Satellite Dish Prep, Exterior TV Prep.

Interiors And Furniture
Radius Wood Cabinet Doors, Cherry Colored Cabinetry Throughout, Ball Bearing Drawer Guides In Kitchen, Roman Style Day/Night Shades in Living Area, Vinyl Flooring in Living Room, Kitchen & Bathroom, Carpet Throughout in Bedroom, "Damon Advantage Sleeper" Drop Down Bed (1 1/2" Magic Box Spring w/2" Mattress), "U" Dinette, Chaise Lounge Passenger Side, Pillow Top Innerspring Mattress With Pillow Shams, Pillows and Custom Fit Comforter, Under Bed Storage System, Ceiling Lights With Switch in Bedroom, Privacy Divider Panel In Bedroom.

Kitchen
8 CuFt Large Euro Style Flush Mount Double Door Refrigerator, Microwave/Convection Oven With Cooktop and Integrated Range Cover, Lighted Power Range Hood, Extra Deep Radius Sink.

Utilities And Plumbing
13.5 BTU High Capacity Ducted Central Air, Remote Thermostatically Controlled Air Conditioning, Fantastic Power Vent With Rain Sensor And Remote In Living Room, Power Vent In Bedroom And Bathroom, 34,000 BTU Electronic Ignition Furnace, 30 Amp 120 Volt Service, Onan 3.2KW Quite Diesel Generator, Combination 70 Amp Converter/1200 Watt Inverter, Deep Cycle Auxiliary Battery, Battery Disconnect, Exterior GFCI Receptacle, Carbon Monoxide, LP Gas and Smoke Detectors, Monitor Panel with LPG Readout in Kitchen, 6 Gallon Gas/Exterior Water Heater With Electronic Ignition, Water Heater Bypass Kit, Shower With Surround, Radius Glass Shower Door, Skylight In Bathroom, Foot Flush Toilet, Enclosed Heated Potable and Holding Tanks, Black Water Tank Flush, Exterior Shower.

Prices and Specs Subject to Change Canadian Specs May Differ From U.S. All Above Specs Taken from 2010 Damon Sales Information, some items may have been removed , changed or upgraded or not completely accurate.
