CHASSIS

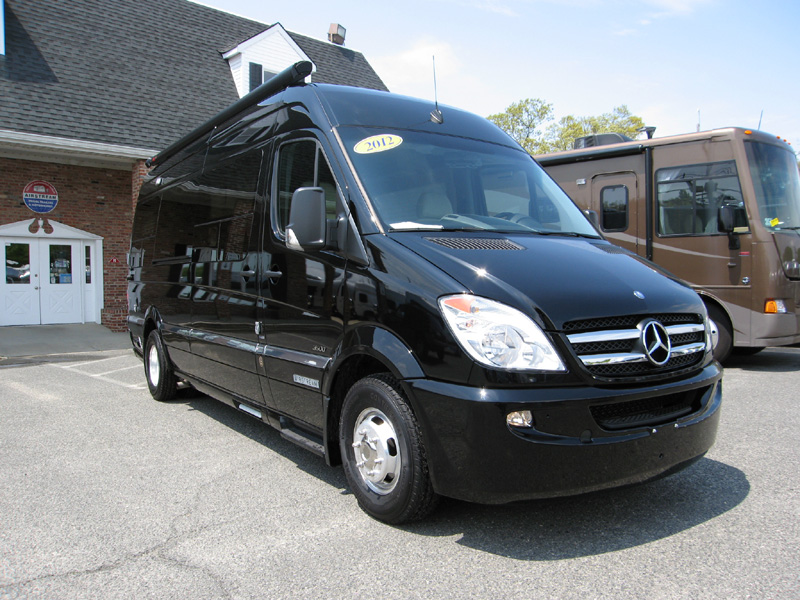

3500 Series Mercedes Sprinter Van Unibody Construction • Mercedes 3.0 Liter Turbo Charged intercooled V-6 Diesel 188 HP• 5-speed Automatic w/Overdrive • 11,030# GVWR • 15,250# GCWR • 8,133# UBW • 2,897# NCC • Traction Control • Adaptive Electronic Stability Control • Traveling Seating Capacity- 7 • Sleeping Capacity- 2 • 170” Wheelbase • 12V Air Compressor & Puncture Sealant • 50 State Emissions • 26.4 Gallon Fuel Tank • Radial Tires • 4 Wheel Disc Brakes • 220 Amp Alternator • Steel Rims with Stainless Steel Wheel Simulators • Full Size Spare Tire w/Crank Down Winch • Maintenance Free Chassis Battery • Deep Cycle AGM Maintenance Free Auxiliary Batteries (2) • Manual Auxiliary Battery Disconnect • Body Thermal & Acoustic insulation • Towing Capacity 6900# • Tow Hitch and Wiring • 74 ¼ interior Head Room • 70" Interior Width @ Floor • 22' 9" Exterior Length • 79.7” Exterior Width • 9' 8" Exterior Height with Antenna • Locking Fuel Fill Door • Rear Window Defrosters • Frameless Awning Style Windows • Body Insulation • Alcoa Aluminum Rims.
DRIVER COMPARTMENT
Driver & Passenger Air Bags • Power Windows • Power Locks • Chassis Air Conditioning • Tilt and Telescopic Steering Wheel • Privacy Blackout Curtain (Wrap Around) • Premium In-Dash 7 Inch Touch Screen Multimedia Sirius Satellite Radio, Garmin Navigation, Navtech Traffic, DVD, CD, AM/FM, Bluetooth, Pandora, USB, MP3, iPod/iPhone and Smart Phone connectivity, hand held remote control, Satellite Tuner and Satellite Antenna • Dash Trim Enhancement Kit • One-Peice Driver/Pasenger Floor Mat.
EXTERIOR
White Body • Exterior Body Kit • Fog Lamps • Airstream Medallions • Interstate Medallions • Tinted Glass (Except Cab Area) • Patio Awning 13'- Power.
INTERIOR
Flush Mount Cabinet Doors • Recessed Hardware • Pleated Day/Night Shades • Vinyl Flooring • Interior Ceiling Aluminum Finish w/ Select Padded Areas.
- Light Camel Features: Asian Sand Cabinetry, High Gloss Laminate, Juta 39M Beau Flooring, Tan Ultraleather w/Sculpted Design, Burl Dash Trim Kit & Accent Pillows.
- Onyx Features: Asian Night Cabinetry, High Gloss Laminate, Juta 39M Beau Flooring, Grey Ultraleather w/Sculpted Design, Ash Burl Dash Trim Kit & Accent Pillows.
LOUNGE
Power Rear Sofa- Ultraleather w/Memory Foam • Ultraleather Decor- Captains Chair (1) & Driver/Passenger Seating • Corian Pedestal Mount Table • Jack-Knife Design CS & RS Sofas in Ultra Leather w/Memory Foam • Adjustable CS Shelf Storage • Large Hallway Wardrobe.
GALLEY
Corian Galley Top with Backsplash • Sink w/integrated Cover & Fold Down Faucet • 2 Burner Cook-Top with Glass Lid • Corian Galley Flip-Up Shelf.
BATHROOM
Expandable Wet Bath includes Hinged Door & Shower Curtain • Toilet • Shower LED Lights (2) • Toilet Paper Holder • Towel Rack • Lavatory • Clothes Line/Hanger • Mirror • Liquid Soap, Shampoo and Lotion Dispenser • Shower Mat • 12V Bath Fan.
APPLIANCES
2 Burner Cooktop w/ Glass Cover • 3.1 Cu. Ft. Compressor Style Refrigerator (12V/110V) W/Aluminum insert • 1.2 Cu. Ft. Convection Microwave W/ Half Time Oven Mode • Omni Directional TV Antenna • Cable TV Hook-Up • Smoke, Carbon Monoxide & LPG Detectors • Satellite Dish/Receiver Prewire • 13,500 BTU Low Profile Air Conditioner w/Wall Thermostat • 16,000 BTU Furnace • 6 Gallon LP/Electric Water Heater - XT Series (Equivalent Output of a 9 Gallon Water Heater) • Rearview Camera w/Rearview Mirror Monitor.
ELECTRICAL
LED Ceiling Lights • Indirect LED Lighting • Led Directional Reading Lights (2) at Sofa Location • Probeless Tank Monitoring System • Maxx Air Roof Vent w/Built-in Thermostat (Exhaust Only) • 12V & 120V Exterior Outlets at Patio C.S. • 30 Amp Service Power Cord • Solar Panel Prewire • Exterior TV Hook-Up at Patio • Bath Exhaust Fan • Patio Light • 45 Amp Multi-Stage Charger/750 Watt inverter • Macerator Pump Discharge System • Electric Step w/Auto Retract & Step Out Warning Buzzer w Built-in Light • Variable Speed Water Pump • 30 Amp Service w/Energy Management System & Power Cord • 2.5KW Quiet Microlite LP Generator W/Remote Start • Two 12 Volt Maintenance Free Group 24 AGM Batteries • House and Engine Battery Seperator with Emergency Auxiliary Start Feature • TV/DVD 19" In Wardrobe Door • 13,500 BTU A/C W/ Wall Thermostat • Battery Separator.
SYSTEMS
17.5 Gallon LPG Tank Remote Fill • 26 Gallon Fresh Water Tank w/ Drain • 27 Gallon Grey Water Tank • 16 Gallon Black Water W/Tank Flush • Heated Grey & Fresh Tanks- 12 Volt • Fire Extinguisher • Exterior Shower • City Water Hook-Up • Gravity Fresh Water Fill • Macerator Hose Reel w/Electric Retract Feature.
Safety System
• Advanced safety systems are integrated throughout the Interstate. These include state-of-the-art Mercedes-Benz Adaptive ESP® (Electronic Stability Program), which combines eight individual onboard systems into one smart, superior safety system. It greatly reduces the dangers of skidding, sliding sideways, brake locking, rollover and loss of traction. Additional safety features include: driver and passenger air bags, three-point seat belts with belt tensioners for all captain’s chairs, hands-free phone conversations, navigation assistance and rear view camera monitor. Whether you’re driving, maneuvering, reversing or towing, you’ll feel confident and in control.
• Onboard Safety Systems keep things safe and sound including a First Aid Kit, LP Gas Detector, Smoke and CO Alarm and Fire Extinguisher.
Powertrain System
• Mercedes-Benz V6 3.0L Turbo Diesel engine delivers quick acceleration, outstanding torque, exceptional fuel mileage (18+ MPG) and legendary reliability. BlueTEC SCR technology complies with strict emission standards and delivers one of the cleanest engines in the world. An enhanced 5-speed automatic transmission, featuring Start-off Assist is also included.
Chassis System
• Mercedes-Benz 3500 Chassis provides maximum strength and durability while delivering amazing car-like handling with independent front suspension. Reinforced leaf springs, rack and pinion steering, four wheel disc brakes, premium all-season tires and Alcoa® aluminum wheels are also standard.
Towing System
• Mercedes-Benz tow package allows for a heavy-duty towing capacity of up to 6,900 pounds. It also includes seven-pin trailer wiring and is pre-wired for a brake controller.
• Mercedes-Benz ESP Trailer Stability Assist enhances driving safety when towing a trailer.
Navigation System
• Innovation abounds with the latest in-dash, multimedia technology. We’ve included the world’s leading GPS navigation system with voice guidance, traffic data, lane assist for upcoming intersections, speed limit notification and over six million points of interest. The system also includes an ecoRoute® function that will automatically search for the most fuel-efficient routes.
Maintenance System
• Mercedes-Benz Active Service System (ASSYST) is an onboard maintenance system that monitors usage and provides recommended service intervals. Maintenance intervals can be extended up to 10,000 miles or two years depending on usage, which can also help reduce maintenance and repair expenses.
Electrical System
• The highly advanced electrical system is both easy and safe to use. It allows you to hook-up to 30 amp shore power or to engage the onboard power plant system, which includes a 2.5kW Onan® generator, two 12-volt deep cycle, maintenance-free Absorbed Glass Mat (AGM) batteries, 750 watt inverter/45 amp multi-stage charger, heavy duty 110V landline connection, 220 amp heavy duty alternator, and optional 50 watt solar panel. Highly efficient LED technology is integrated throughout the coach, for significant energy savings.
• The Energy Management System (EMS) simplifies the process by automatically monitoring and managing the 110 volt electrical appliances and system.
Plumbing System
• This well-designed and well-built plumbing system consists of high-grade materials and components, including Atwood® XT combination gas/electric hot water heater with aluminum tank, electronic direct spark ignition, 50 PSI Flo-jet water pump, automatic heated tanks, probe-less tank sensors, inline water filter, water flex lines, water pressure regulator, lowpoint drain valves, HEPVO waterless waste valves, premium faucets, RV360 roof-mounted vent caps, macerator waste pump and termination valve, power retractable waste hose reel and electric dump valve.
Construction System
• Extreme engineering and design goes into the building and construction, including a unique, highly advanced, seven-layer composite flooring system that’s 1.5 inches thick and provides superior strength and durability. The flooring also offers a high R factor, isolation from road noise and resistance to expansion and contraction. R7 fiberglass insulation throughout the main cabin helps keep the inside of the coach comfortable and quiet. Beautifully curved, high-gloss, laminated cabinetry has been constructed with artful, high-quality craftsmanship. The premium flush-mounted release buttons and heavyduty solid hardware hinges provide solid-shut cabinets and rattle-free traveling. Other premium materials include Airstream signature aluminum ceilings and extruded aluminum under-cabinet molding.
Entertainment System
• Pure entertainment pleasure is integrated throughout the cabin with the latest and greatest technology. The in-dash experience includes a multimedia, seven inch touchscreen system, featuring remote control, Sirius® Satellite Radio, AM/FM/CD/DVD/Navigation, Pandora® Internet Radio connectivity, iPod video direct cable compatibility with iPod®, iPhone and iPad. Bluetooth® technology allows for safe, hands-free calling, along with the ability to listen to music wirelessly from Bluetooth® devices. The in-cabin entertainment experience also offers superslim LED LCD wide-screen, high definition TV and DVD combination with Dolby® Digital Theater System and remote control. TV can be viewed while stationary or in-motion via the omnidirectional antenna. Please consult your Airstream dealer for additional information regarding cable or satellite TV options.
