THE FOLLOWING ITEMS ARE STANDARD ON THIS MODEL AT NO EXTRA CHARGE UNLESS REPLACED BY OPTIONAL EQUIPTMENT.

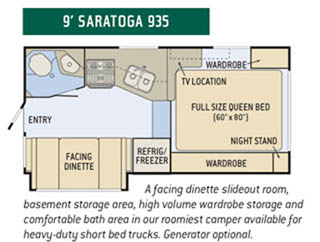

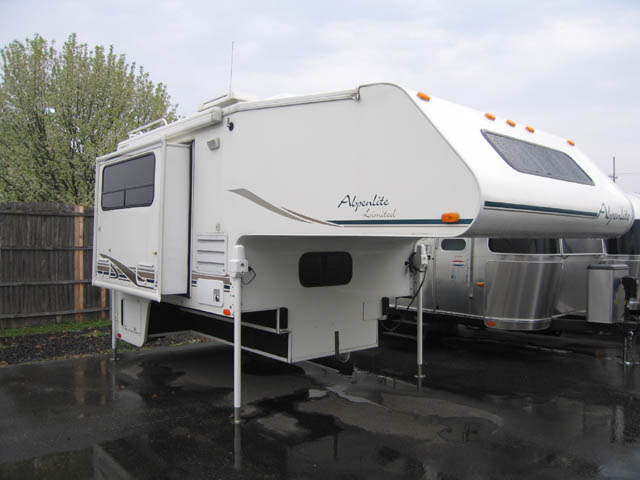

Model: 2004 Alpenlite 935 Saratoga Truck Camper 17'11"

Exterior Length 17'11", Exterior Width 8'1", Exterior Width with Slide-Out 9'6", Exterior Height with Roof Rack 9'6", Interior Head Room at Living area 6'6", Floor Length 9'4", Center of balance 39", Dry Weight 3,180 lbs., Fresh water Capacity 35 Gallons, Grey Water Capacity 25 Gallons, Black Water Capacity 25 Gallons, Made for a short bed pickup truck.

CONSTRUCTION

5 year Limited Structural Warranty, 45 deg. MIG welded 6005 T-5 aircraft quality aluminum tube structure, Lampro® high-gloss gelcoated fiberglass exterior w/luan reinforcement, 2lb. density polystyrene closed cell block foam insulation, Vacubond laminated ceiling w/block foam insulation, Vacubond laminated sleeper floor w/block foam insulation, Vacubond laminated sidewalls, floor and offsets w/block foam insulation, Brite-Ply® EPDM roofing membrane w/12-year Limited Warranty, Seamless fiberglass sidewalls and rear wall for strength and weather tightness, Seamless one-piece fiberglass lower front wall for protection and weather tightness, Laminated gelcoated fiberglass front nose wrap, Double sealant process throughout, Solid metal corner mouldings w/recessed screws, Drip rails, both sidewalls, w/down spouts at front and rear to minimize “black streaking”, Vinyl sealed underbelly w/solid metal corner mouldings and recessed screws to protect truck bed, PowerGear® slideout, blade and bulb seals (935, 950, 1150 only)

SAFETY

Rear bumper w/dual position folding step (n/a 850), Atwood Protechtor® LPG leak detector and alarm, Carbon monoxide detector and alarm, Smoke detector and alarm, First Alert® fire extinguisher, Black framed radius safety glass windows, Rear magnifier back-up window w/nighttime privacy shade, Dead bolt entry lock, 24” powder coated entry grab bar, Powder coated formed steel tie down brackets, Bedroom skylight escape hatch, Interior switched porch and security lights, GFCI protected 110V electric receptacles, Flame treated interior fabrics conforming to FMVSS code

BATHROOM

Seamless full height fiberglass shower stall w/tub, shower seat and item shelf (n/a 800, 850), Seamless full height one-piece fiberglass bathroom and shower area (930, 935 only), Fiberglass shower stall (800, 850 only), Large vanity sink, Karadon® one-piece solid surface vanity countertop with backsplash and undermounted stainless steel sink (n/a 800, 850, 930, 935), Shower skylight (std. 800, 850 only; opt. other models), Thetford® fresh water flush toilet, Raised toilet pedestal for comfort, Ducted heat (n/a 800, 850), Telephone style showerhead w/water saving on/off feature, GFCI protected 110V electric receptacle (n/a 800, 850, 930, 935), Large under sink storage area, Medicine cabinet w/locking mirrored door, Mildew resistant vinyl shower curtain w/tie back, Towel bar, Screened ceiling vent w/power exhaust fan

PLUMBING AND ELECTRICAL

30 amp service w/attached 25 foot electrical cord and locking cord storage, Suburban® 6 gallon auto re-light water heater, Shurflo® water pump w/in-line filter, Enclosed & insulated holding tanks for all season capabilities, Weld-A-Flush® waste tank flush system, Liquid waste hose carrier, Enclosed and insulated dump valve system, Insulated fresh water tank, Low point fresh water drains, Outside shower w/residential dual control, Water heater by-pass, Manchester® dual 5 gallon LPG tanks w/sight gauges, Marshall® automatic changeover LPG regulator, Seamless and insulated poly LPG compartment, PDI® 45 amp converter, Locking seamless and insulated poly battery compartment, Dual battery compartment w/battery hold downs, Pre-wired for Atwood® electric jacks w/plugs installed (push button or remote), Pre-wired for telephone w/exterior and interior jacks, Pre-wired for roof air conditioner, Pre-wired for Fan-tastic® fan, Pre-wired for Cable TV / Satellite Dish / TV Antenna, Pre-wired for Solar Panel, License plate light/holder (holder only - 850), 110V patio receptacle, 110V convenience outlets w/GFCI protection, Integrated systems monitor panel w/batt. cond., fluid level and “water pump on” indicator, 12 volt power disconnect switch

GALLEY

Dometic® 3-way 6-cubic ft. double door refrigerator/freezer (n/a 800, 850), Dometic® 3-way 4-cubic ft. refrigerator/freezer (800, 850 only), Wedgewood® sealed 3-burner high-output range, Bi-fold range top cover, Range hood w/exhaust fan & light, Wedgewood® oven w/igniter, Sliding Pantry with adjustable storage baskets (n/a 800, 850, 930, 935), High quality Euro Drawers w/residential grade metal roller guides, Karadon® custom one-piece solid surface countertop, Single lever control residential style sink faucet, Karadon® Solid Surface split sink covers, Sliding dinette table w/table leg stabilizer (n/a 935, 950, 1100, 1150), Mannington® Pavilion vinyl floor covering, Large under sink storage area

EXTERIOR

Extended Cabover (standard all floor plans)\, Atwood® ball screw manual camper jacks, All jack brackets bolted through frame w/metal reinforcement, Torque windows - galley and dinette, PPG® GL-20 Solar Privacy Glass Windows w/screens, Fiberglass rear brow/porch lip, Locking electrical, cable TV and telephone connection center, White framed radius top entry door w/deadbolt lock, White powder coated roof rack and ladder, Radius pass through window to truck cab, Front cabover safety glass window, Insulated storage access doors, Common keyed exterior compartments, Rubber front wall truck bed bumpers, Locking outside access to inside storage (n/a 800, 850), Access from inside to truck bed storage (800, 850 only), Rear compartment w/long storage, Basement storage w/sliding tray (n/a 800, 850)

INTERIOR

Kenwood® AM/FM compact disc player w/speakers, 25,000 BTU auto ignition furnace (n/a 800, 850), 18,000 BTU auto ignition furnace (800, 850 only), Solid hardwood cabinet doors - Fawn Maple finish, Screwed, glued and stapled wood face frame cabinetry, Residential cabinet hardware, Fold down bunk (optional 935, 950, 1150), Color coordinated wall border, Carriage® deluxe residential stain resistant carpet, Flexsteel® residential style premium upholstery fabric & foam, Deluxe upholstered valances & lambrequins, Pleated shade at cabover front window, Full 60" x 80" Queen size bed, Bodyrest® custom innerspring mattress, Designer interior choices -, Custom fit designer mattress cover, Designer dinette accent throw pillows, Designer bedroom pillows w/shams, Bedroom folding privacy curtain w/tie back, WilsonArt® laminate lightweight dinette table, Bedroom reading lights, Insulated emergency vent cover over bed, Screened roof vents, Front storm window, Mini blinds in galley, dinette & sleeper area.

Prices and Specs Subject to Change Canadian Specs May Differ From U.S.

VIN#19352

All Above Specs Taken from 2007 Alpenlite literature, some items may have been removed , changed or upgraded or not completely accurate.
