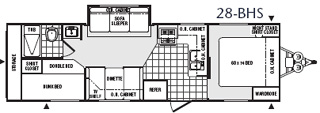

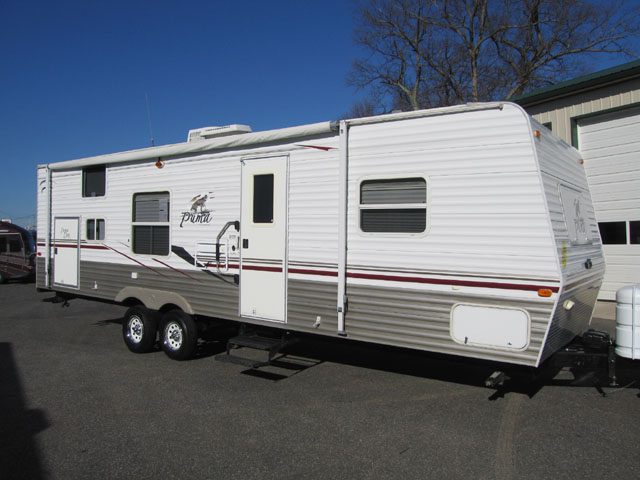

Model: 2006 Palomino Puma 28BHS 29'8"

VIN#1PAT64D246P005239

Hitch Weight 640 Lbs., Dry Axle Weight 5,260 lbs., Total Dry Weight 5,900 lbs., Carrying Capacity 1,277 lbs., GVWR 7,640 lbs., Tire/Rim Size 15", Interior Height 80", Exterior Height with A/C 10'5", Exterior Width 98", Overall Length 29'8", Fresh Water Capacoty 45 Gallons, Grey Water Capacity 32 Gallons, Black Water Capacity 32 Gallons, EXTERIOR FEATURES .024-Gauge Mesa Aluminum Exterior, Clamp Ring Windows, Double Entry Doors (where applicable), Pass-Thru Storage (where applicable), Rubber Roof - 12 Year Manufacturer’s Warranty 1st owner, E-Z Open Double Entry Steps, Rain Gutters R7-Fiberglass Insulation (all 6 sides), 4-1/2” Crowned Truss Rafters, Automotive Style Fender Skirts, Radius Trunk Doors, Wrapped Darco Underbelly, One Piece, 24’ Sheet, 5/8” Floor, Decking (25 Year Manufacturer’s Warranty by Affiliated Resources, Inc.), 2 x 3 Flush Joists on 12” Centers, Lighted Pass-Thru Exterior Compartments (where applicable), 2-20 lb. Gas Bottles, 6 Gal. DSI Hot Water Heater, Rack and Pinion Electric Slide System with manual override (standard on all slide out models), High End Exterior Graphics, Extra Color Band Metal on the Bottom Sidewall, Heavy Duty Storage Door for the Puma Den Option, Rear Garage Storage Compartment (standard on the 27FQ, 28BHS, 30RDSS and 259RGSS) INTERIOR FEATURES Seating Technology Furniture, 80” Interior Height, Insulated Duct A/C (all models), Floor Ducted Heat, Flush Floor Slide-Outs, Real Wood Drawers, Plant Built Wood Medicine, Cabinet with Mirrored Door 60/40 Deep Double Bowl Kitchen Sink, High Rise Kitchen Faucet, Cathedral Mortise and Tenon Cabinet Doors, Suburban 3-Burner, High Output Range, Knife Rack, Upgrade Window Treatment, 55 Amp Converter with Battery Charger, Flip Down Utensil Tray (kitchen), Innerspring Mattress, Bedroom Carpet, 1 Sink Cover, Single Door Refer, Power Vent in Bath 12V Shower Light, 4 Interior Colors, Polished Nickel Finish Cabinet, Hardware, Light and Bath Fixtures, Cabinet Doors under Dinette Seats, Upgraded Carpet (21 oz.), Upgraded Residential Armstrong Tough Guard Linoleum, High End Looking Counter Tops, Color Coordinated Sink, Full Length Wardrobe and Shirt, Closet in Front Bedrooms (Travel Trailer only) STANDARD SAFETY FEATURES CO2 Detector, LP Leak Detector, Fire Extinguisher, Smoke Detector...

Prices and Specs Subject to Change Canadian Specs May Differ From U.S. All Above Specs Taken from 2006 Palomino Puma Sales Information, some items may have been removed , changed or upgraded or not completely accurate.
