Weights & Measures
23B
Length 24'
Exterior Height1 10'1"
Exterior Width 7'6.5"
Exterior Storage2 (cu. ft.) 15.8
Awning Length 15'
Interior Height 6'7"
Interior Width 7'3"
Freshwater Tank Capacity3 (gal.) 27
Water Heater Capacity (gal.) Continuous
Holding Tank Capacity - Black/Gray3 (gal.) 40/32
LP Capacity4 (gal.) 13
Fuel Capacty (gal.) 24
GCWR5 (lbs.) 11,500
GVWR (lbs.) 9,350
GAWR - Front (lbs.) 4,630
GAWR - Rear (lbs.) 5,291
Wheelbase 159"
23L
Length 24'
Exterior Height1 10'1"
Exterior Width 7'6.5"
Exterior Storage2 (cu. ft.) 35
Awning Length 15'
Interior Height 6'7"
Interior Width 7'3"
Freshwater Tank Capacity3 (gal.) 26
Water Heater Capacity (gal.) Continuous
Holding Tank Capacity - Black/Gray3 (gal.) 32/40
LP Capacity4 (gal.) 13
Fuel Capacty (gal.) 24
GCWR5 (lbs.) 11,500
GVWR (lbs.) 9,350
GAWR - Front (lbs.) 4,630
GAWR - Rear (lbs.) 5,291
Wheelbase 159"

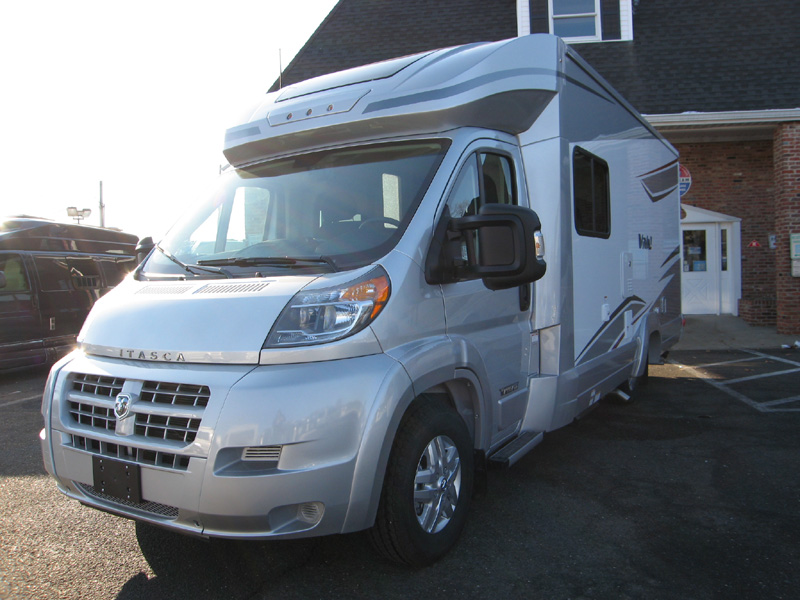

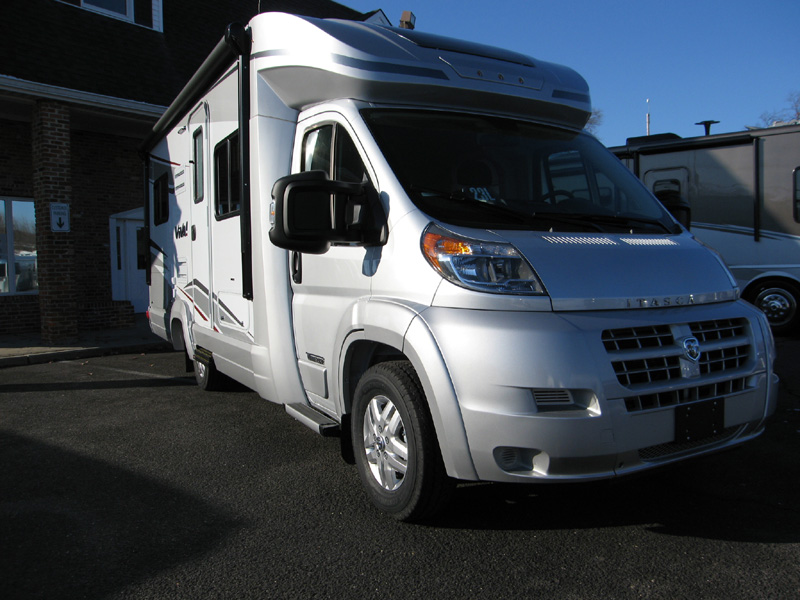

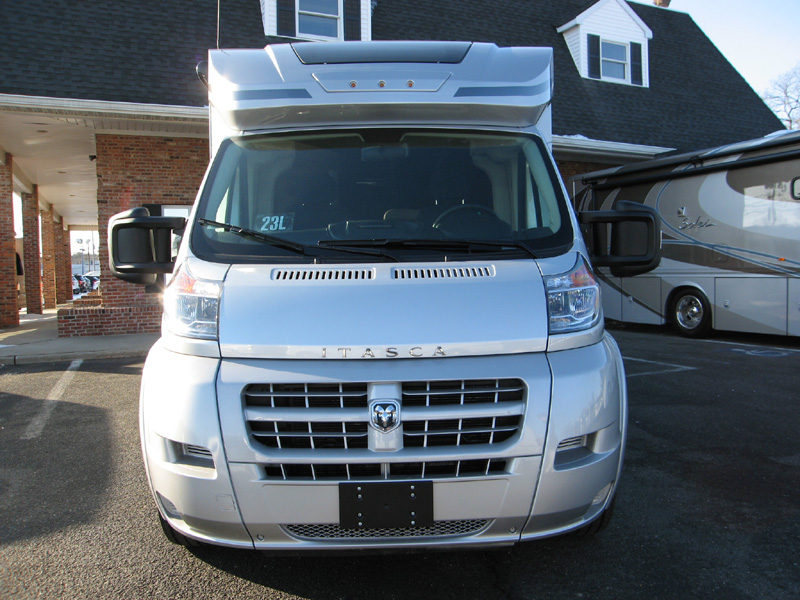

Ram ProMaster Chassis
280-hp. 3.6L V6 gas engine, 6-speed automatic 62TE transmission, 220-amp. alternator
Trailer Hitch 5 2,000-lb. drawbar/200-lb. maximum vertical tongue weight and wiring w/4-pin connector, Stylized aluminum wheels.

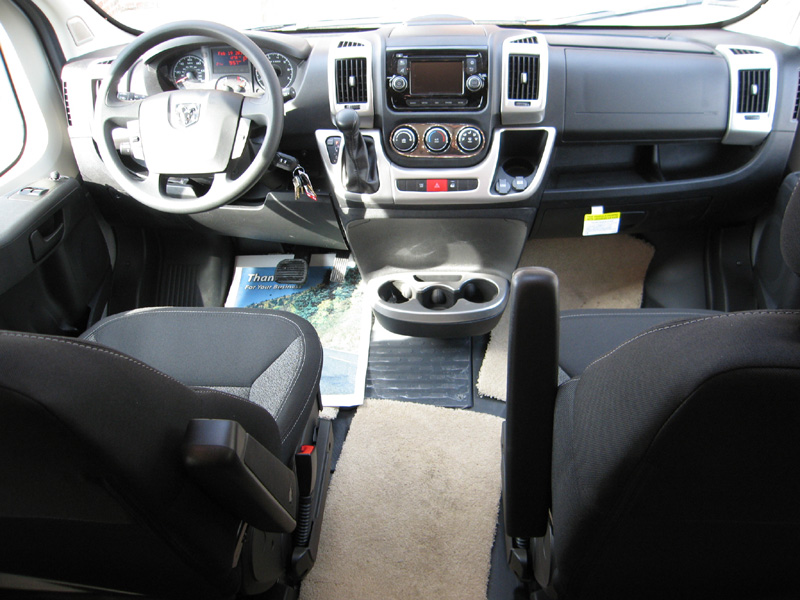

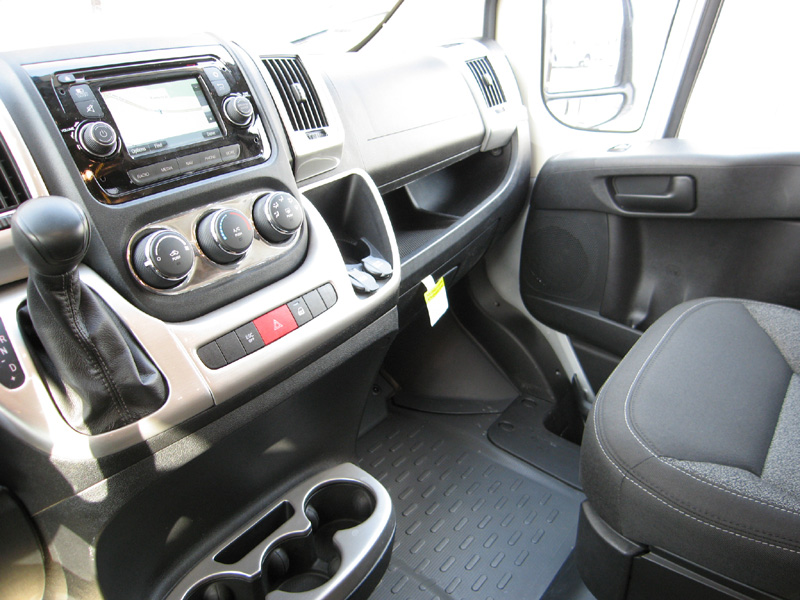

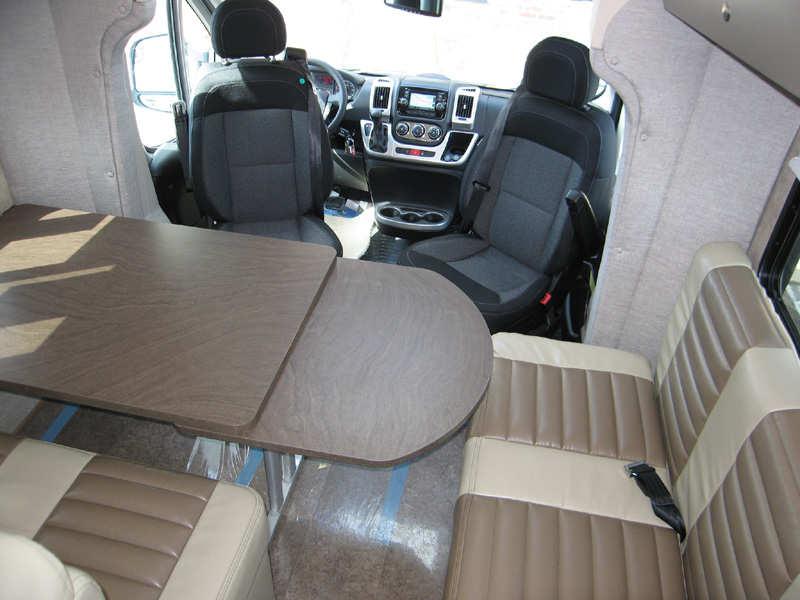

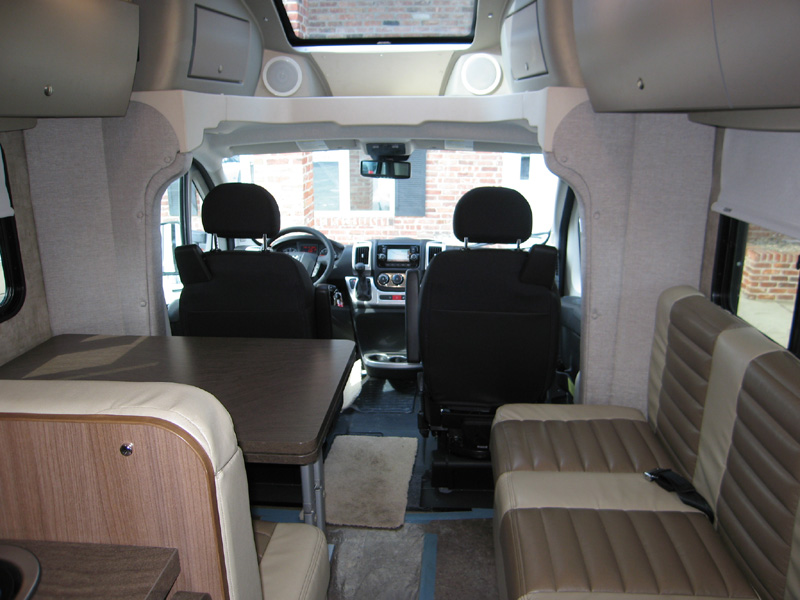

Cab Conveniences

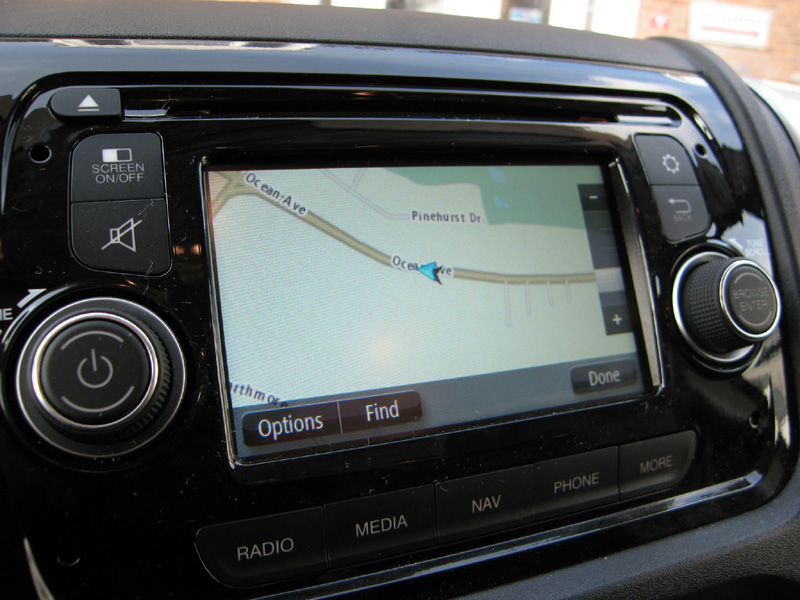

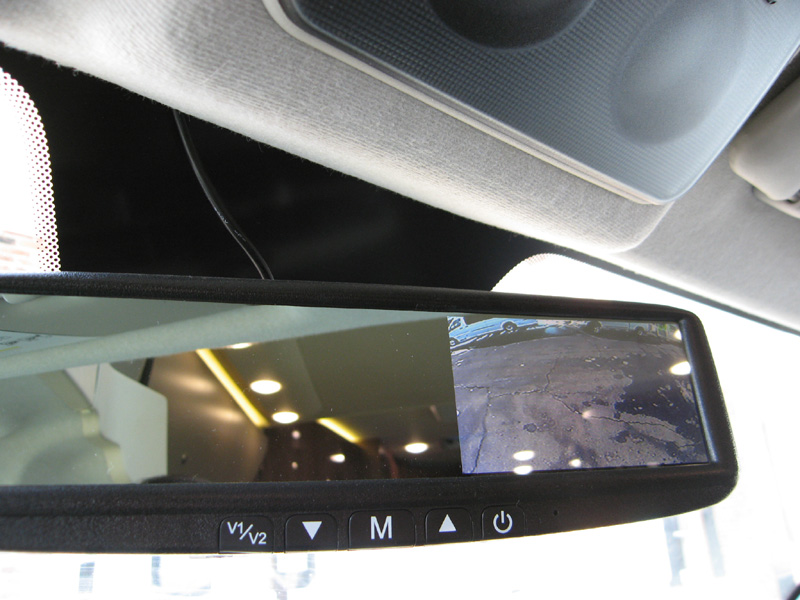

Cab seats armrests, adjustable lumbar support, adjustable seat height, and multi-adjustable swivel/slide/recline, Radio 5" LCD touch screen color monitor w/GPS, SiriusXM™ (one year complimentary subscription included), iPod®/MP3 input, Bluetooth™, Rearview Monitor System w/color camera, Airbags driver and front passenger, side curtain, and seat-mounted side pelvic-thorax, 3-point seat belts, Cruise control, Power steering w/adjustable wheel, 12-volt powerpoints, Power door locks, Sunvisors, Power exterior mirrors w/defrost/turn signal, Cab window privacy panels, Powered windows.
Interior

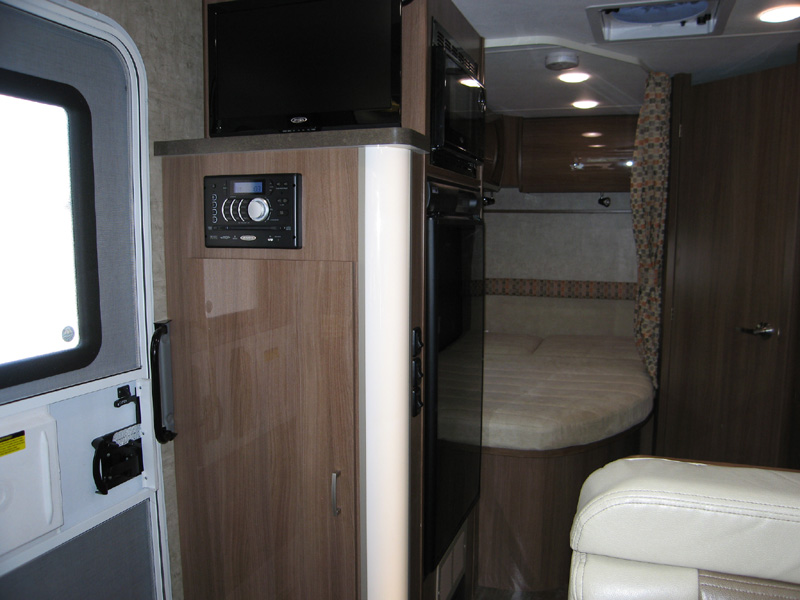

22" HDTV (23L) (mid-coach), 26" HDTV (23B) (mid-coach), Coach Stereo System AM/FM, CD/DVD player, Bluetooth, front input jack, and alarm clock

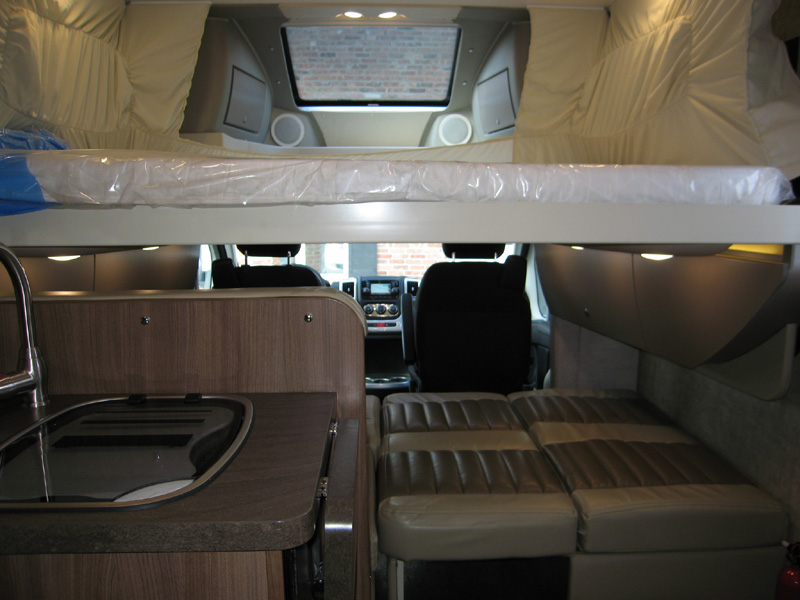

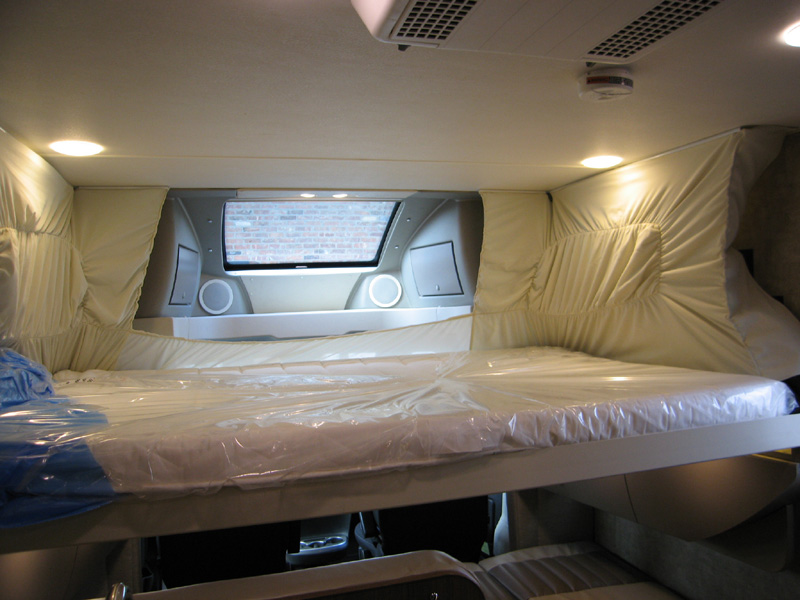

LED lights, Satellite system ready, Skylight w/shade, MCD blackout roller shades, Tinted windows, Amplified digital HDTV antenna, Systems monitor panel, Powered roof vent (galley, bath), StudioLoft™ w/electric lift and privacy curtain, Ladder w/StudioLoft (23L), Vinyl ceiling.

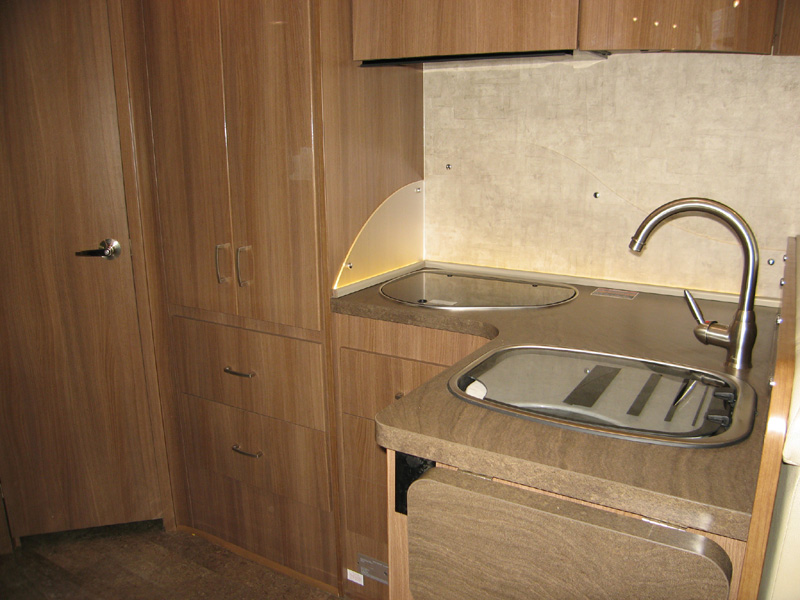

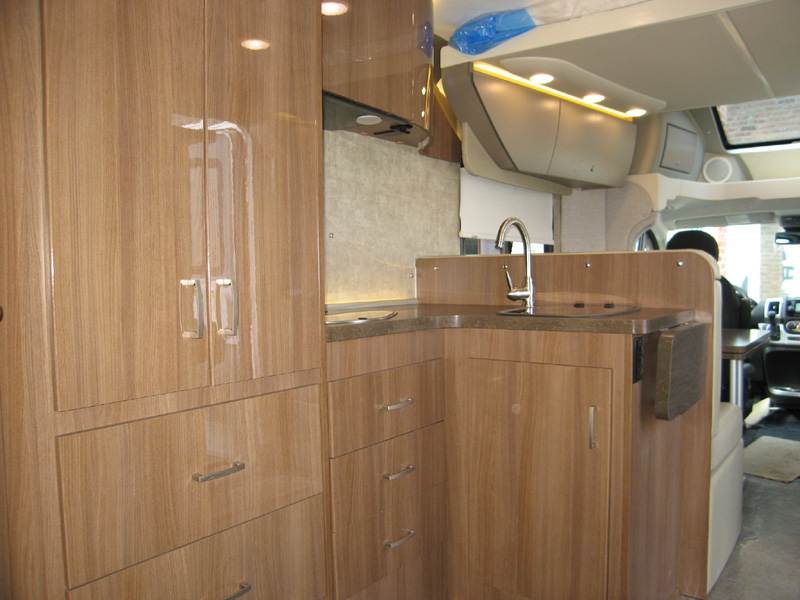

Galley

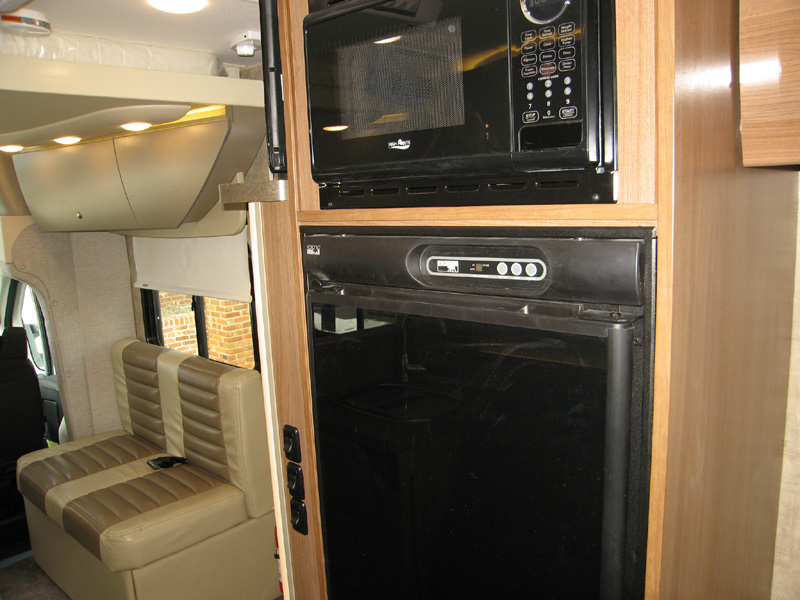

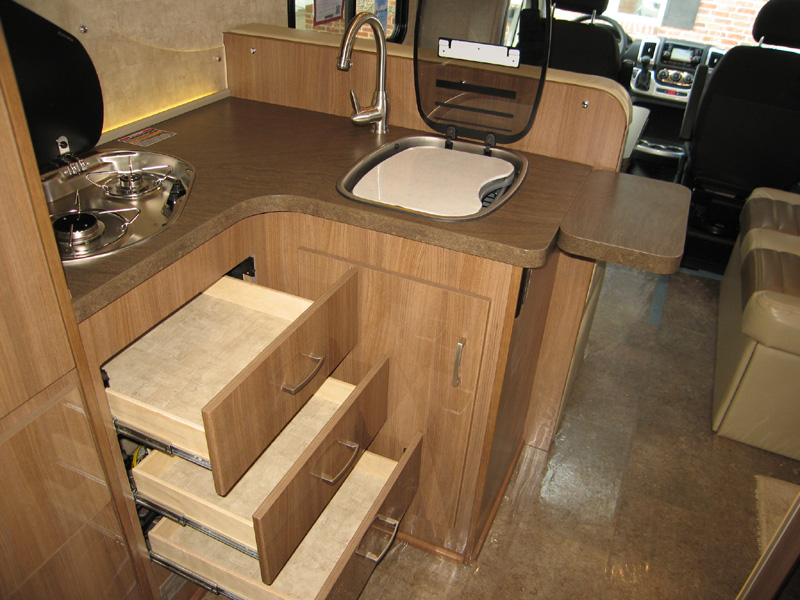

Laminate countertops, Flip-up countertop extension (23L), Single-door refrigerator/freezer, 2-burner range top w/glass cover, Microwave oven, Decorative backsplash w/indirect lighting, Cold water filtration system, Stainless steel sink w/glass cover, dishpan, cutting board, drain pan, and silverware rack (23L), Double stainless steel sink w/sink covers (23B).

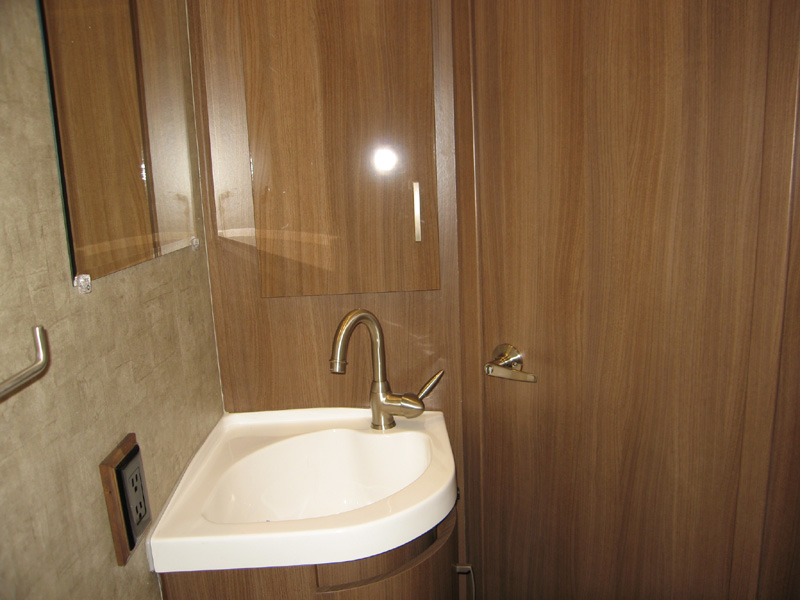

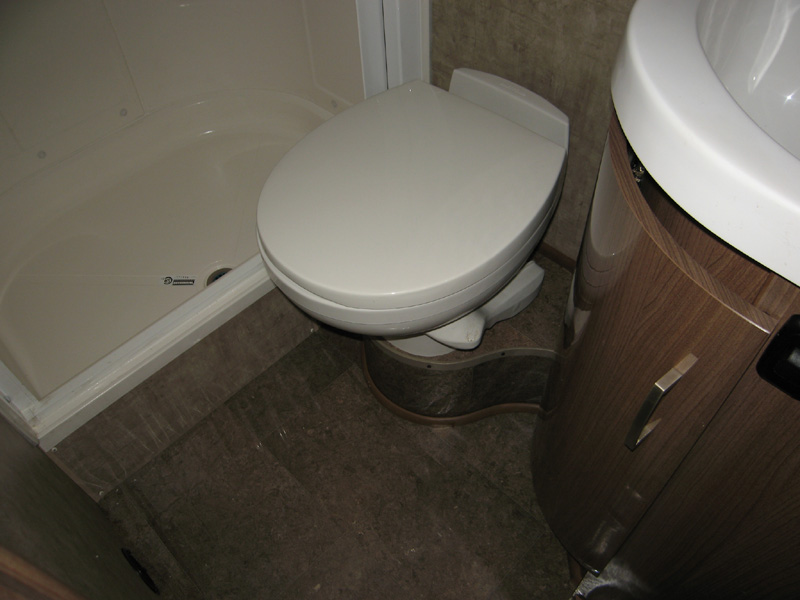

Bathroom

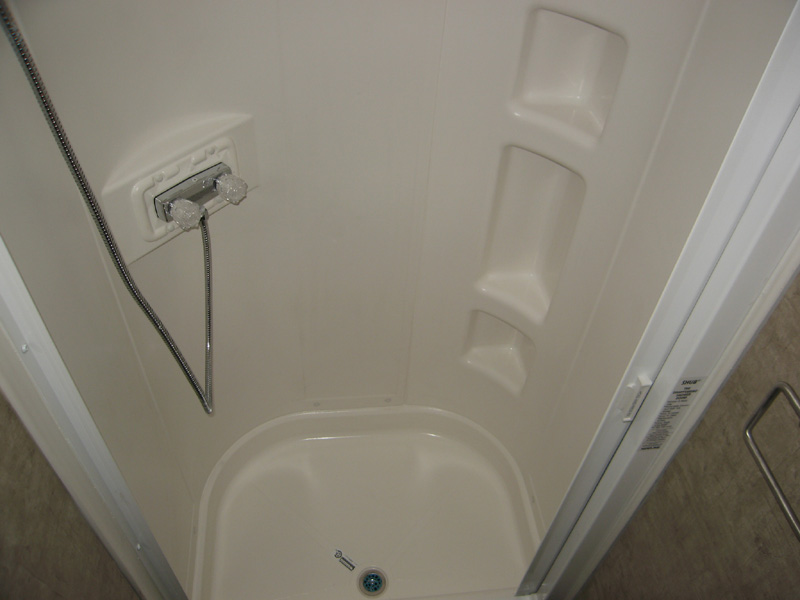

Skylight, Flexible showerhead, Retractable, self-cleaning shower screen shower door, Water pump switch.

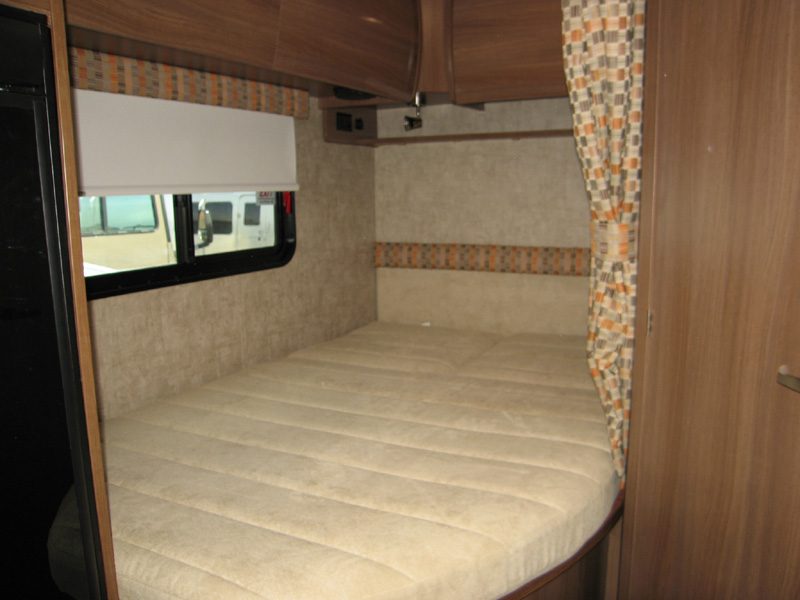

Bedroom
Foam mattress w/cover, headboard, adjustable headrest, and storage below bed (23L).
Exterior

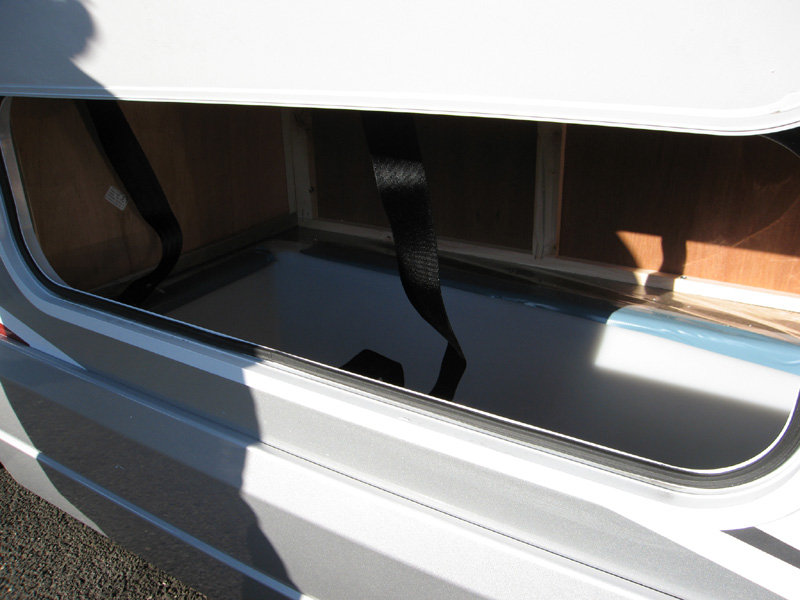

Powered patio awning w/LED lighting, Porch light w/interior switch, Automatic entrance door steps, Premium high-gloss skin, Front and rear mud flaps, Rotocast storage compartments, Exterior speaker system.
Heating & Cooling System
13,500 BTU roof-mount, high-efficiency A/C w/heat strip, 20,000 BTU low-profile, ducted furnace.
Electrical System

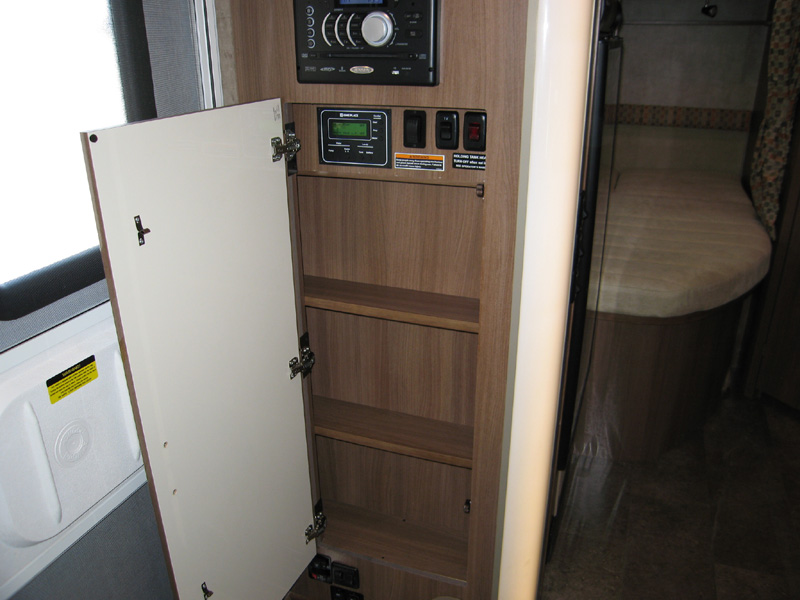

Exterior AC duplex receptacle and TV jack, 2,800-watt Cummins® Onan® gas generator, AC/DC load center, 45-amp. converter/charger, Power Cord Compartment 30-amp. power cord, cable TV input, portable satellite dish hookup, Coach battery disconnect system, Automatic dual-battery charge control, Auxiliary start circuit, Deep-cycle, Group 31 AGM battery.
Plumbing System

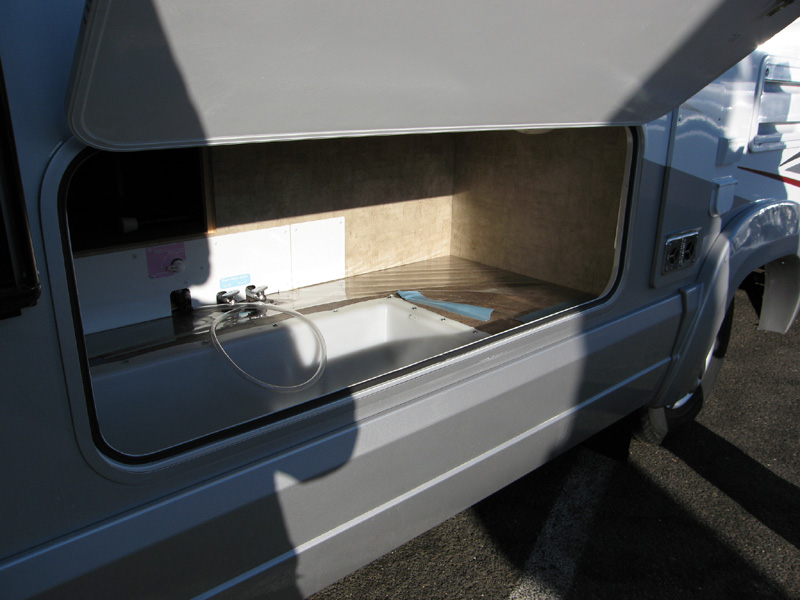

Service Center pressurized city water hookup, exterior wash station w/pump switch, Water tank fill w/lockable door, 10' sewer hose, Tankless water heater, TrueLevel™ holding tank monitoring system, Winterization Package water heater bypass and siphon tube, Permanent-mount LP tank w/gauge, On-demand water pump.
Safety

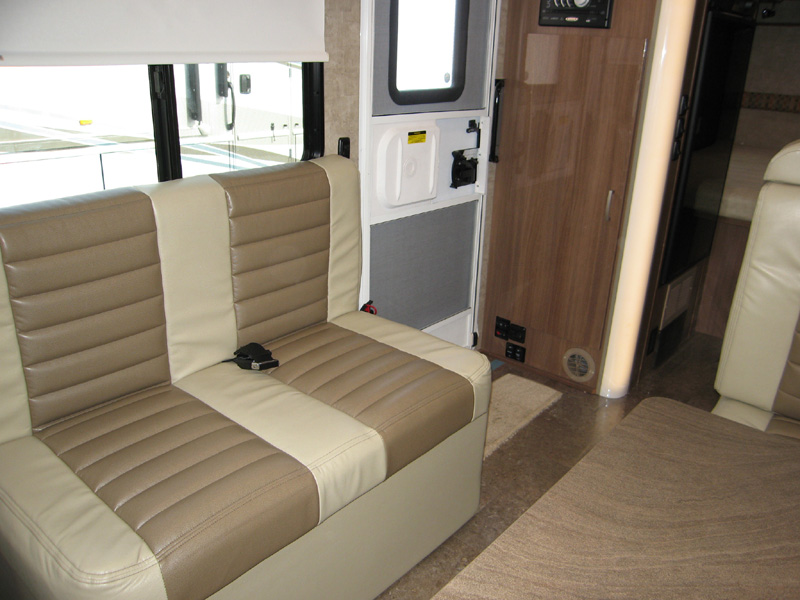

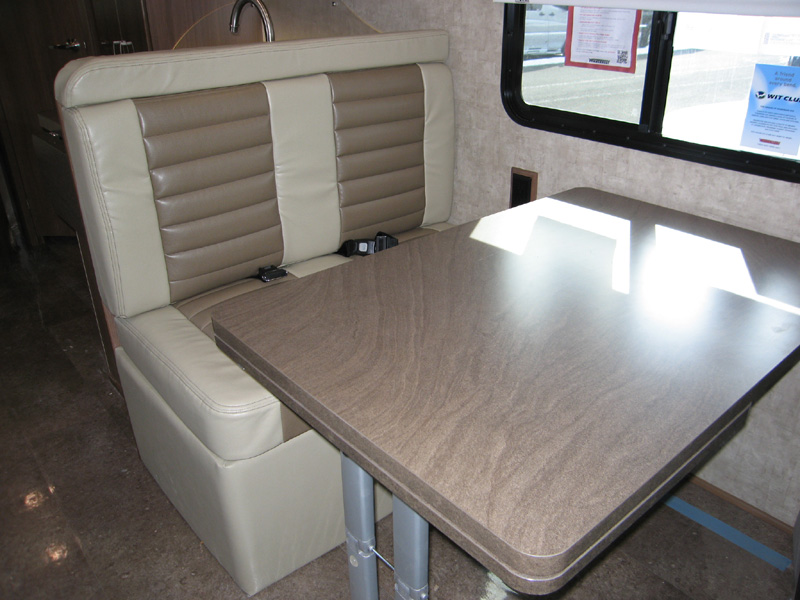

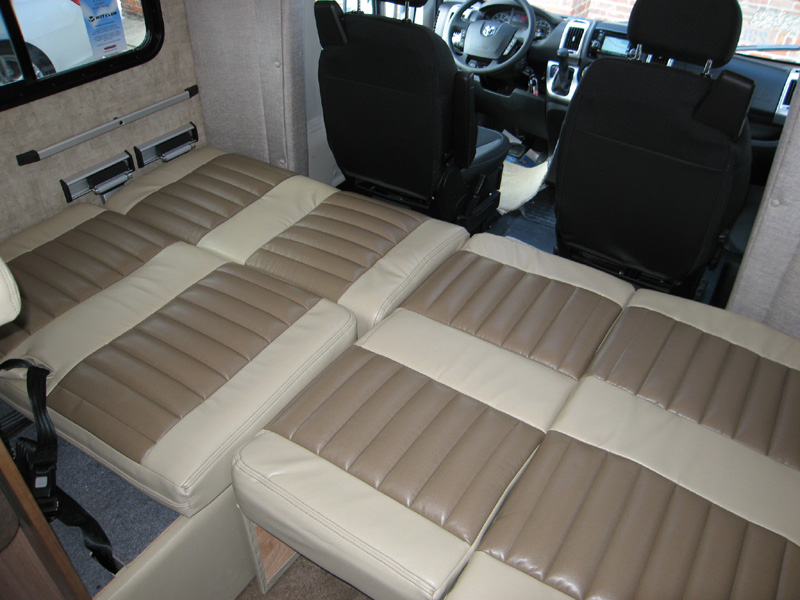

3-point dinette seat belts (2) with child seat tether anchors (2), LP, smoke, and carbon monoxide detectors, 10 BC fire extinguisher, Ground fault interrupter, Daytime running lamps.
Warranty 6
12-month/15,000-mile basic limited warranty 7
36-month/36,000-mile limited warranty on structure 7
10-year limited parts-and-labor warranty on roof skin 7
Footnotes
1 The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
2 The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
3 Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
4 Capacities shown are tank manufacturer's listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
5 Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
6 See separate chassis warranty.
7 See your dealer for complete warranty information.
