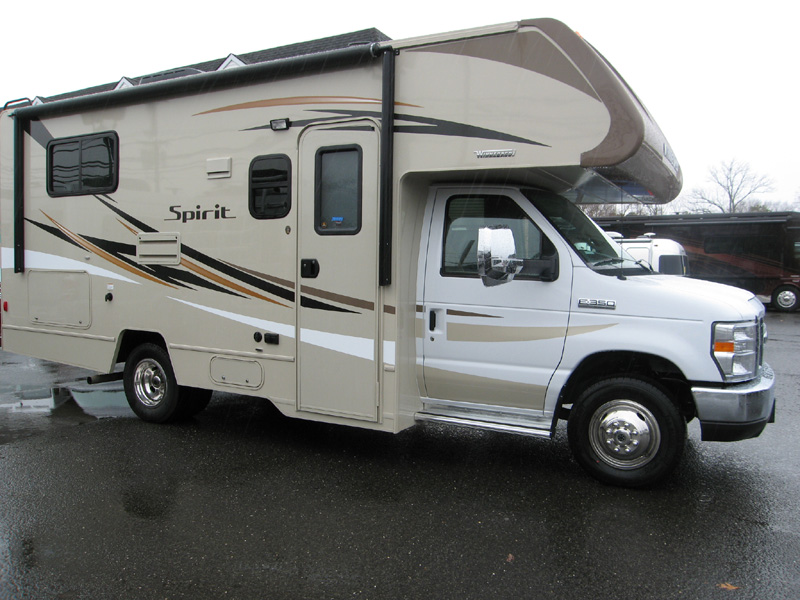

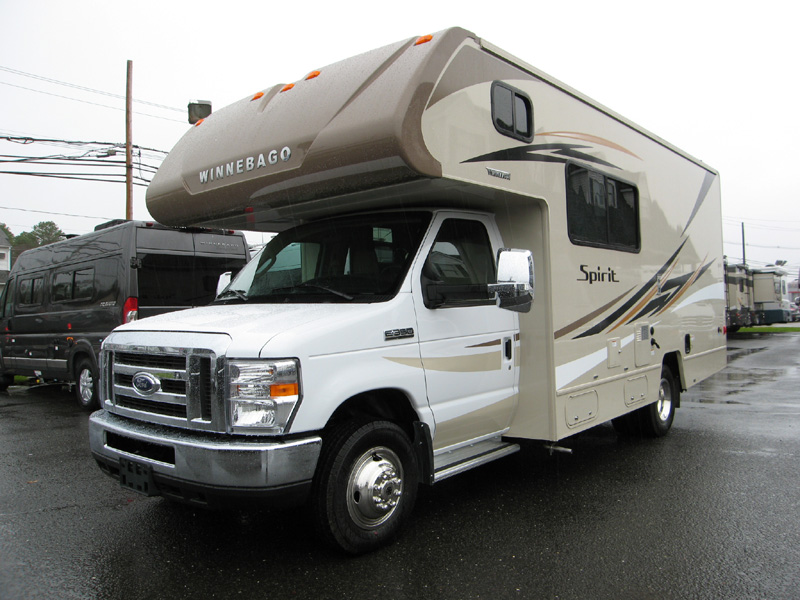

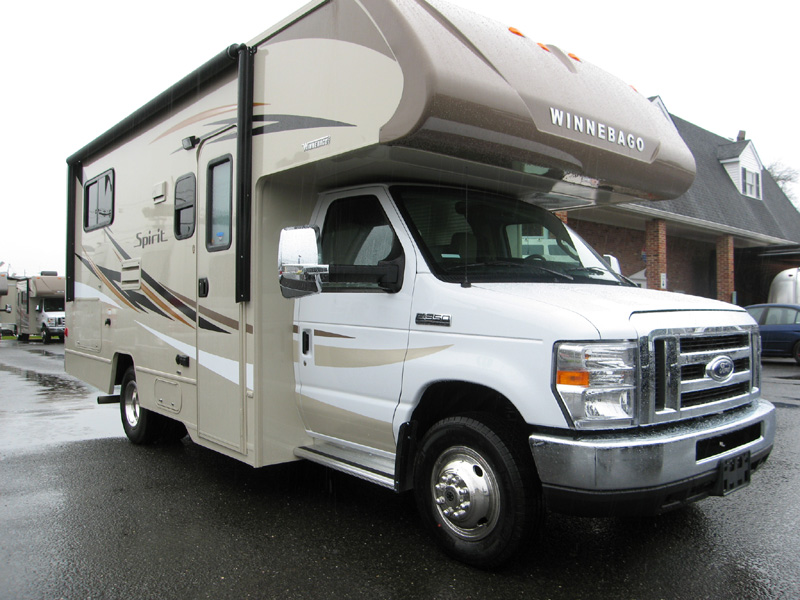

Model: 2016 Itasca Spirit & Spirit Silver By Winnebago

Weights & Measures

	22R	25B	27Q/27QP	31H	31K/31KP
Length	23'10"	26'2"	28'6"	32'9"	32'9"
Exterior Height1	11'	11'	11'1"	11'1"	11'1"
Exterior Width2	8'5.5"	8'5.5"	8'5.5"	8'5.5"	8'5.5"

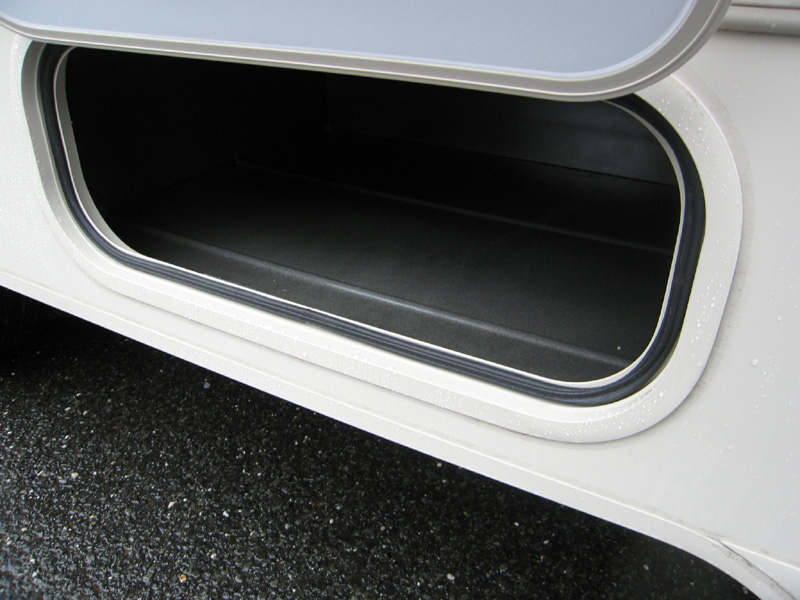

Exterior Storage3 (cu. ft.)	61.1	76	83	85.2	101
Awning Length	14'	17'	17'	10'6"	20'
Interior Height	6'10"	6'10"	6'10"	6'10"/6'5.5"**	6'10"/6'5.5"**
Interior Width	8'	8'	8'	8'	8'
Freshwater Tank Capacity4 (gal.)	40	40	44	44	44
Water Heater Capacity (gal.)	6	6	6	6	6
Holding Tank Capacity - Black/Gray4 (gal.)	21/24	23/27	30/35	37/30	30/30
LP Capacity5 (gal.)	18	18	18	18	18
Fuel Capacity (gal.)	55	55	55	55	55
GCWR6 (lbs.)	13,000/18,500(A)	18,500(A)	22,000(B)	22,000(B)	22,000(B)
GVWR (lbs.)	11,500(A)	11,500(A)	14,500(B)	14,500(B)	14,500(B)
GAWR - Front (lbs.)	4,600(A)	4,600(A)	5,000(B)	5,000(B)	5,000(B)
GAWR - Rear (lbs.)	7,800(A)	7,800(A)	9,600(B)	9,600(B)	9,600(B)
Wheelbase	158"	182"	190"	220"	220"

** Rear of Coach
A  Ford E350 Chassis
B  Ford E450 Chassis

Optional Package Upgrades

Convenience and Appearance Package auxiliary rear air springs (NA 22R, 25B), front bunk ladder, glass shower door, powered patio awning, HDTV w/DVD player, rear ladder, Radio/Rearview Monitor System, stainless steel wheel liners and valve extenders, 5,000-lb. hitch w/7 pin connector

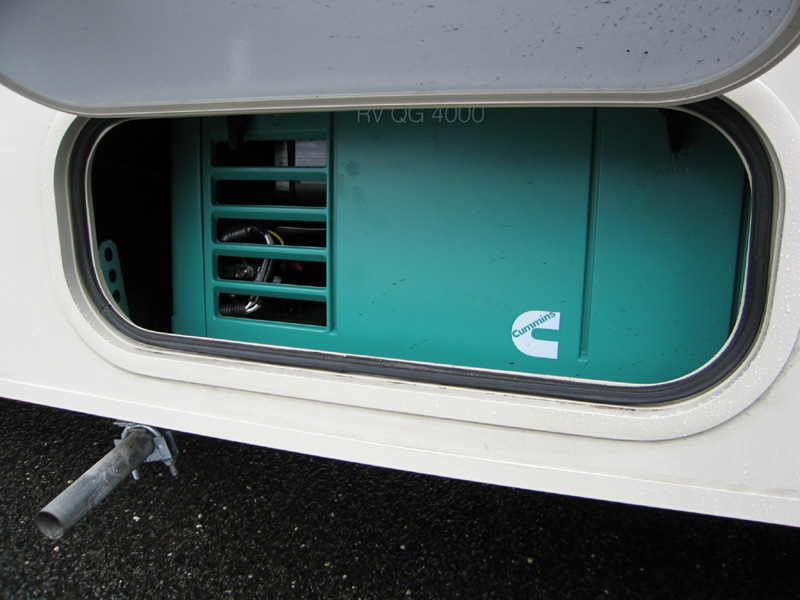

Comfort and Safety Package 15,000 BTU roof air conditioner, 80" bed, child seat tether, double-door refrigerator, vinyl floor covering throughout coach, 4,000-watt Cummins Onan® gas generator, high-definition laminate countertops, high-gloss fiberglass, in-dash radio/CD player, leatherette, patio awning, reinforced seat belt mounts, residential size toilet, roadside assistance, RVIA seal, sealed cabinet for cooktop, steel appliance tie-downs, steel stepwell

Spirit Silver Package Convenience and Appearance Package, Comfort and Safety Package, auxiliary start circuit, front fiberglass cab, deluxe exterior graphics, glazed cabinetry, Corian® countertop for galley w/undermount sink and Corian sink cover, soft vinyl ceiling, fiberglass running boards w/wheel lips, deluxe exterior mirror upgrade w/chrome heads and sideview camera, leatherette cab seats, large refrigerator w/raised panel inserts, HDTVs, black tank flush system, bunk privacy curtain, cabinet over U-Dinette (31KP), headboard, Dream Dinette™ table mechanism (27QP), fabric/leatherette trim on U-Dinette (31KP), fold-over bedspread w/pillow fillers, dash appliqué, Jack® digital HDTV antenna, LED ceiling lights, MCD solar/blackout roller shades (lounge, dinette, bedroom), porcelain toilet, rear trunk storage liner, stainless steel lavatory sink (31KP), bath towel bar, 2 deep-cycle, Group 24 batteries, single control faucets, window treatment upgrade, LED awning lights

Silver Package Options Dual-glazed, thermo-insulated windows; 3-burner range w/oven; heated drainage system; microwave/convection oven; 4-door refrigerator (31KP)

Chassis

Ford® E350 Chassis (22R) 255-hp 5.4L Triton® V8 engine, TorqShift™ 5-speed automatic transmission w/overdrive, 120-amp. alternator

Ford E350 Chassis (25B) 305-hp 6.8L SEFI Triton V10 engine, TorqShift 5-speed automatic transmission w/overdrive, 120-amp. alternator

Ford E450 Chassis (27Q/27QP, 31H, 31K/31KP) 305-hp 6.8L SEFI Triton V10 engine, TorqShift 5-speed automatic transmission w/overdrive, 120-amp. alternator

4-wheel ABS

Wheel covers

Optional Equipment

Stainless steel wheel liners

Trailer Hitch6 5,000-lb. drawbar/350-lb. maximum vertical tongue weight (22R, 25B, 27Q, 31H, 31K)

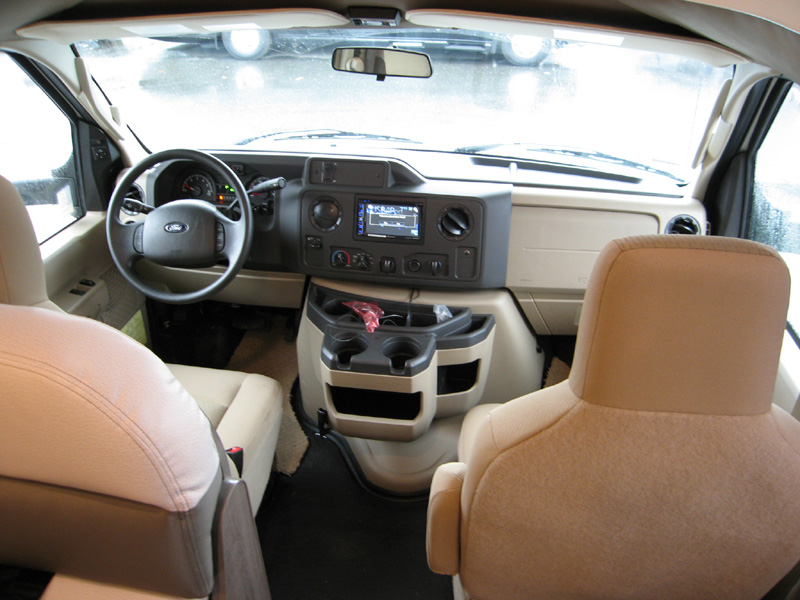

Cab Conveniences

Swivel cab seat pedestal (27Q driver and passenger)

Cab seats armrests, lumbar support, and multi-adjustable slide/recline

3-point seat belts

Airbags driver and passenger

12-volt powerpoint

Power steering w/tilt and cruise control

Power door locks

Sunvisors

Manual mirrors w/breakaway arms

Optional Equipment

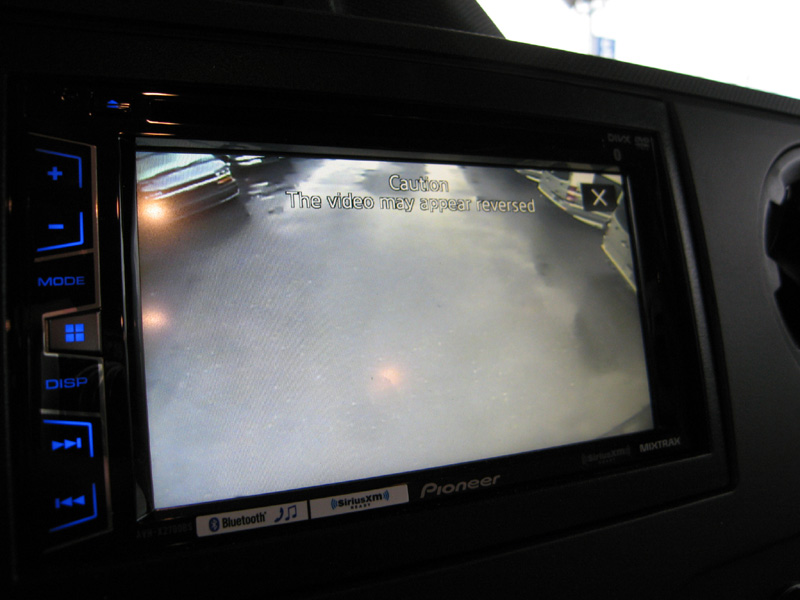

Radio/Rearview Monitor System 6" LCD touch screen color monitor, remote, AM/FM stereo, iPod®/MP3 input, color rear camera

Interior

Amplified digital TV antenna system

Pleated night shades (lounge, dinette, and bedroom)

Mini blinds (galley)

Systems monitor panel

Roof vent (bedroom and front bunk area)

Powered roof vent (bath)

Cab privacy curtain

Tinted windows

Vinyl ceiling

Optional Equipment

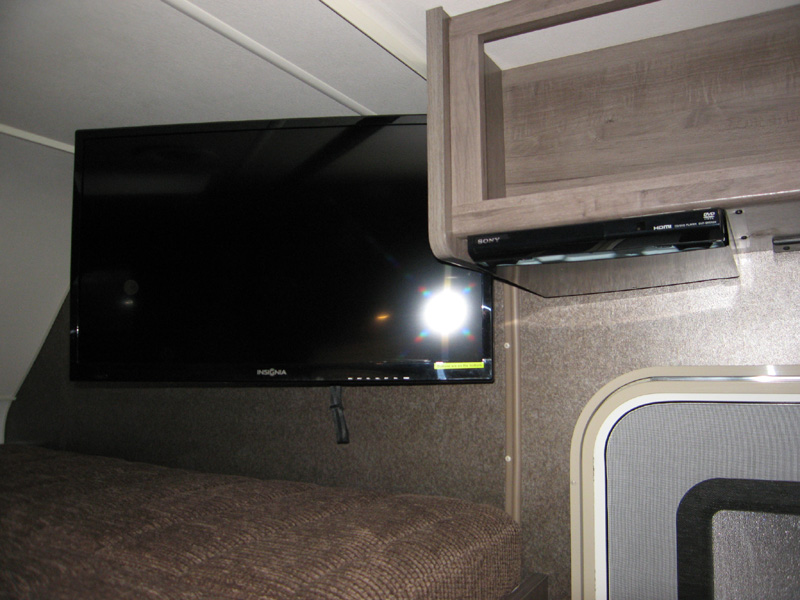

28" HDTV w/DVD player and remote (22R, 25B, 31H)

32" HDTV w/DVD player and remote (27Q, 31K)

Tinted, dual-glazed, thermo-insulated windows

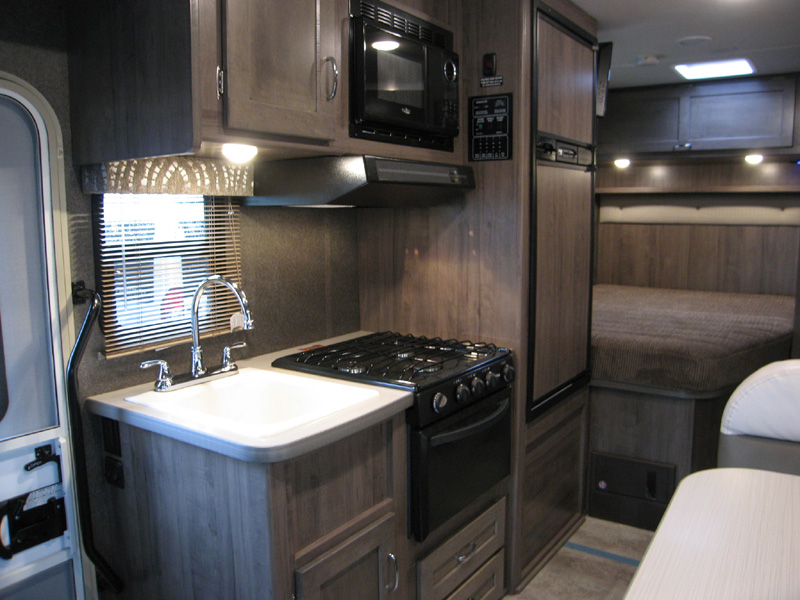

Galley

Microwave oven

3-burner range top w/storage below

Vented range hood

Optional Equipment

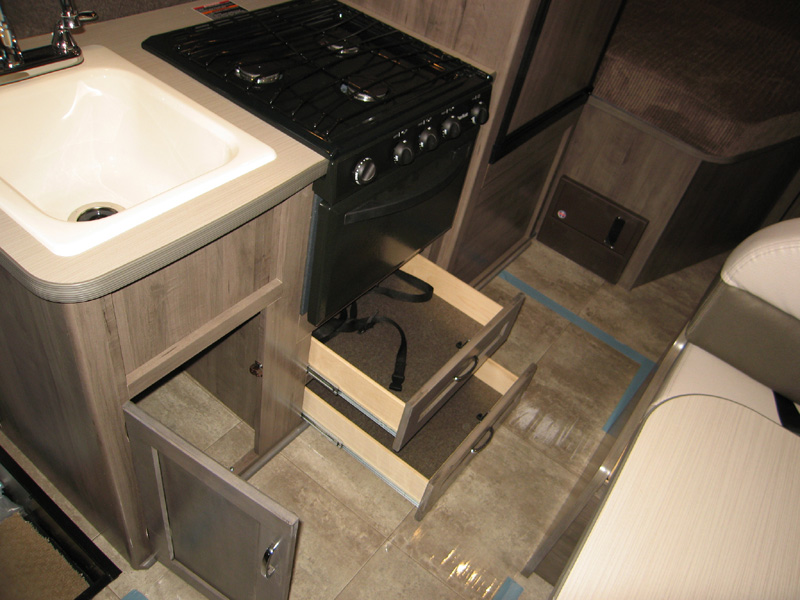

3-burner range w/oven

Bath

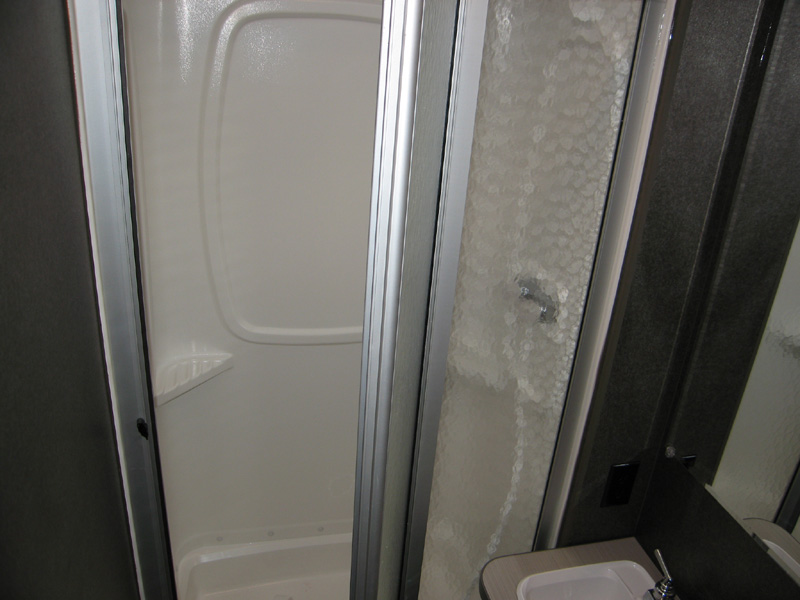

Shower curtain

Flexible showerhead

Skylight

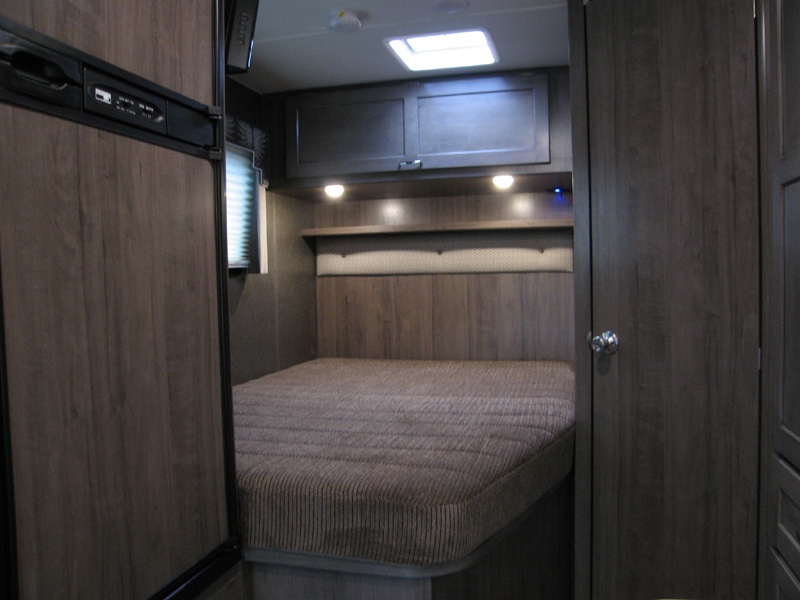

Bedroom

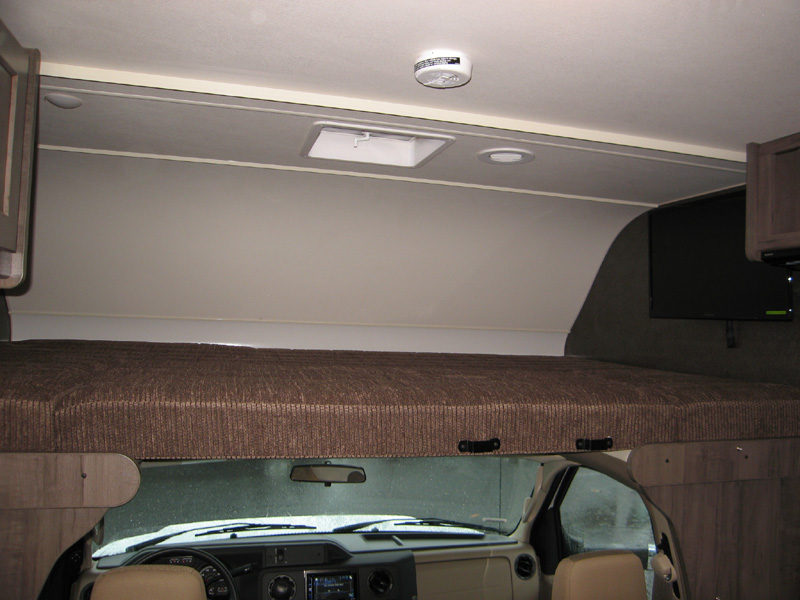

Bunk Beds w/covered foam mattresses, mattress covers, storage compartment, and privacy curtains (31H)

Mattress cover (22R, 25B)

Bedspread (27Q, 31H, 31K)

Headboard

Optional Equipment

2-22" HDTVs (31H bunk beds)

Exterior

Porch light

Running boards

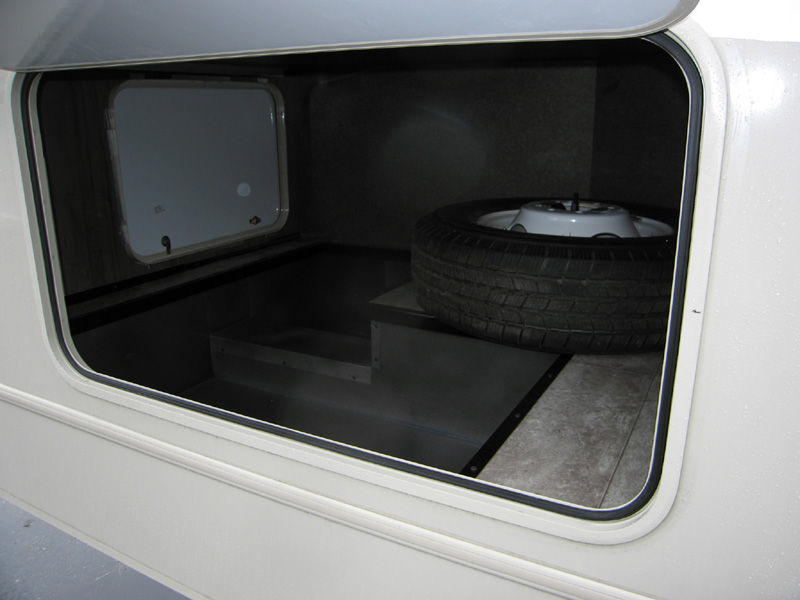

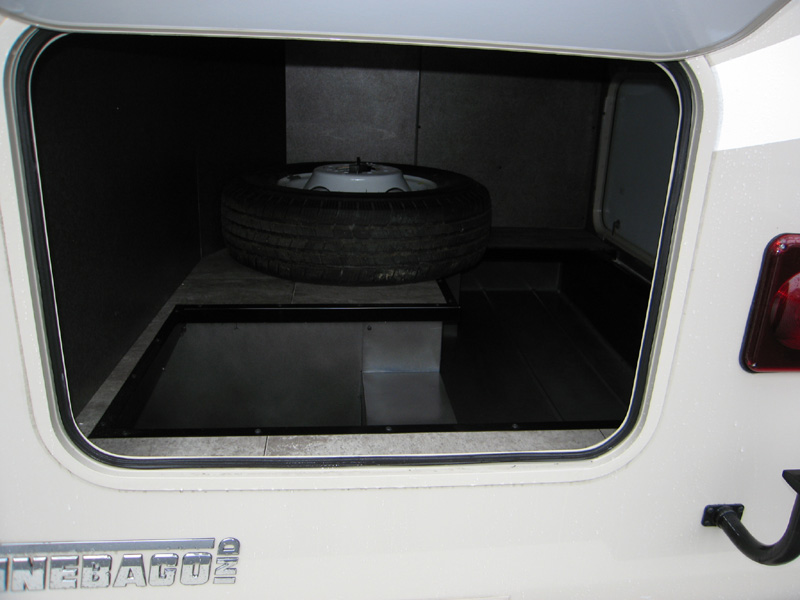

Large trunk storage compartment

Heating & Cooling

20,000 BTU furnace (22R, 25B)

30,000 BTU furnace (27Q/27QP, 31K/31KP, 31H)

Electrical System

AC/DC load center, 45-amp. converter/charger

30-amp. power cord

TV jack and AC receptacle near entrance door

Deep-cycle, Group 24 battery

Coach battery disconnect system

Automatic dual-battery charge control

Plumbing System

City water hookup

On-demand water pump

6-gallon LP water heater w/electronic ignition

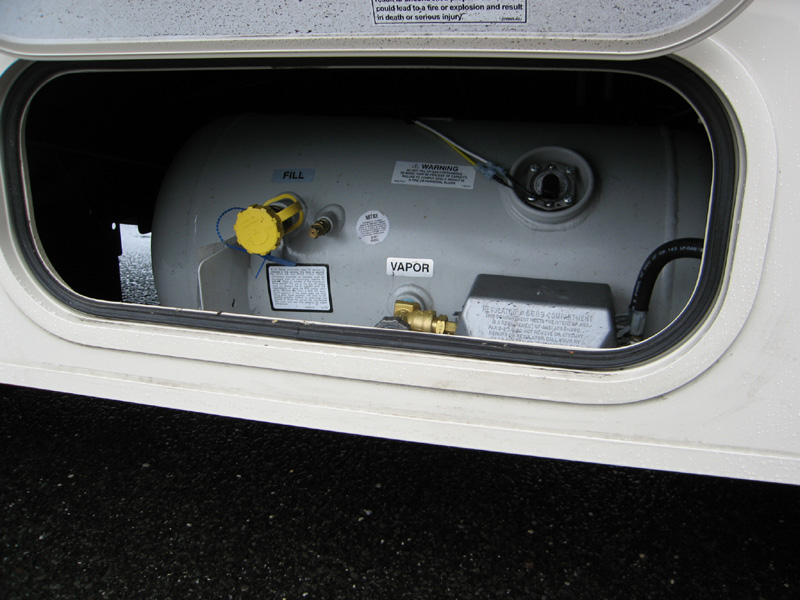

Permanent-mount LP tank w/gauge

Optional Equipment

Heated electric drainage system

Safety

LP, smoke, and carbon monoxide detectors

10 BC fire extinguisher

Ground fault interrupter

Child seat tether anchor

Warranty

12-month/15,000-mile basic limited warranty8

36-month/36,000-mile limited warranty on structure8

10-year limited parts-and-labor warranty on roof skin8

1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
2. Floorplans feature a wide-body design - over 96". In making your purchase decision, you should be aware that some states restrict access on some or all state roads to 96" in body width. Before making your purchase decision, you should confirm the road usage laws in the states of interest to you.
3. The load capacity of your motor home is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
4. Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
5. Capacities shown are tank manufacturer's listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
7. See separate chassis warranty.
8. See your dealer for complete warranty information.
