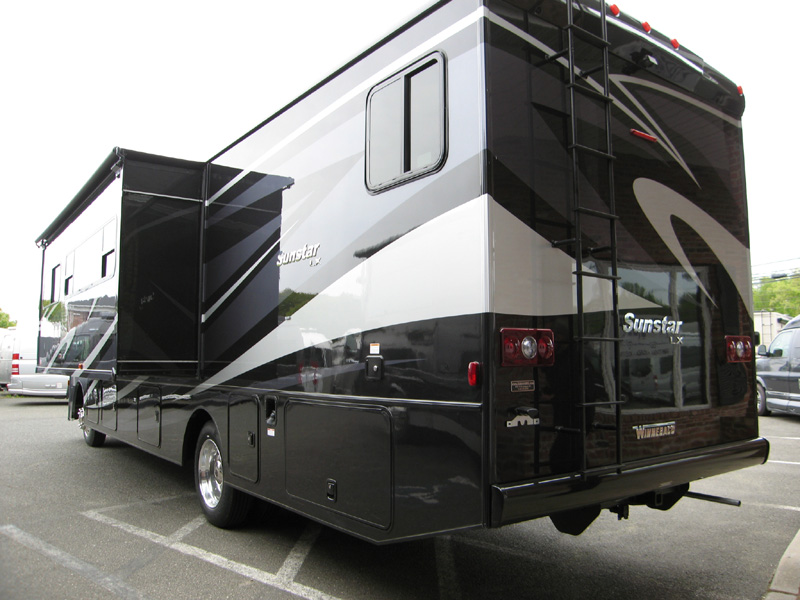

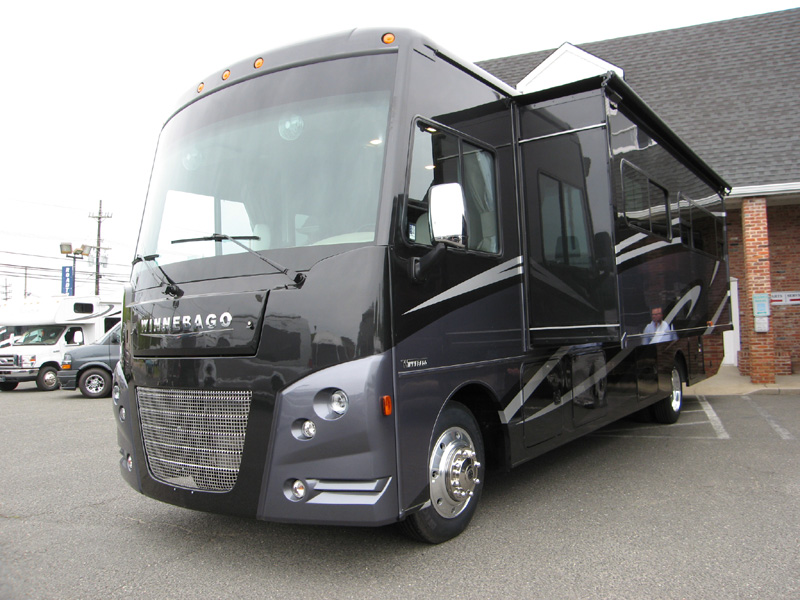

Model: 2017 Itasca Sunstar LX

Weights & Measures

	27N	30T	35B	35F
Length	28'5"	31'	36'5"	35'5"
Exterior Height1	12'2"	12'1"	12'5"	12'5"
Exterior Width2	8'5.5"	8'5.5"	8'5.5"	8'5.5"

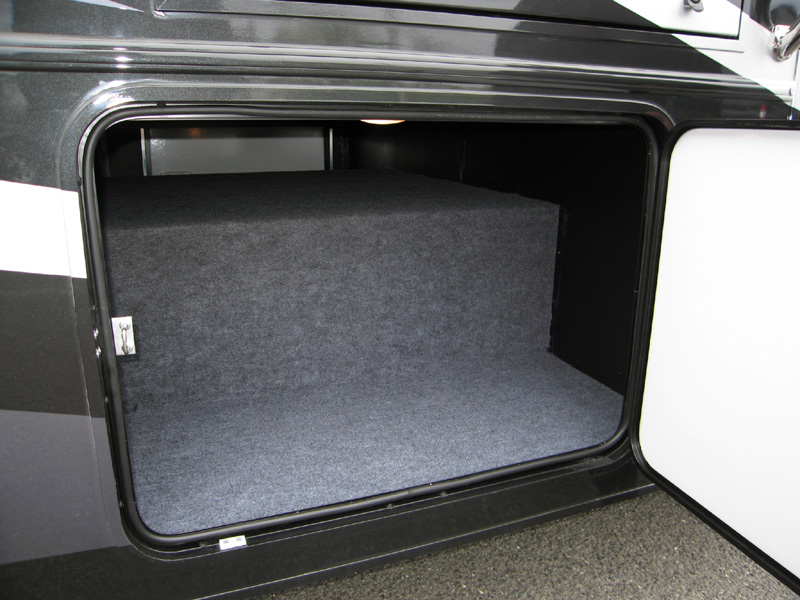

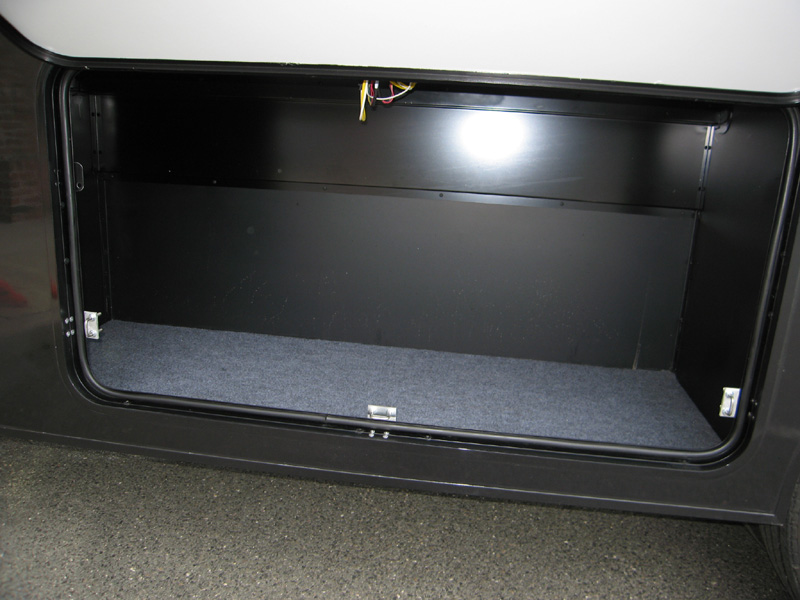

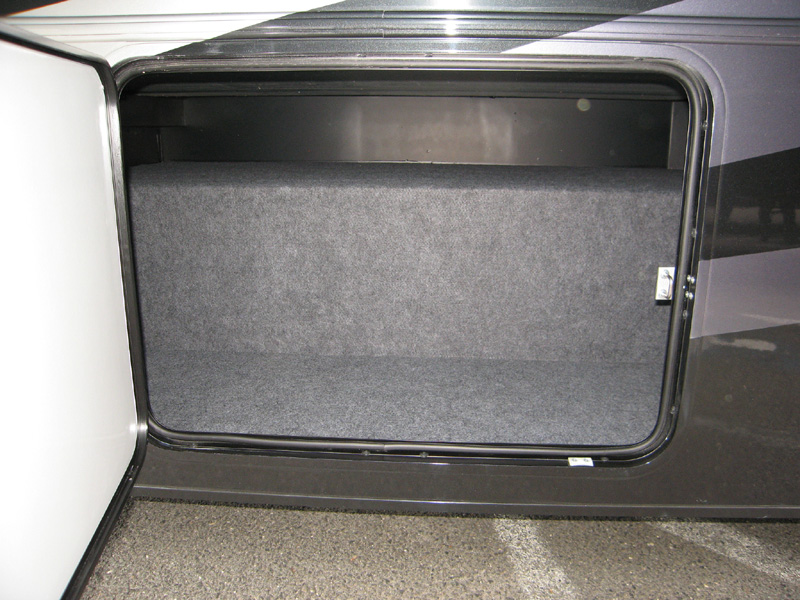

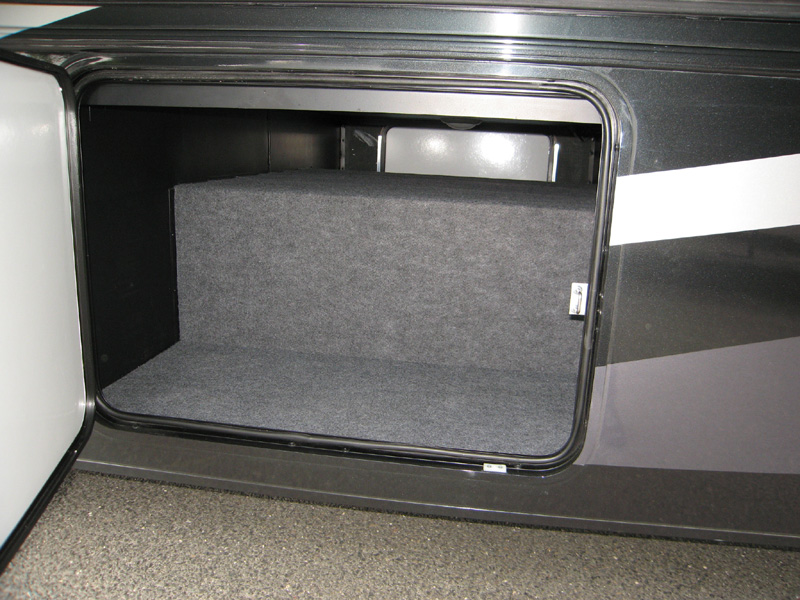

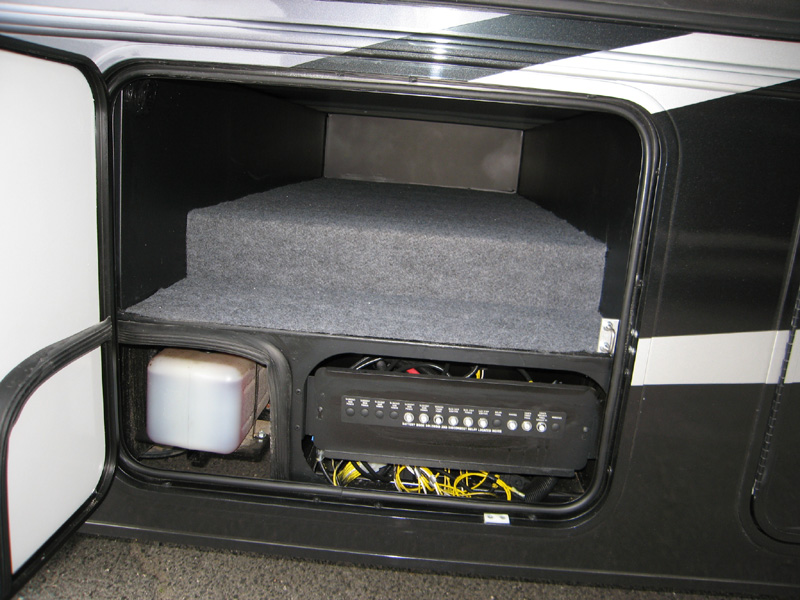

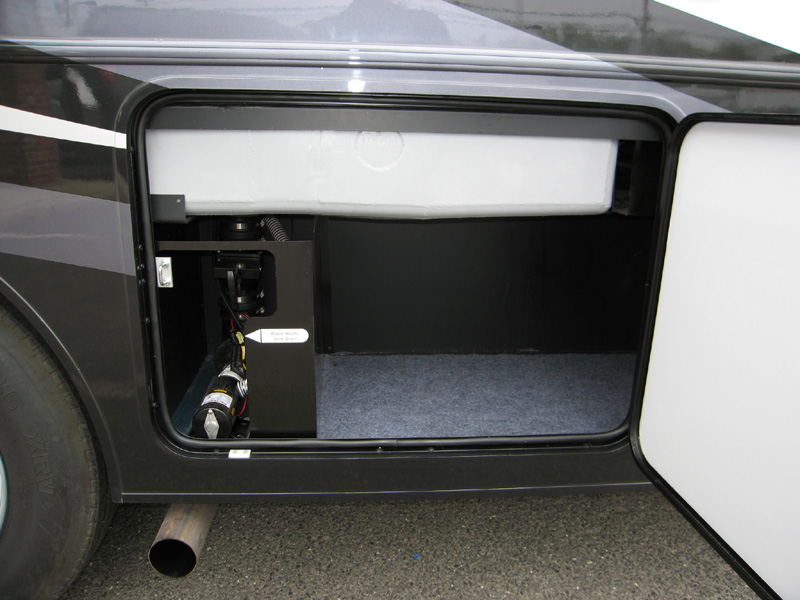

Exterior Storage3 (cu. ft.)	123	118	160	154
Awning Length	19'	17'	13'	16'
Interior Height	6'8"	6'8"	6'8"	6'8"
Interior Width	8'0.5"	8'0.5"	8'0.5"	8'0.5"
Freshwater Tank Capacity4 (gal.)	64	78	93	74
Water Heater Capacity (gal.)	6	6	6	6
Holding Tank Capacity - Black/Gray4 (gal.)	43/53	41/42	41/46 & 41/51*	41/51 & 21/NA**
LP Capacity5 (gal.)	18	18	18	18
Fuel Capacity (gal.)	80	80	80	80
GCWR6 (lbs.)	23,000	23,000	26,000	26,000
GVWR (lbs.)	18,000	18,000	22,000	22,000
GAWR - Front (lbs.)	7,000	7,000	8,000	8,000
GAWR - Rear (lbs.)	12,000	12,000	15,000	15,000
Wheelbase	178"	190"	242"	228"
Seating Capacity	5	7	8	6

* The 35B uses separate black and gray tanks for each bathroom

** The 35F uses separate black tanks for each bathroom

Optional Package Upgrade

Interior Upgrade Package soft vinyl ceiling, flip-up countertop extension (NA 27N), Dream Dinette™ dining table, range cover, two Corian® sink covers, raised-panel refrigerator inserts, throw pillow(s)

Ford® F53 Chassis

3-valve Triton® V10 engine SEFI, TorqShift™ 6-speed automatic transmission w/tow/haul, 175-amp. alternator

Hydraulic brakes w/ABS

Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight

7-pin connector

Stainless steel wheel liners w/19.5" tires (27N, 30T)

Stylized aluminum wheels w/22.5" tires (35B, 35F)

Automatic hydraulic leveling jacks

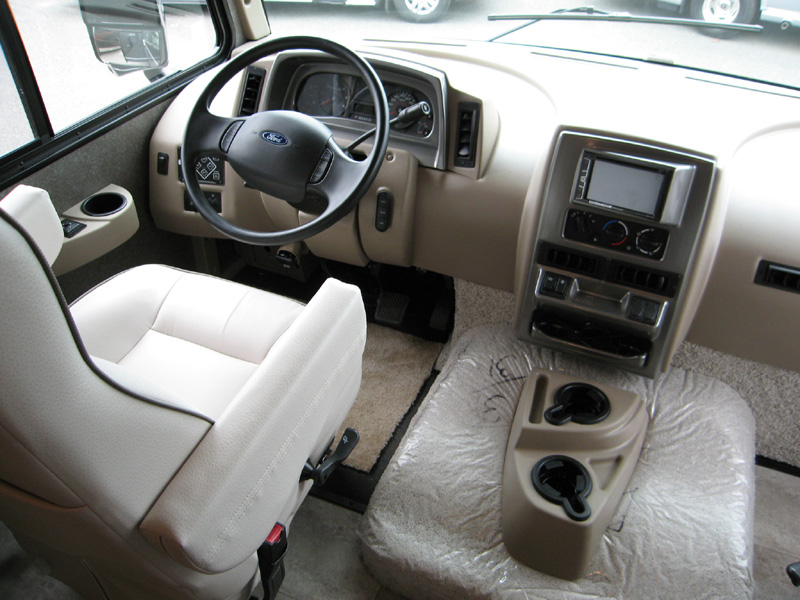

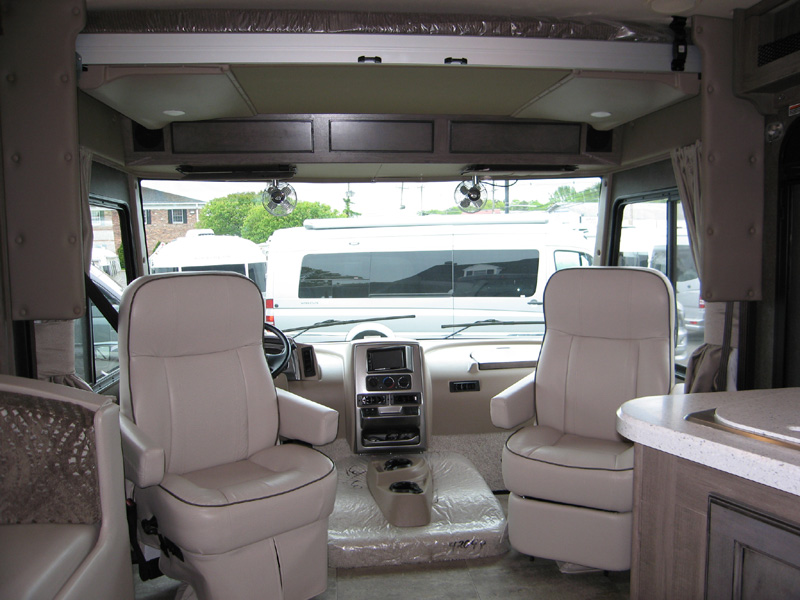

Cab Conveniences

Radio/Rearview Monitor System 6" touch screen, handheld remote, CD/DVD player, USB cable connection, and color rear camera

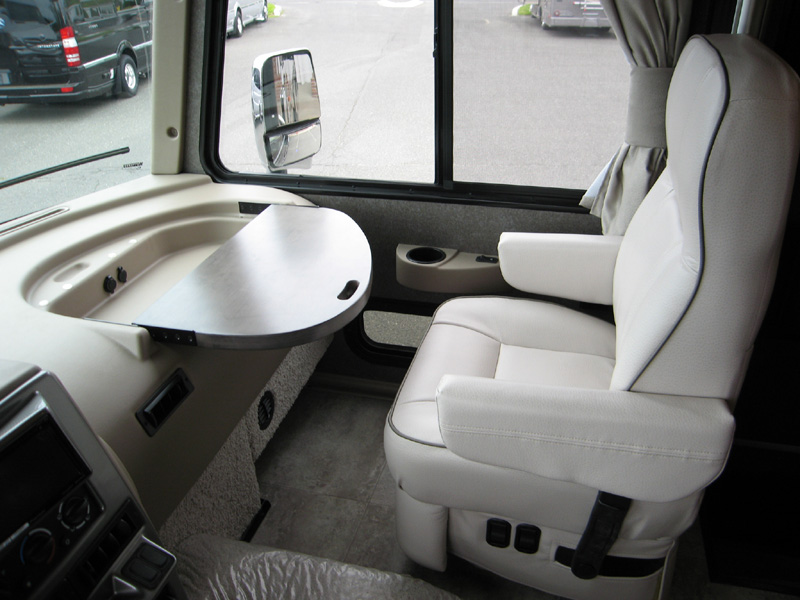

Cab seats adjustable armrests, fixed lumbar support, and multi-adjustable slide/recline/swivel

3-point seat belts

Chassis/house battery radio power switch

Power steering w/tilt wheel

Power mirrors w/defrost

Front wraparound curtain

Cruise control

Map lights

Sunvisors

Dash workstation w/USB and 12-volt powerpoint

Optional Equipment

6-way power driver seat

Passenger seat w/footrest

Dual-speed defroster fans

SiriusXM™ satellite radio receiver, remote (subscription not included)

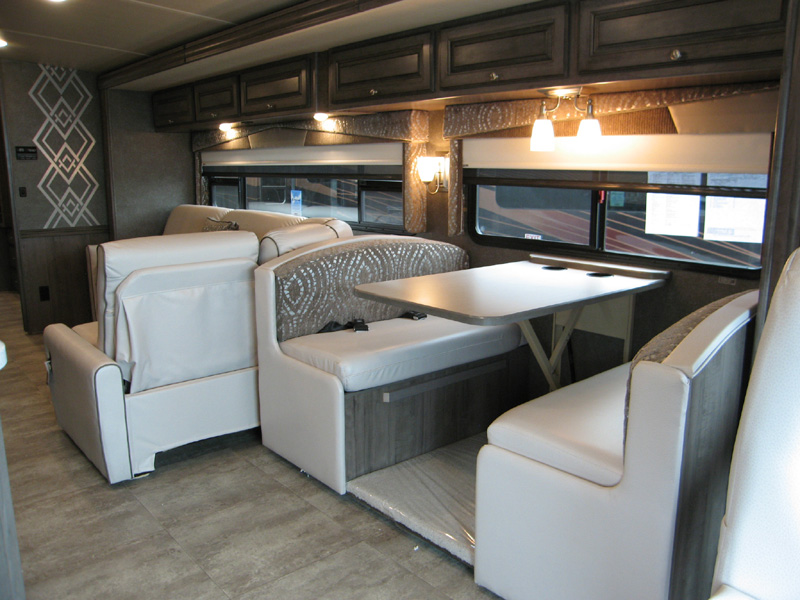

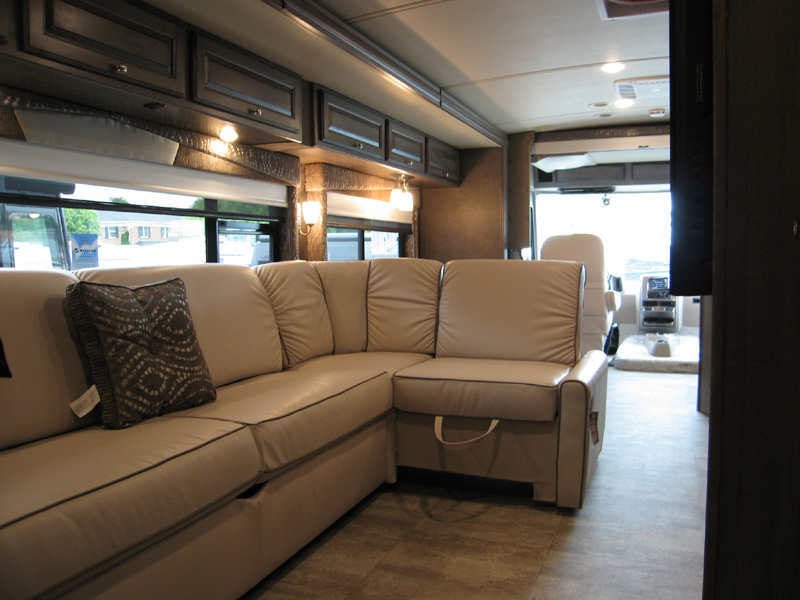

Interior

32" HDTV (front 30T)

40" HDTV (35F)

48" HDTV (27N, 35B)

Amplified digital TV antenna system

Satellite system ready

MCD solar/blackout roller shades (in select areas)

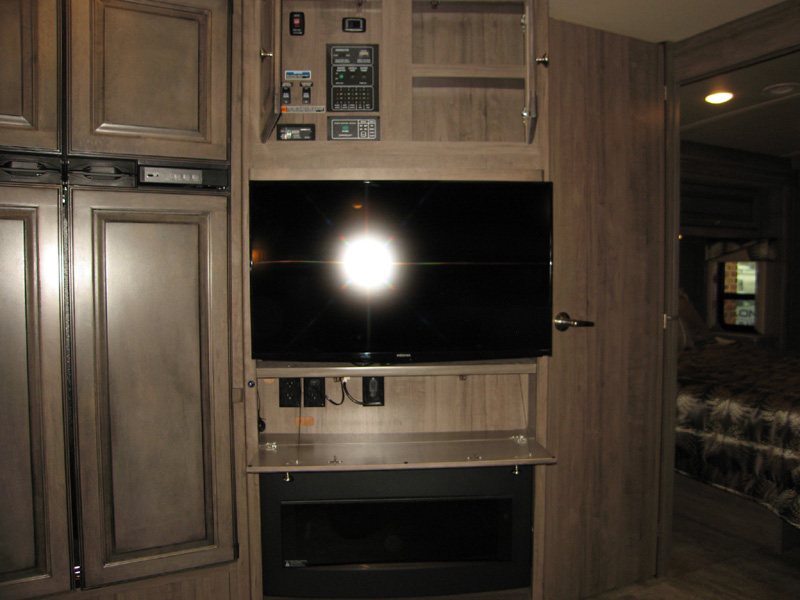

OnePlace® systems monitor

Powered ventilator fan (lounge)

Powered ventilator roof vent (27N bedroom)

Powered roof vent (bath)

Tinted dual-pane windows

LED lights

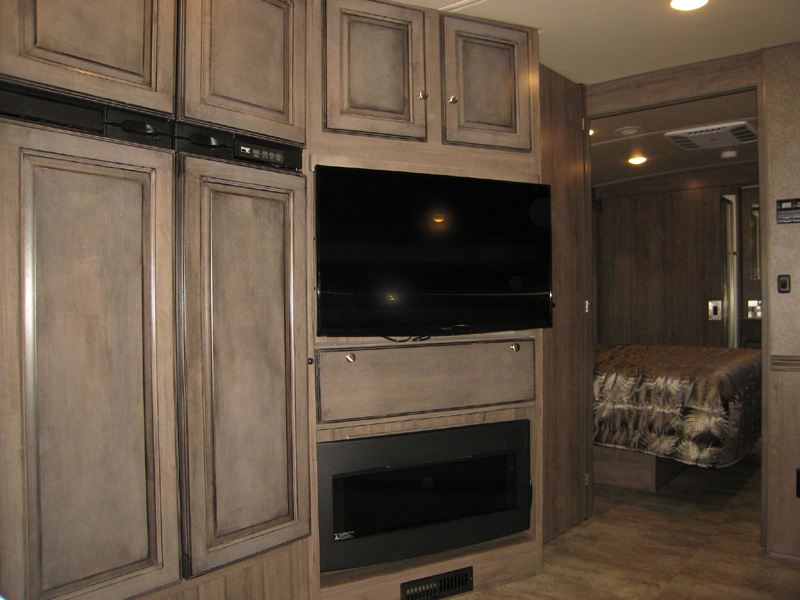

Electric fireplace (35F)

Optional Equipment

StudioLoft™ (powered w/ladder)

Dining table/buffet/chairs w/retractable 40" HDTV (30T)

32" HDTV (front) (27N, 35B)

48" HDTV (27N, 35B)

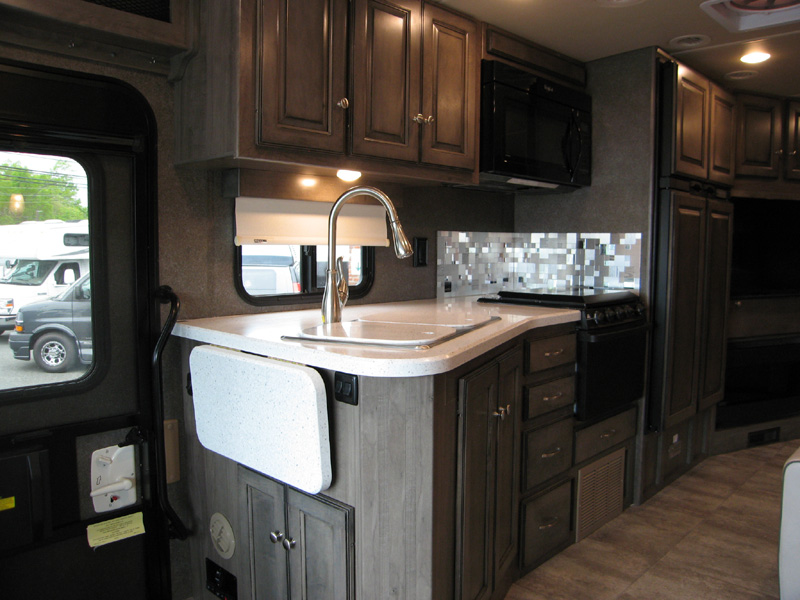

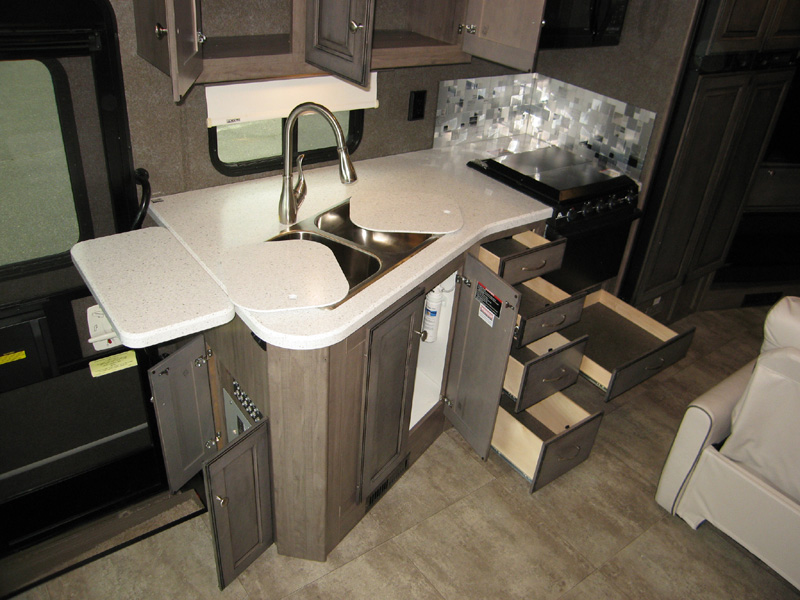

Galley

Corian countertops w/decorative backsplash

2-door refrigerator/freezer

Microwave oven (30T)

Microwave oven w/range fan (NA 30T)

3-burner range top w/storage below

Vented range hood (30T)

Optional Equipment

3-burner range w/oven

Microwave/convection oven (30T)

Microwave/convection oven w/range fan (NA 30T)

4-door refrigerator/freezer w/icemaker (35B, 35F)

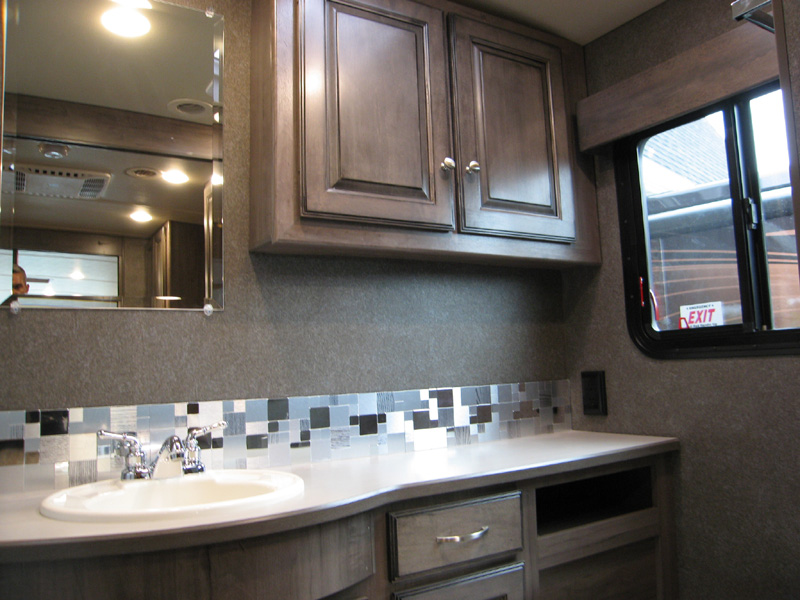

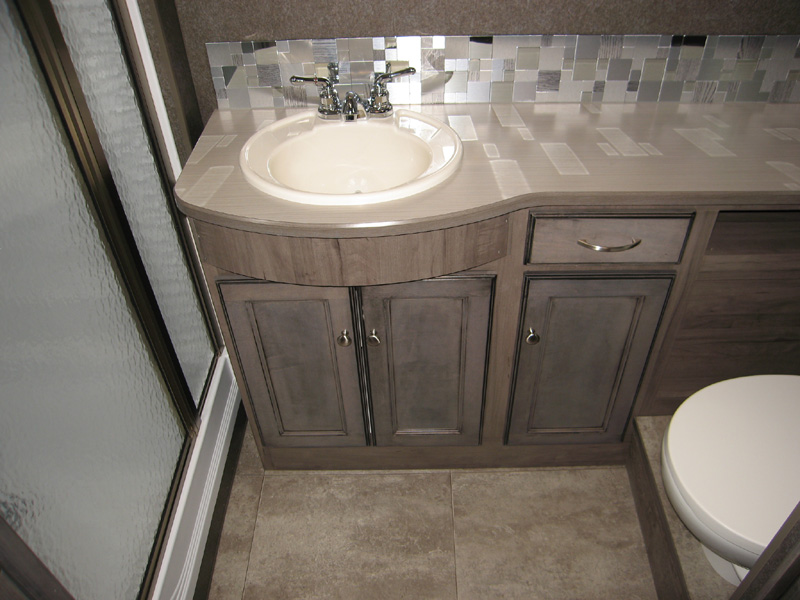

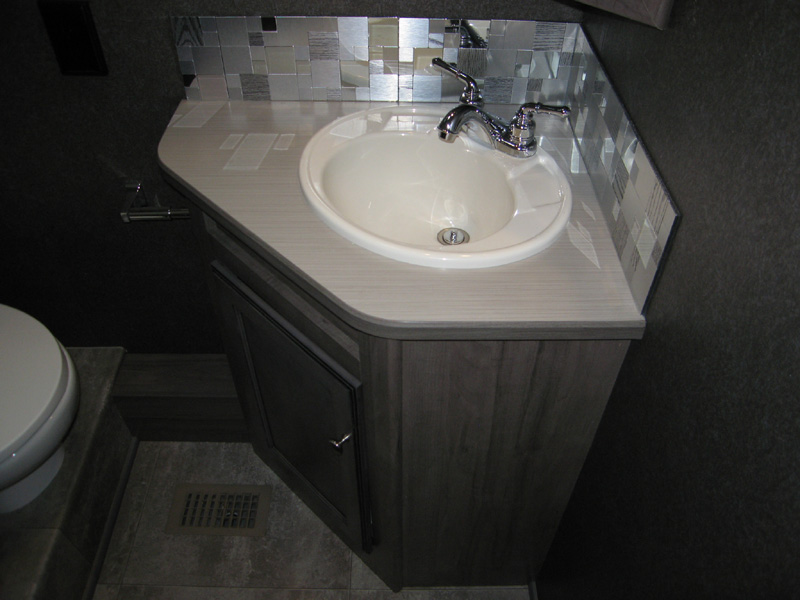

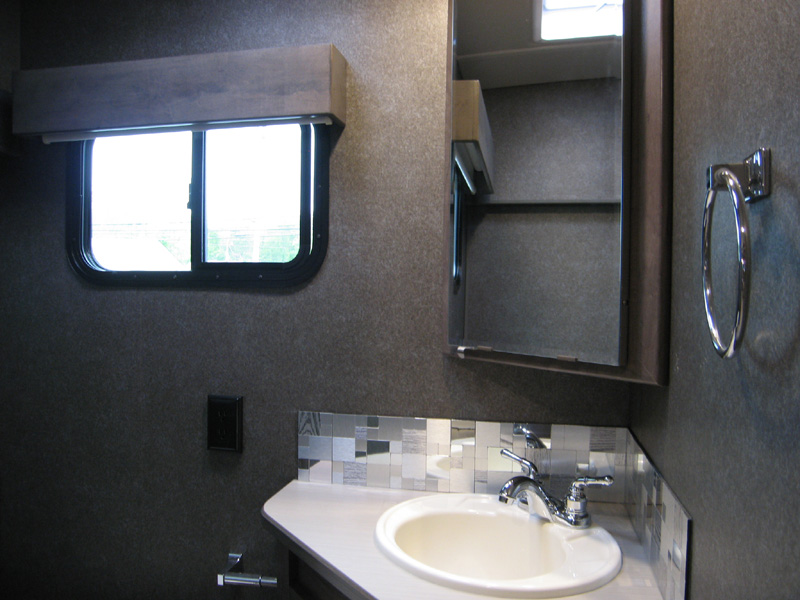

Bath

Laminate countertop

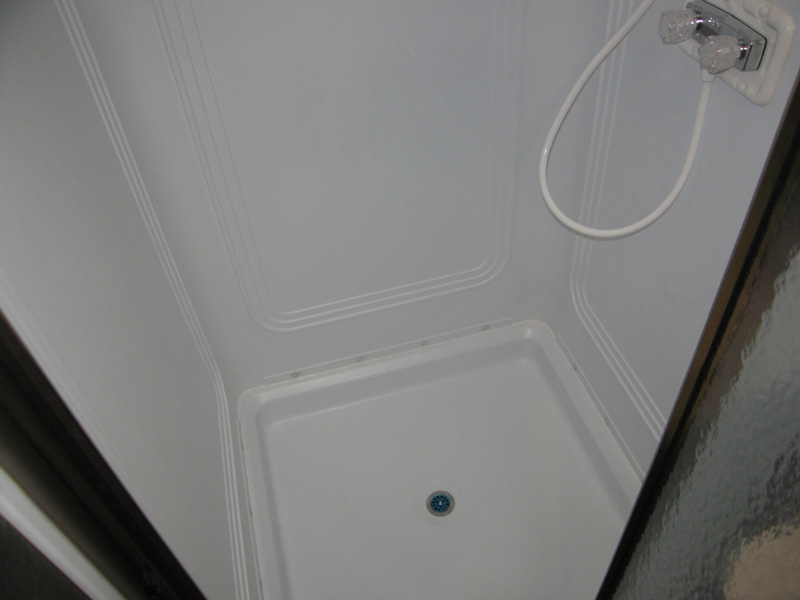

Flexible showerhead

Textured glass shower door

Skylight

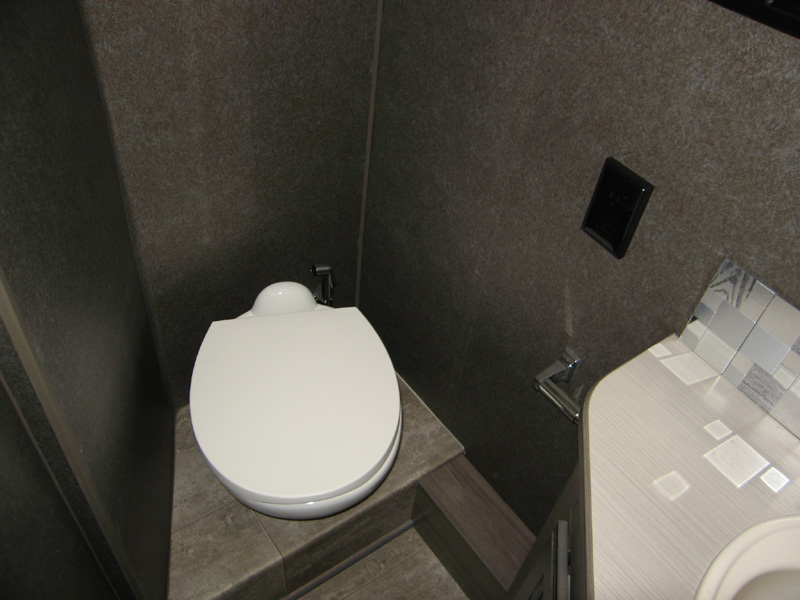

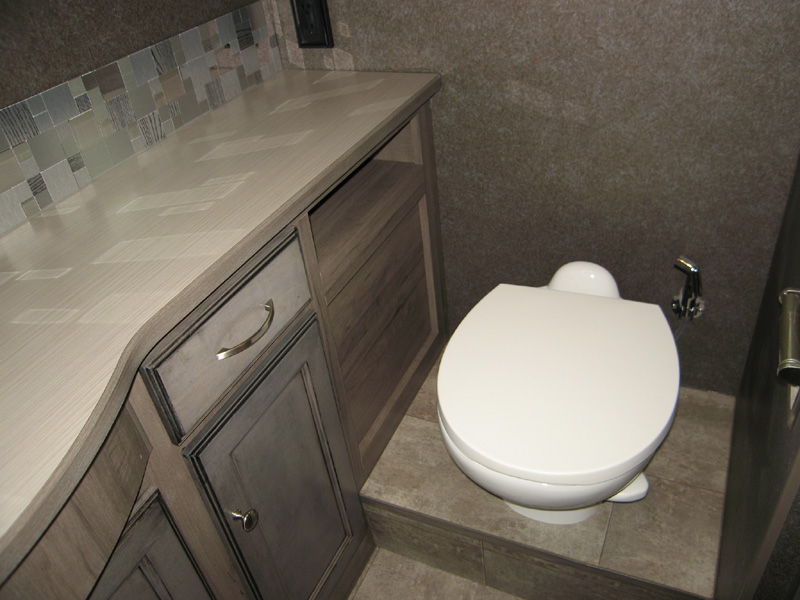

Porcelain toilet(s) w/foot pedal and sprayer

Medicine cabinet (35F)

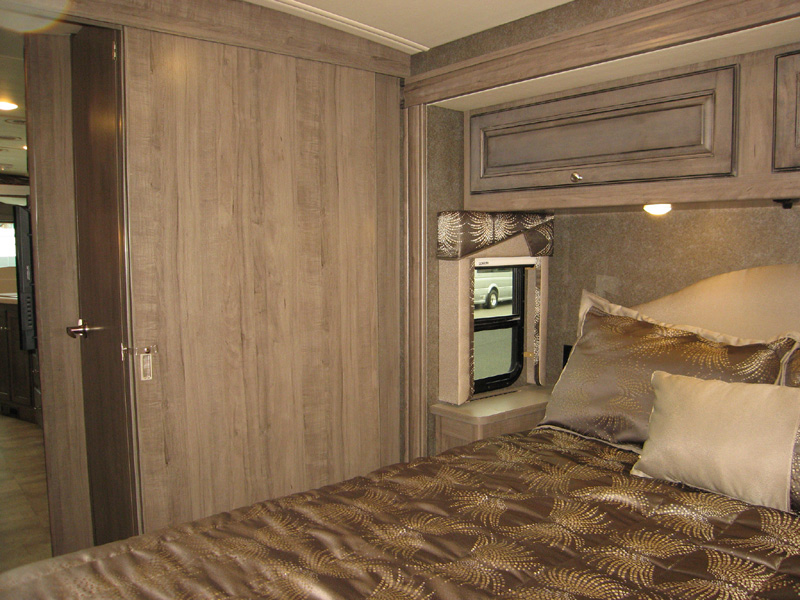

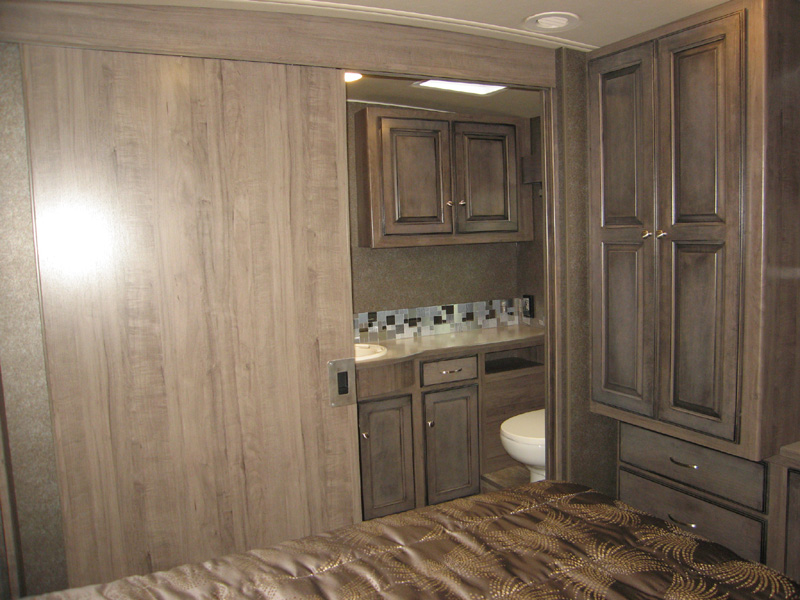

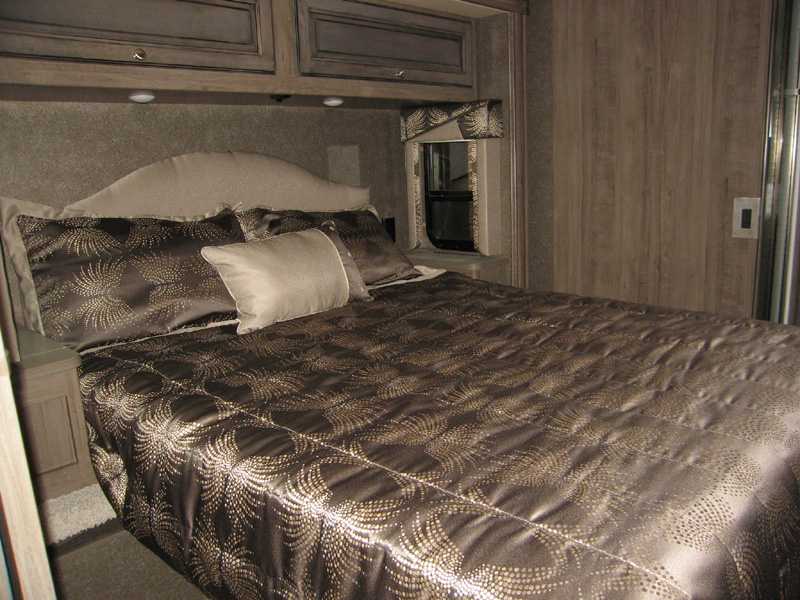

Bedroom

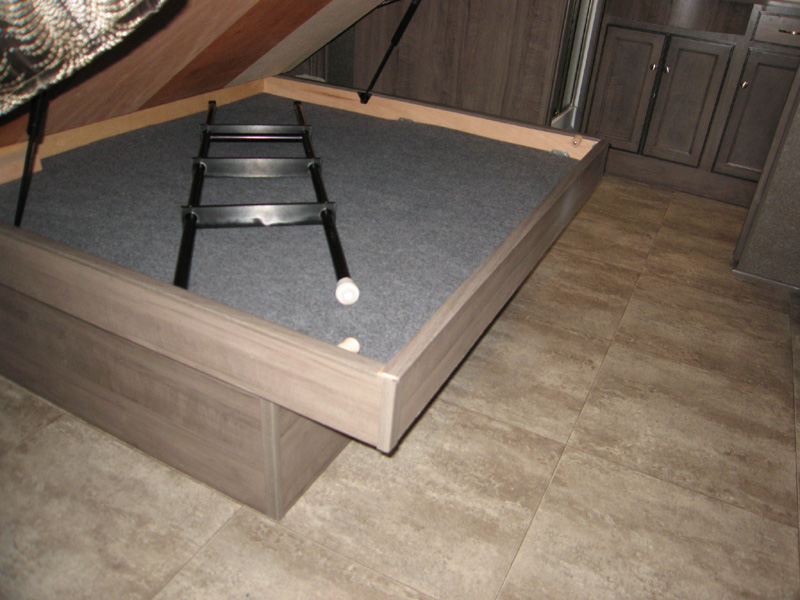

Queen bed w/innerspring mattress and storage below

Bedspread, pillows, and shams

Headboard (NA 30T)

Bunk beds w/foam mattresses, mattress covers, and privacy curtains (35B)

Optional Equipment

2 DVD players w/10.1" LCD monitors and headphones (35B bunk beds)

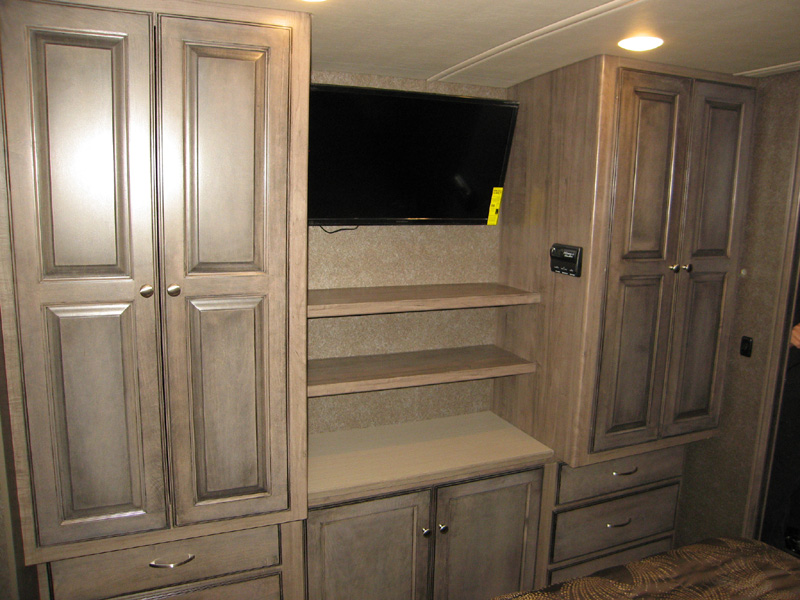

24" HDTV (27N, 30T)

28" HDTV (35B)

32" HDTV (35F)

Exterior

Premium high-gloss sidewall skin

Automatic entrance door steps

Powered patio awning

Front mud flaps

Porch light w/interior switch

Incandescent lighted storage compartments (in select compartments)

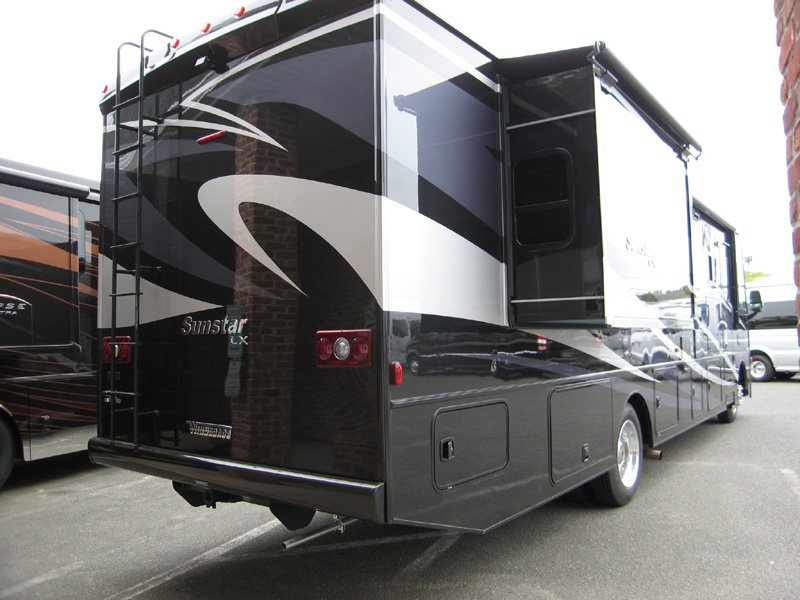

Ladder

Optional Equipment

Lower front protective mask (w/full-body paint only)

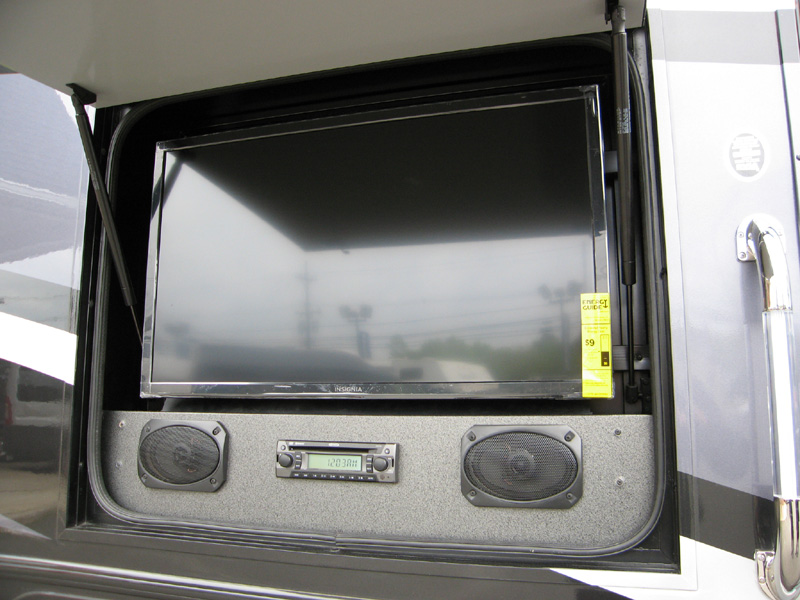

Entertainment Center 32" HDTV w/remote, AM/FM stereo w/DVD player w/remote, speakers (27N, 35B, 35F)

Heating & Cooling System

14,800 BTU air conditioner w/ChillGrille™ (27N, 30T)

2 high-efficiency air conditioners w/ChillGrille and Energy Management System (35B, 35F)

30,000 BTU low-profile furnace (27N, 30T)

40,000 BTU low-profile furnace (35B, 35F)

Optional Equipment

Air conditioner heat pump (27N, 30T)

2 high-efficiency air conditioner heat pumps (35B, 35F)

All-Weather Upgrade Package (30T) 5,500-watt Cummins Onan® Marquis Gold™ gas generator, 2nd high efficiency A/C with heat pumps, 50-amp. power cord, automatic changeover switch, shoreline/generator

Electrical System

AC/DC load center, 45-amp. converter/charger (27N, 30T)

AC/DC electrical distribution system, 45-amp. converter/charger (35B, 35F)

30-amp. power cord (27N, 30T)

50-amp. power cord, shoreline/generator automatic changeover switch (35B, 35F)

PowerLine® Energy Management System (NA 30T)

4,000-watt Cummins Onan MicroQuiet™ gas generator (27N, 30T)

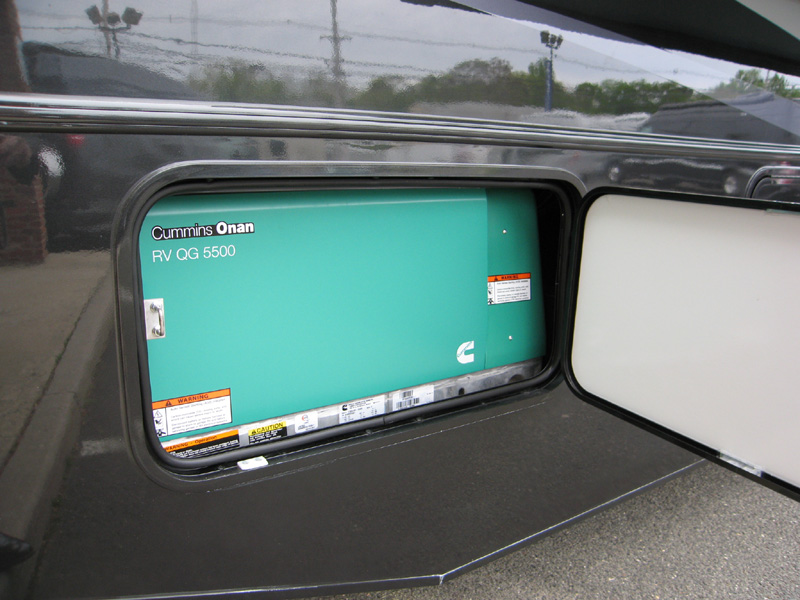

5,500-watt Cummins Onan Marquis Gold gas generator (35B, 35F)

2 deep-cycle Group 24 batteries

Battery disconnect system (chassis and coach)

Automatic dual-battery charge control

Auxiliary start circuit

AC duplex receptacle

Cable TV input

Portable satellite dish hookup, power cord

Exterior antenna jack

Optional Equipment

1,000-watt AC/DC inverter w/remote panel

2 deep-cycle Group 31 batteries w/4-door refrigerator/freezer w/icemaker (35B, 35F)

Plumbing System

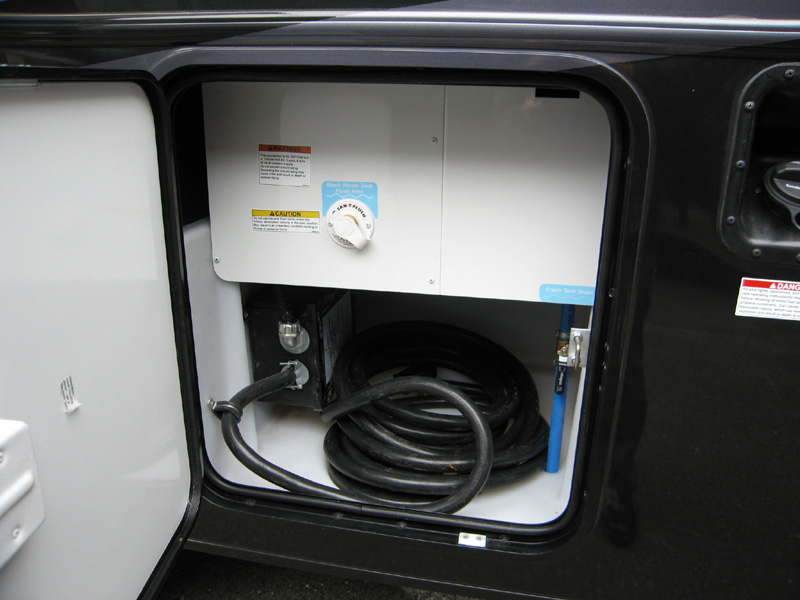

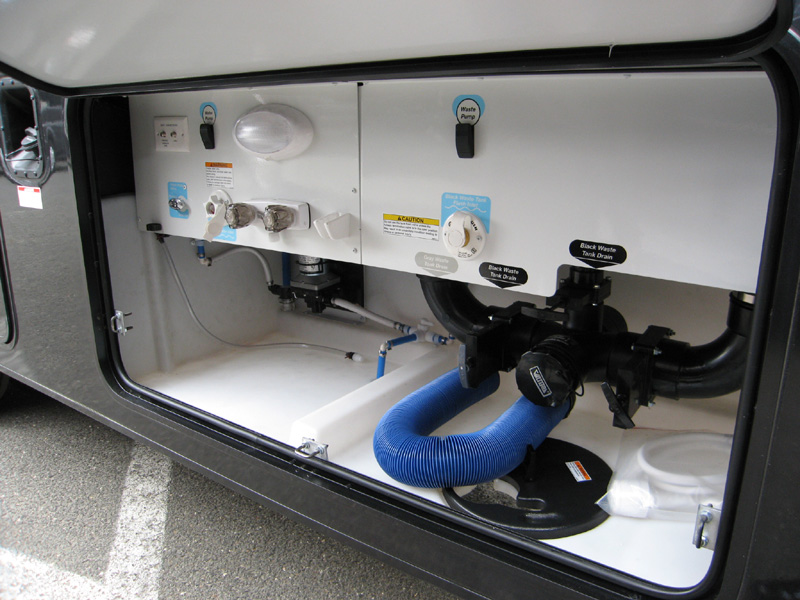

Service Center colored labels, pressurized city water hookup w/diverter valve, drainage valves, exterior wash station w/lighted pump switch, 10' sewer hose

6-gallon 110-volt/LP water heater w/motoraid

Heated holding tank compartment

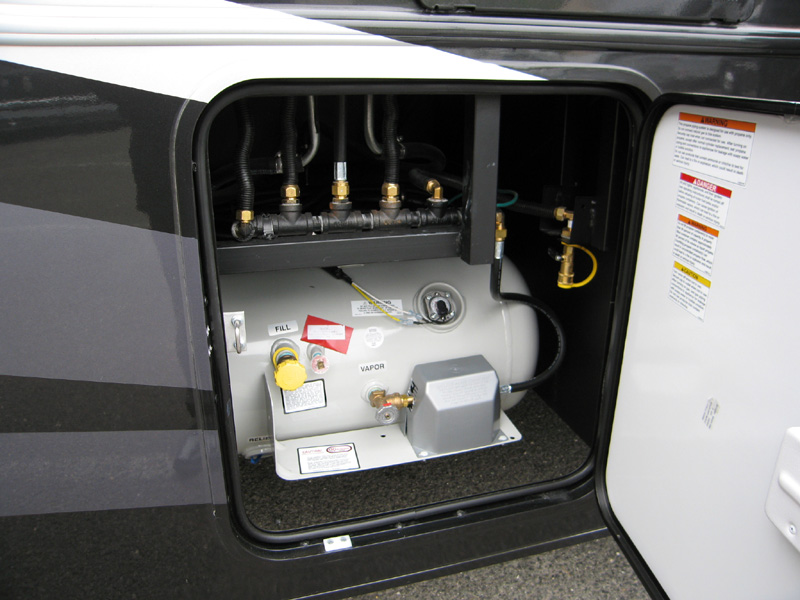

Permanent-mount LP tank w/gauge

On-demand water pump

TrueLevel™ holding tank monitoring system

Winterization Package water heater bypass valve and siphon tube

LPG accessory connection (patio area)

Gravity tank fill w/lockable door (NA 35B)

Holding tank flushing system (black tank only)

Sewage pump (macerator) (35F)

Safety

Child seat tether anchor (forward facing dinette seat)

LP, smoke, and carbon monoxide detectors

10 BC fire extinguisher

Ground fault interrupter

High-mount brake lamp

Warranty7

12-month/15,000-mile basic limited warranty8

36-month/36,000-mile limited warranty on structure8

10-year limited parts-and-labor warranty on roof skin8

1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please check with your dealer for further information.
2. Floorplans feature a wide-body design - over 96". In making your purchase decision, you should be aware that some states restrict access on some or all state roads to 96" in body width. Before making your purchase decision, you should confirm the road usage laws in the states of interest to you.
3. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
4. Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
5. Capacities shown are tank manufacturer's listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR, and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
7. See separate chassis warranty.
8. See your dealer for complete warranty information.
