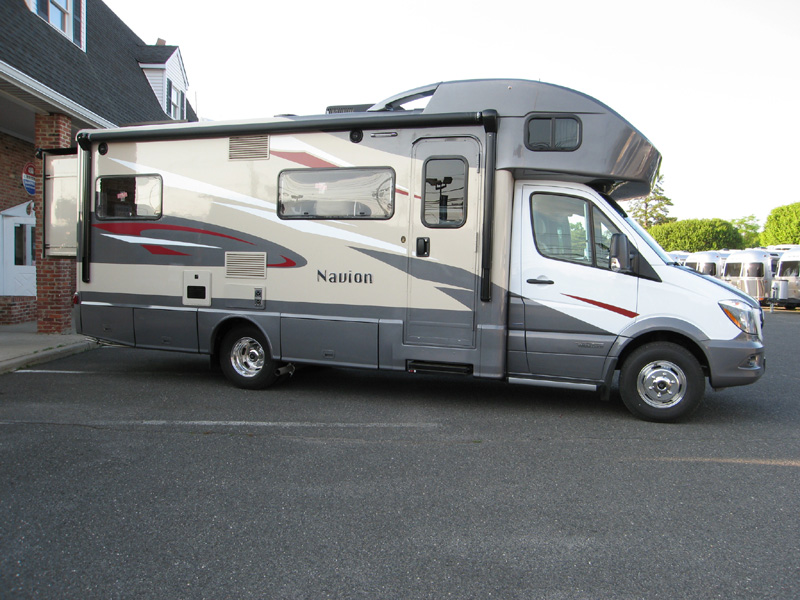

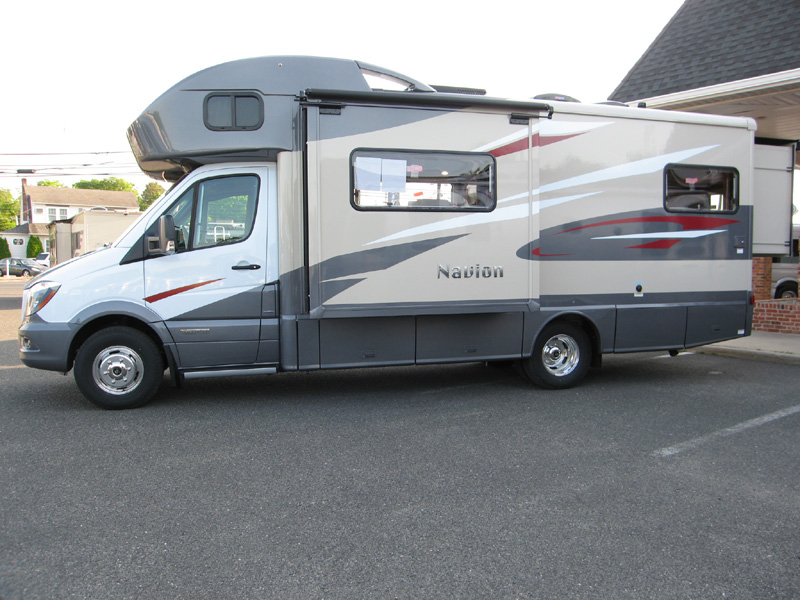

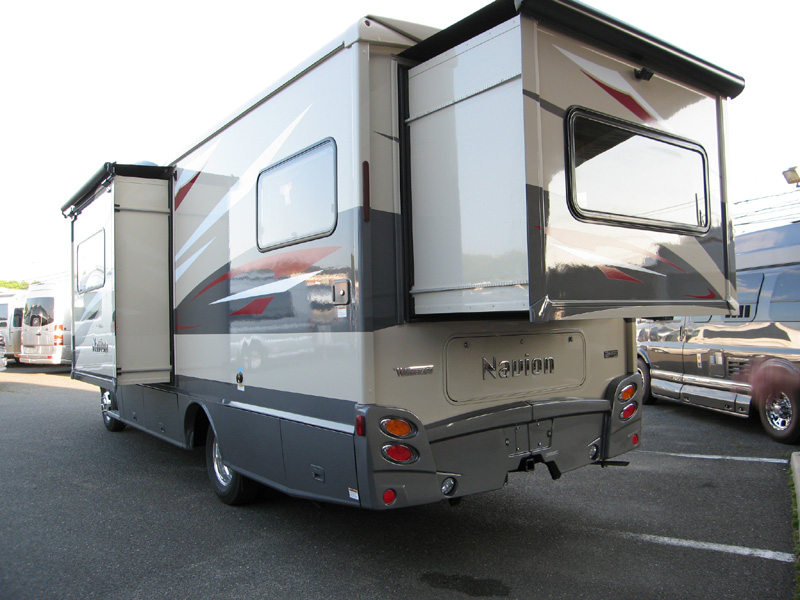

Model: 2017 Navion

Weights & Measures

	24G	24J	24V
Length	25'5"	25'5"	25'5"
Exterior Height1	11'2"	11'2"	11'2"
Exterior Width	7'6"	7'6"	7'6"
Exterior Storage2 (cu. ft.)	53	48	43
Awning Length	16'	16'	16'
Interior Height	6'8"	6'8"	6'8"
Interior Width	7'3"	7'3"	7'3"
Freshwater Tank Capacity3 (gal.)	31	32	31
Water Heater Capacity (gal.)	Continuous	6	6
Holding Tank Capacity - Black/Gray3 (gal.)	34/40	34/40	36/36
LP Capacity4 (gal.)	13	13	13
Fuel Capacity (gal.)	26.4	26.4	26.4
GCWR5 (lbs.)	15,250	15,250	15,250
GVWR (lbs.)	11,030	11,030	11,030
GAWR - Front (lbs.)	4,410	4,410	4,410
GAWR - Rear (lbs.)	7,720	7,720	7,720
Wheelbase	170"	170"	170"
Seating Capacity	3	5	4

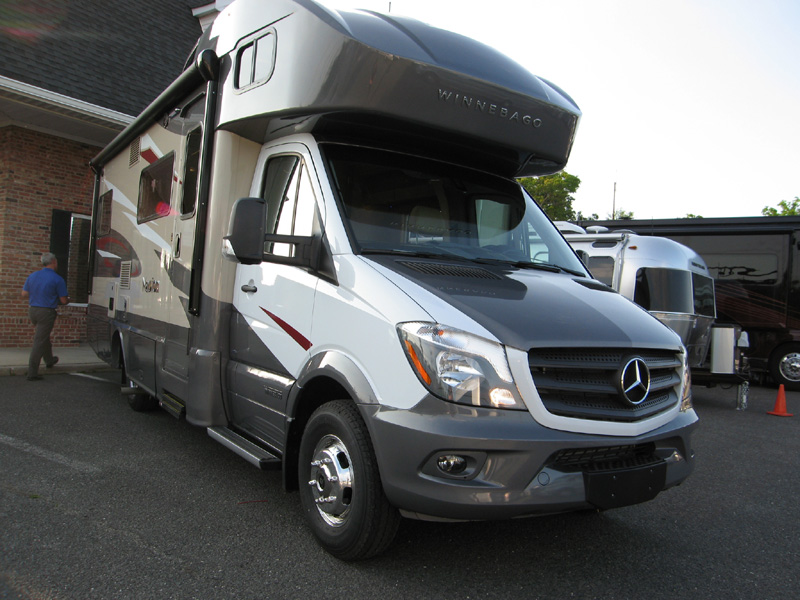

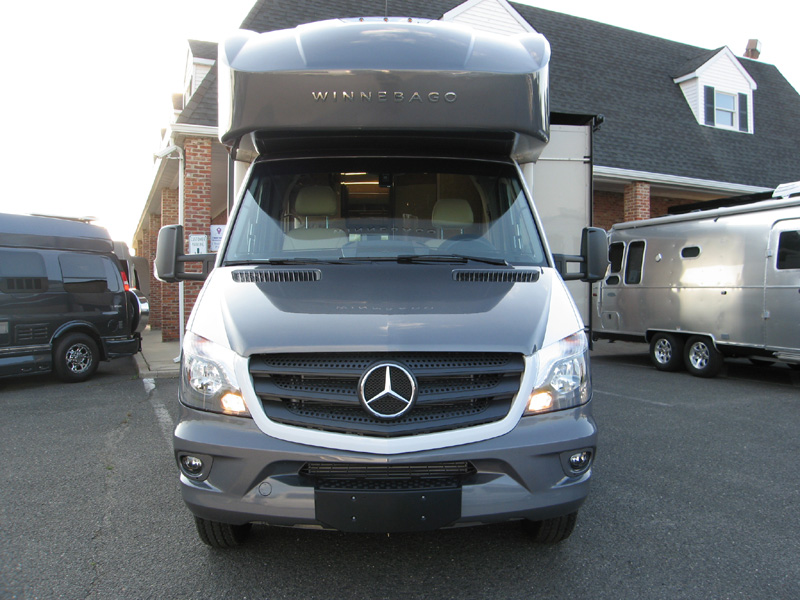

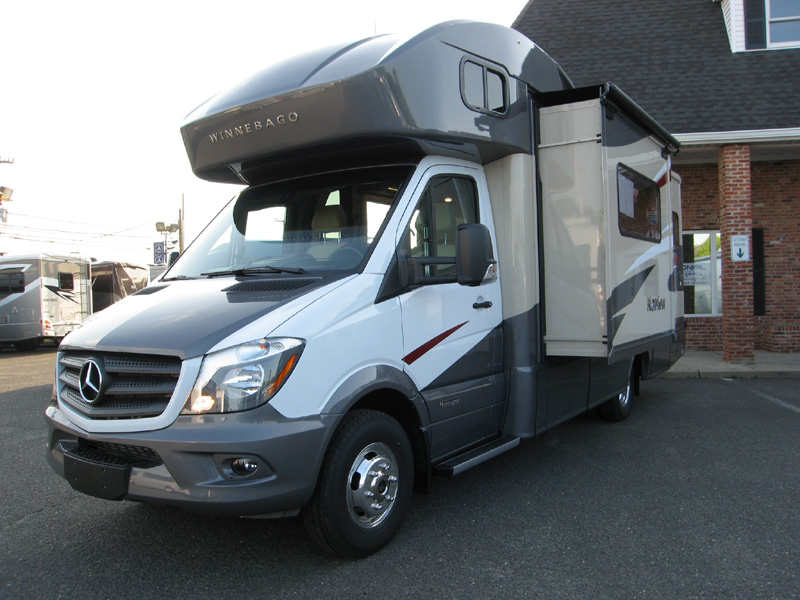

Mercedes-Benz® Sprinter Chassis

3.0L 6-cylinder, 188-hp, turbo-diesel engine, 5-speed automatic tip-shift transmission, 220-amp. alternator

Adaptive ESP® technology

Hydraulic brakes w/ABS

Trailer Hitch5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector

Stainless steel wheel liners (24J, 24V)

Alcoa forged aluminum wheels (24G)

Optional Equipment

Stylized chrome wheels (24J, 24V)

Alcoa forged aluminum wheels (24J, 24V)

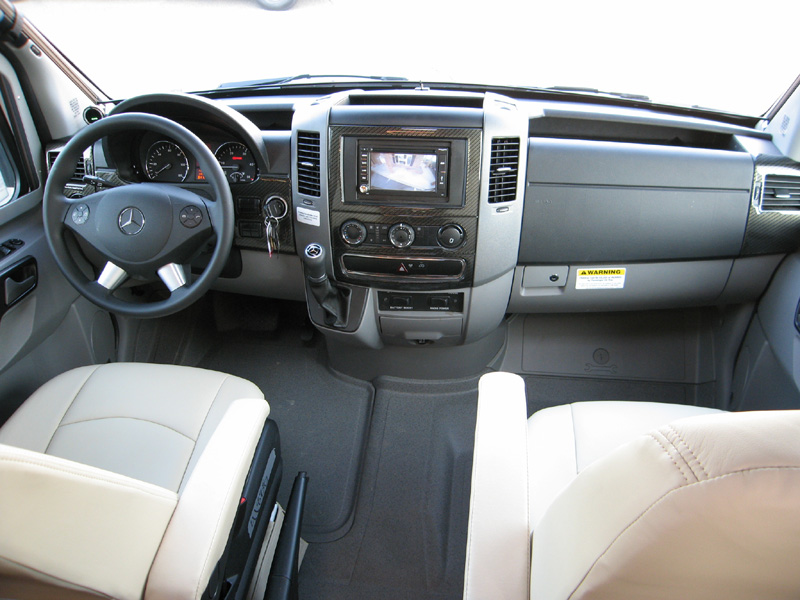

Cab Conveniences

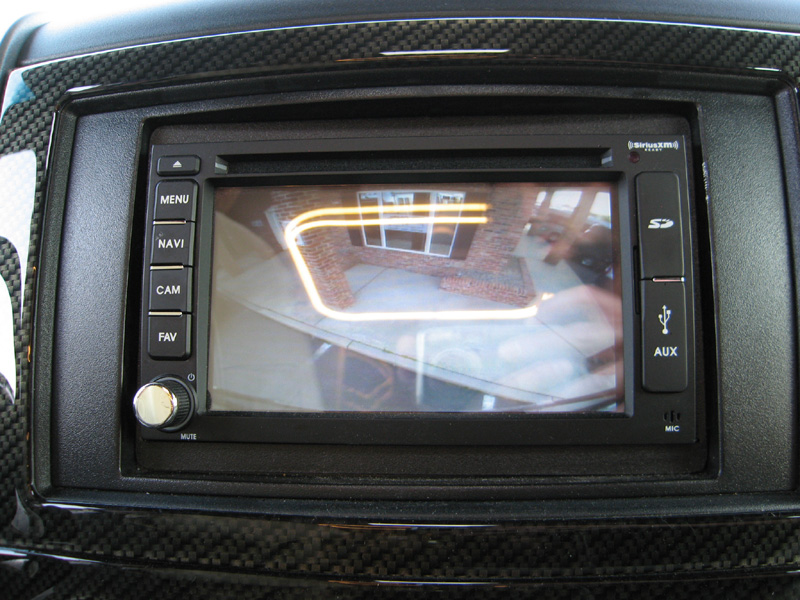

Radio/Rearview Monitor System 6" touch screen color monitor, handheld remote, iPod®/MP3 input, color rear camera

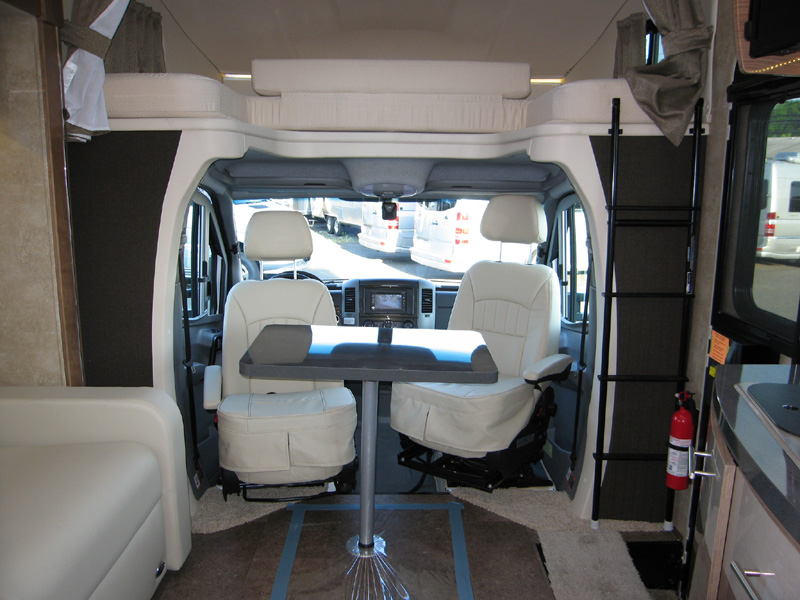

Cab seats armrest, adjustable lumbar support, headrest, recline, swivel and slide

Airbags driver and passenger

3-point seat belts

Power door locks w/remote

Power windows

Power mirrors w/defrost and turn signals

Cruise control

Chassis/house battery radio power switch

Power steering w/tilt wheel

Sunvisors

12-volt powerpoints

Pleated windshield blinds

Privacy curtain (cab windows)

Dash appliqué package

Optional Equipment

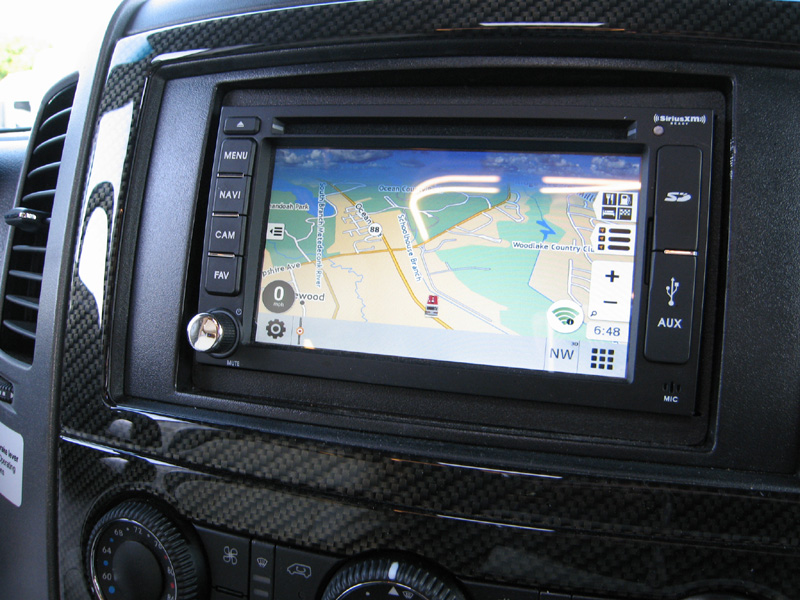

Infotainment Center with Rand McNally RV GPS 6" touch screen color monitor w/split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio w/CD/DVD player, handheld remote, SiriusXM™ (subscription not included), iPod/iPhone® audio integration, Bluetooth™, color rearview camera, USB connection

2 cab seat lounge cushions

Sliding, pleated windshield blinds

Mobileye® Collision Avoidance System

JBL premium audio tuned 180-watt DSP amplifier with 5 speakers including subwoofer

Interior

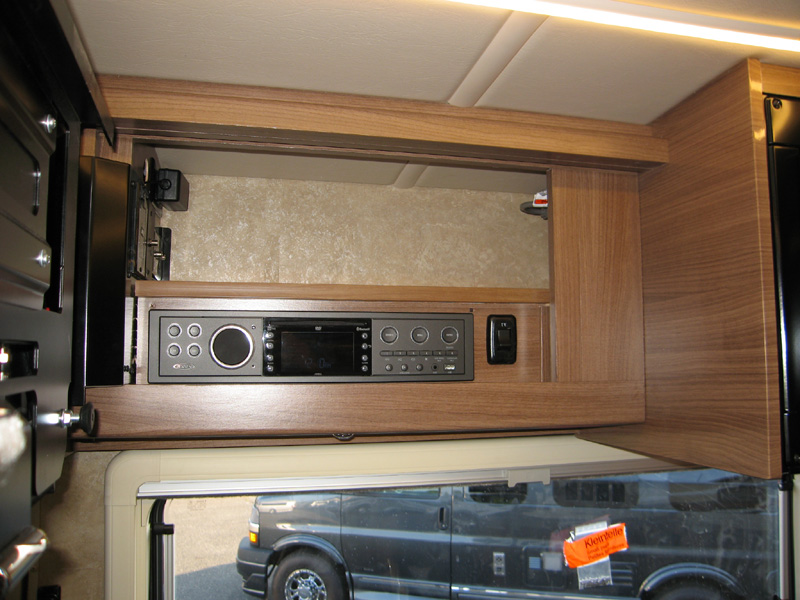

Stereo System AM/FM, alarm clock, CD/DVD player, input jack, Bluetooth™, 2 speakers and subwoofer

28" HDTV

LED lights

Satellite system ready

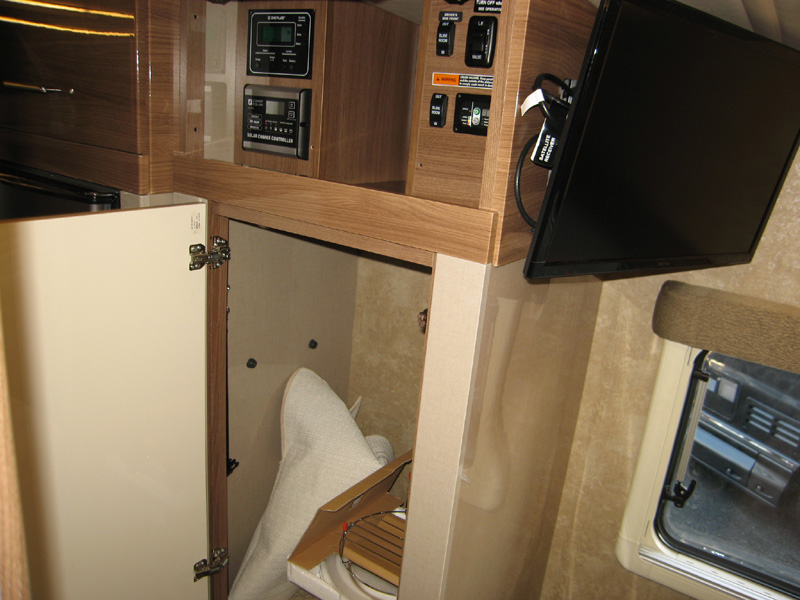

Monitor panel

Amplified digital HDTV antenna

Roof vent w/electric lift and ventilator fan (NA w/available powered skylight)

Mini blinds (galley)

Skylight w/shade

MCD solar/blackout roller shades

Tinted coach windows

Soft vinyl ceiling

Vinyl flooring throughout (24G front to bedroom)

Assist bar

Mirror (24V)

USB charger

Interior Upgrade Package frosted galley backsplash w/accent lighting, 2 sink covers

Optional Equipment

Powered skylight/roof vent w/sliding screen and pleated shade

Dual-pane acrylic windows

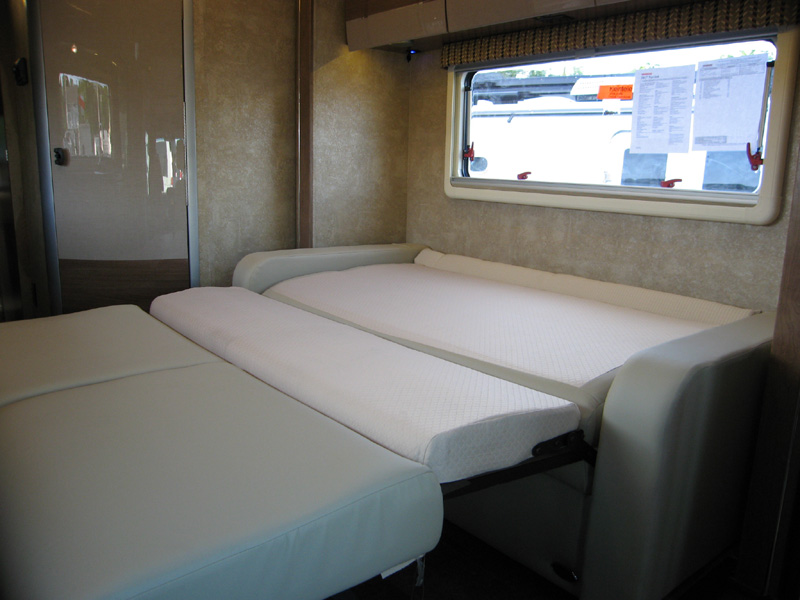

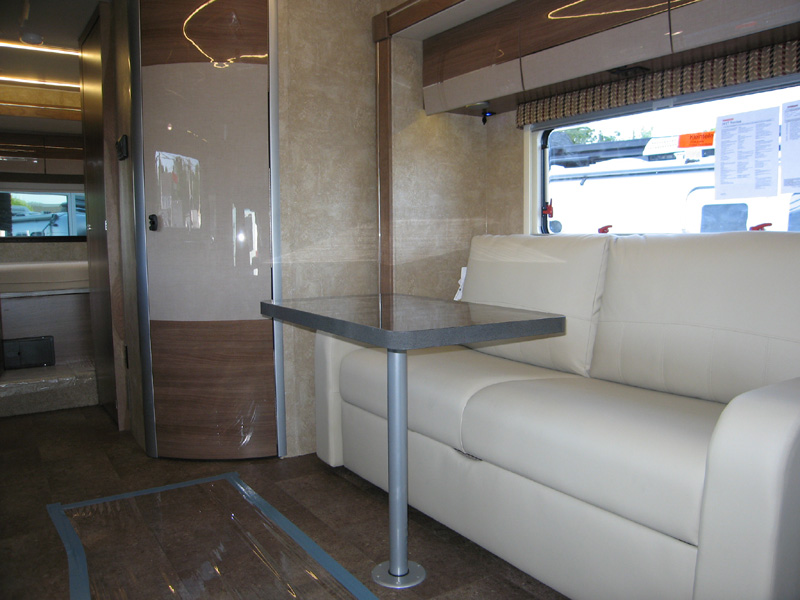

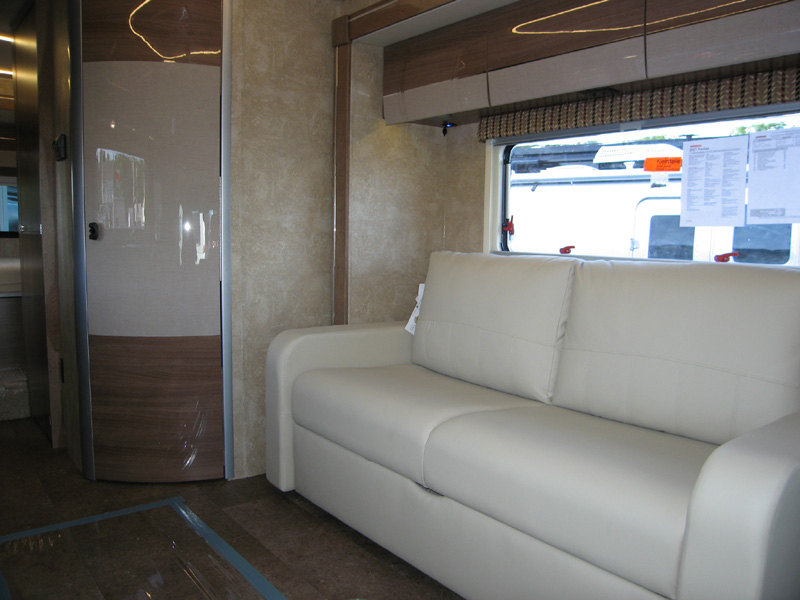

Sofa Sleeper (24G)

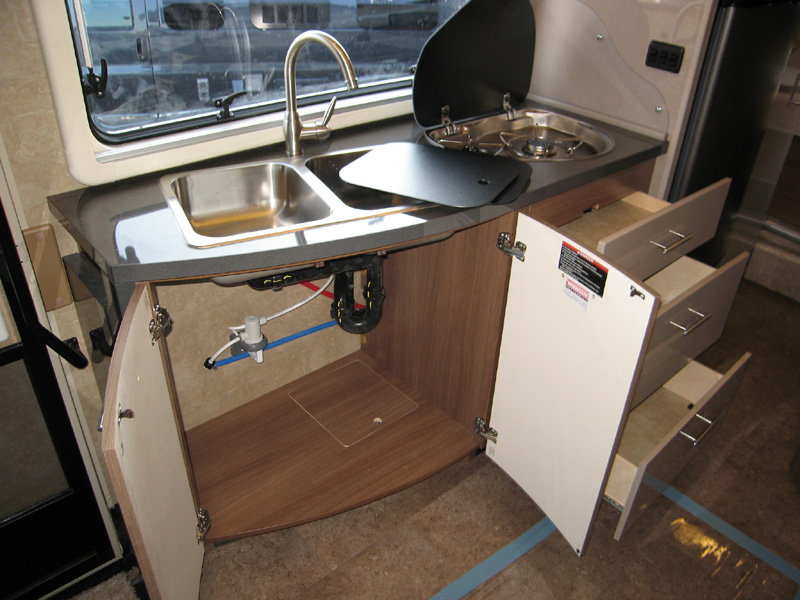

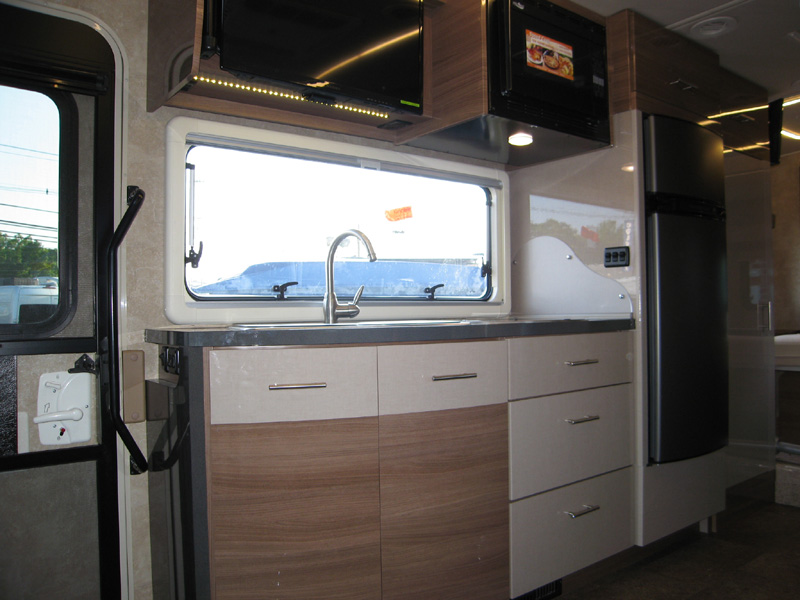

Galley

Laminate countertops

Microwave/convection oven w/touch control

2-burner range top w/glass cover

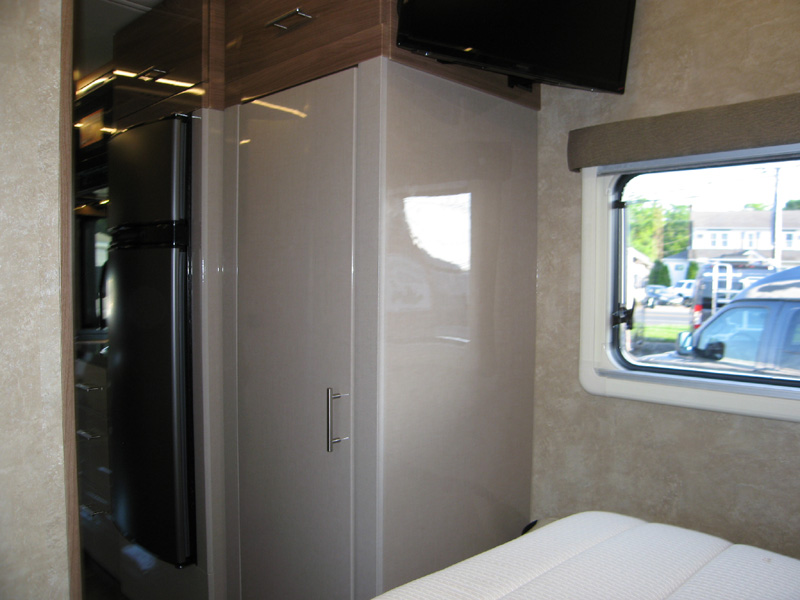

Norcold® double-door refrigerator/freezer

Cold water filtration system

Water-pump switch w/light

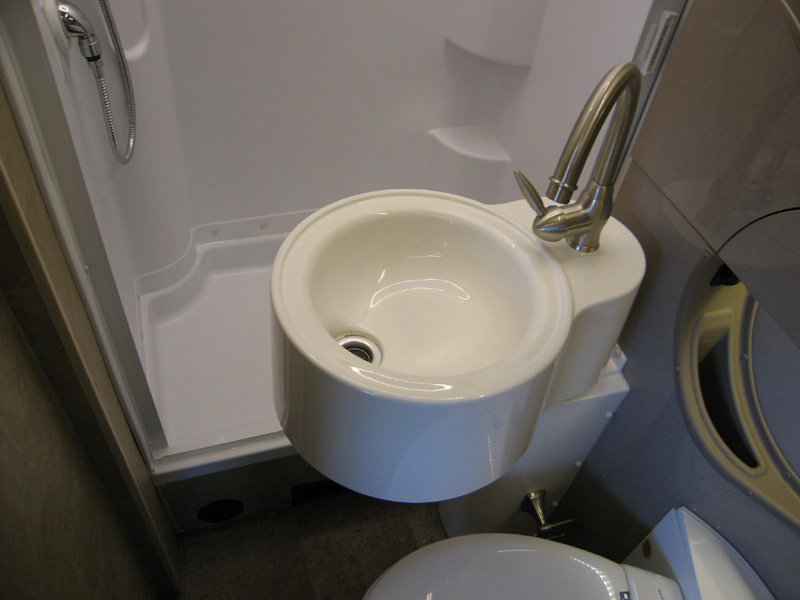

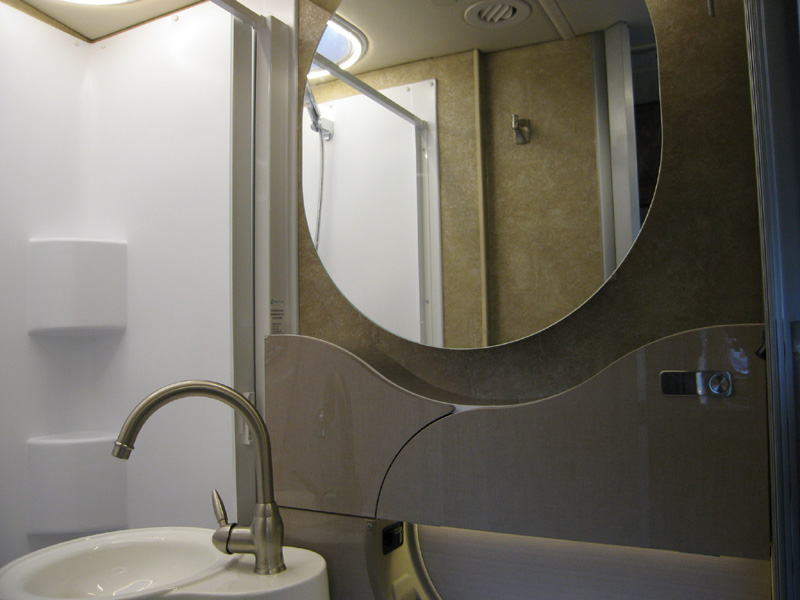

Bath

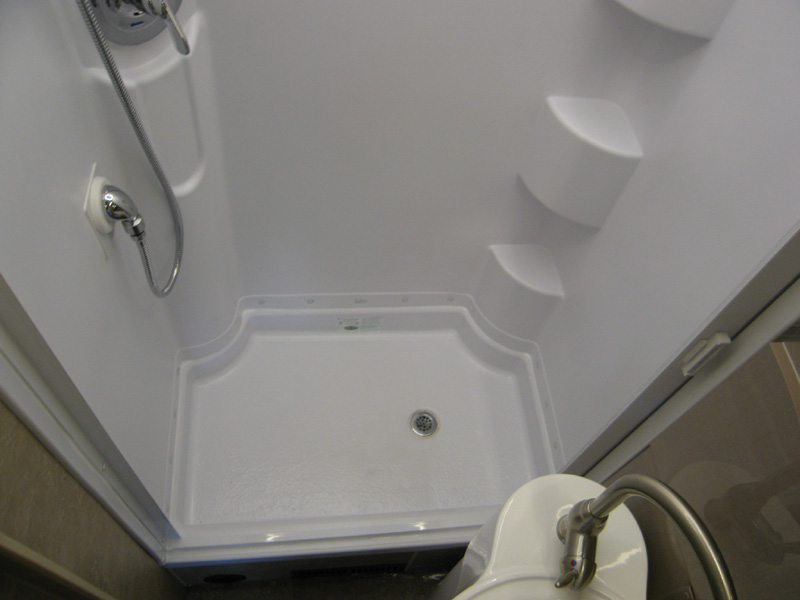

Retractable, self-cleaning shower screen

Flexible showerhead

Skylight

Porcelain toilet w/foot pedal and sprayer (24J, 24V)

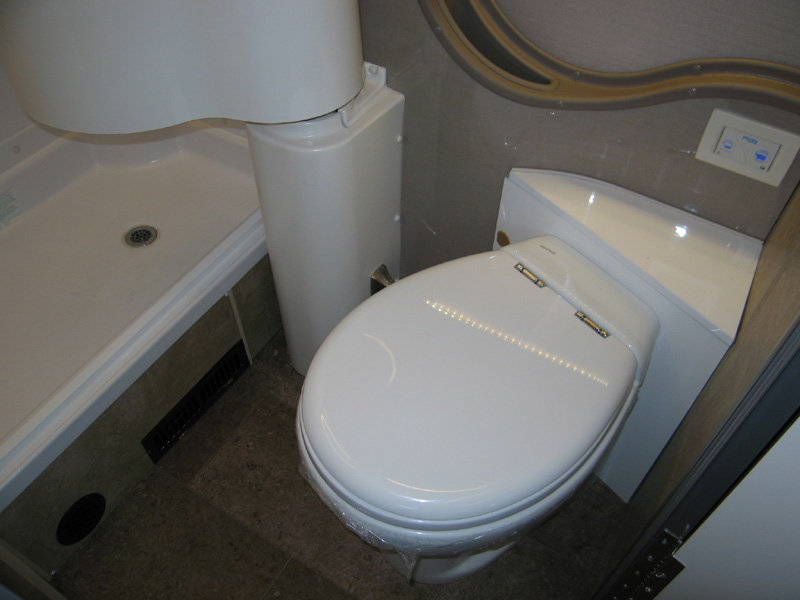

Porcelain toilet w/electric flush (24G)

Powered roof vent

Towel ring(s)

Towel bar(s)

Tissue holder

Robe hook(s) (24J)

Medicine cabinet (24G)

Optional Equipment

Powered ventilator fan

Bedroom

Corner bed w/headboard, foam mattress, mattress cover, and access to storage below (24J)

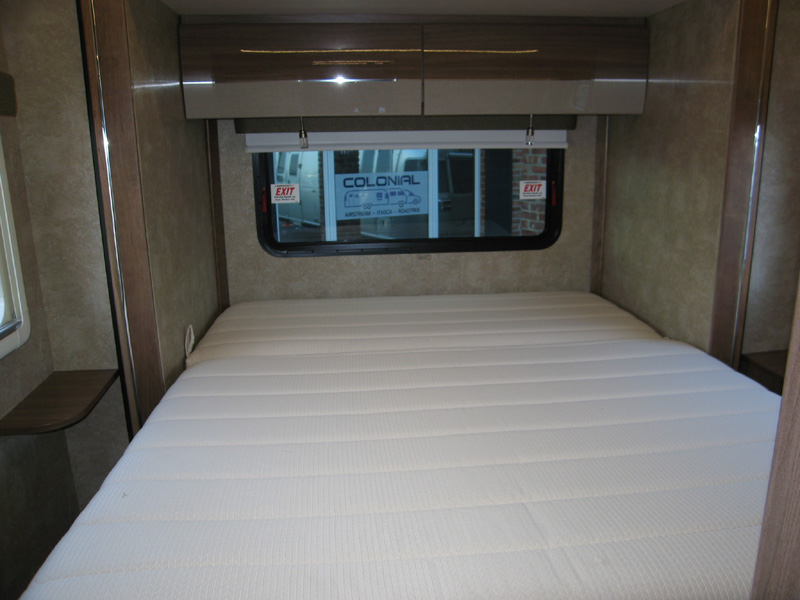

Queen bed w/memory foam mattress and mattress cover (24G)

Flex Bed System twin beds/queen bed w/foam mattresses and access to storage below (24V)

MCD blackout roller shades

Optional Equipment

24" HDTV

Froli deluxe sleep system (NA 24G)

Exterior

Automatic entrance door step(s)

LED porch light w/interior switch

Stepwell light w/interior switch

Front and rear mud flaps

Premium high-gloss skin

Powered patio awning w/LED lights (full-body paint option includes metal wrap)

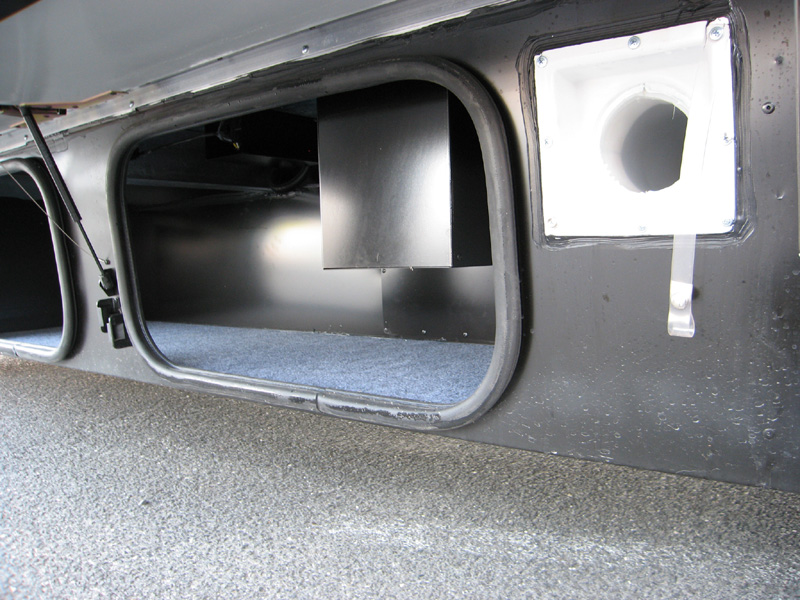

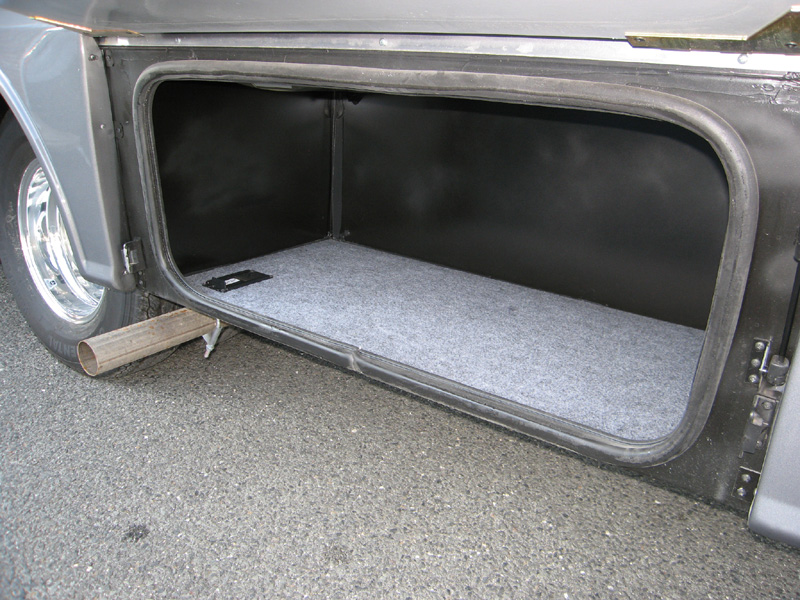

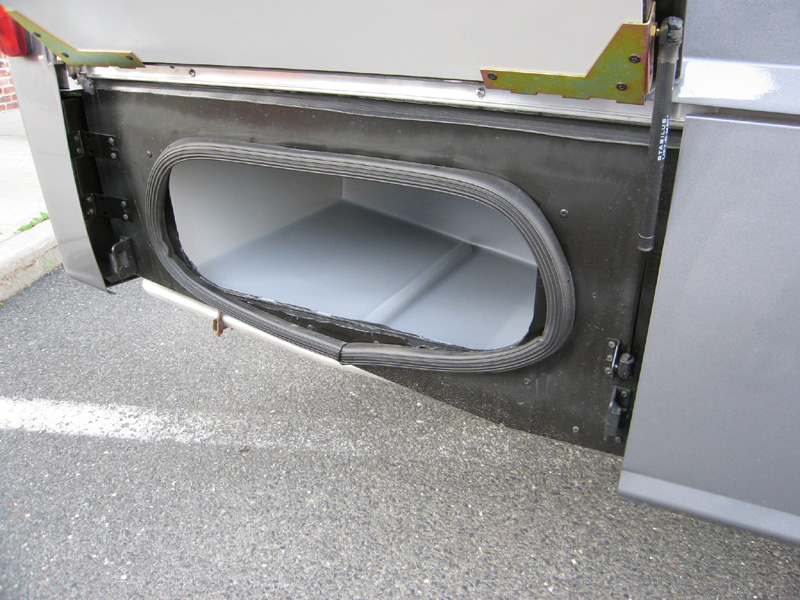

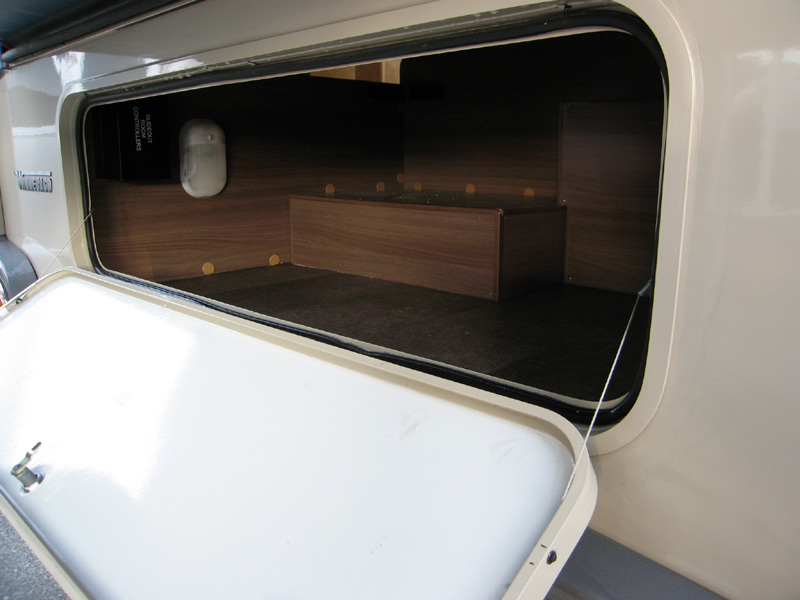

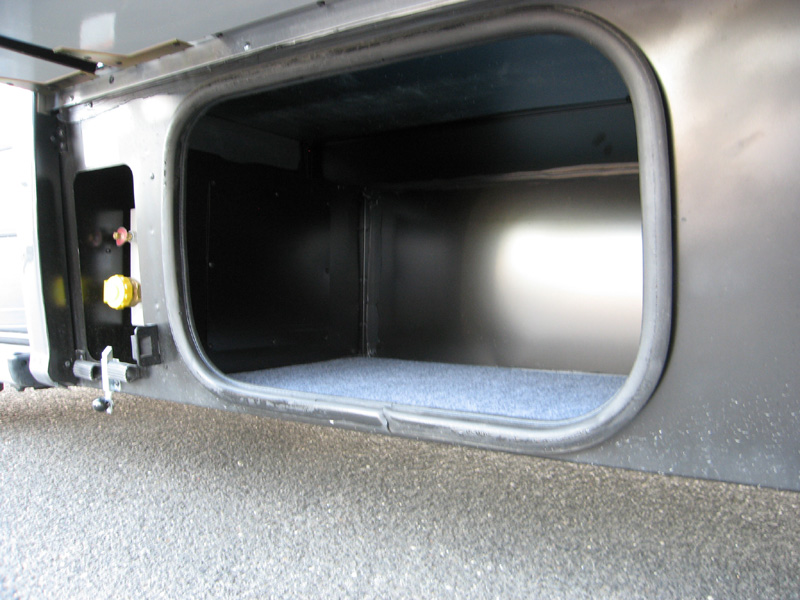

Lighted storage compartments

Exterior speakers

Optional Equipment

Bike rack

Heating & Cooling

15,000 BTU air conditioner

20,000 BTU low-profile furnace

Optional Equipment

15,000 BTU air conditioner w/heat pump

Electrical System

Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch

Auxiliary start circuit

Exterior AC duplex

Exterior antenna jack

Battery disconnect system (coach)

Automatic dual-battery charge control

AC/DC load center, 45-amp. converter/charger

2 deep-cycle, Group 24 RV batteries

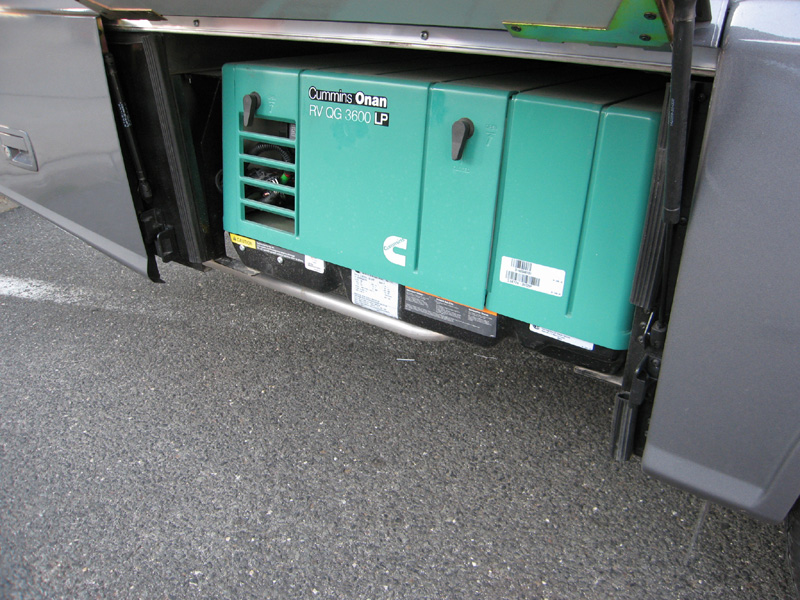

3,600-watt Cummins Onan MicroQuiet™ LP generator

1,000-watt DC/AC inverter

Optional Equipment

3,200-watt Cummins Onan® diesel generator

Solar panel/battery charger

Plumbing System

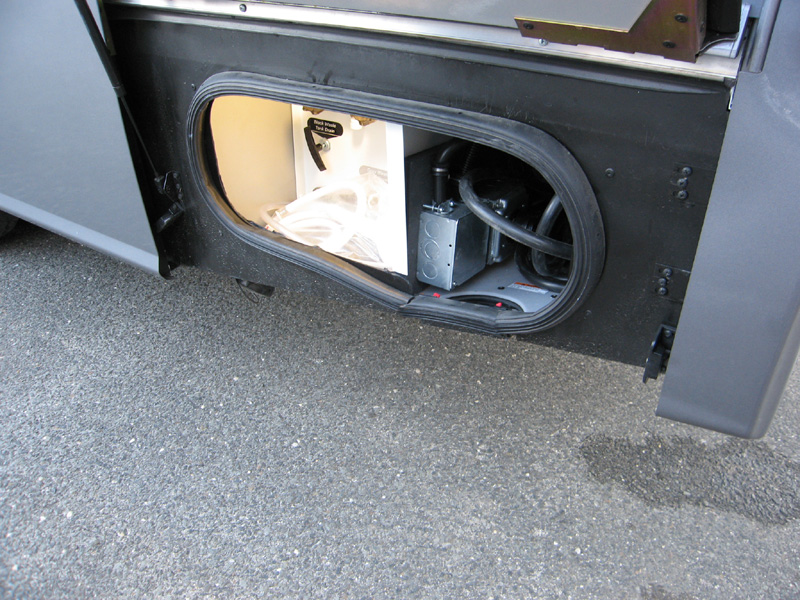

Service Center color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch

10' sewer hose

TrueLevel™ holding tank monitoring system

6-gallon 110-volt/LP water heater w/Energy Management System (NA 24G)

Tankless water heater (24G)

Permanent-mount LP Tank w/remote fill w/power switches

Winterization Package water heater bypass valve and siphon tube

On-demand water pump

Lockable water tank fill

Sewage pump macerator (24G, 24V)

Holding tank flushing system

Optional Equipment

Heated drainage system

Tankless water heater (24J, 24V)

Safety

LP, smoke, and carbon monoxide detectors

10 BC fire extinguisher

Ground fault interrupter

Child seat tether anchor (24J)

High-mount brake lamps

Daytime running lamps

Warranty 6

12-month/15,000-mile basic limited warranty7

36-month/36,000-mile limited warranty on structure7

10-year limited parts-and-labor warranty on roof skin7

1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
2. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
3. Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
4. Capacities shown are tank manufacturer's listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
5. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
6. See separate chassis warranty.
7. See your dealer for complete warranty information.
