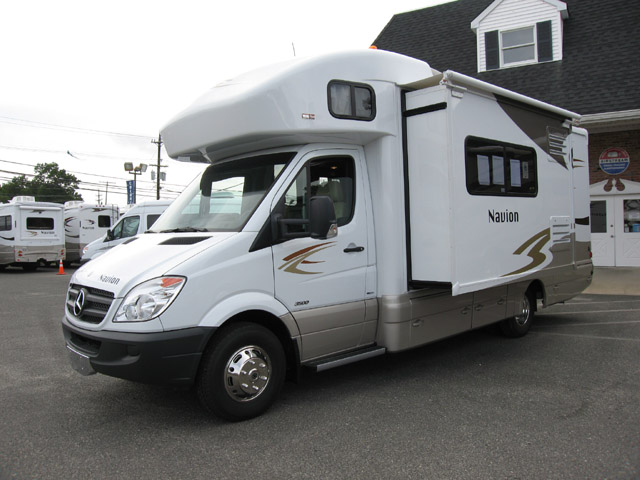

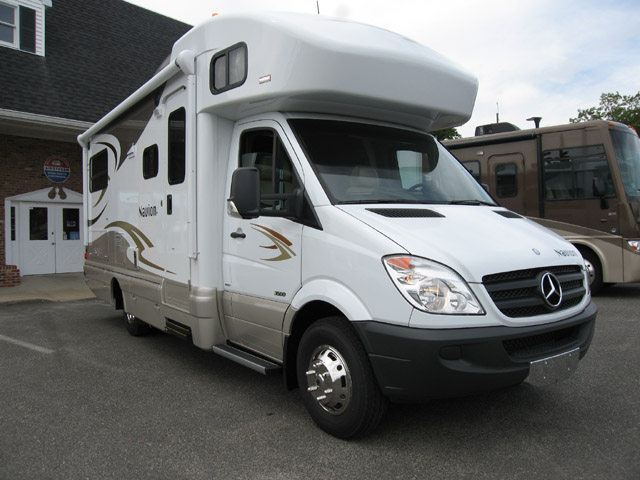

Model: 2013 Navion & Navion iQ

WEIGHTS & MEASURES:

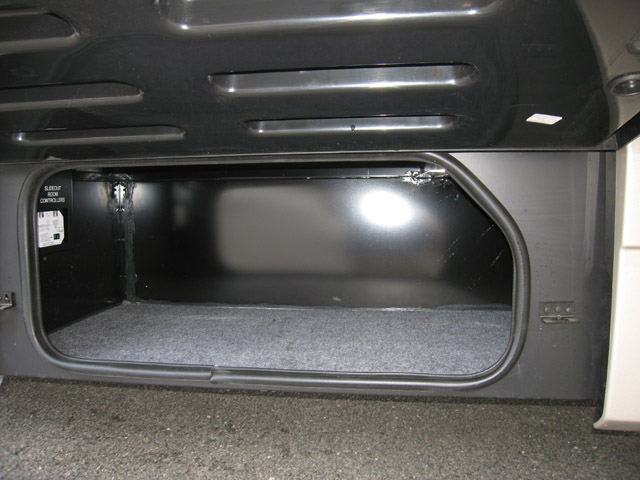

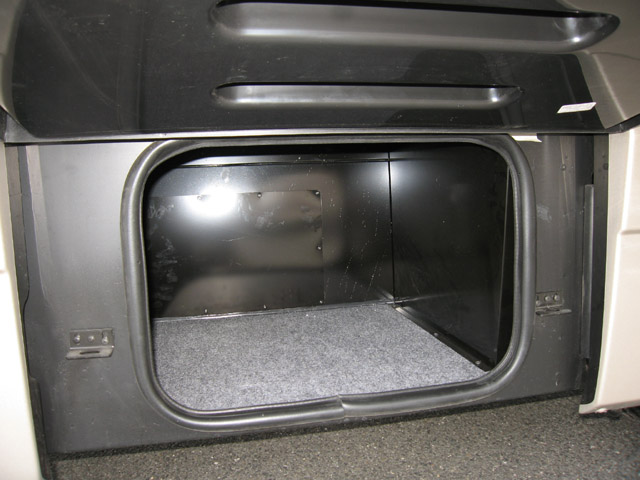

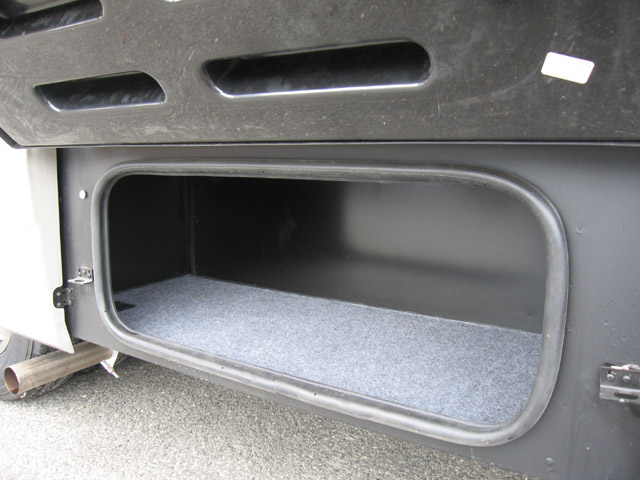

• 24J - Length 24'6", Exterior Height 11'3", Exterior Width 7'6", Exterior Storage (cu. ft.) 43.1, Awning Length 15', Interior Height 6'8", Interior Width 7'3", Freshwater Capacity w/Heater (gal.) 35, Holding Tank Capacity - Black/Gray (gal.) 29/35, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".
• 24M - Length 24'6", Exterior Height 11'3", Exterior Width 7'6", Exterior Storage (cu. ft.) 37.4, Awning Length 15', Interior Height 6'8", Interior Width 7'3", Freshwater Capacity w/Heater (gal.) 38, Holding Tank Capacity - Black/Gray (gal.) 32/36, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".
• 24G - Length 24'5", Exterior Height 11'3", Exterior Width 7'6", Exterior Storage (cu. ft.) 43.0, Awning Length 16', Interior Height 6'8", Interior Width 7'3", Freshwater Capacity w/Heater (gal.) 37, Holding Tank Capacity - Black/Gray (gal.) 36/36, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".
• 24V - Length 24'5", Exterior Height 11'3", Exterior Width 7'6", Exterior Storage (cu. ft.) 43.0, Awning Length 16', Interior Height 6'8", Interior Width 7'3", Freshwater Capacity w/Heater (gal.) 37, Holding Tank Capacity - Black/Gray (gal.) 36/36, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".

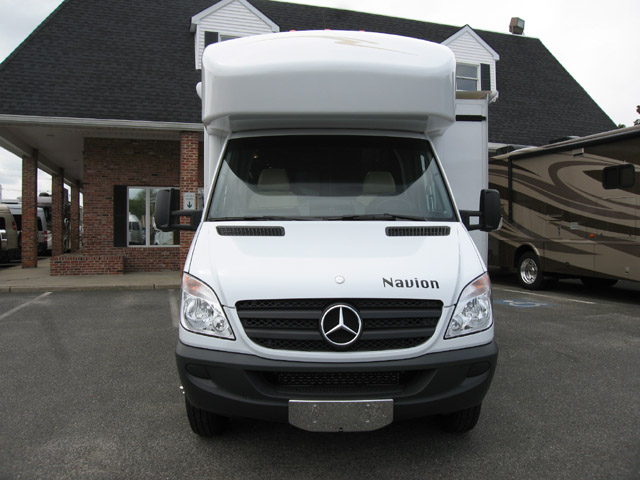

MERCEDES-BENZ SPRINTER CHASSIS:
Mercedes-Benz 3.0L 6-cylinder, 188-hp turbo-diesel engine, Adaptive ESP® technology, 5-speed automatic transmission w/Tip Shift technology to allow manual shifting, 4-wheel ABS, 180-amp. alternator, Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector, Stainless steel wheel liners.

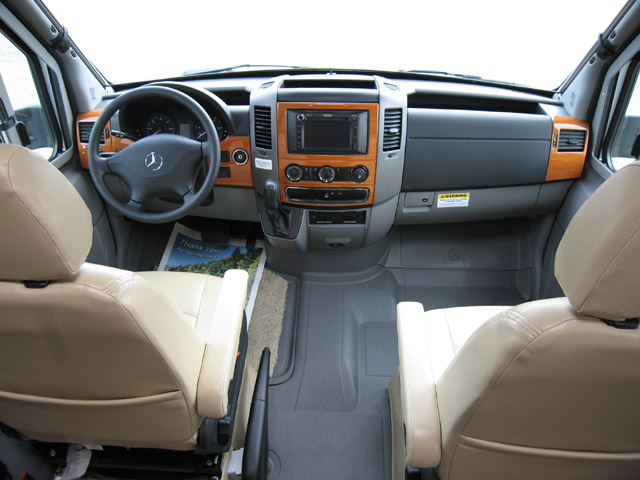

CAB CONVENIENCES:
RV Radio®/Rearview Monitor System 6.5" LCD touch screen color monitor, CD player, weather band, remote, iPod®/MP3 input, color rear camera w/one-way audio, Cab Seats armrest, adjustable lumbar support, headrest, recline, swivel and slide, Power door locks w/remote, Power windows, Power mirrors w/defrost and turn signal indicators, Cruise control, Chassis/house battery radio power switch, Power steering w/tilt and telescope wheel, Sunvisors, 12-volt powerpoints, Pleated cab window blinds (24G, 24V).

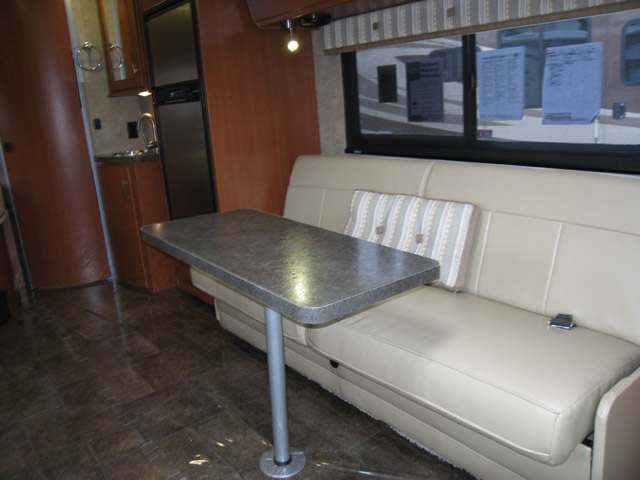

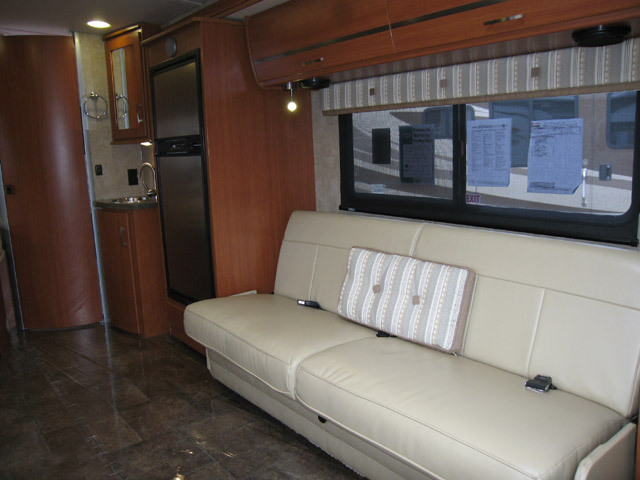

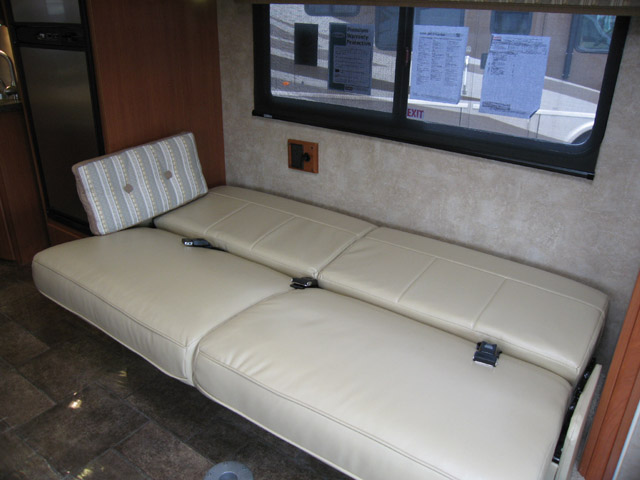

INTERIOR:

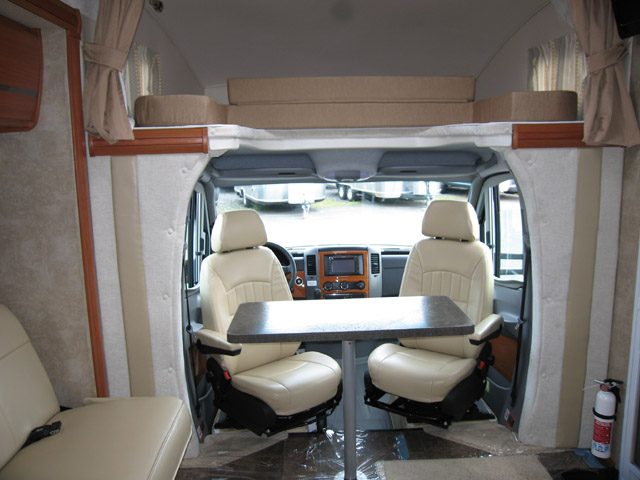

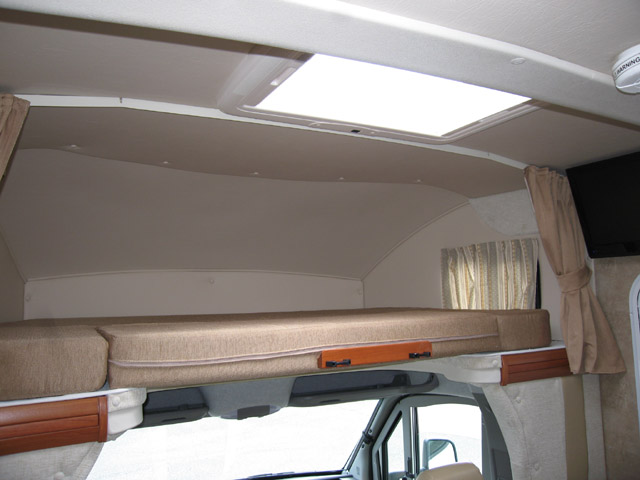

Front overhead bunk w/ladder and bunk privacy curtain (24J, 24M), Stereo System AM/FM, alarm clock, CD/DVD player, input jack, 2 speakers and subwoofer, 22" LCD TV (24J, 24V), 26" LCD TV (24G, 24M), LED lights, Satellite system ready, Monitor panel, Amplified digital HDTV antenna, Key-activated slideroom master lock switch, Skylight w/shade (24G, 24V), Cab divider curtain (24J, 24M), Insulated roof vent w/electric lift, ventilator fan and rain sensor, Powered roof vent (bath), MCD American Solo® blackout roller shades (lounge, dinette, bedroom), Mini blinds (kitchen, bath) (24J, 24M, 24G), Tinted windows, Soft vinyl ceiling.

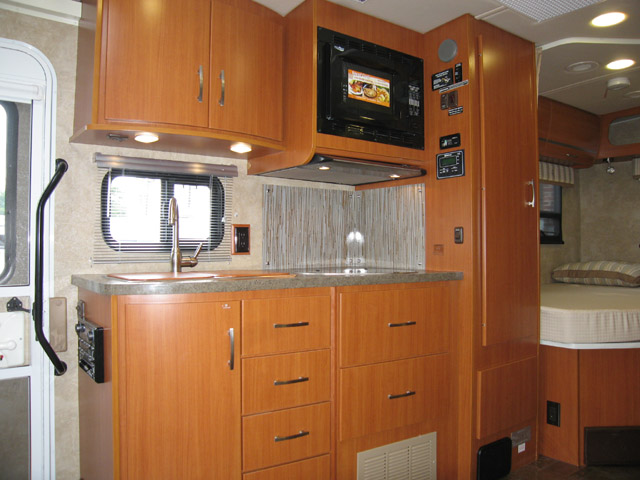

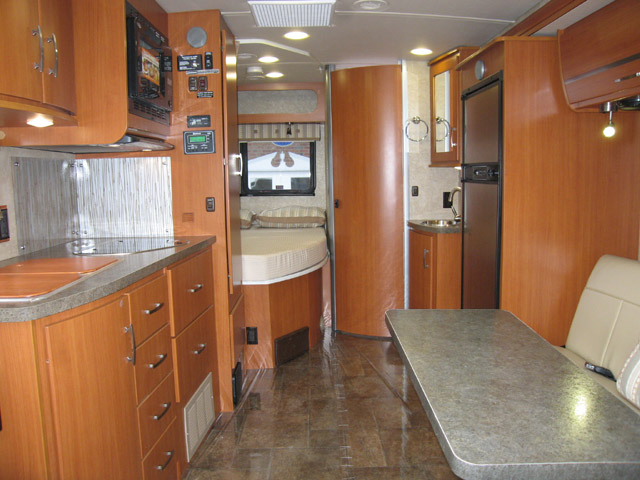

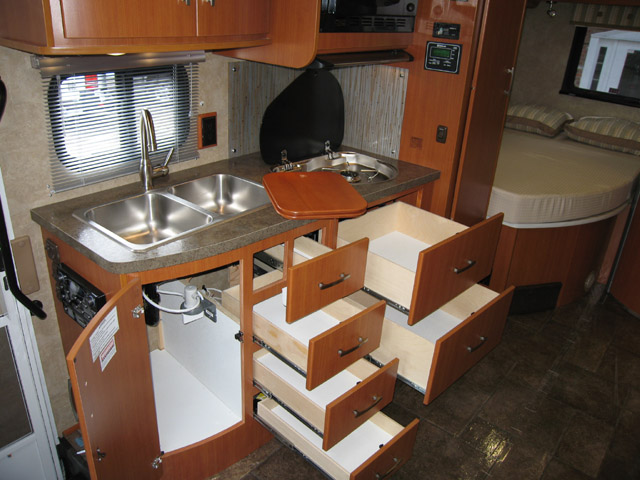

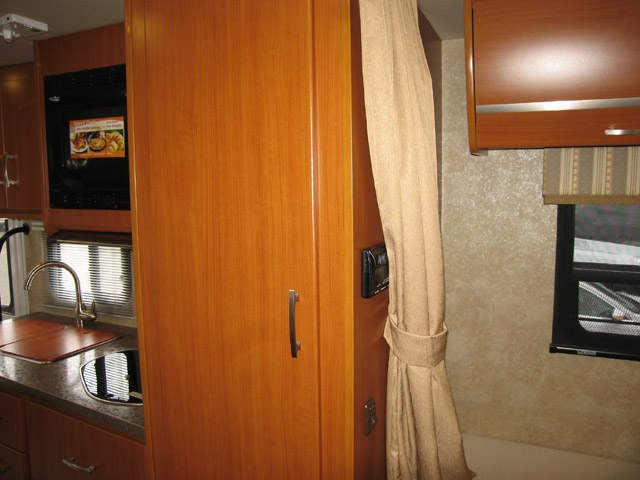

KITCHEN:

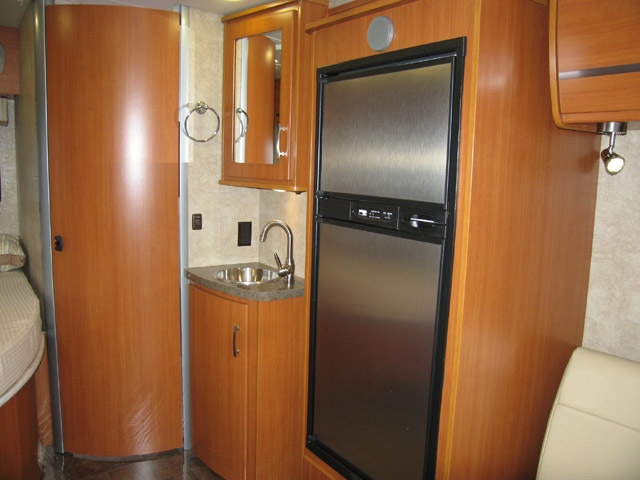

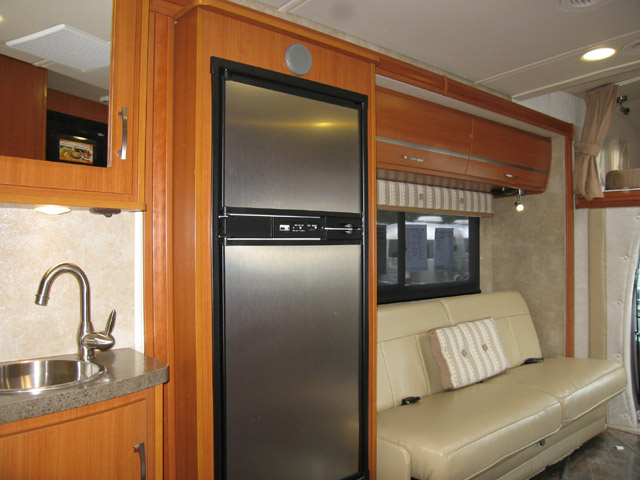

Laminate countertops, Microwave/convection oven, 2-burner range top w/glass cover, Vented range hood, Norcold® refrigerator/freezer (24J, 24M), Single-door refrigerator w/removable freezer unit (stainless steel facade) (24G, 24V).

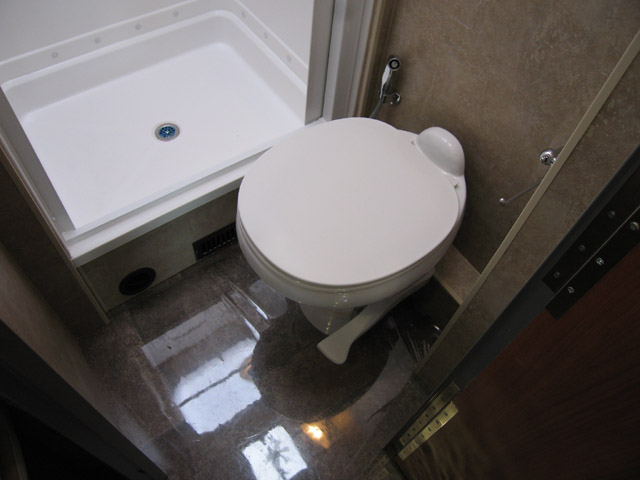

BATH:

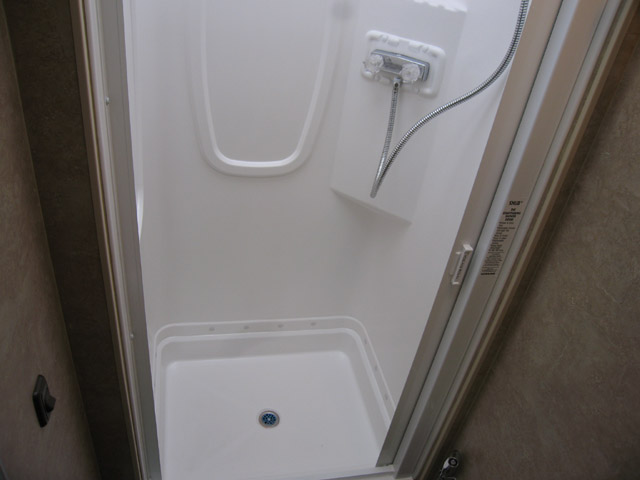

Shower curtain (24G), Retractable self-cleaning shower door (24J, 24M, 24V), Flexible showerhead, Skylight, Porcelain toilet, Water-pump switch.

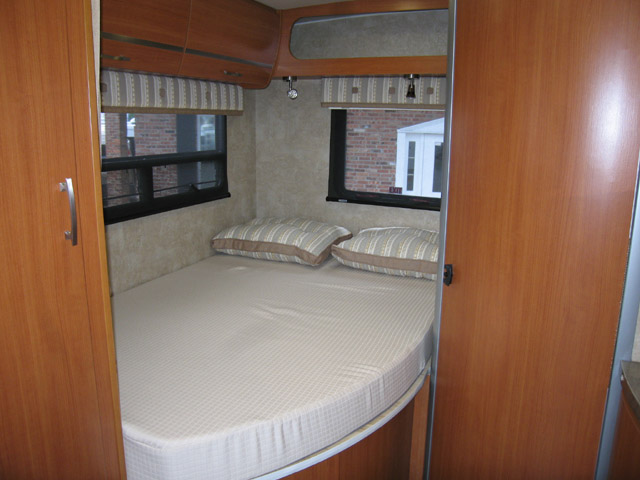

BEDROOM:
Memory foam mattress w/cover (24G), Foam mattress, underbed storage, mattress cover, pillows, pillow shams (24J), Twin beds w/foam mattresses, Flex Bed kit, pillows w/shams, and access to storage below (24V).

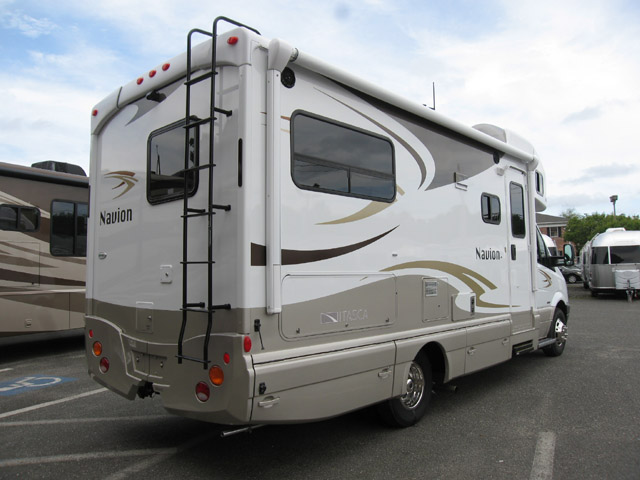

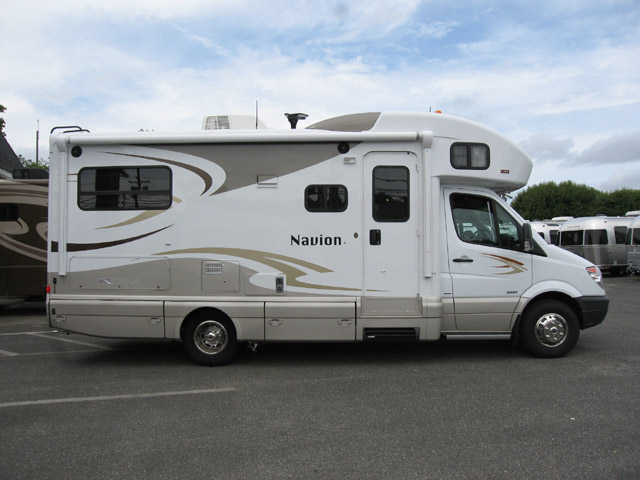

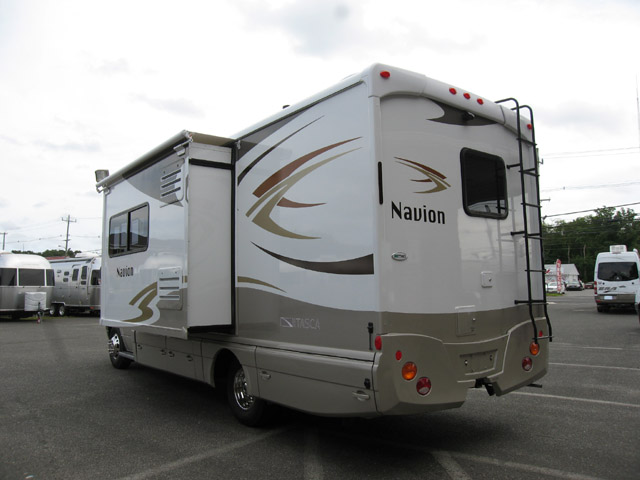

EXTERIOR:
Electric patio awning (full-body paint option includes metal wrap), Automatic entrance door step(s), Ladder (24J, 24M, 24V), Porch light, Step well light , Front and rear mud flaps, Premium high-gloss skin.

HEATING & COOLING SYSTEM:
13,500 BTU roof-mounted high-efficiency air conditioner, 20,000 BTU furnace

ELECTRICAL SYSTEM:

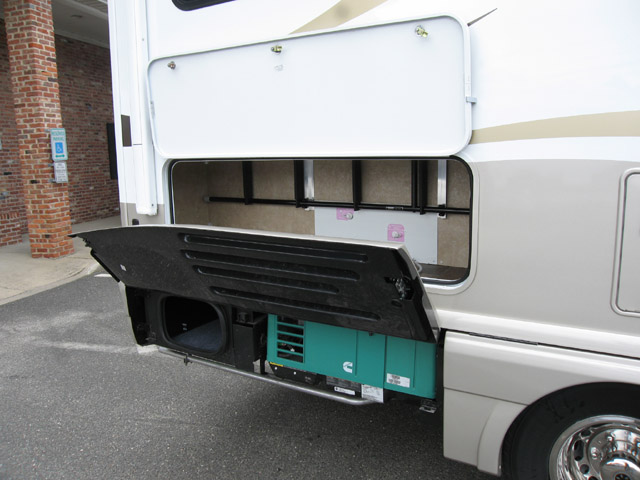

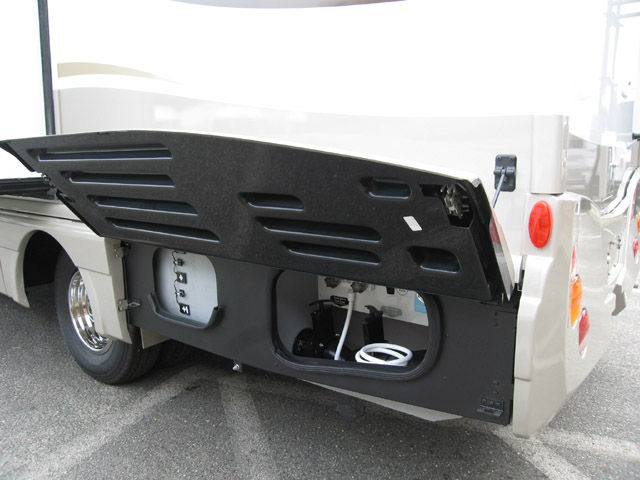

Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® (24G, 24M) service connection hatch, Auxiliary start circuit , Exterior AC duplex and antenna jack, Battery disconnect system (coach), Automatic dual-battery charge control, LP generator prep kit, AC/DC load center, 45-amp. converter/charger, Two deep-cycle, Group 24 RV batteries.

PLUMBING SYSTEM:
Service Center Colored labels, city water hookup/tank diverter fill, drainage valves, exterior wash station w/lighted pump switch, 10' sewer hose, TrueLevel™ holding-tank monitoring system, 6-gallon 110 V/LP water heater w/EMS, LP Tank w/remote fill w/power switches, Winterization Package water heater bypass valve and siphon tube, On-demand water pump, Lockable water tank fill.

SAFETY:
Dual airbags, Seat belts, LP, smoke and carbon monoxide detectors, 10 BC fire extinguisher, Ground fault interrupter, Child seat tether anchor (24J, 24M), High-mount brake lamps, Daytime running lamps.

WARRANTY:
12-month/15,000-mile basic warranty, 36-month/36,000-mile limited warranty on structure, 10-year limited parts-and-labor warranty on roof skin.
