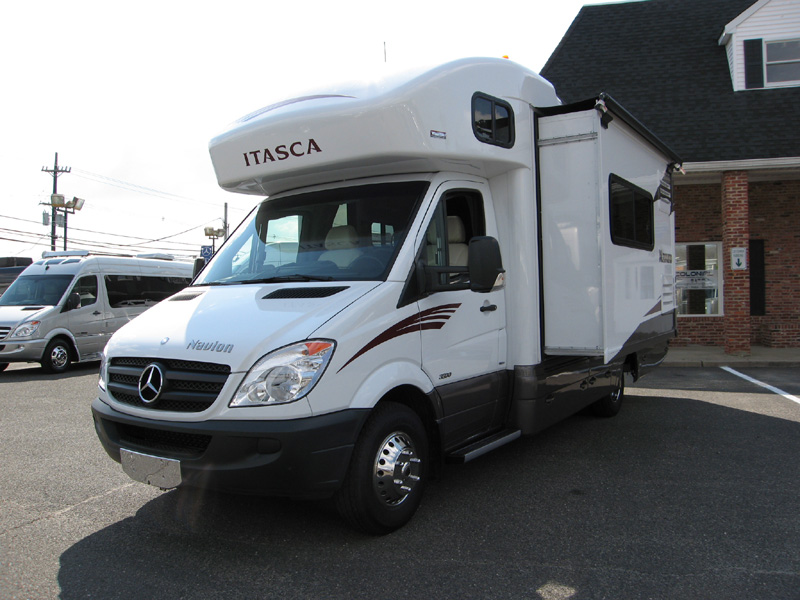

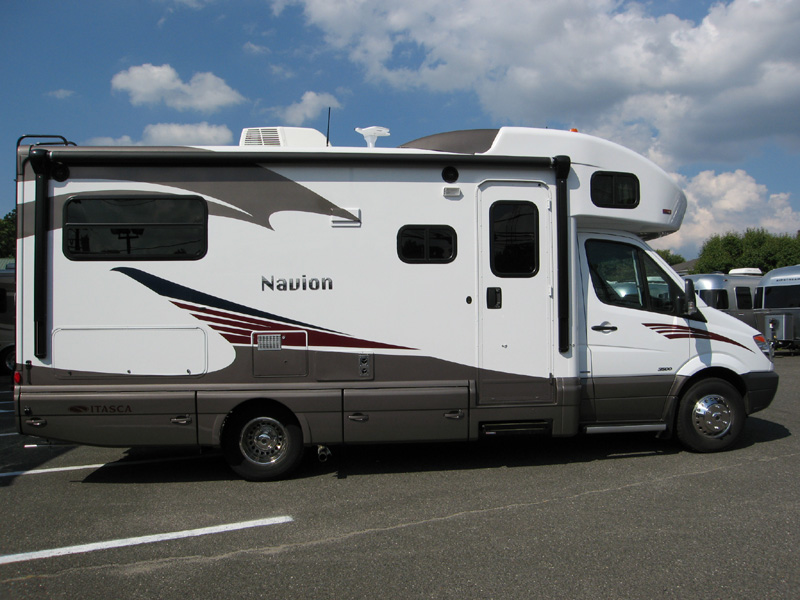

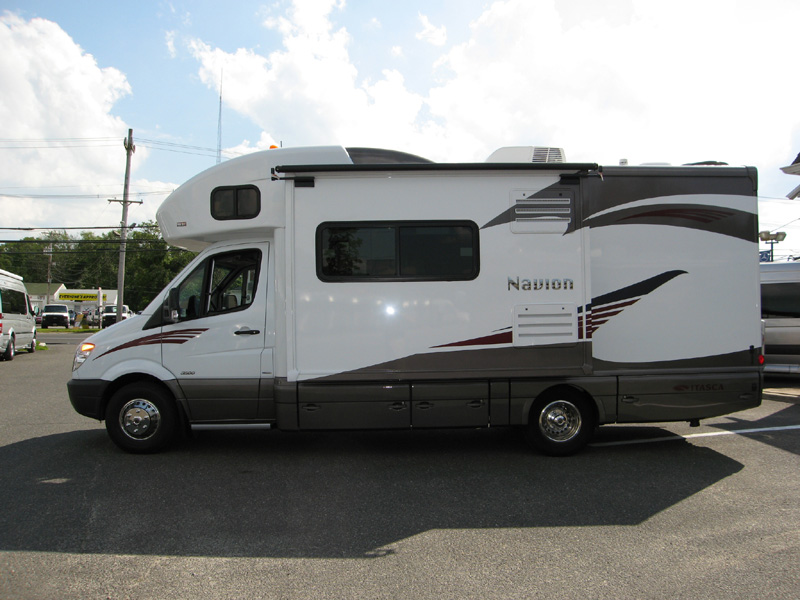

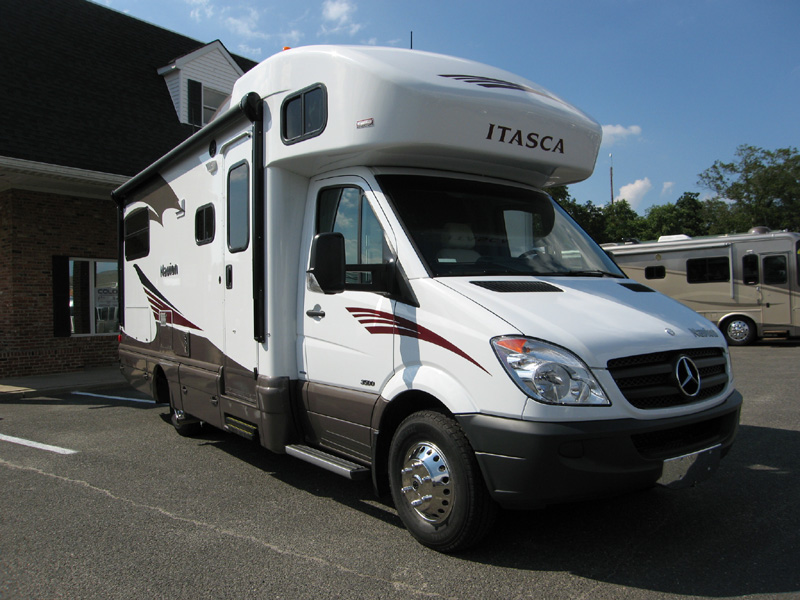

Model: 2014 Navion

Weights & Measures

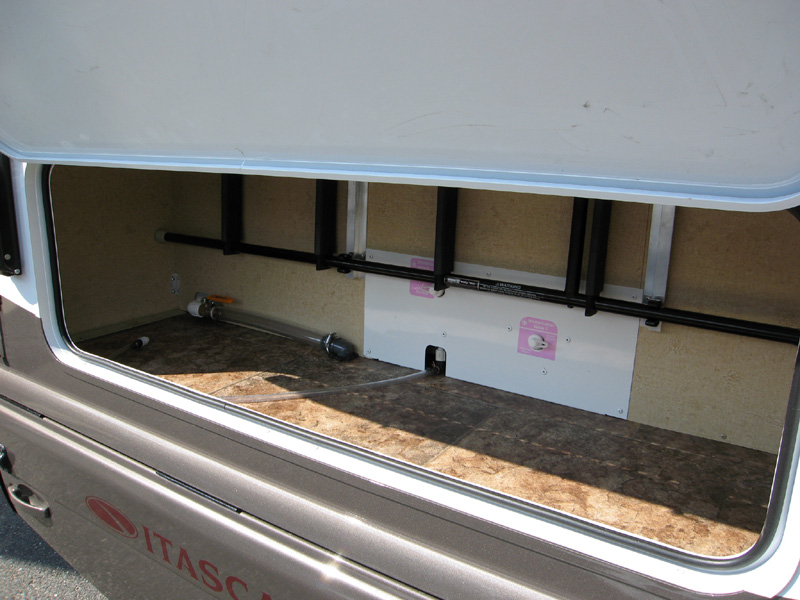

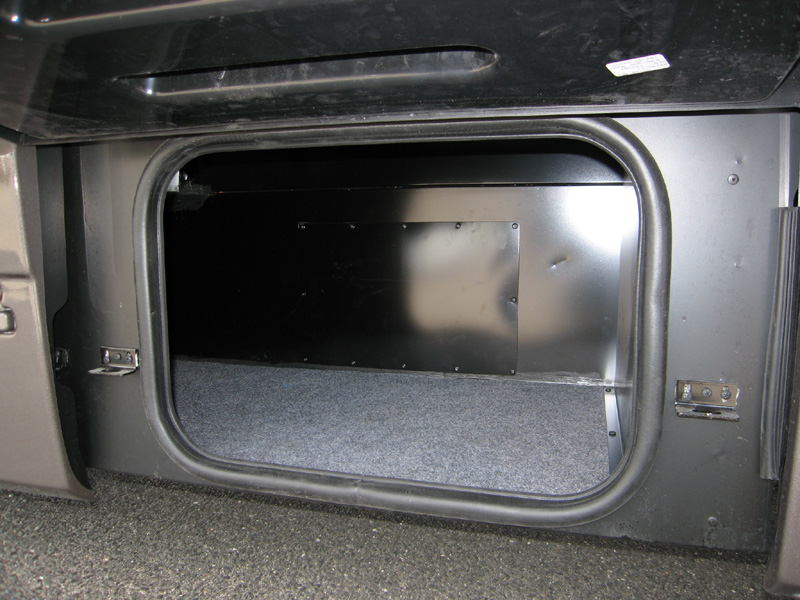

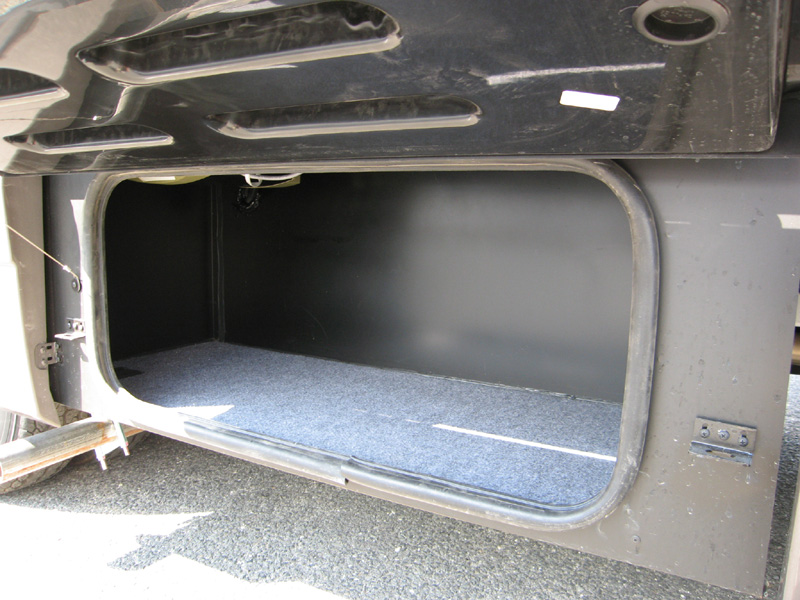

• 24J: Length 24'6", Exterior Height1 11'3", Exterior Width 7'6", Exterior Storage2 (cu. ft.) 43.1, Awning Length 15', Interior Height 6'8", Interior Width 7'3", Freshwater Tank Capacity3 (gal.) 29, Water Heater Capacity (gal.) 6, Holding Tank Capacity - Black/Gray (gal.) 29/35, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".
• 24M: Length 24'6", Exterior Height1 11'3", Exterior Width 7'6", Exterior Storage (cu. ft.) 37.4, Awning Length 15', Interior Height 6'8", Interior Width 7'3", Freshwater Tank Capacity3 (gal.) 32, Water Heater Capacity (gal.) 6, Holding Tank Capacity - Black/Gray (gal.) 32/36, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".

MERCEDES-BENZ SPRINTER CHASSIS:
•Mercedes-Benz 3.0L 6-cylinder, 188-hp turbo-diesel engine
•Adaptive ESP® technology
•5-speed automatic transmission w/Tip Shift technology
•4-wheel ABS
•220-amp. alternator
•Trailer Hitch 5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
•Stainless steel wheel liners

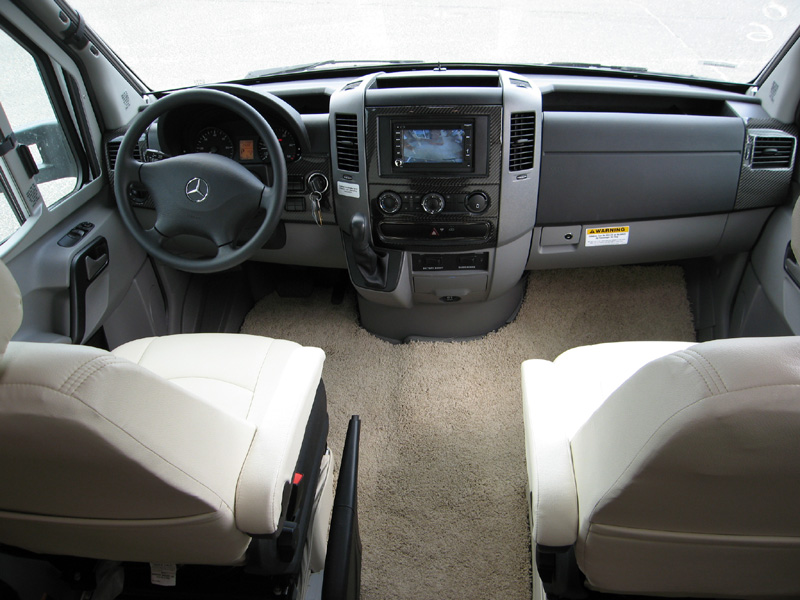

CAB CONVENIENCES:

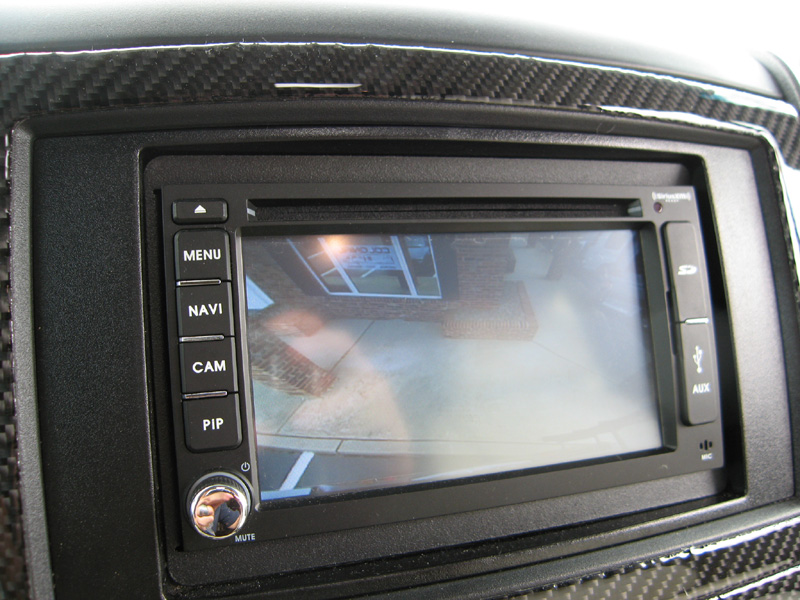

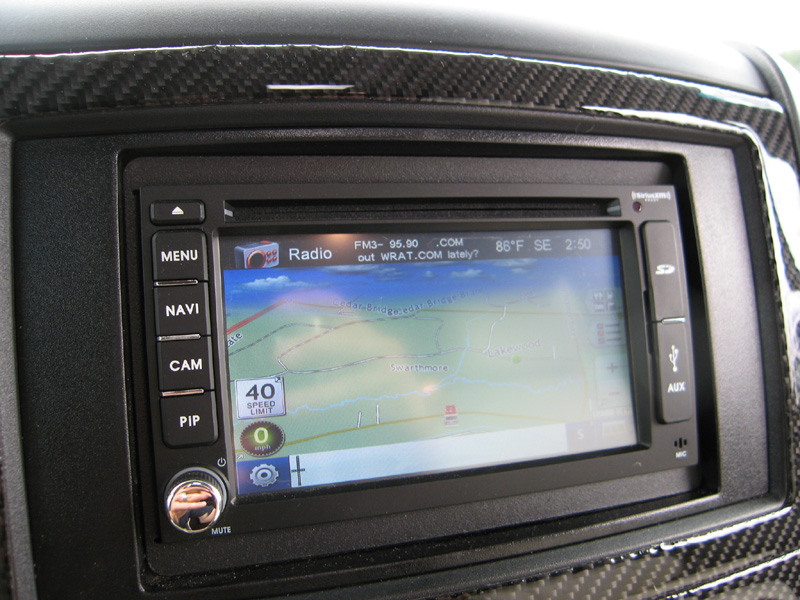

•Radio/Rearview Monitor System 6" touch screen color monitor, handheld remote, iPod®/MP3 input, rear camera

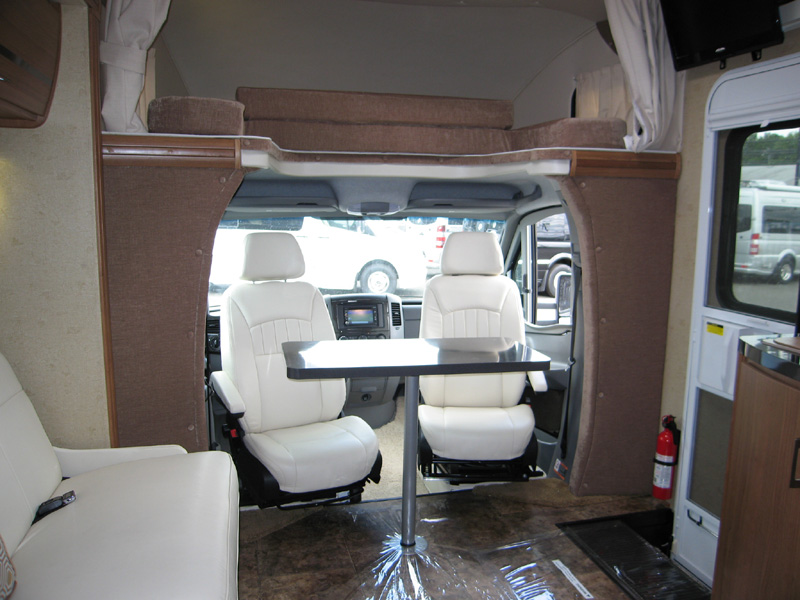

•Cab Seats armrest, adjustable lumbar support, headrest, recline, swivel and slide
•Airbags driver and passenger
•3-point seat belts
•Power door locks w/remote
•Power windows
•Power mirrors w/defrost and turn signal indicators
•Cruise control
•Chassis/house battery radio power switch
•Power steering w/tilt and telescope wheel
•Sunvisors
•12-volt powerpoints
•Pleated cab window blinds (24G, 24V)

INTERIOR:

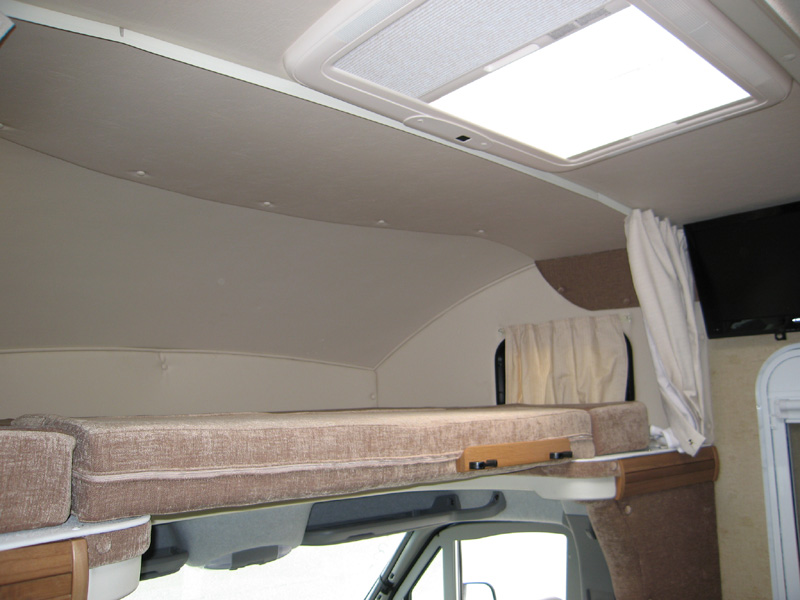

•Front overhead bunk w/ladder and bunk privacy curtain (24J, 24M)
•Stereo System AM/FM, alarm clock, CD/DVD player, input jack, Bluetooth™, 2 speakers and subwoofer
•22" HDTV (24J, 24V)
•26" HDTV (24G, 24M)
•LED lights
•Satellite system ready
•Monitor panel
•Amplified digital HDTV antenna
•Key-activated slideroom master lock switch
•Skylight w/shade (24G, 24V)
•Cab divider curtain (24J, 24M)
•Insulated roof vent w/electric lift, ventilator fan and rain sensor (NA w/available powered skylight)
•Powered roof vent (bath)
•MCD blackout roller shades (lounge, dinette, galley, bedroom)
•Tinted coach windows
•Soft vinyl ceiling

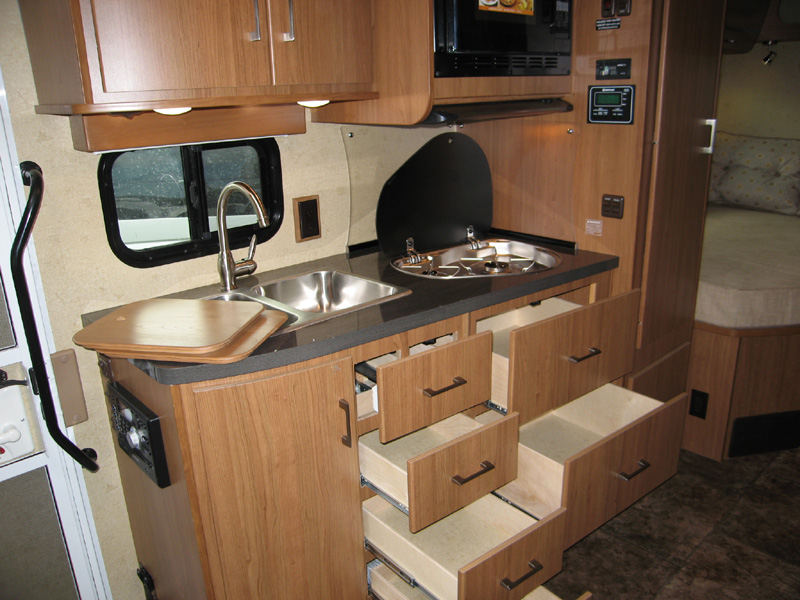

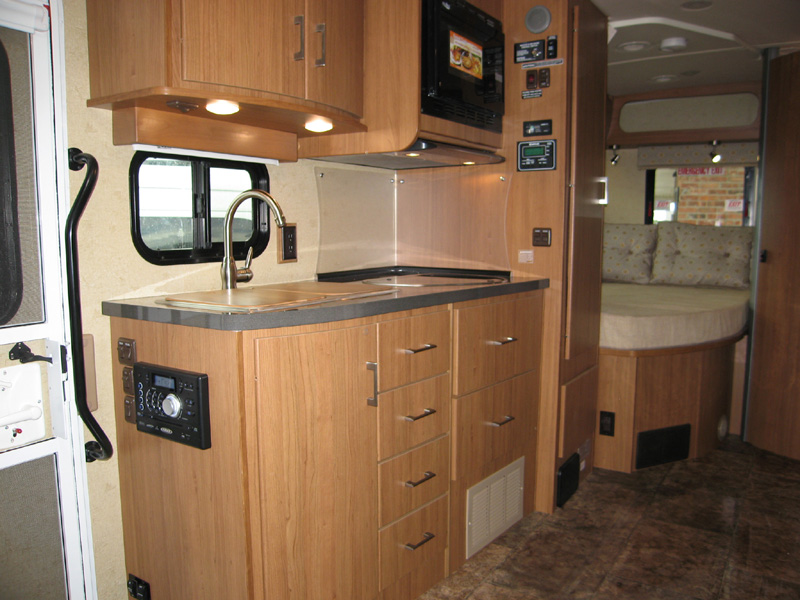

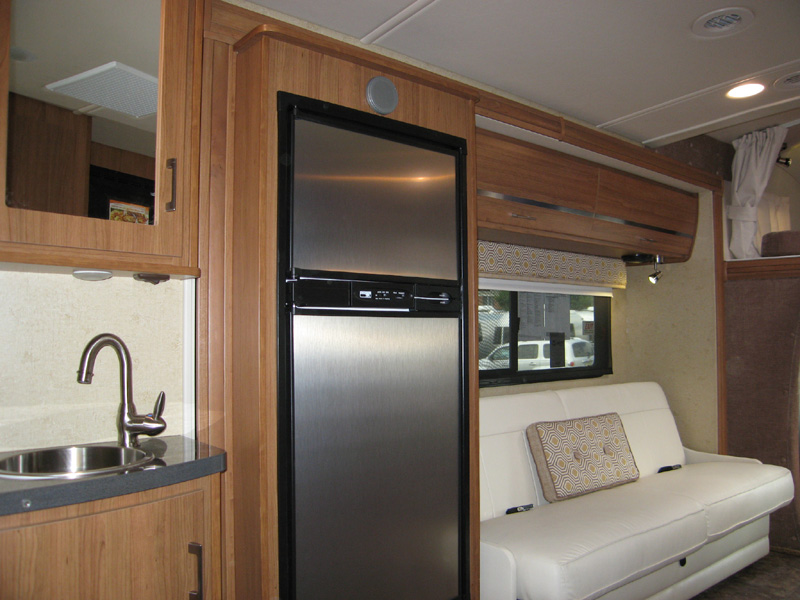

GALLEY:
•Laminate countertops
•Flip-up countertop extension (24V)
•Microwave/convection oven
•2-burner range top w/glass cover
•Vented range hood

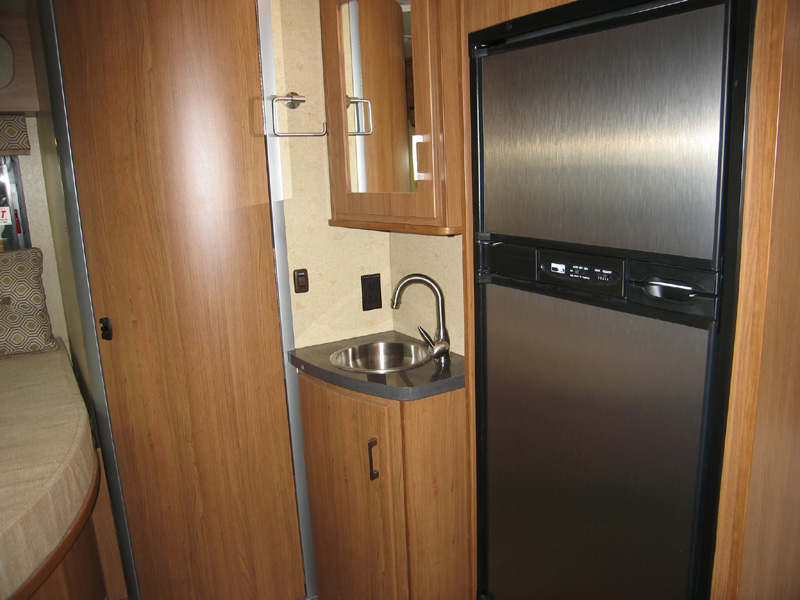

•Norcold® two-door refrigerator/freezer

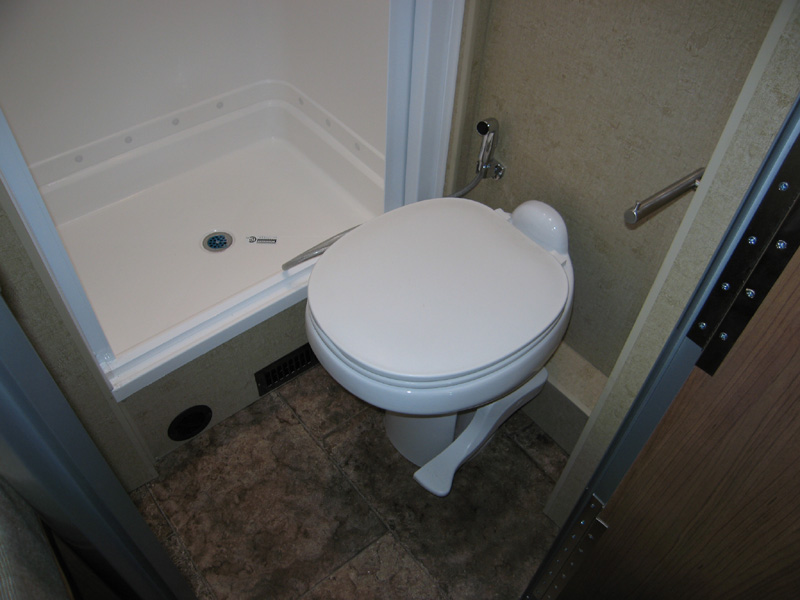

BATH:
•Shower curtain (24G)

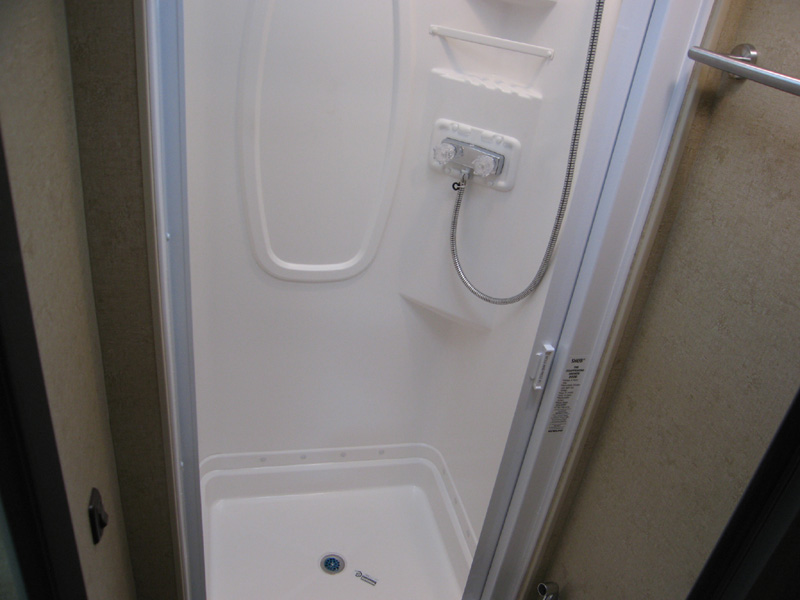

•Retractable, self-cleaning shower screen (24J, 24M, 24V)
•Flexible showerhead
•Skylight
•Water-pump switch

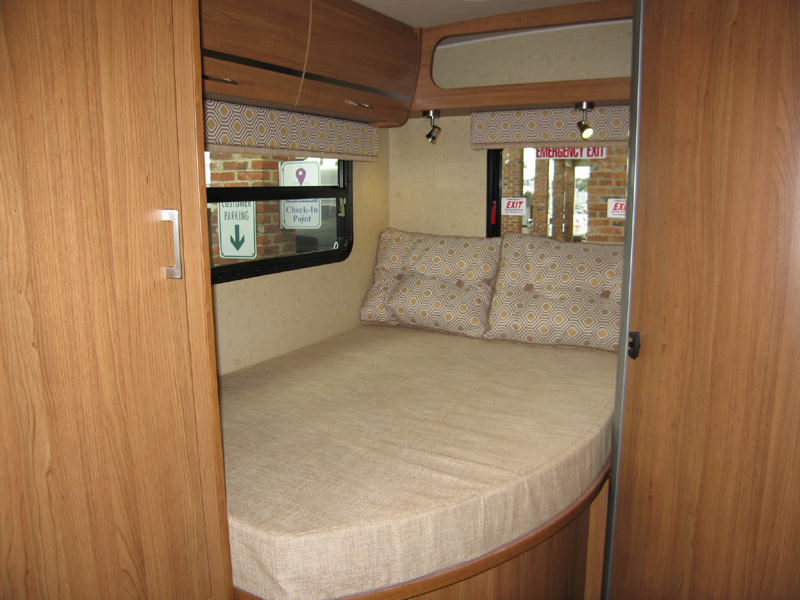

BEDROOM:
•Memory foam mattress w/cover (24G)
•Foam mattress underbed storage, mattress cover, pillows and pillow shams (24J)
•Flex Bed System twin beds/queen bed w/foam mattresses, pillows w/shams and access to storage below (24V)

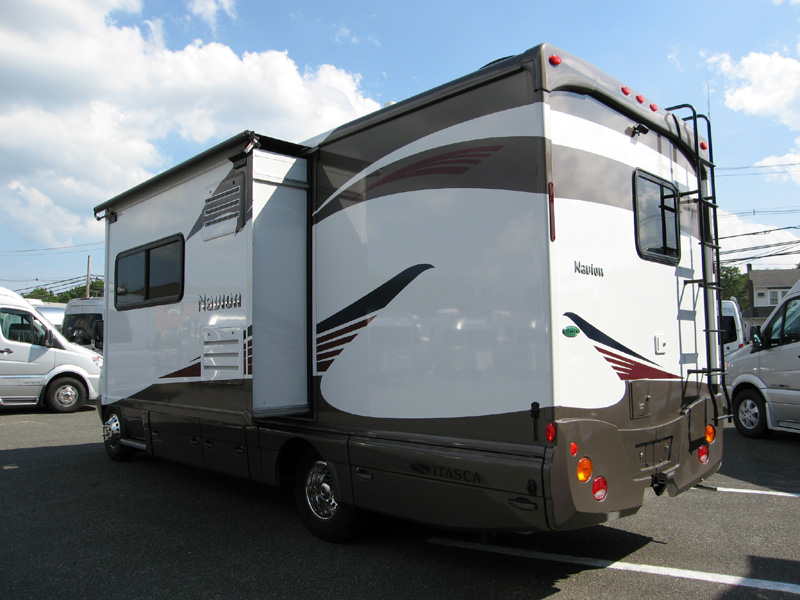

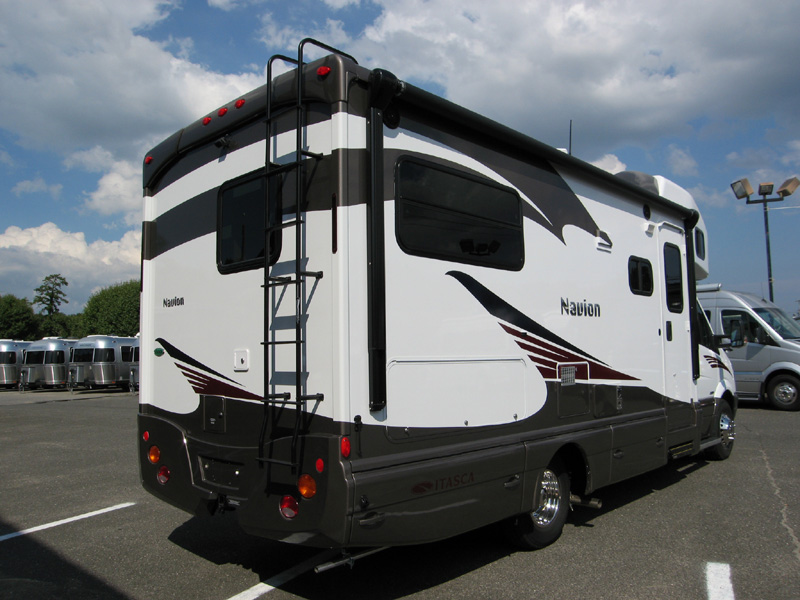

EXTERIOR:
•Automatic entrance door step(s)
•Ladder (24J, 24M, 24V)
•LED porch light
•Step well light
•Front and rear mud flaps
•Premium high-gloss skin
•Electric patio awning w/LED lights (full-body paint option includes metal wrap)

HEATING & COOLING SYSTEM:
•15,000 BTU roof-mounted air conditioner
•20,000 BTU furnace

ELECTRICAL SYSTEM:
•Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® (24G, 24M, 24V) service connection hatch
•Auxiliary start circuit
•Exterior AC duplex and antenna jack
•Battery disconnect system (coach)
•Automatic dual-battery charge control

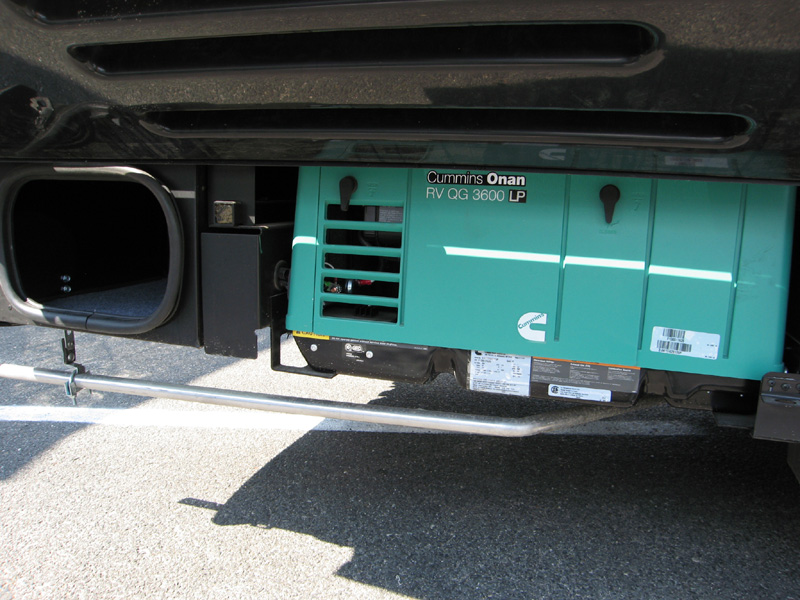

•LP generator prep kit
•AC/DC load center, 45-amp. converter/charger
•Two deep-cycle, Group 24 RV batteries

PLUMBING SYSTEM:

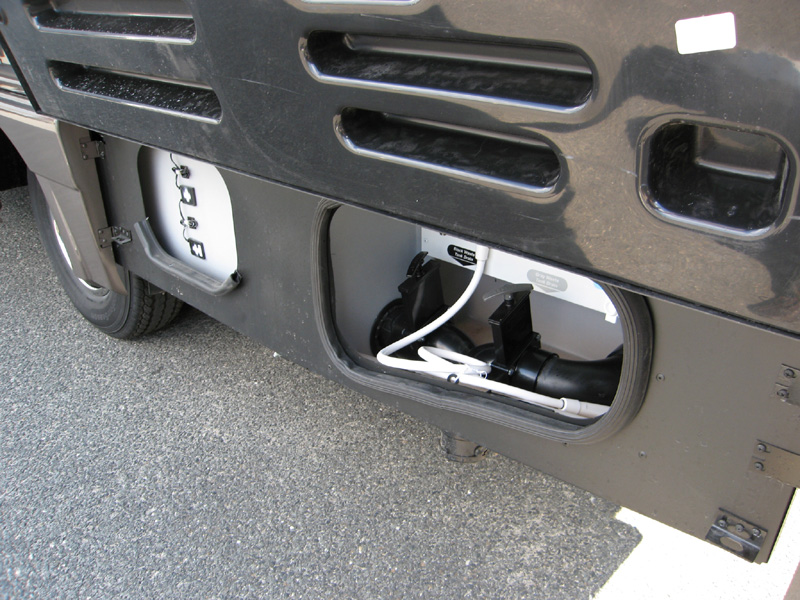

•Service Center Colored labels, city water hookup/tank diverter fill, drainage valves, exterior wash station w/lighted pump switch
•10' sewer hose
•TrueLevel™ holding-tank monitoring system
•6-gallon 110 V/LP water heater w/Energy Management System
•LP Tank w/remote fill w/power switches
•Winterization Package water heater bypass valve and siphon tube
•On-demand water pump
•Lockable water tank fill

SAFETY:
•LP, smoke and carbon monoxide detectors
•10 BC fire extinguisher
•Ground fault interrupter
•Child seat tether anchor (24J, 24M)
•High-mount brake lamps
•Daytime running lamps

WARRANTY:
•12-month/15,000-mile basic warranty
•36-month/36,000-mile limited warranty on structure
•10-year limited parts-and-labor warranty on roof
