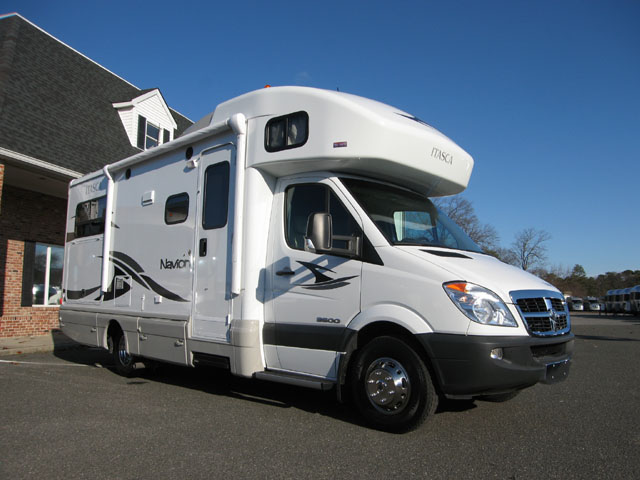

Model: 2010 24J Navion Slide-Out 24'6"

Weights & Measures
Length - 24'6" (24A), 24'6" (24k), 24'6" (24J) Exterior Height - 10'11" (24A), 10'11" (24k), 10'11" (24J) Exterior Width - 7'6" (24A), 7'6" (24k), 7'6" (24J) Exterior Storage2 (cu. ft.) - 26.6 (24A), 33.3 (24k), 36.3 (24J) Awning Length - 15' (24A), 12'6" (24k), 10' (24J) Interior Height - 6'8" (24A), 6'8" (24k), 6'8" (24J) Interior Width - 7'3" (24A), 7'3" (24k), 7'3" (24J) Freshwater Capacity w/Heater (gal.) - 37 (24A), 35 (24k), 35 (24J) Holding Tank Capacity - Black/Gray (gal.) - 33/27 (24A), 33/27 (24k), 31/38 (24J) LP Capacity (gal.) - 13 (24A), 13 (24k), 13 (24J) Fuel Capacity (gal.) - 25.0 (24A), 25.0 (24k), 25.0 (24J) GCWR (lbs.) - 15,250 (24A), 15,250 (24k), 15,250 (24J) GVWR (lbs.) - 11,030 (24A), 11,030 (24k), 11,030 (24J) GAWR - Front (lbs.) - 4,410 (24A), 4,410 (24k), 4,410 (24J) GAWR - Rear (lbs.) - 7,720 (24A), 7,720 (24k), 7,720 (24J) Wheelbase - 170" (24A), 170" (24k), 170" (24J).

Dodge/Mercedes-Benz Sprinter Chassis
154-hp Mercedes-Benz 3.0L CDI 6-cylinder turbo-diesel engine, 5-speed automatic transmission w/tip shift, 4-wheel ABS w/skid control, Adaptive ESP technology, 180-amp. alternator, Trailer Hitch: 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector, Stainless steel wheel liners.

Cab Conveniences
RV Radio: AM/FM stereo, CD player, iPod/MP3 input, weather band and remotes, Cab Seats: armrest, adjustable lumbar support, recline and headrest, Slide seat pedestal (24K & 24J), Swivel/slide seat pedestal (24A), Power steering w/tilt wheel, Power door locks w/remote, Power windows, Power mirrors w/defrost and turn signal indicators, 12-volt powerpoints, Cruise control, Chassis/house battery radio power switch, Sunvisors.

Interior
Front overhead bunk w/ladder and privacy curtain, Stereo System: AM/FM, alarm clock, CD/DVD player and input jack, 19" LCD TV (24J), 26" LCD TV (24K), 32" LCD TV (24A), Monitor panel, Amplified digital TV antenna, Satellite system ready, Key-activated slideroom master lock switch, Skylight/roof vent w/bar/handle, sliding screen, shade, Day/night pleated shades (lounge, dinette and bedroom), Mini blinds (kitchen and bath), Powered roof vent (bath), Tinted windows, Cab divider curtain.

Kitchen
Microwave/convection oven (24J), Microwave/convection oven w/range fan (24A & 24K), 3-burner range top, Norcold refrigerator/freezer, Vented range hood (24J), Wood sink cover, Laminate countertops.

Bath
Shower w/wall surround, Retractable self-cleaning shower door, Flexible showerhead, Skylight.

Bedroom
Angle-split mattress w/interior and exterior access to storage below (24J), Mattress cover, pillows and pillow shams (24J), Privacy curtain (24J).

Exterior
Automatic entrance door step, Entrance door w/screen, Ladder, Porch light, Premium high-gloss skin, Front and rear mud flaps.

Heating & Cooling System
13,500 BTU roof-mounted air conditioner, 25,000 BTU furnace.

Electrical System
Service Center: cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch (24A & 24K), Auxiliary start circuit, 2 deep-cycle Group 24 RV batteries, Battery disconnect system (coach), Automatic dual-battery charge control, LP generator prep kit, AC/DC load center, 45-amp. converter/charger.

Plumbing System
Service Center: colored labels, city water hookup/tank diverter fill, drainage valves, 10' sewer hose, TrueLevel holding-tank monitoring system, 6-gallon LP water heater, Winterization Package: water heater bypass valve, siphon tube, On-demand water pump, LP Tank w/remote fill w/power switches.

Safety
Dual airbags, Seat belts, LP, smoke and carbon monoxide detectors, 10 BC fire extinguisher, Ground fault interrupter, Child seat tether anchor (24J), High-mount brake lamps, Daytime running lamps, Fog lamps.

Warranty
12-month/15,000-mile basic warranty,36-month/36,000-mile limited warranty on structure, 10-year limited parts and labor warranty on roof skin.
