Weights and Measures (24J):
Length - 24'6", Exterior Height1 10'11", Exterior Width 7'6", Exterior Storage2 (cu. ft.) 32.3, Awning Length 15', Interior Height 6'8", Interior Width 7'3", Freshwater Capacity w/Heater3 (gal.) 35, Holding Tank Capacity - Black/Gray (gal.) 31/38, LP Capacity4 (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".
Weights and Measures (24K):
Length - 24'6", Exterior Height1 10'11", Exterior Width 7'6", Exterior Storage2 (cu. ft.) 31.5, Awning Length 12.6', Interior Height 6'8", Interior Width 7'3", Freshwater Capacity w/Heater3 (gal.) 35, Holding Tank Capacity - Black/Gray (gal.) 33/27, LP Capacity4 (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".

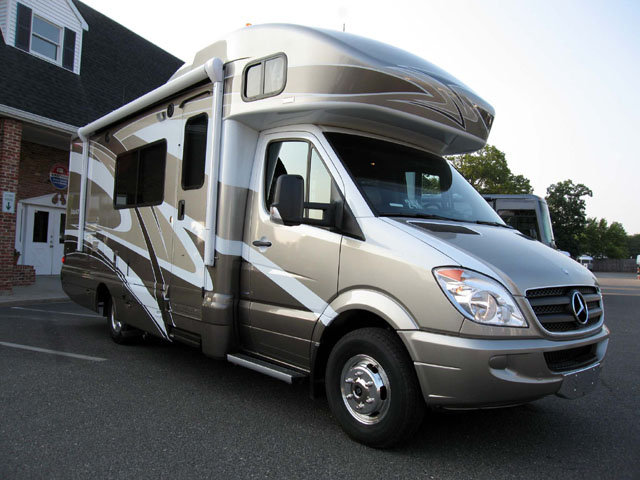

Mercedes Benz Sprinter Chassis:
Mercedes-Benz 3.0L 6-cylinder, 188-hp turbo-diesel engine, Adaptive ESP technology, 5-speed automatic transmission w/tip shift, 4-wheel ABS 180-amp. alternator, Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector, Stainless steel wheel liners.

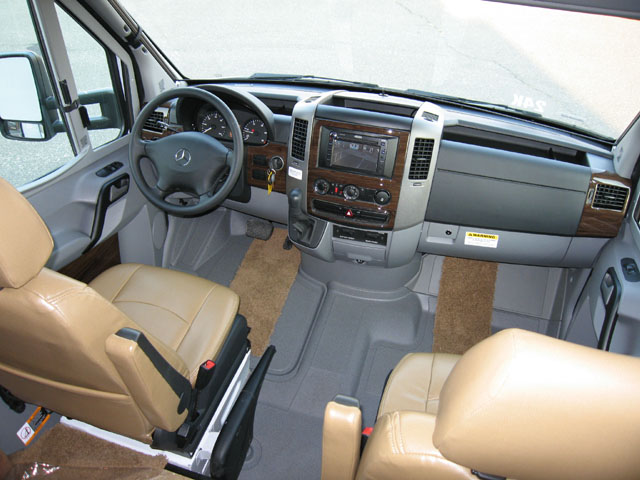

Cab Conveniences:
RV Radio AM/FM stereo w/CD player, iPod/MP3 input, weather band and remote, Cab Seats armrest, adjustable lumbar support, headrest, recline, swivel and slide, Power door locks w/remote Power windows, Power mirrors w/defrost and turn signal indicators, Cruise control, Chassis/house battery radio power switch, Power steering w/tilt and telescope wheel, Sunvisors, 12-volt powerpoints.

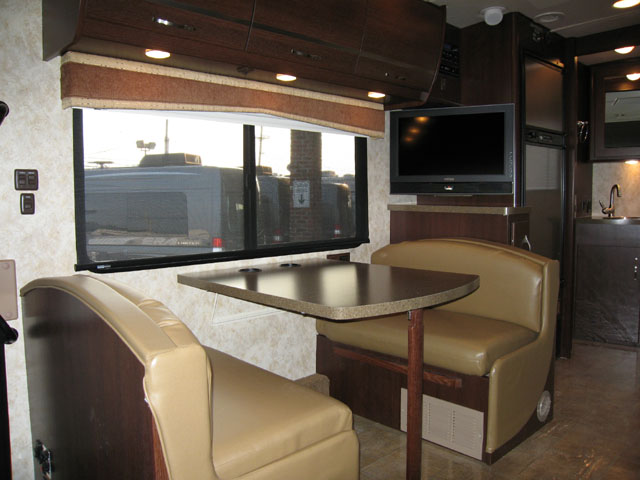

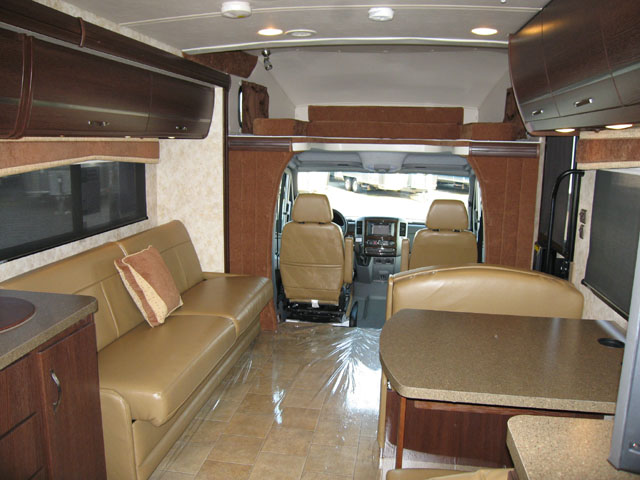

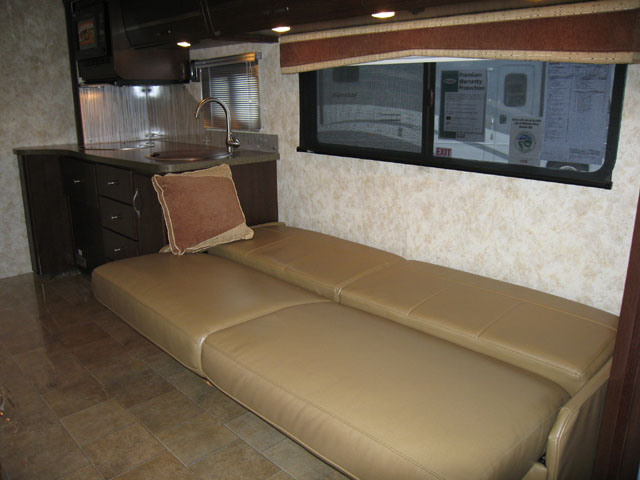

Interior:

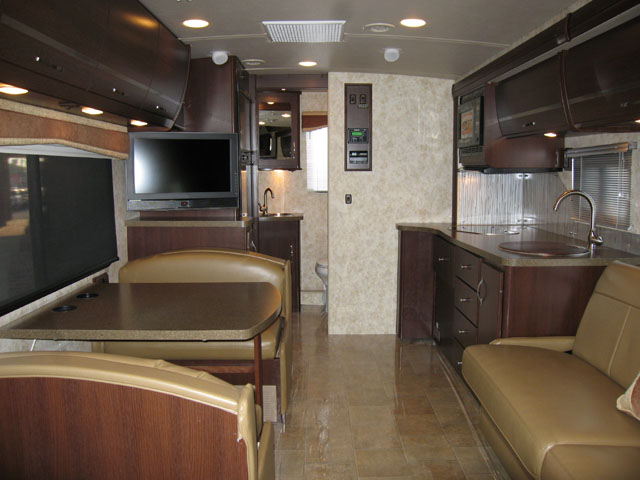

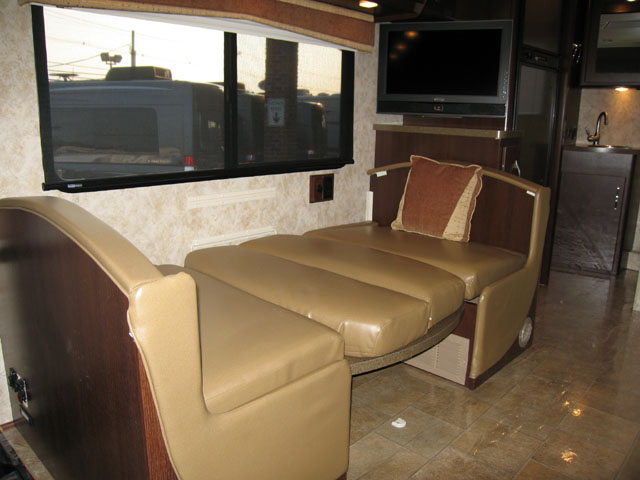

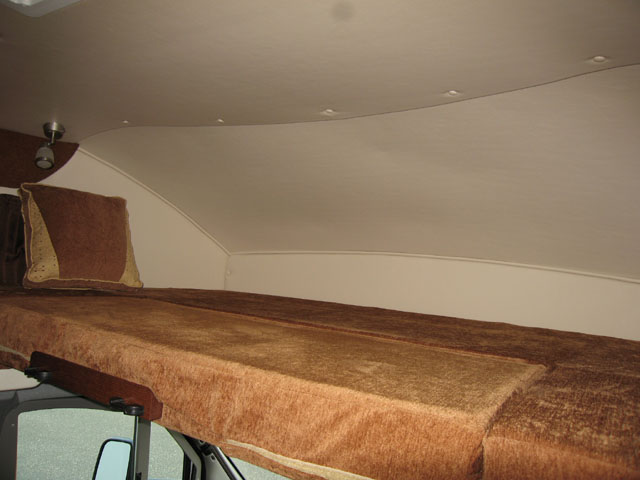

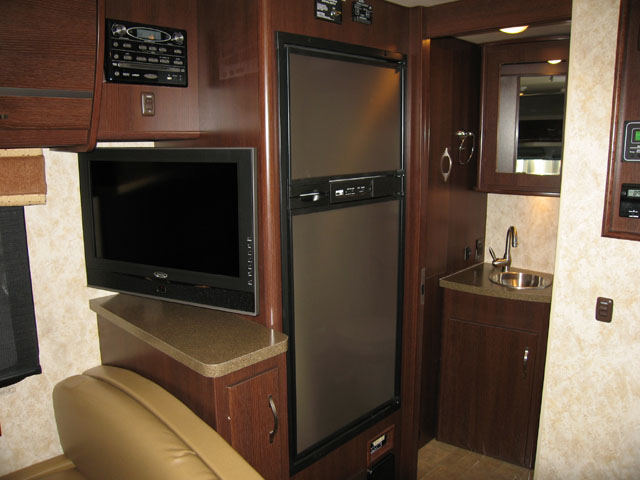

Front overhead bunk w/ladder and privacy curtain, Stereo System AM/FM, alarm clock, CD/DVD player, input jack, 19" LCD TV (24J), 26" LCD TV (24K), Satellite system ready, Monitor panel, Amplified digital TV antenna, Key-activated slideroom master lock switch, Cab divider curtain, Insulated roof vent w/electric lift, ventilator fan and rain sensor, Powered roof vent (bath), MCD American Solo blackout roller shades (lounge, dinette, bedroom), Mini blinds (kitchen and 24K bath), Tinted windows Vinyl ceiling.

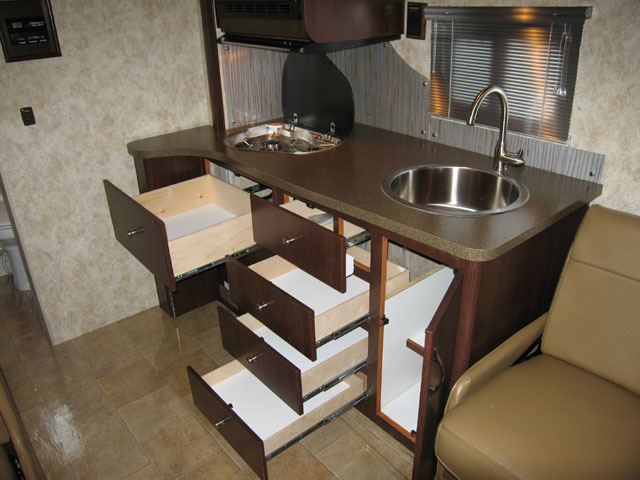

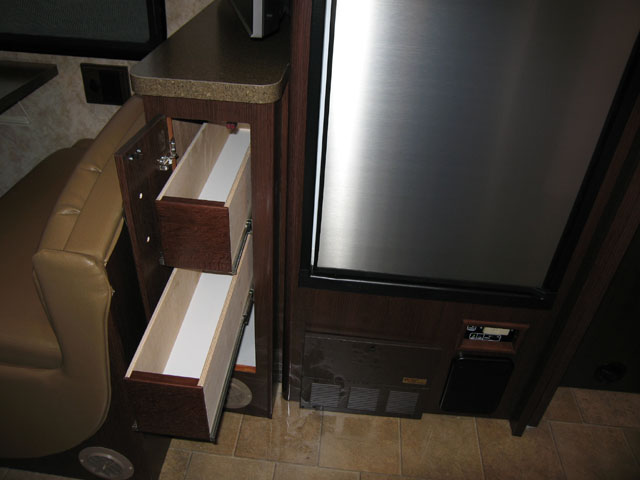

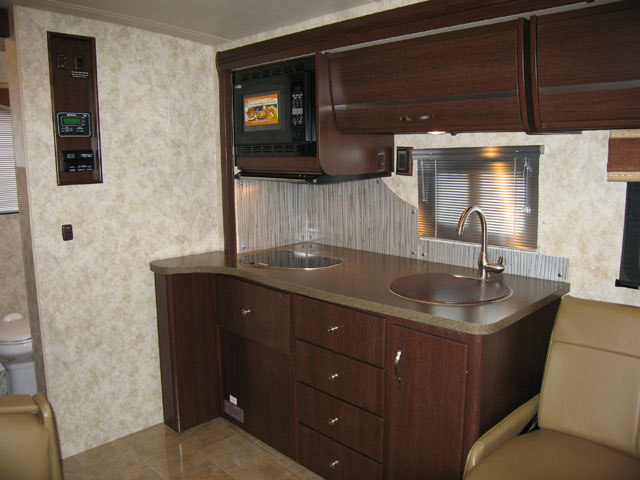

Kitchen:

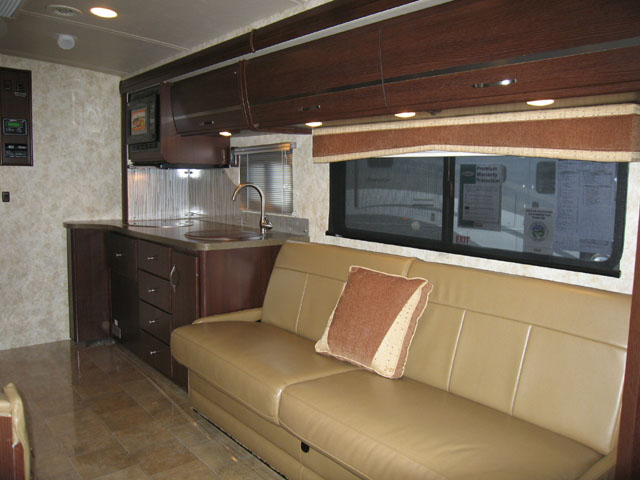

Laminate countertops, Microwave/convection oven, 2-burner range top w/glass cover, Vented range hood, Norcold refrigerator/freezer (black).

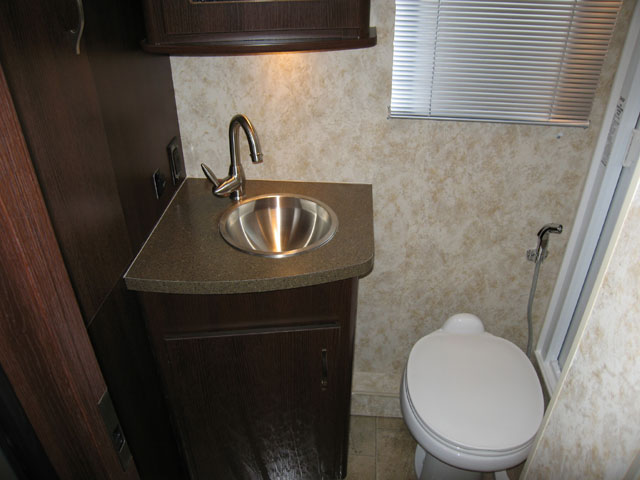

Bath:

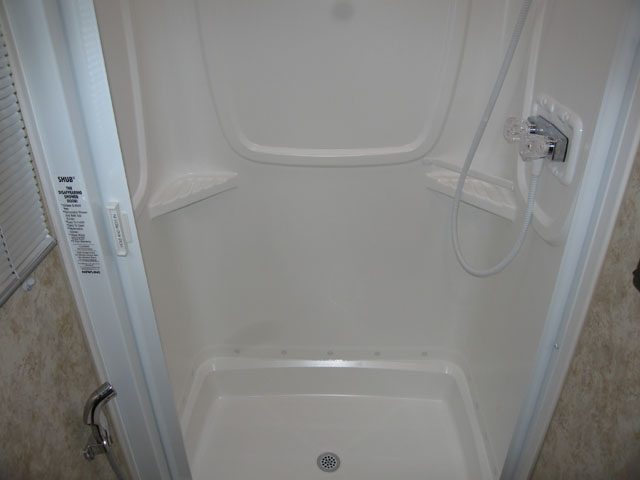

Retractable self-cleaning shower door, Flexible showerhead, Skylight, Porcelain toilet, Water-pump switch.
Bedroom:
Mattress cover, pillows, pillow shams (24J).
Exterior:
Automatic entrance door step(s), Ladder, Porch light, Step well light, Front and rear mud flaps, Premium high-gloss skin, Entrance door w/screen.
Heating and Cooling System:
13,500 BTU roof-mounted air conditioner, 20,000 BTU furnace.
Electrical System:

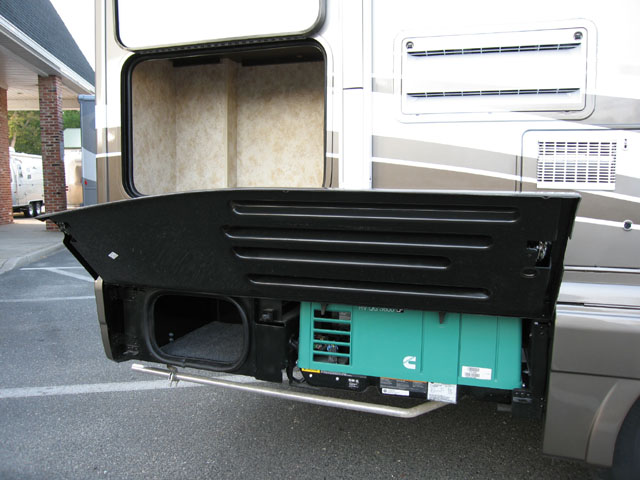

Service Center cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® (24K) service connection hatch, Auxiliary start circuit, Battery disconnect system (coach), Automatic dual-battery charge control, LP generator prep kit, AC/DC load center, 45-amp. converter/charger, 2 deep-cycle Group 24 RV batteries.
Plumbing System:
Service Center Colored labels, city water hookup/tank diverter fill, drainage valves, exterior wash station w/lighted pump switch, 10' sewer hose, TrueLevel holding-tank monitoring system, 6-gallon 110 V/LP water heater w/EMS, LP Tank w/remote fill w/power switches, Winterization Package water heater bypass valve and siphon tube, On-demand water pump Exterior, Wash Station pressurized city water hookup/tank diverter fill.
Safety:
Dual airbags, Seat belts, LP, smoke and carbon monoxide detectors, 10 BC fire extinguisher, Ground fault interrupter, Child seat tether anchor (24J), High-mount brake lamps, Daytime running lamps.
Warranty:
12-month/15,000-mile basic warranty, 36-month/36,000-mile limited warranty on structure, 10-year limited parts-and-labor warranty on roof skin.
