Weights & Measures 25R:
Length 25'5", Exterior Height1 10'9", Exterior Width 7'6", Exterior Storage2 (cu. ft.) 43.6, Awning Length 16', Interior Height 6'5", Interior Width 7'3", Freshwater Capacity w/Heater3 (gal.) 36, Holding Tank Capacity - Black/Gray3 (gal.) 30/40, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".
Weights & Measures 25Q:
Length 25'5", Exterior Height1 10'9", Exterior Width 7'6", Exterior Storage2 (cu. ft.) 76, Awning Length 16', Interior Height 6'5", Interior Width 7'3", Freshwater Capacity w/Heater3 (gal.) 35, Holding Tank Capacity - Black/Gray3 (gal.) 36/36, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".
Weights & Measures 25T:
Length 25'5", Exterior Height1 10'9", Exterior Width 7'6", Exterior Storage2 (cu. ft.) 25.9, Awning, Length 16', Interior Height 6'5", Interior Width 7'3", Freshwater Capacity w/Heater3 (gal.) 35, Holding Tank Capacity - Black/Gray (gal.) 36/36, LP Capacity (gal.) 13, Fuel Capacity (gal.) 26.4, GCWR (lbs.) 15,250, GVWR (lbs.) 11,030, GAWR - Front (lbs.) 4,410, GAWR - Rear (lbs.) 7,720, Wheelbase 170".
Mercedes-Benz Sprinter F50 Chassis:
188-hp Mercedes-Benz 3.0L 6-cylinder turbo-diesel engine, 5-speed automatic transmission w/tip shift, Hydraulic brakes w/ABS, Adaptive ESP technology, 180-amp. alternator, Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector, Stainless steel wheel liners.

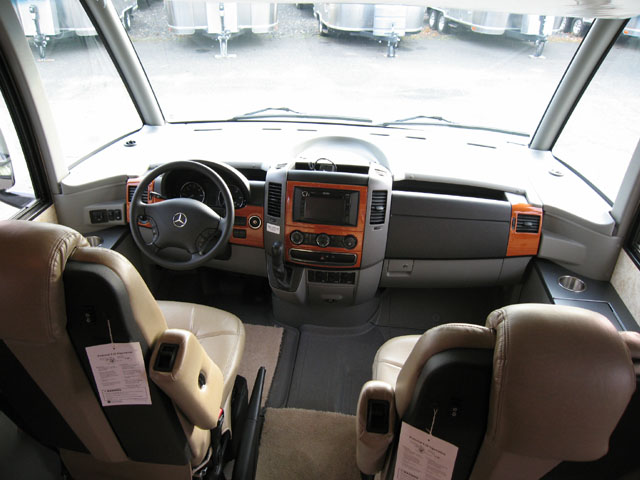

Cab Conveniences:
RV Radio/Rearview Monitor System 6.5" LCD touch screen, CD player, weather band, remotes, iPod interface connector, rear camera w/one-way audio, Cab Seats armrest, adjustable lumbar support, power lift, swivel/slide, recline and headrest, Power steering w/tilt and telescoping wheel, Power door lock w/remote for main entry door, Removable one-piece fitted carpet liner, 12-volt powerpoints, Power mirrors w/defrost, Cruise control, Chassis/house battery radio power switch, Sideview video camera system, Sunvisors, Front wraparound curtain.

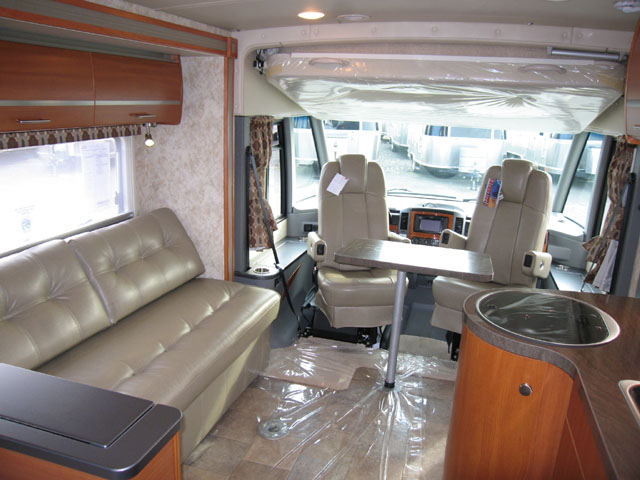

Interior:

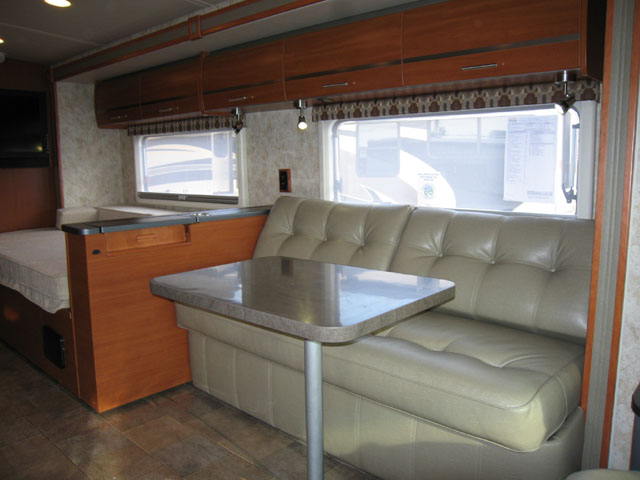

IntelliSense One Touch Control LCD monitor panel, Key-activated slideroom master lock switch, Vinyl ceiling, Privacy curtains, Stereo System AM/FM, alarm clock, CD/DVD player, input jack, 26" LCD TV (25T, 25Q), 32" LCD TV (25R), Satellite system ready, MCD American Solo blackout roller shade (rear bedroom slideout 25Q), Dual-pane windows w/built-in screen and shade, bedroom and lounge area (single-pane w/MCD American Solo blackout roller shade on 25Q bedroom slide window), Amplified digital TV antenna system, Powered roof vent (bath).

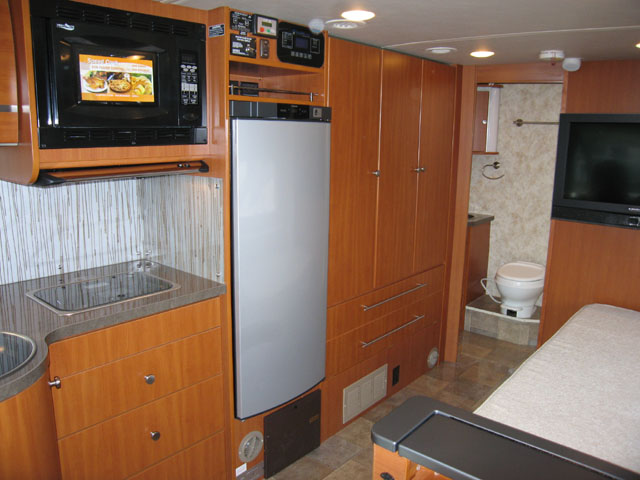

Kitchen:

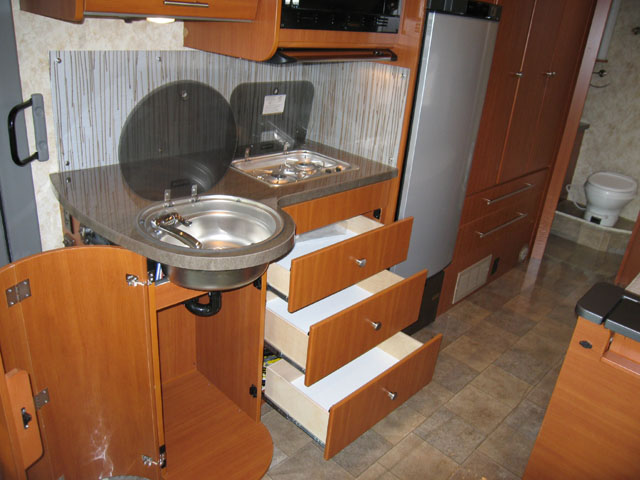

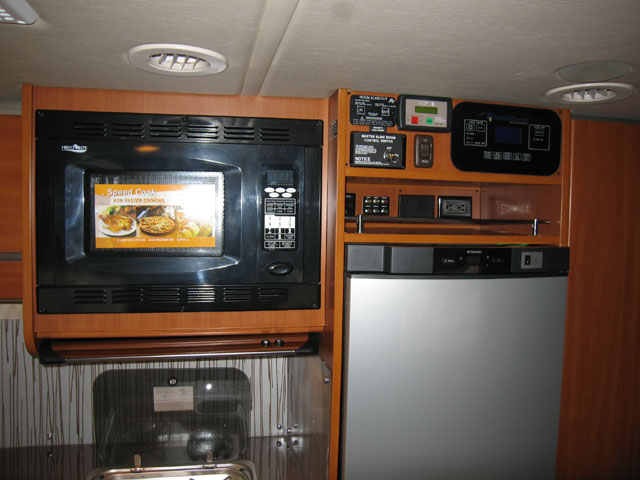

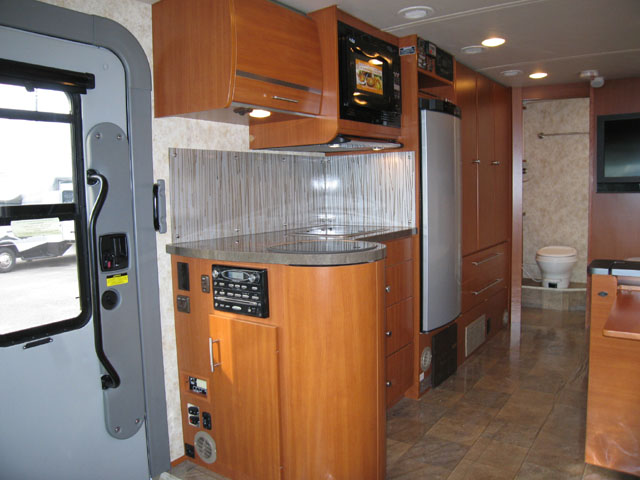

Microwave/convection oven, Vented range hood (25R, 25T), 2-burner range top w/glass cover, Refrigerator w/removable freezer compartment, Stainless steel sink w/glass cover and folding faucet, Laminate countertops, Decorative backsplash.

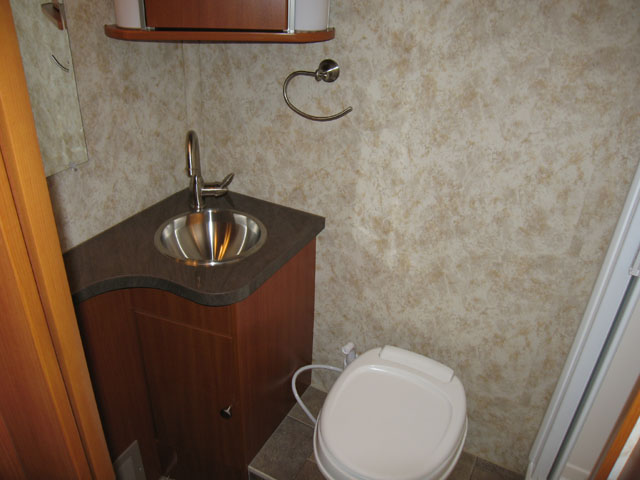

Bath:

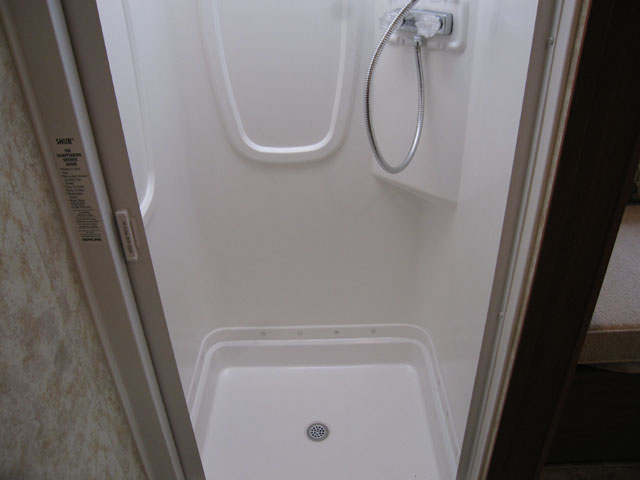

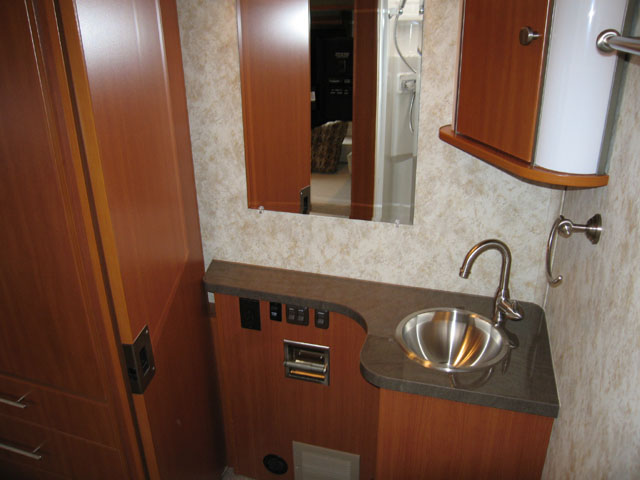

Flexible showerhead, Retractable self-cleaning shower door (25R, 25T), Shower curtain (25Q), Skylight.

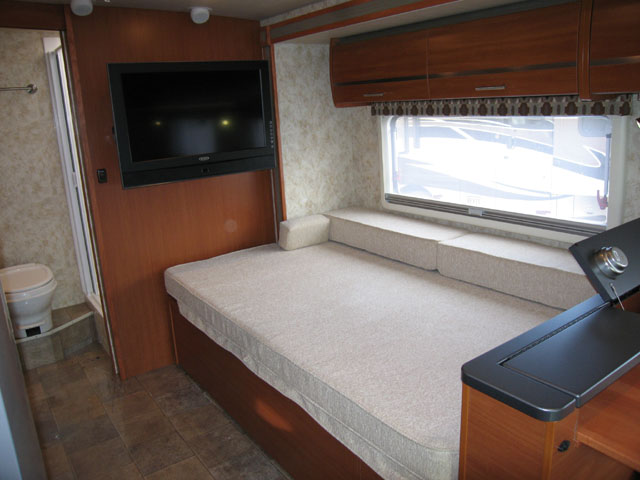

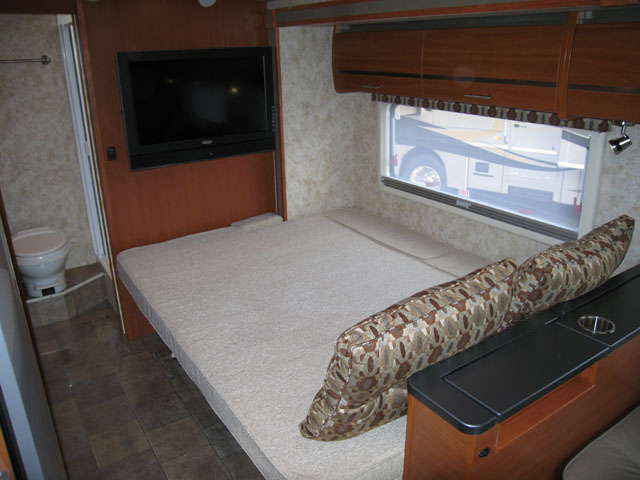

Bedroom:
Twin beds w/foam mattresses, Flex Bed kit, pillows w/shams and access to storage below (25T), Queen bed w/expandable base, foam mattress (25R), Queen bed w/innerspring mattress, pillows, shams, bedspread and access to storage below (25Q), 19" LCD TV (25Q, 25T).
Exterior:

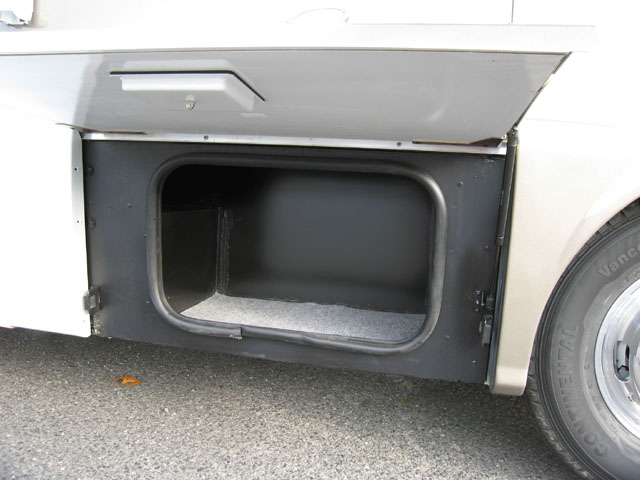

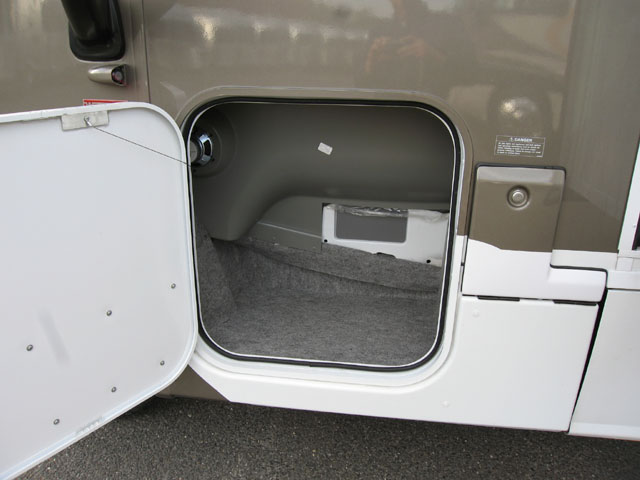

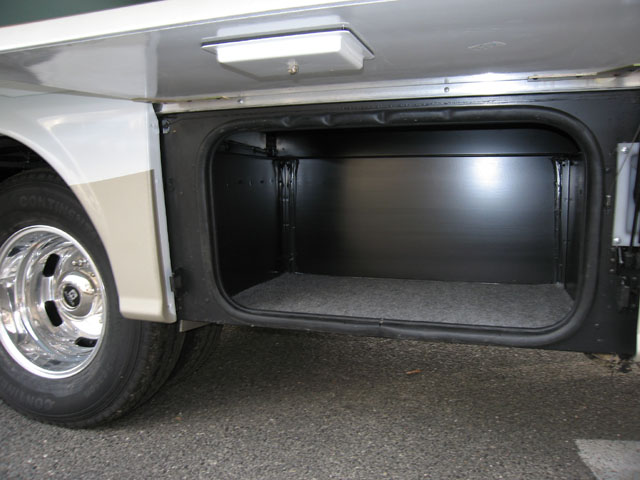

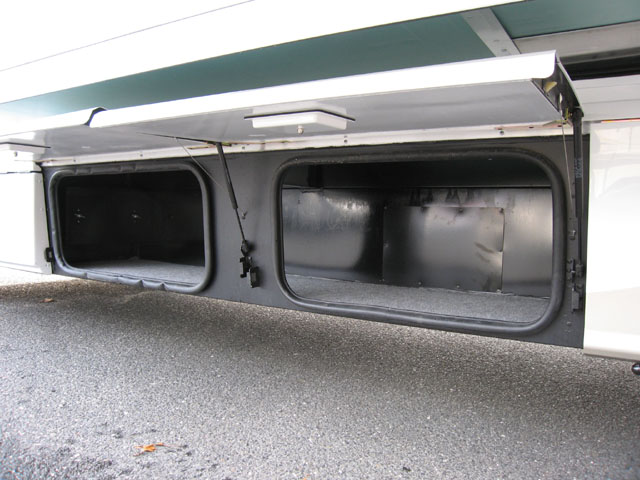

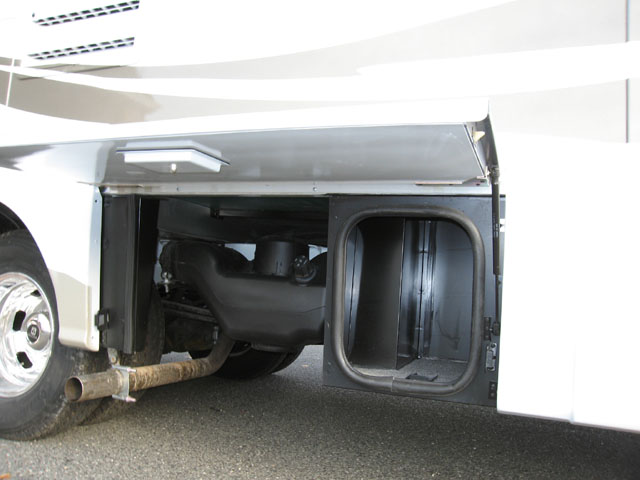

Premium high-gloss skin, 16' electric patio awning, Threshold RV entrance door w/built-in screen, Automatic entrance door steps, Lighted storage compartment, Mud flaps (rear), Porch light, Stepwell light.
Heating & Cooling:
13,500 BTU roof-mount air conditioner, 20,000 BTU low-profile furnace.
Electrical System:

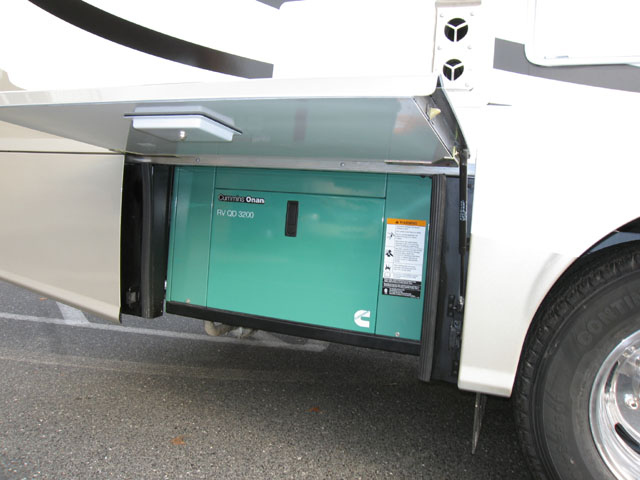

Service Center cable TV input, 30 amp. power cord, portable satellite dish hook-up, AC/DC load center, 45-amp. converter/charger, Auxillary start circuit, Battery disconnect system (coach), 2 deep-cycle, Group 24 RV batteries, Automatic dual-charge control, 3,200-watt Cummins Onan diesel generator, 300-watt DC/AC Inverter.
Plumbing System:

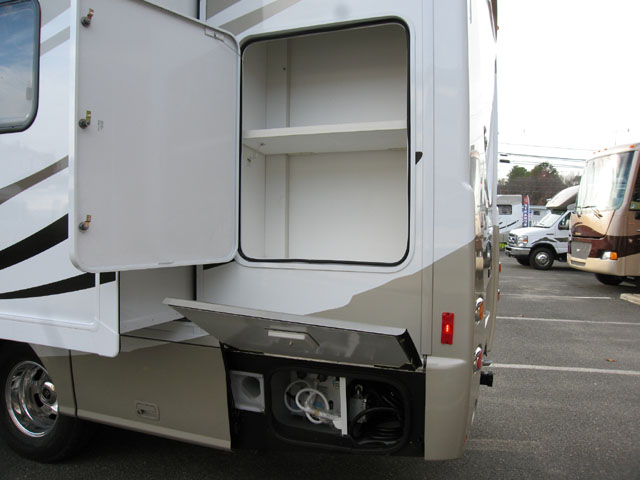

Service Center color-coded labels, city water hookup/tank diverter fill, drainage valves, 10' sewer hose, TrueLevel holding-tank monitoring system, 6-gallon water heater w/electric ignition, 110 V/LP, Winterization Package water heater bypass valve and siphon tube, On-demand water pump, Permanent-mount LP tank w/remote fill.
Safety:
Seat belts, LP, smoke and carbon monoxide detectors, 10 BC fire extinguisher, Ground fault interrupter, High-mount brake lamps, Daytime running lamps, Fog lamps.
Warranty:
12-month/15,000-mile basic warranty, 36-month/36,000-mile limited warranty on structure, 10-year limited parts-and-labor warranty on roof skin.
