MODEL: 2014 - 190-POPULAR

Standard Motorhome Features:
Air conditioner - 110V - 'Dometic' recessed air conditioner & heat pump, 10200 BTU
Aisle width - 760 mm/30"

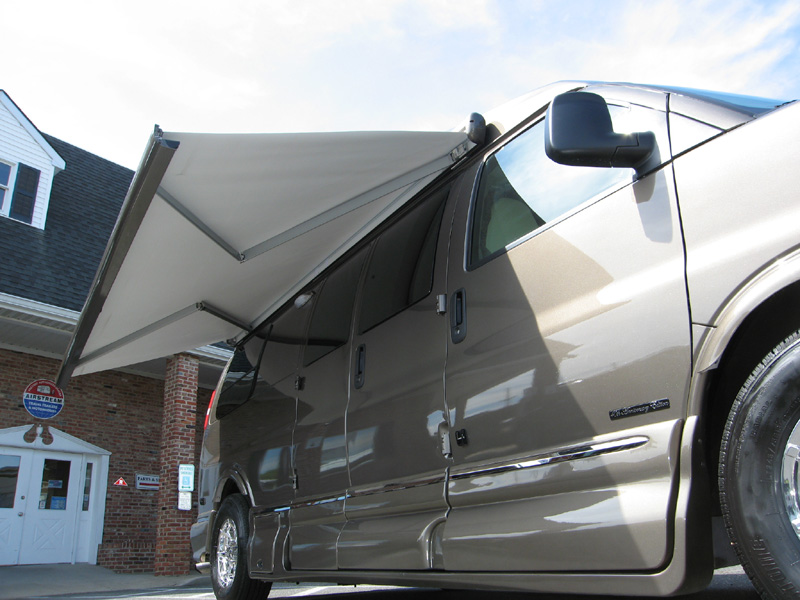

Awning - box (power) - 3500 mm/11' 6"
Bathroom - temporarily enclosed with bifold doors (creates private change area as well)
Batteries - auxiliary - AGM deep cycle - two 6V, 220 total amp-hrs.
Battery storage - auxiliary - below floor
Beds - dual density foam - 130 mm/5"
Bumper covers - front & rear

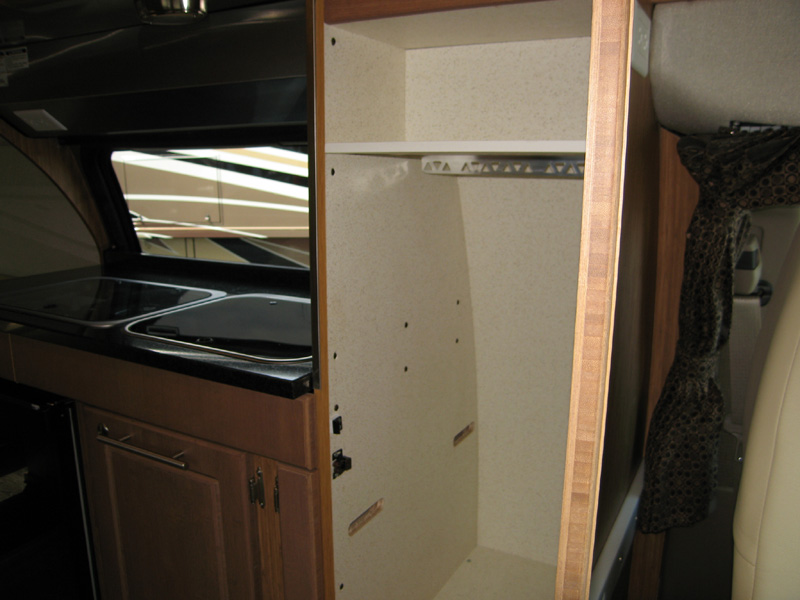

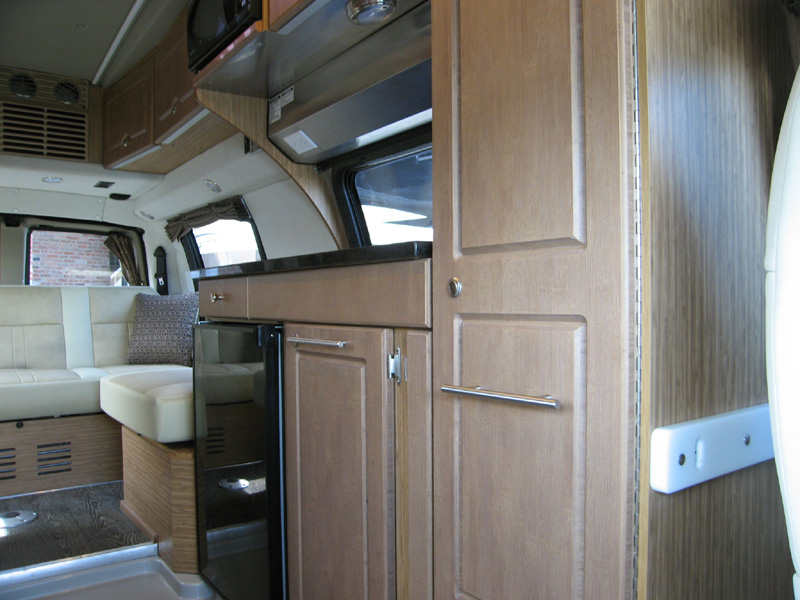

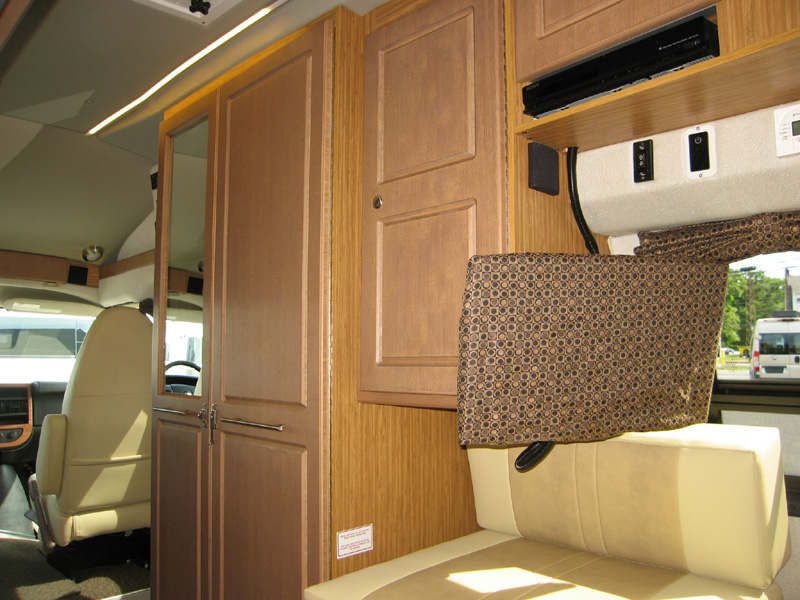

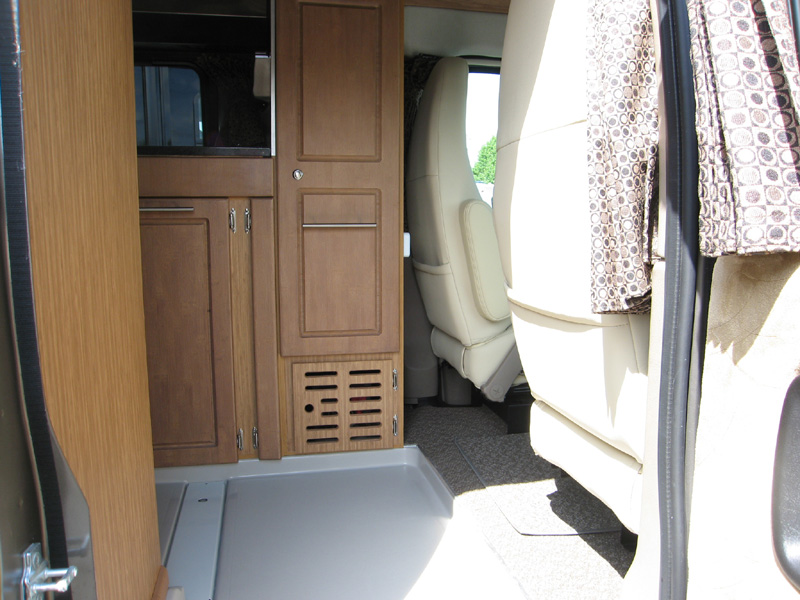

Cabinetry - real cherry wood doors and fronts
Connection - auxiliary - propane - for BBQ with quick disconnect
Connection - external - 110V - standard
Connection - external - TV cable - standard

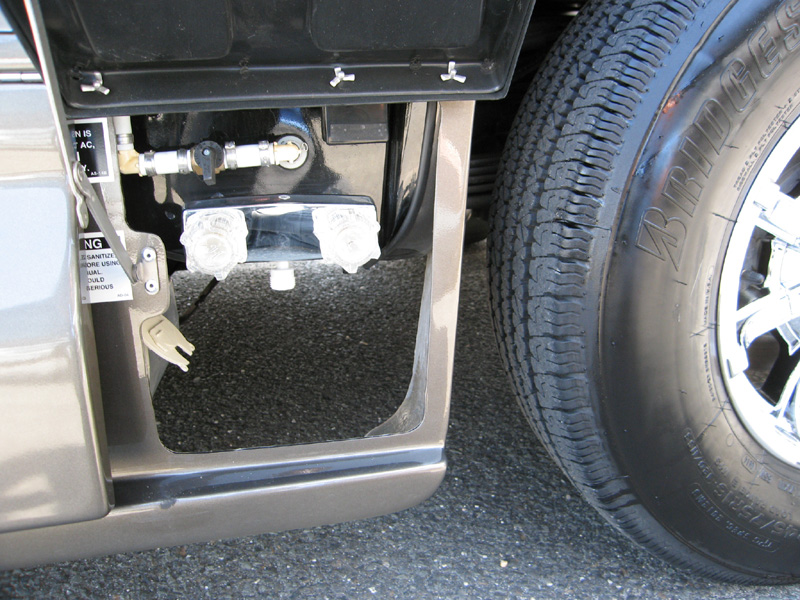

Connection - external - water - standard with quick disconnect
Counter top - engineered granite
Detectors - smoke, propane & CO
Faucet - galley - single lever
Floor - lowered - 50 mm/2"
Flooring - 40 oz. 100% Dupont nylon carpet, fiberglass lowered floor
Furnace - propane automatic, 16000 BTU
Generator ready package - for gasoline 'Onan'
Home theatre system with 5.1 surround sound & dual center speakers - with DVD, CD, AM/FM radio, dual use rear speakers

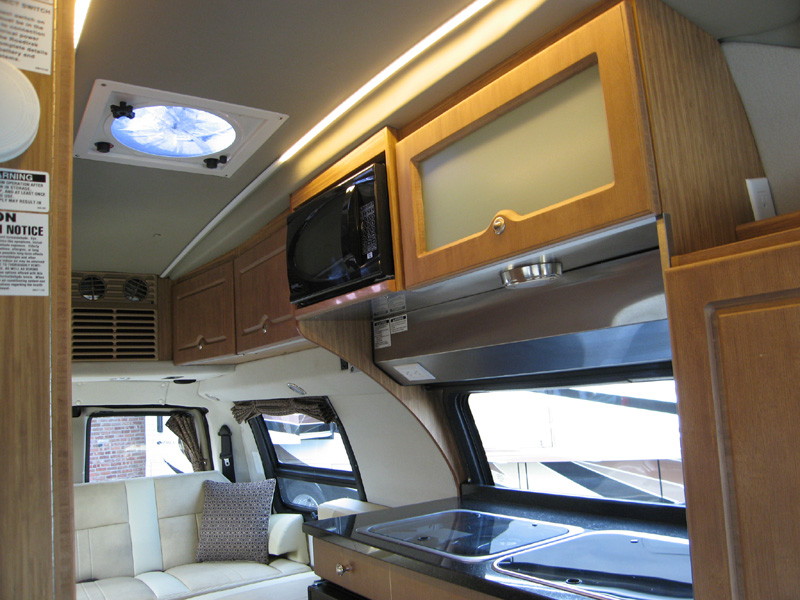

Microwave oven - 110V - 20 L/0.7 cu. ft., 700 W

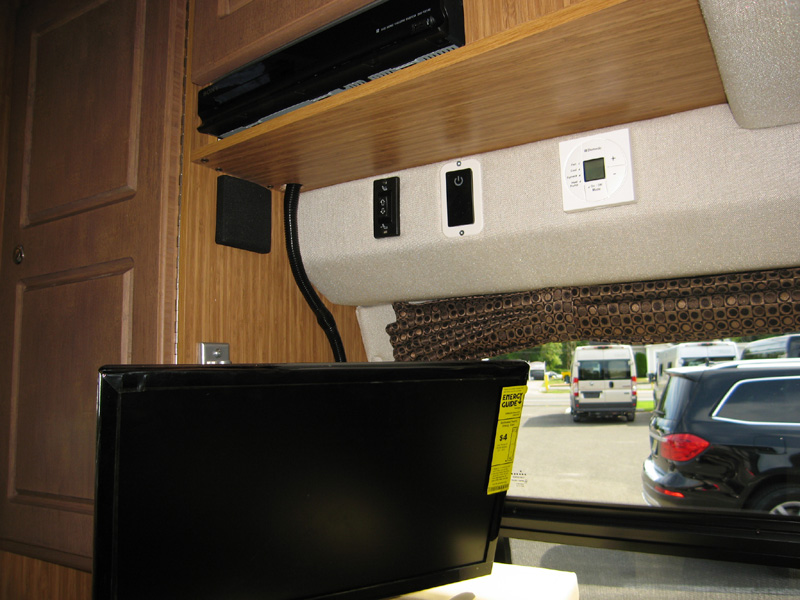

Monitor panel - water, propane & battery charge levels, battery disconnect & generator hour meter
Power converter with charger - 110/12V - 3 step 45 amp. charger

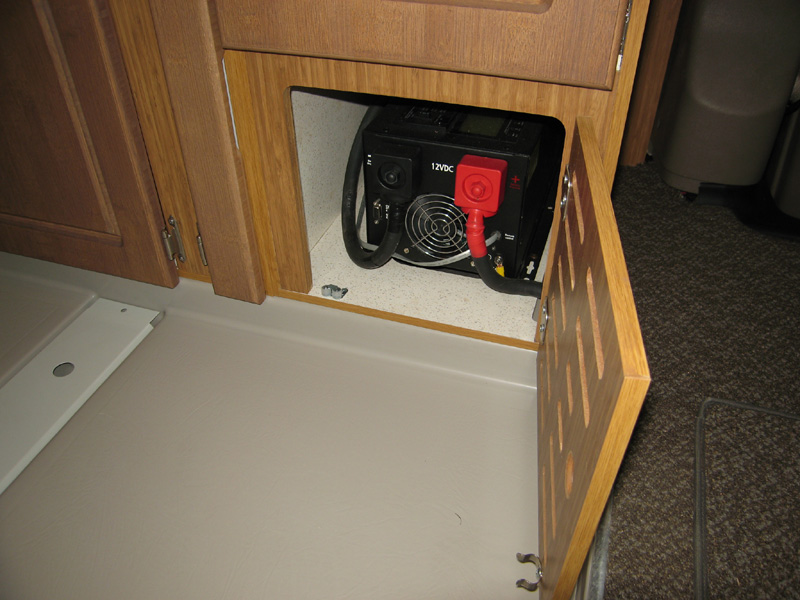

Power inverter - 12/110V - 750 W

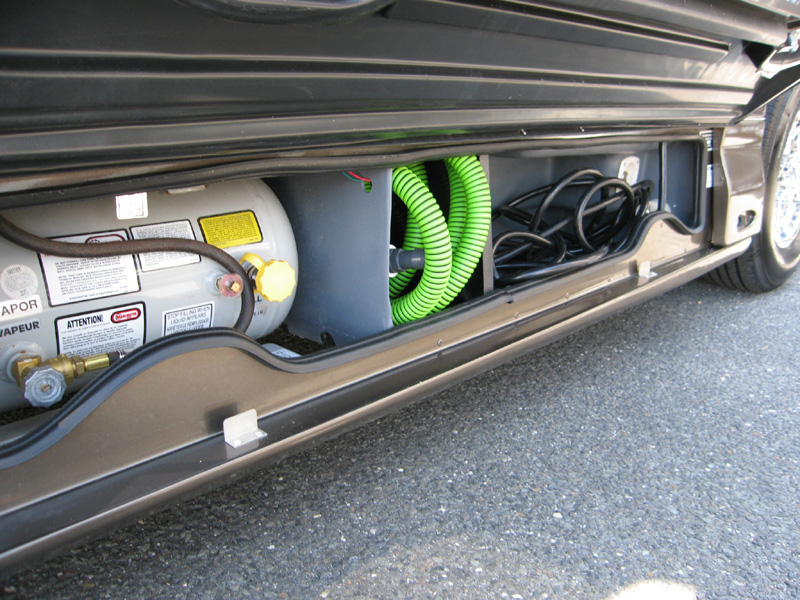

Propane tank - 38 L/10 US gal./45 lbs.
Refrigerator - 12V/110V/ propane, 3.0 cu. ft. with auto source selection
Roof vent - 'FanTastic' - 12V - low profile power with thermostat

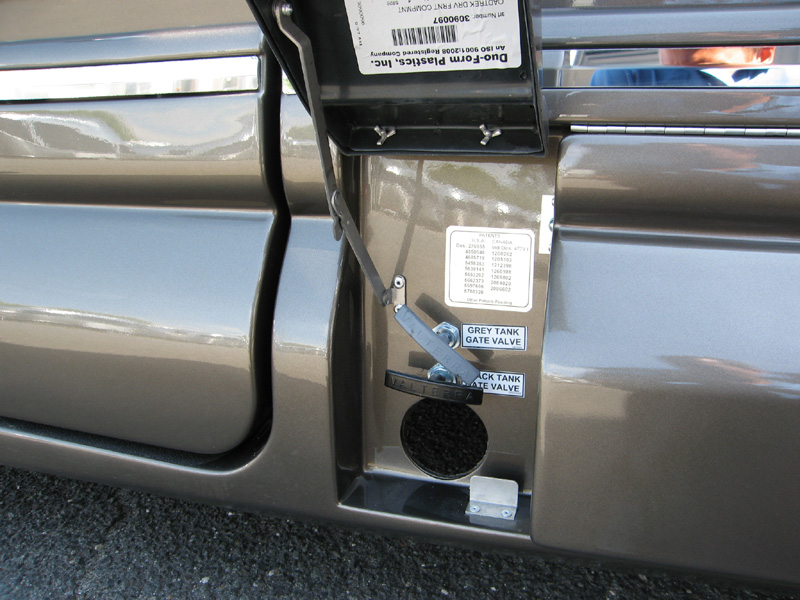

Sewage disposal system - macerator sewage pump - 12V

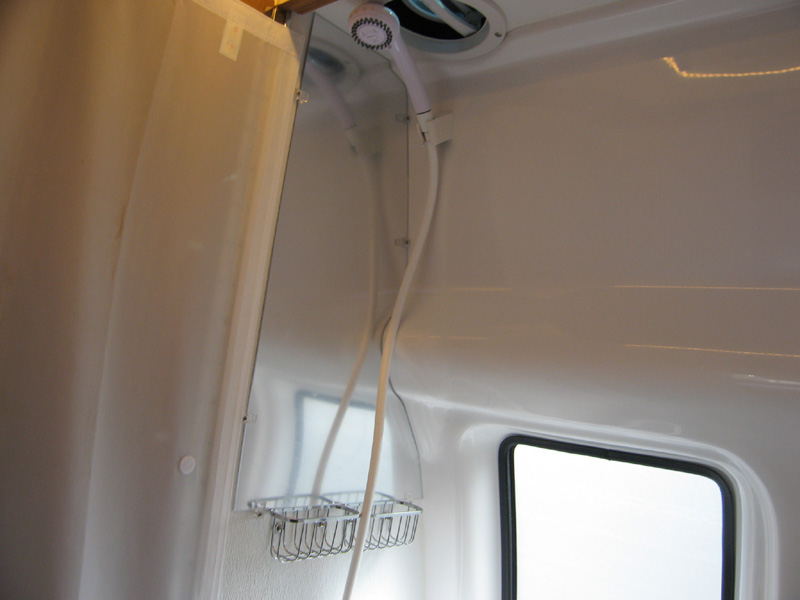

Shower - stand-up in aisle
Sink - stainless steel with flush cover

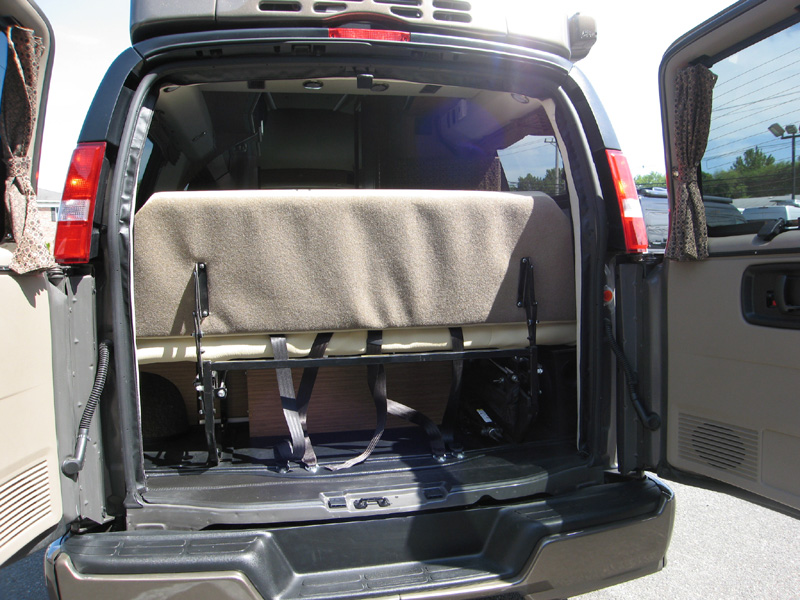

Storage area - across the rear
Storage capacity - standard (w/options) - 1750 L/62 cu. ft. (2260 L/80 cu. ft.)

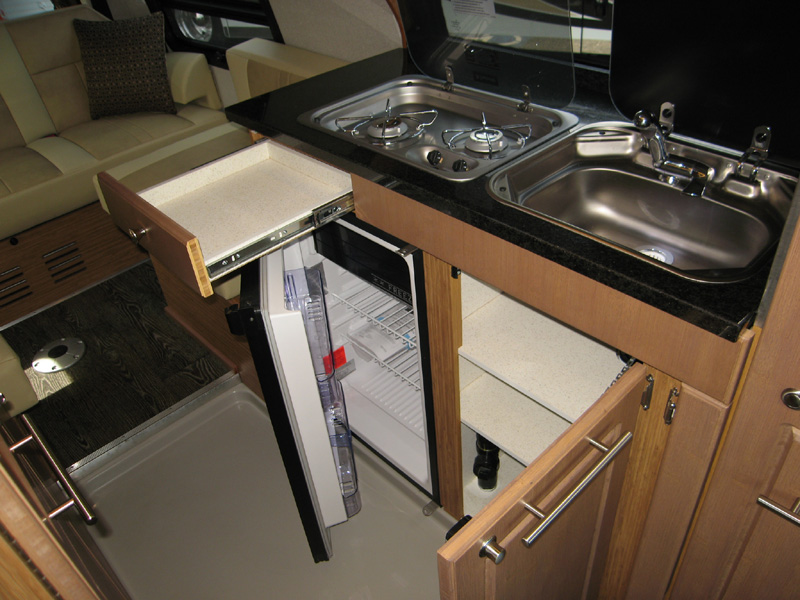

Stove - propane - two burner recessed with flush cover

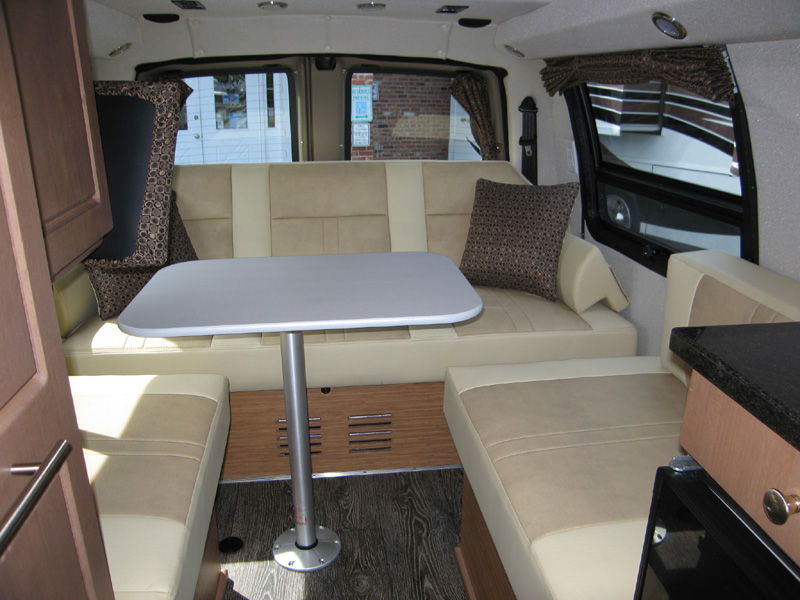

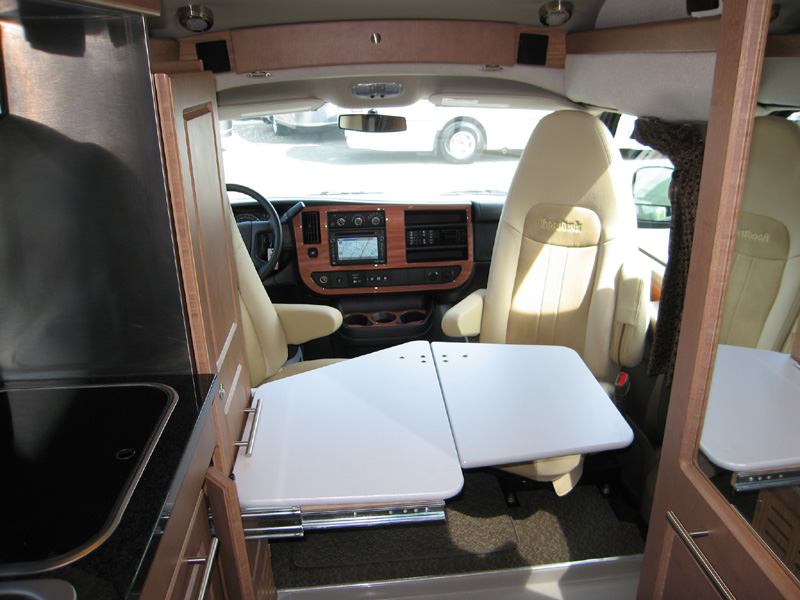

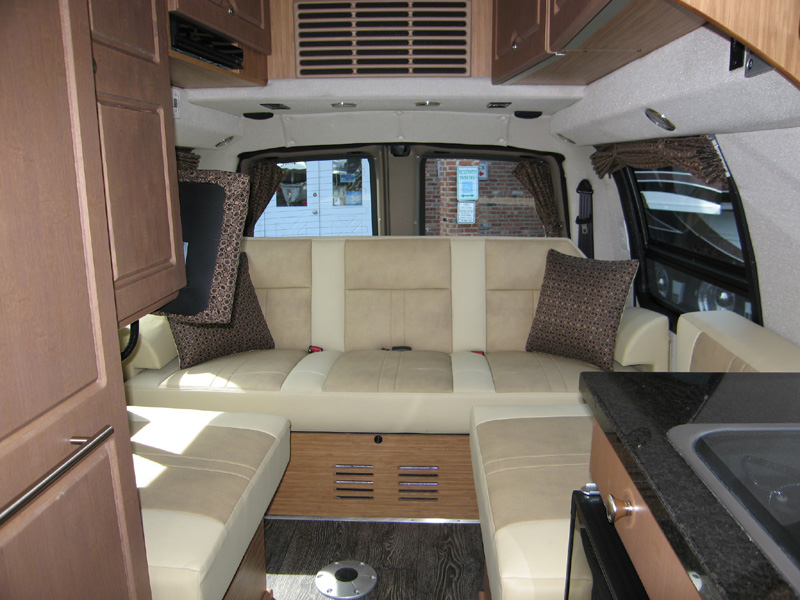

Table - dining - front and rear

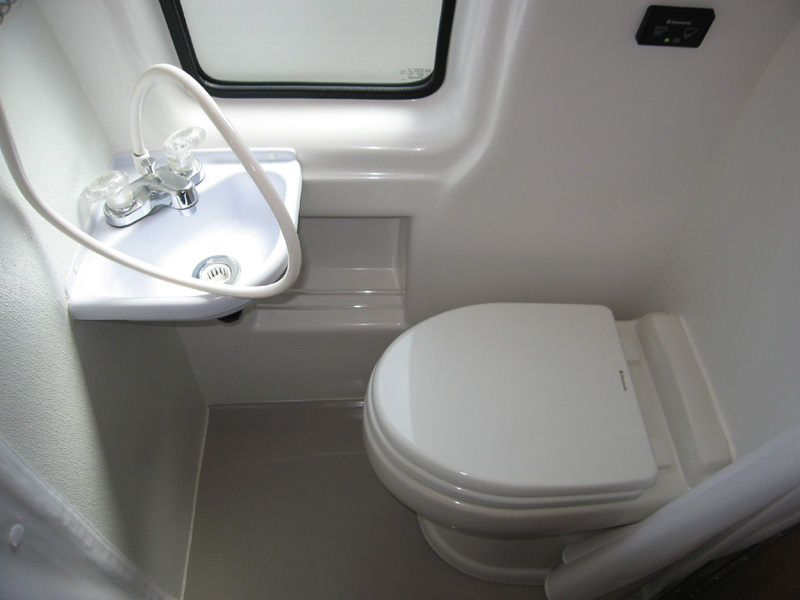

Toilet - 'Thetford' - marine with foot pedal flush
TV antenna - ‘Sole’ fixed digital
Water capacity - black - 40 L/10 US gal.
Water capacity - fresh (w/water heater) - 115 L/31 US gal.
Water fill - fresh - location - front/rear door posts to reduce clutter & prevent tampering w/supply
Water heater - propane with bypass, 23L/6 US gal., 12000 BTU
Water system - on demand - 12V with 'Shurflo' water pump
Water tank - grey - 85 L/23 US gal.
Windows - frameless awning type
Windows - roof - 3 frameless with removable panels

Standard Automotive Features:
Air bag - driver & passenger - with passenger on/off switch
Alternator - 145 amp.
Axle - rear - 3.42 ratio
Battery - 600 amp.
Brakes - anti lock (ABS) - four wheel disc

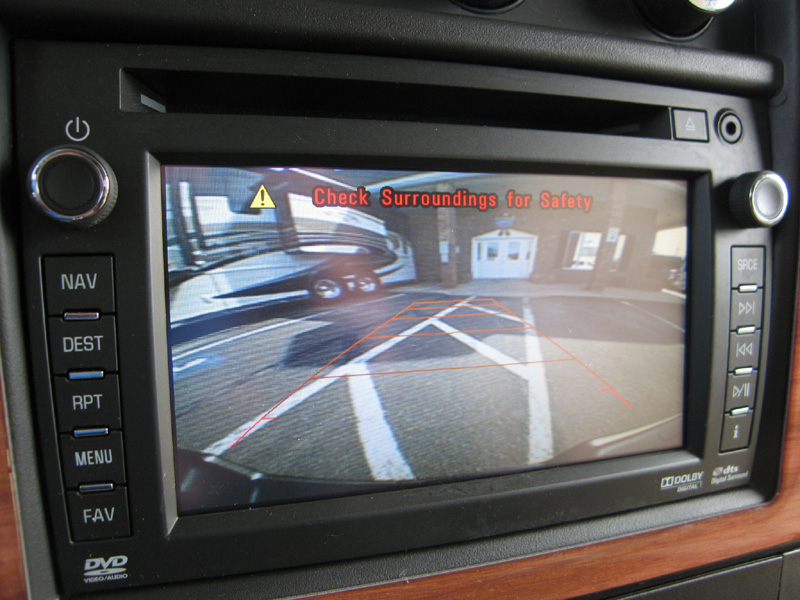

Camera – rearview backup - appears on screen of in-dash radio
Climate control - standard
Compass & exterior temperature display - in instrument panel
Cooling - transmission oil - external
Cruise control - standard
Defroster - rear window - standard
Door locks - with remote - power - all doors, single key
Doors & exits - double side & rear
Engine - 6.0 L SFI gas V8
Fuel capacity - 117 L/31 US gal.
Headlights - automatic on/off
Mirrors - exterior - power, heated with convex
Power - 224 kW/323 HP

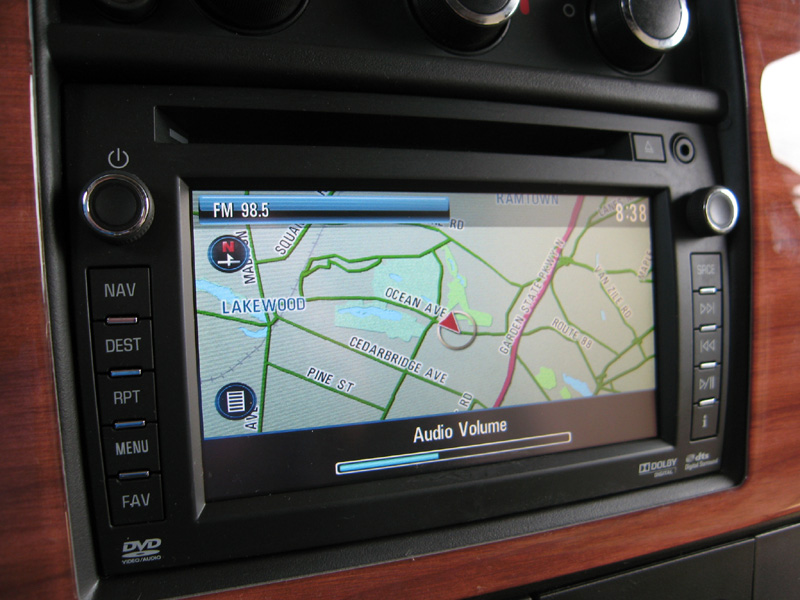

Radio - in-dash - AM/FM w/CD player - Audio system with navigation, AM/FM stereo with MP3 compatible CD/DVD player and navigation, USB port, seek and scan, digital clock, auto tune control, Radio Data System (RDS, speed-compensated volume and TheftLock
Receiver - class IV
Seat belts in rear - two w/twin beds, three with optional rear sofa
Seats - 2nd row - lounge - faux leather

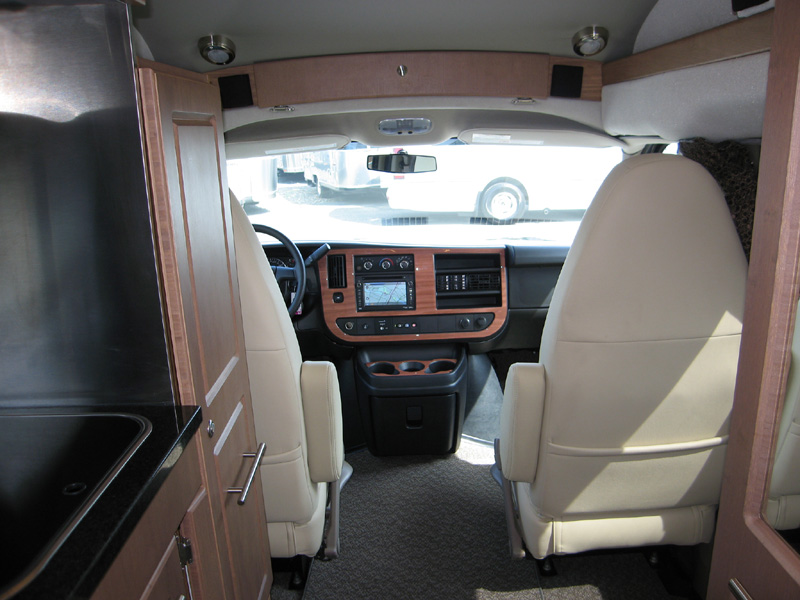

Seats - cab - Captain's - leather - faux - swiveling, power lumbar support & dual armrests
Stability program - electronic (ESP) - standard
Theft deterrent system - standard
Tilt steering - standard
Tire pressure monitoring system - standard
Tire storage - spare - rear storage area
Tires - LT245/75R16E black wall
Torque - 504 N-m/373 lb-ft
Transmission - automatic - 6 speed heavy duty

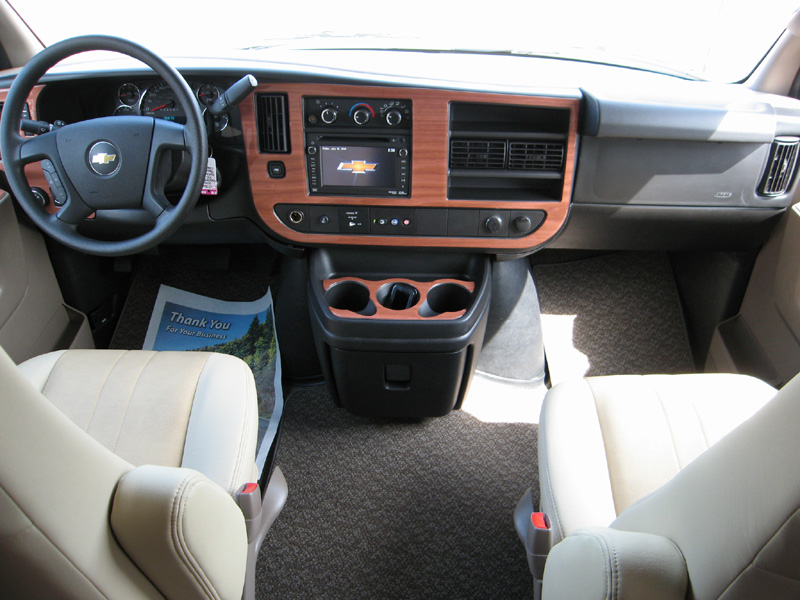

Trim - dash & front door panels - real cherry wood

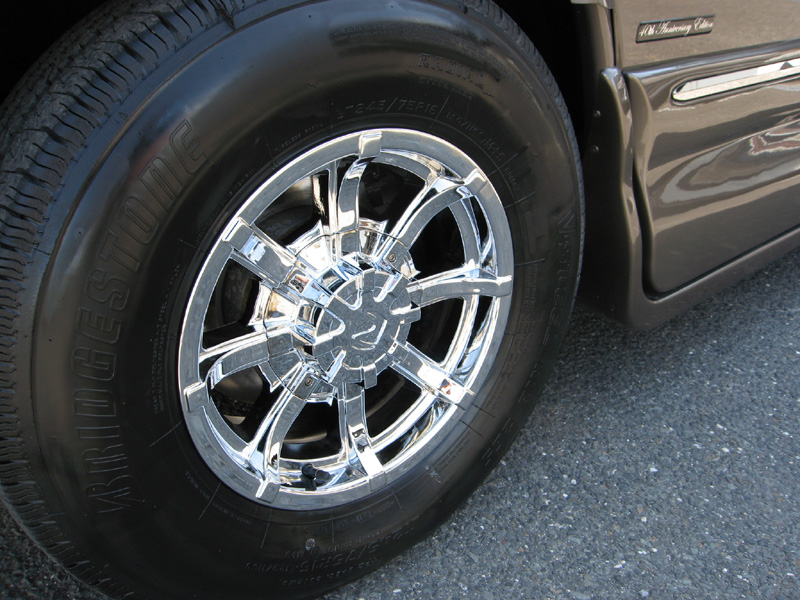

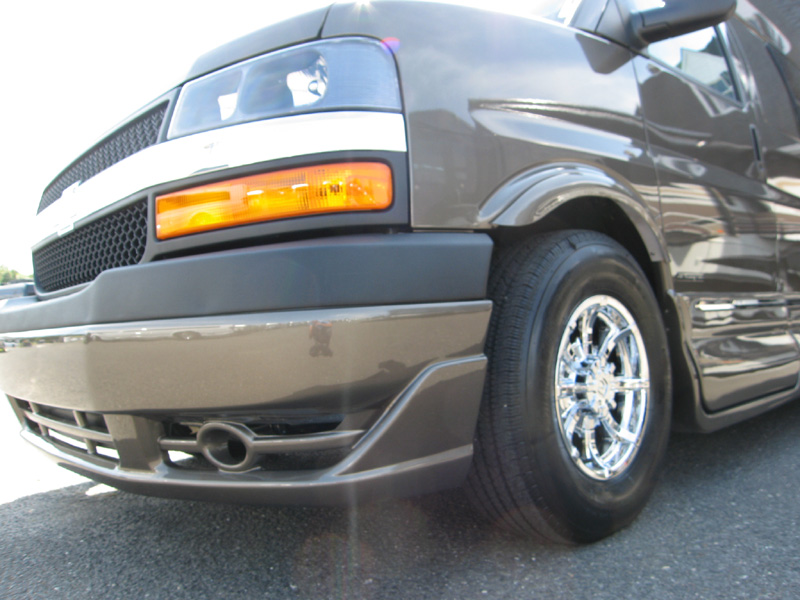

Wheels - 16" steel with chrome look covers
Window operation - power - front doors only
Window tint - deep tinted - all
Wiring harness for towing - 4 and 7 way (brake controller not included)

Interior Dimensions:
Front single bed length - left, right - n/a, 1880 mm/74"
Front single bed width - 560 mm/22" (maximum)

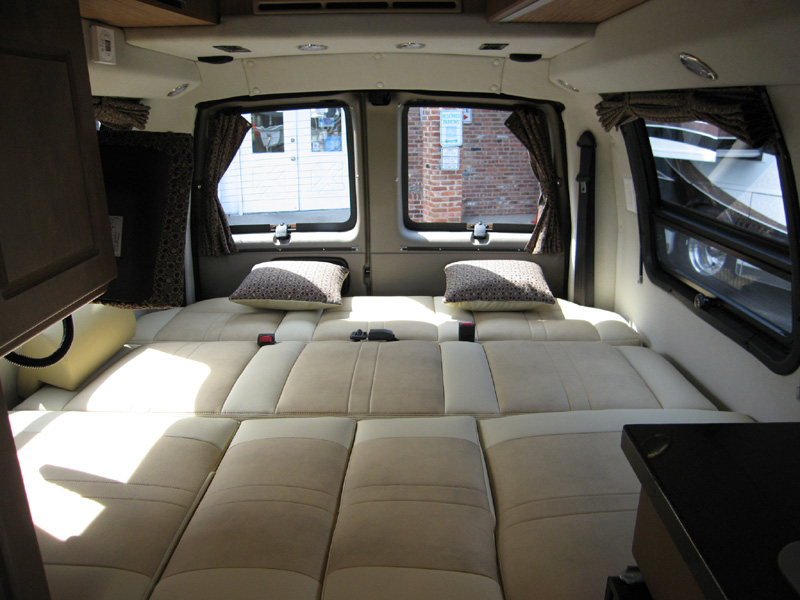

Rear king bed sleeping length (maximum) - 1930 mm/76"
Rear king bed width - 1855 mm/73"
Rear twin bed sleeping length - left, right - 1930 mm/76", 1830 mm/72"
Rear twin bed width - 690 mm/27"
Standing height - 1855 mm/73"

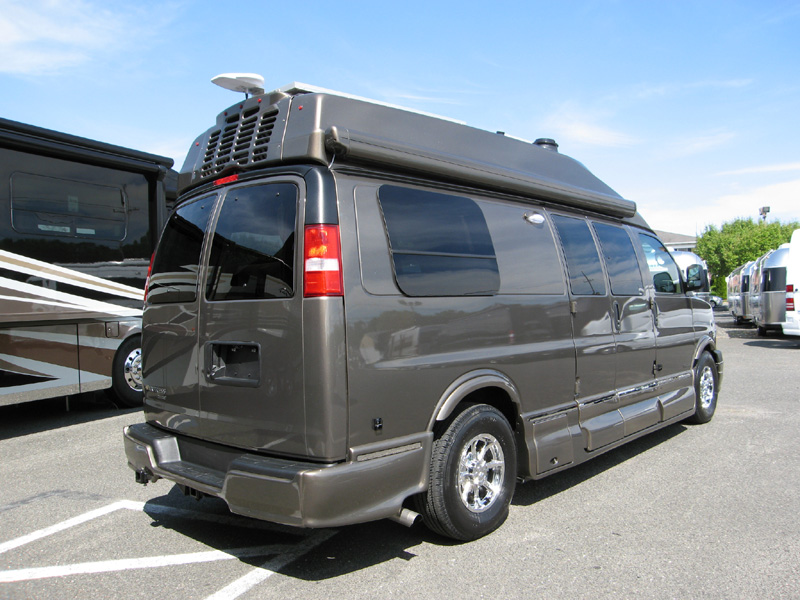

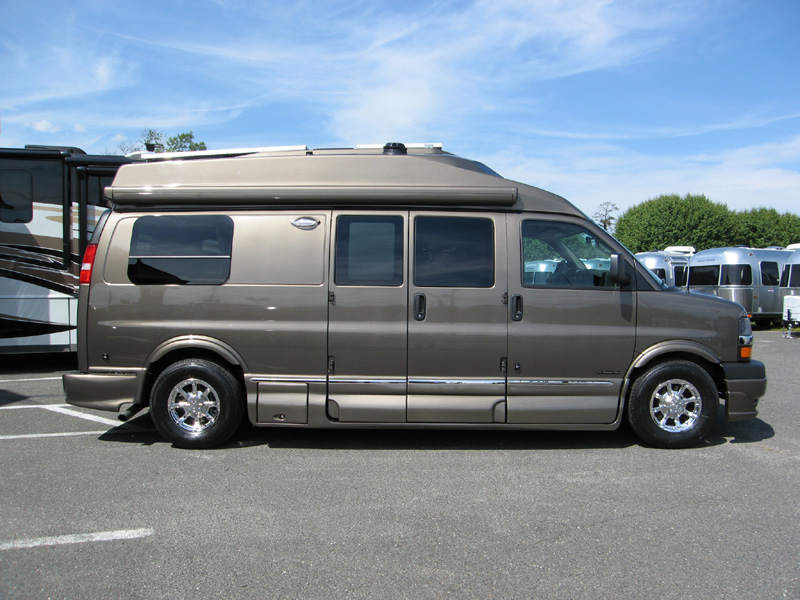

Exterior Dimensions:

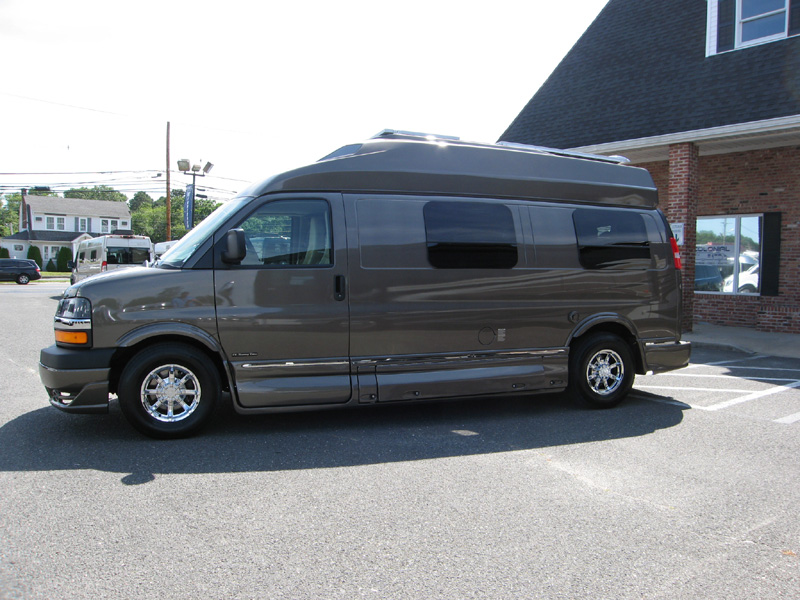

Length - 6220 mm/20' 5" (1)
Height - overall - 2660 mm/8' 9"
Width - overall (w/o mirrors) - 2042 mm/6' 7"
Wheel base - 3940 mm/155"
Gross vehicle weight rating - 4355 Kg/9600 lbs.
Occupants & cargo carrying capacity – max. (2) - 900 Kg/2000 lbs.
Gross combined weight rating (3) - 7258 Kg/16000 lbs.
Towing - tow weight (4) - 3700 Kg/8200 lbs.
Towing - tongue weight (5) - 450 Kg/1000 lbs.

Warranty:
Motorhome Conversion - 5 Year/Unlimited Mileage Limited

THE LISTED ITEMS ARE STANDARD ON THIS MODEL AT NO EXTRA CHARGE UNLESS REPLACED BY OPTIONAL EQUIPMENT.
