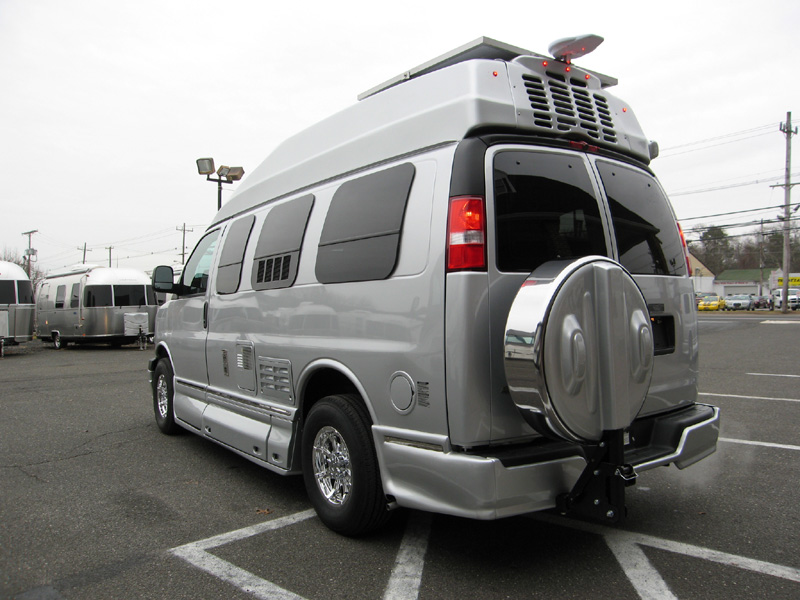

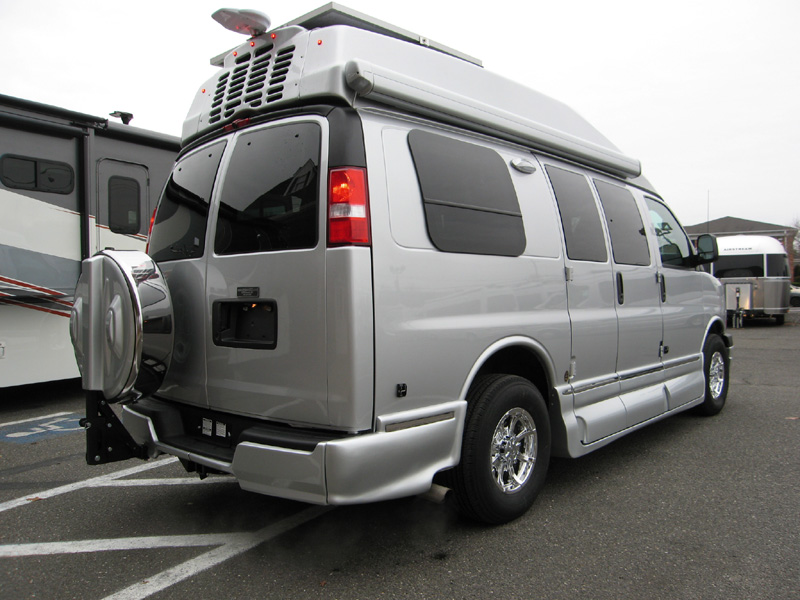

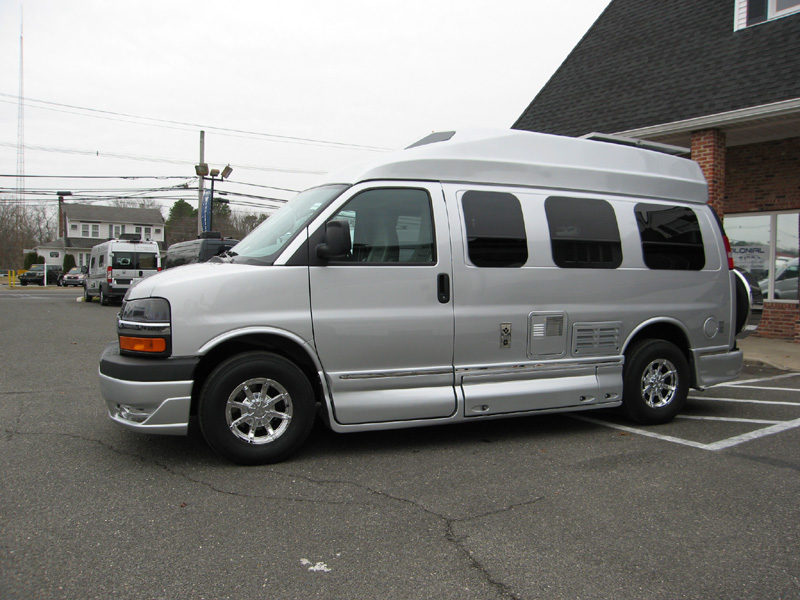

MODEL: 2014 - 170-VERSATILE
Standard Motorhome Features

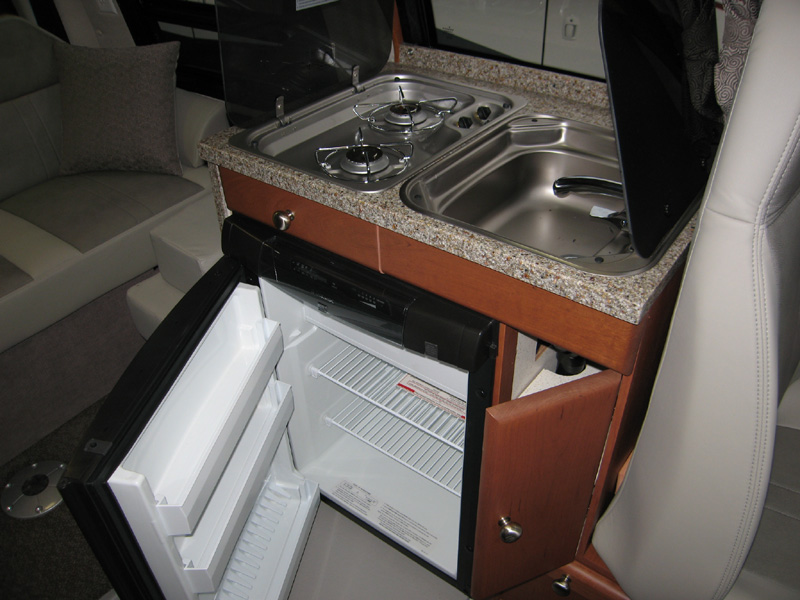

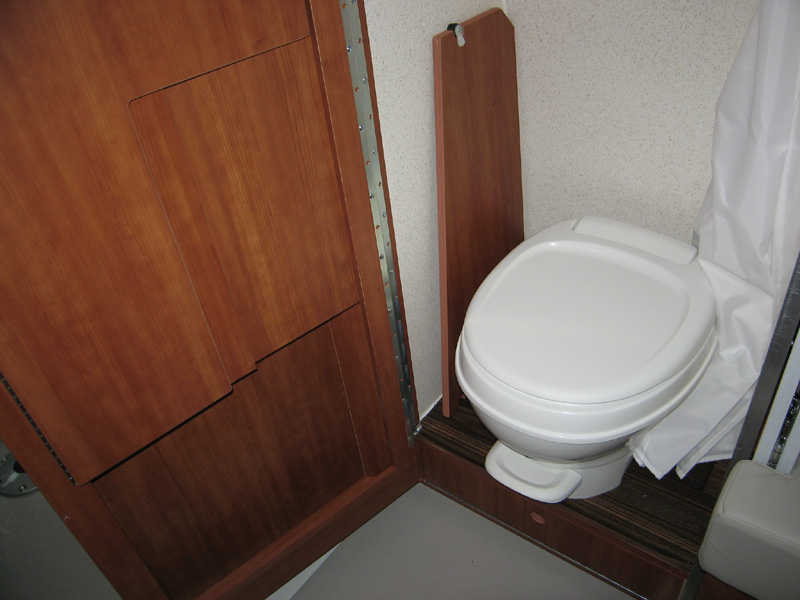

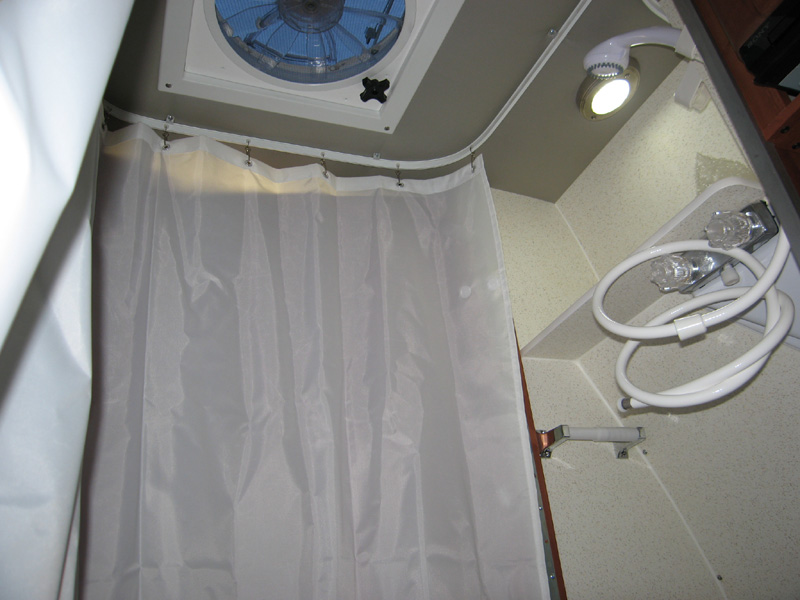

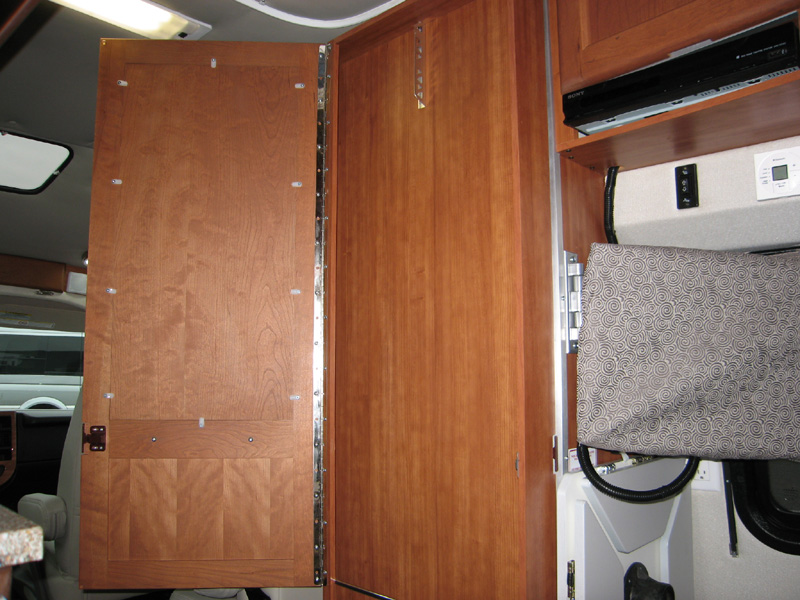

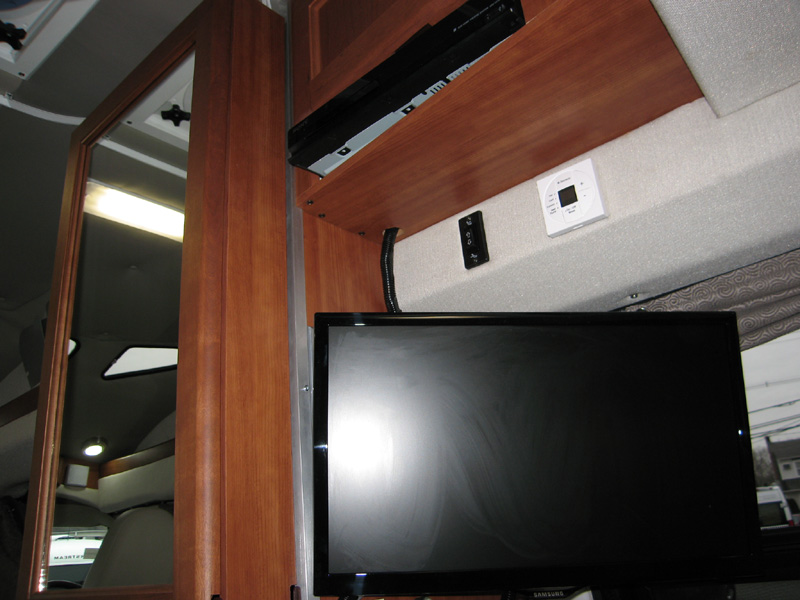

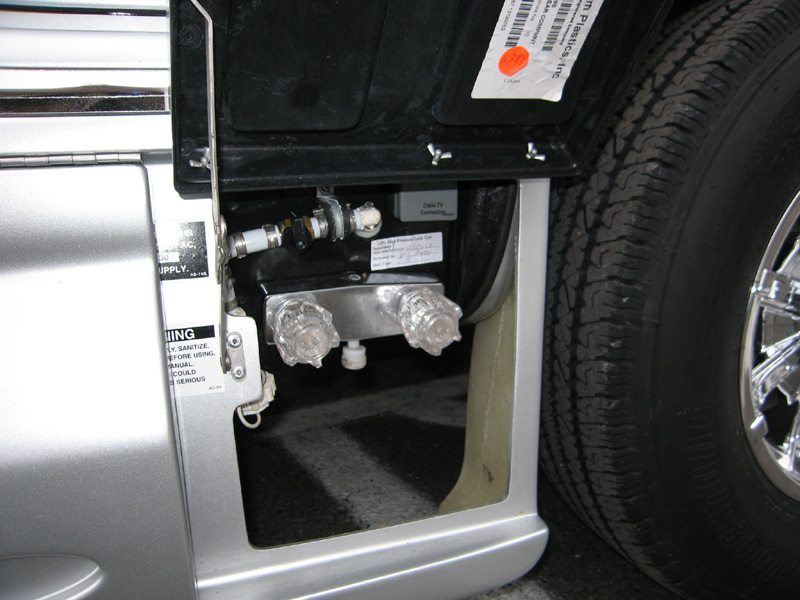

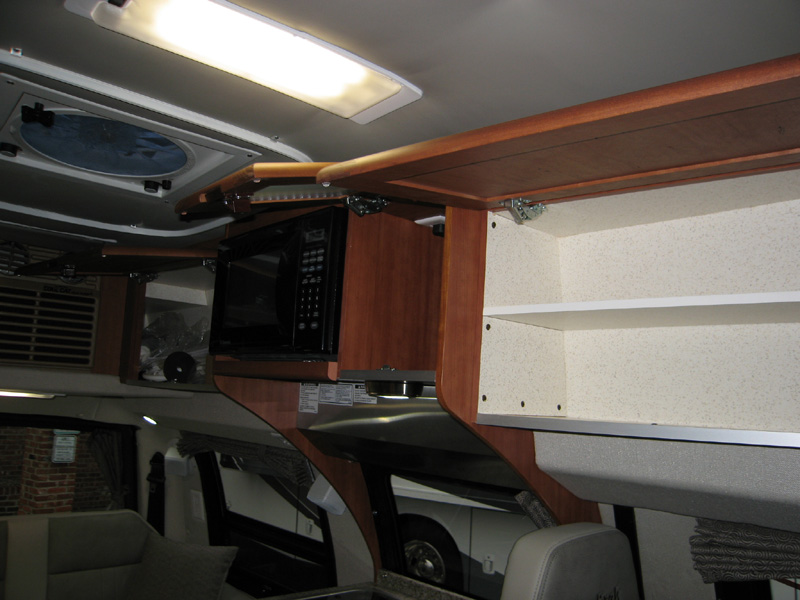

Air conditioner - 110V - 'Dometic' recessed air conditioner & heat pump, 10200 BTU, Aisle - 760 mm wide/30", Awning - box - 3000 mm/9' 10", Bathroom - temporarily enclosed with bifold door (creates private change area as well), Batteries - auxiliary - one 12V AGM deep cycle, 95 amp-hrs., Battery storage - auxiliary - below floor, Beds - dual density foam - 130 mm/5", Bumper covers - front & rear, Cabinetry - real cherry wood doors and fronts, Cabinetry - real cherry wood doors and fronts, Connection - auxiliary - propane - for BBQ with quick disconnect, Connection - external - 110V - standard, Connection - external - TV cable - standard, Connection - external - water - standard with quick disconnect, Counter top - engineered granite, Detectors - smoke, propane & CO, Faucet - galley - single lever, Floor - lowered - 1620 mm x 880 mm x 50 mm/64" x 35" x 2", Flooring - 40 oz. 100% Dupont nylon carpet, fiberglass lowered floor, Furnace - 'Suburban' - propane automatic, 16000 BTU, Generator ready package - for gasoline 'Onan', Home theatre system with 5.1 surround sound & dual center speakers - with DVD, CD, AM/FM radio, dual use rear speakers, Microwave oven - 110V - 20 L/0.7 cu. ft., 700 W, Monitor panel - water & propane levels, battery charge & battery disconnect, Power converter with charger - 110/12V - 3 step 45 amp. charger, Power inverter - 12/110V - 750W (w/remote on/off switch), Refrigerator - 'Dometic' - 12V/110V/propane - 3.0 cu. ft. with auto source selection, Roof vent - 'FanTastic' - 12V - low profile power with thermostat, Sewage disposal system - 12V - macerator sewage pump, Shower - stand-up in aisle, Sink - stainless steel with flush cover, Storage area - across the rear, Storage capacity - 49 cu. ft., 62 w/options, Stove - two burner - propane - recessed with flush cover, Table - dining - front and rear, Toilet - 'Thetford' - marine with foot pedal flush, TV - flat screen - 19” with remote, TV antenna - ‘Winegard’ crank-up, Water fill - fresh - location - front door post to reduce clutter & prevent tampering w/supply, Water heater - 'Suburban' - propane with bypass, 23L/6 US gal., 12000 BTU, Water system - on demand - 12V with 'Shurflo' water pump, Water tank - black - 30 L/8 US gal., Water tank - fresh - 55 L/14 US gal., Water tank - grey - 85 L/23 US gal., Windows - frameless awning type, Windows - roof - 3 frameless with removable panels.
Standard Automotive Features

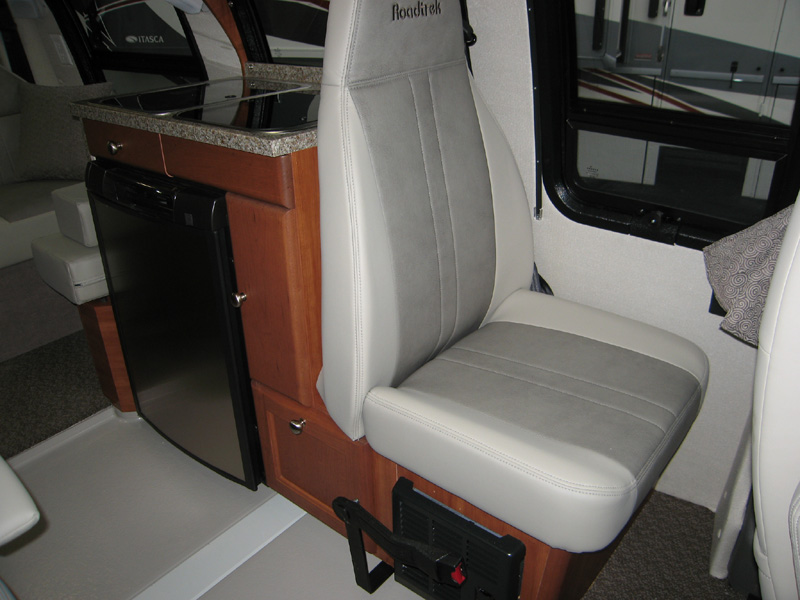

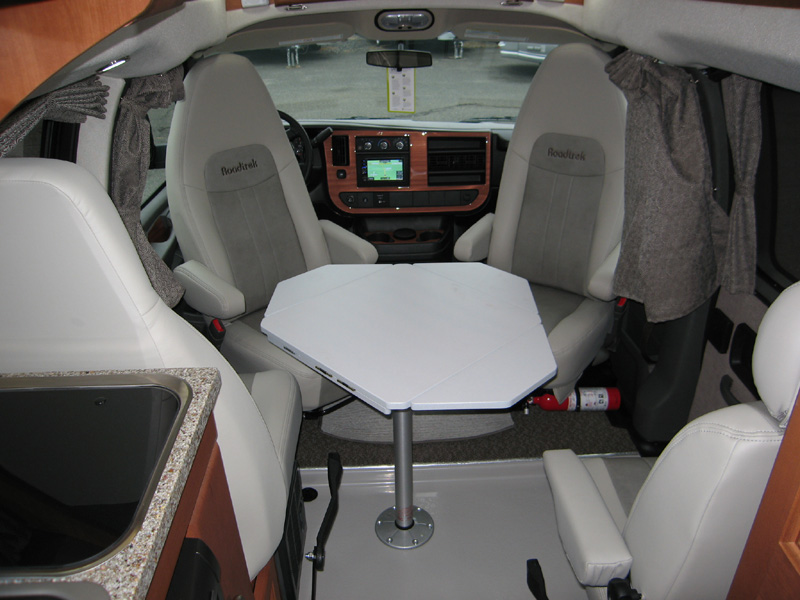

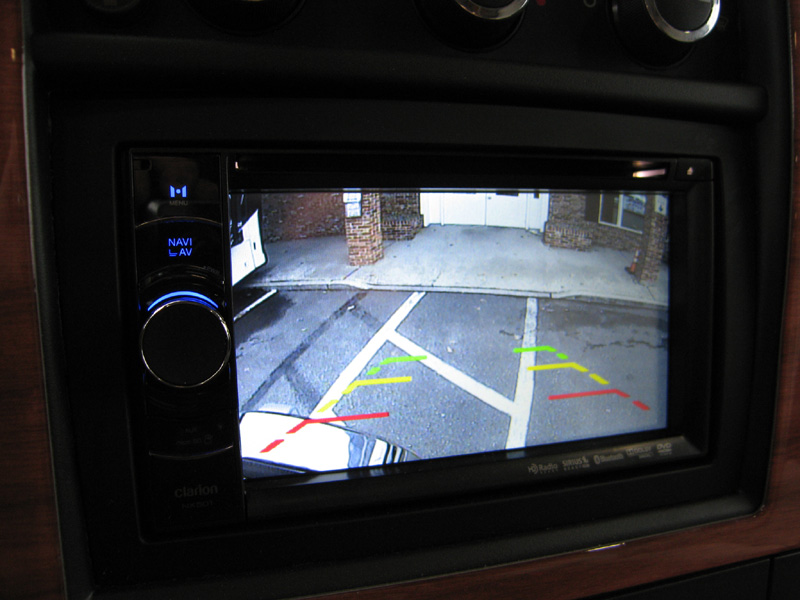

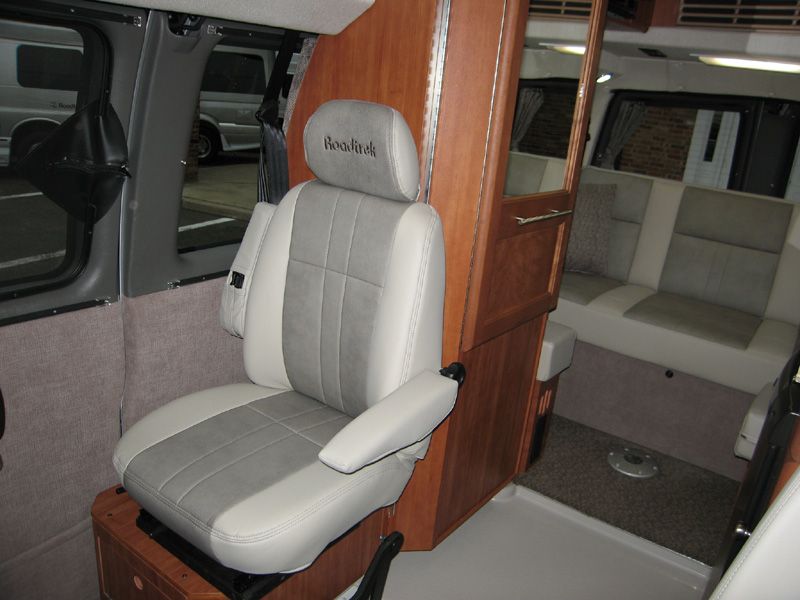

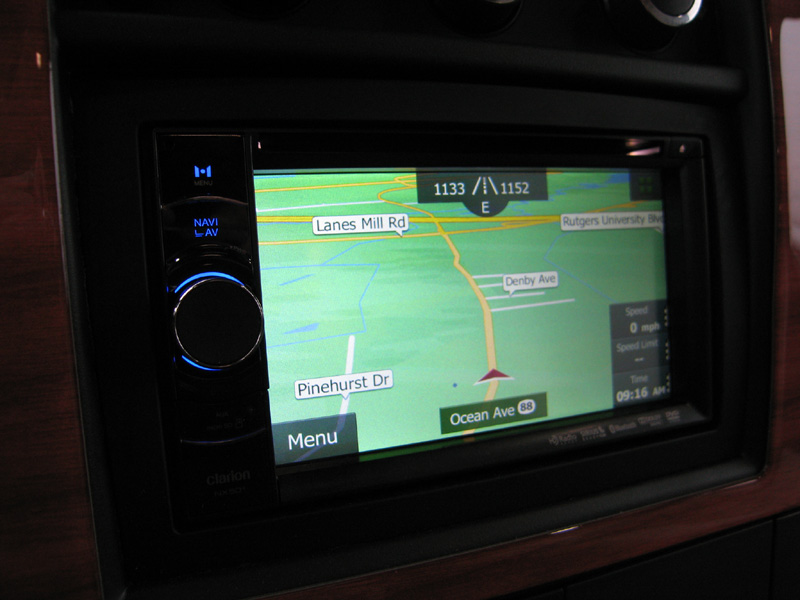

Air bag - driver & passenger - with passenger on/off switch, Alternator - 145 amp., Axle - rear - 3.42 ratio, Battery - 600 amp., Brakes - anti lock (ABS) - four wheel disc, Camera – rearview backup - appears on screen of in-dash radio, Climate control - standard, Compass & exterior temperature display - in instrument panel, Cooling - transmission oil - external, Cruise control - standard, Defroster - rear window - standard, Door locks - with remote - power - all doors, single key, Doors & exits - double 40/60 side & 50/50 rear, Engine - 4.8 L SFI gas V8, Fuel capacity - 117 L/31 US gal., Headlights - automatic on/off, Mirrors - exterior - power, heated with convex, Power - 213 kW/285 HP, Radio - in-dash - AM/FM, sat. radio, CD, MP3 & DVD players, removable turn-by-turn GPS-based navigation system, iPod & Bluetooth phone interfaces, backup camera w/remote & motorized 4.3” LCD screen (4x50 W amplifier), Receiver - class IV, Seat belts in rear - three, Seats - 2nd row - lounge - leather - faux, Seats - cab - Captain's - leather - faux - swiveling, power lumbar support & dual armrests, Stability program - electronic (ESP) - standard, Theft deterrent system - standard, Tilt steering - standard, Tire pressure monitoring system - standard, Tire storage - spare - rear storage area, Tires - LT245/75R16E black wall, Torque - 398 N-m/295 lb-ft, Transmission - automatic - 6 speed heavy duty, Trim - real cherry wood - dash & front door panels, Wheels - 16" steel with chrome look covers, Window operation - power - front doors only, Window tint - deep tinted - all, Wiring harness for towing - 4 way.
Interior Dimensions

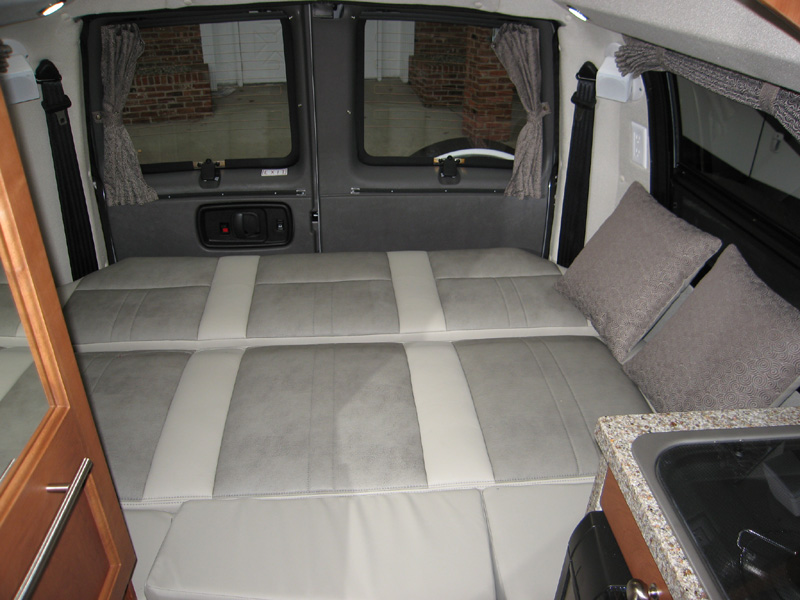

Front single bed length - left, right - 1470 mm/58", 1880 mm/74", Front single bed width - 560 mm/22" (maximum), Rear double or queen bed length - 1855 mm/73", Rear double or queen bed width - 1260 mm/50", Standing height - 1855 mm/73"
Exterior Dimensions
Length - 5720 mm/18' 9", Length - 5720 mm/18' 9", Height - overall - 2660 mm/8' 9", Width - overall (w/o mirrors) - 2130 mm/7' 0", Wheel base - 3430 mm/135", Gross vehicle weight rating - 3900 Kg/8600 lbs., Occupants & cargo carrying capacity – max. - 550 Kg/1250 lbs., Gross combined weight rating - 5897 Kg/13000 lbs., Towing - tow weight - 2450 Kg/5400 lbs., Towing - tongue weight - 450 Kg/1000 lbs.
THE LISTED ITEMS ARE STANDARD ON THIS MODEL AT NO EXTRA CHARGE UNLESS REPLACED BY OPTIONAL EQUIPMENT.
Specifications are subject to change without notification.
|
