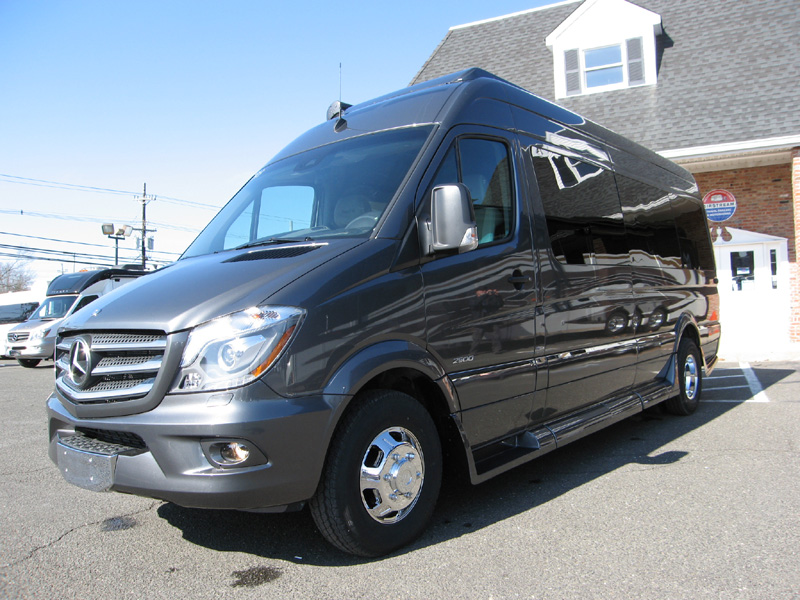

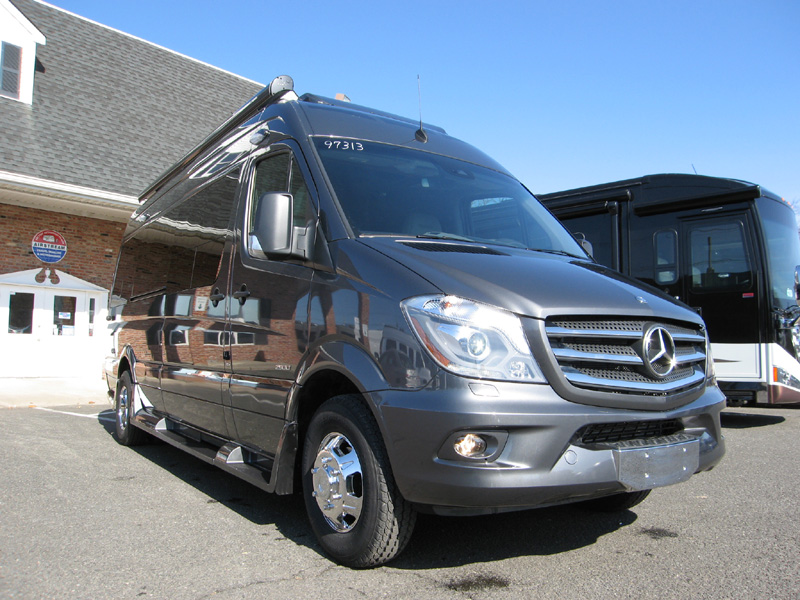

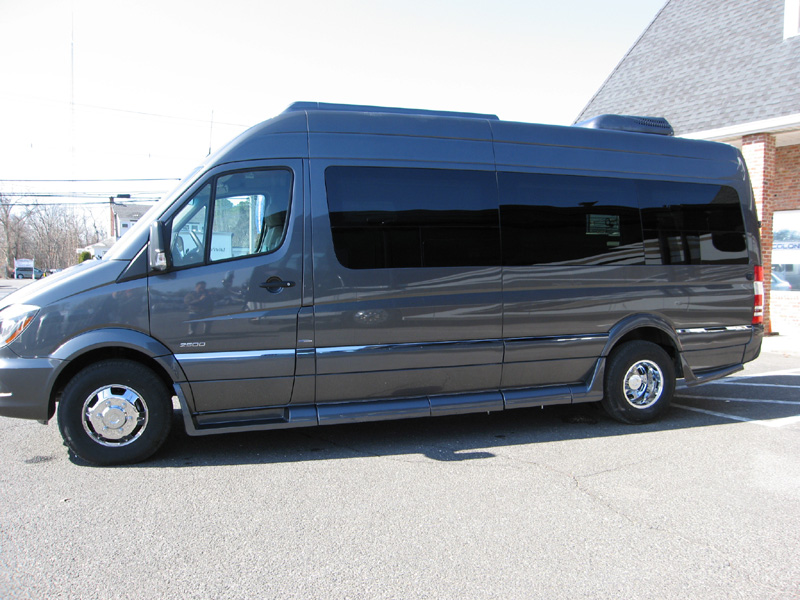

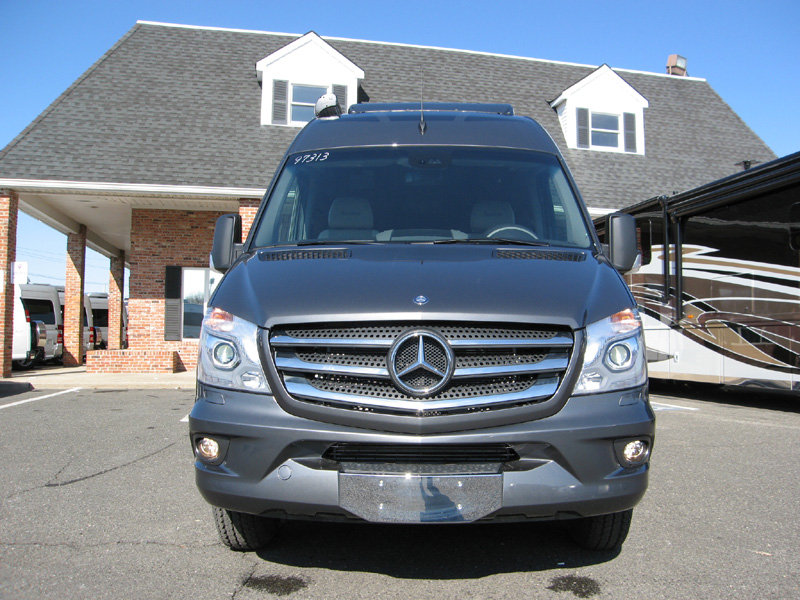

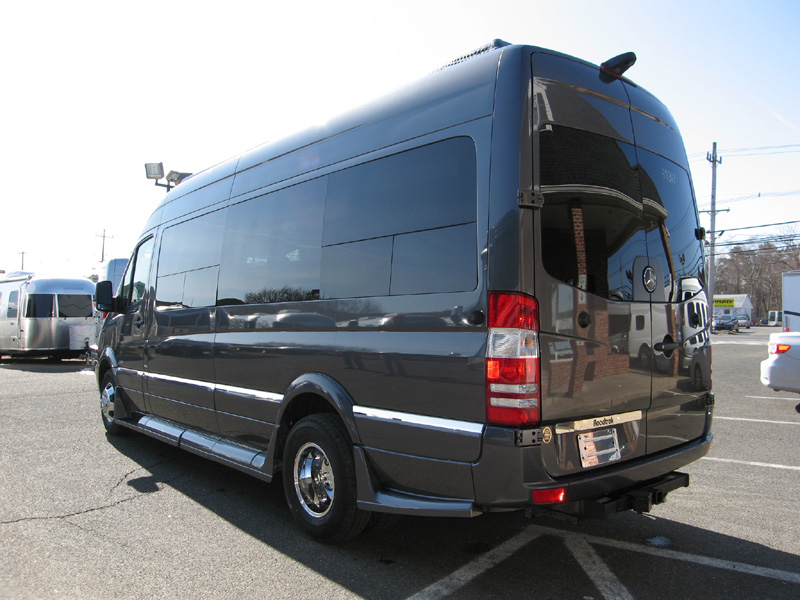

MODEL: 2014 - RS E-Trek 22'9" Mercedes Benz Sprinter 3500
The E-trek is designed and manufactured with three things in mind:
•Environmentally Conscious: Models with this package emit fewer carbon emissions and far more e-conscious resources and equipment are used in their manufacture and function.
•Technology Advantages: This package uses the newest technologies to make the unit more functional and flexible for you. You get longer times off the grid while day tripping, weekending, and having fun.
•Simpler Use: There is much less to do to use units with this package than conventional RVs. You don't have to learn much (just a little bit).
How Does It Work?
An E-Trek uses its primary fuel, diesel, to provide heat and hot water through its combined heating core. These appliances use far less fuel than conventional propane or electric appliances, and are far easier to use. No lighting the stove with an open flame. No plugging in is needed for electricity (unless you want to).
All the other key functions are powered by electricity, and you have great technology to deliver that:
•Engine Mounted Generator: The 3.0 litre Mercedes diesel engine is used as the power plant to feed the electrical system, running everything when driving or parked. At idle it feeds 3.5 KW of power. When driving, it is even more powerful and charges at 5.5 KW. The Mercedes engine will run reliably to operate the vehicle, and your generator when needed.

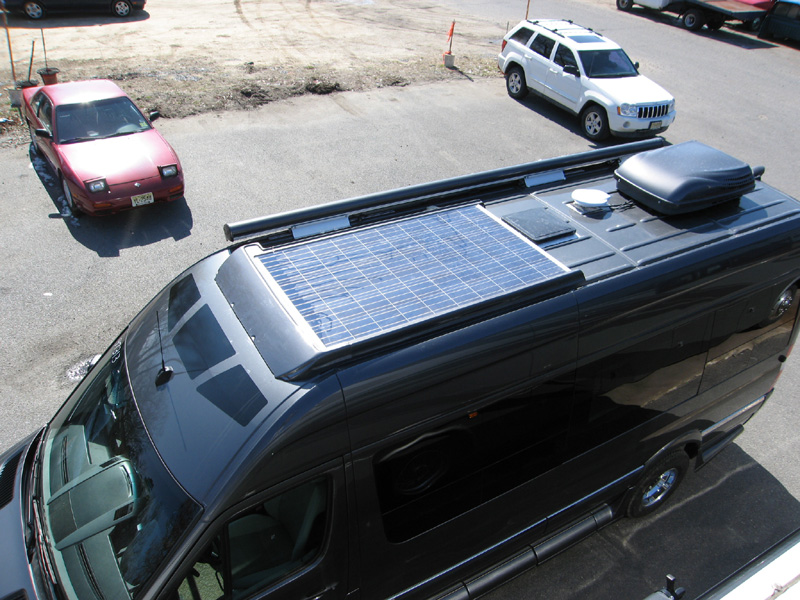

•Solar Panel: The package boasts a large 245 watt solar panel on the roof that charges the batteries in daylight (not just sunlight) and is an excellent battery maintenance tool.
•Inversion and Charging: The E-Trek has a large 5000 watt inverter that has battery protection and a power save mode that when activated will help protect the batteries from running down too far. All appliances and all outlets will all run off the batteries. No hassles.
•Eight Auxiliary AGM Batteries: These are designed to give you "off the grid" power for hours, depending on what you run and environmental factors. They will charge quickly and easily from solar and the engine generator due to a comprehensive charging and electrical control system.
Air conditioner - 110V - roof mount with electrical heat strip, 11000 BTU
Aisle width - 710 mm/28"
Awning - box - 4000 mm/13' 2" power

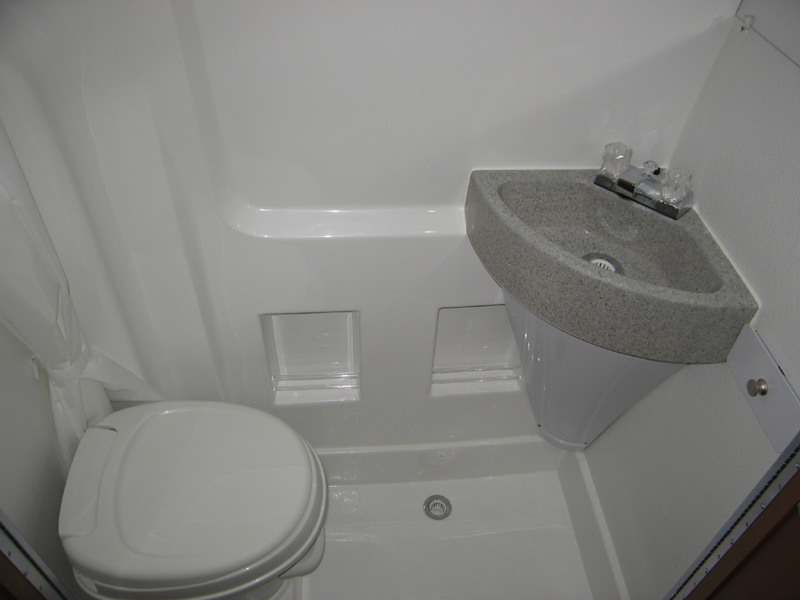

Bathroom - permanently enclosed with vanity sink and stand-up or sit-down shower
Batteries - auxiliary - AGM deep cycle - eight 6V, 1600 total amp-hrs.
Battery storage - auxiliary - 6 below floor at rear, 2 under hood
Beds - dual density foam - 130 mm/5"

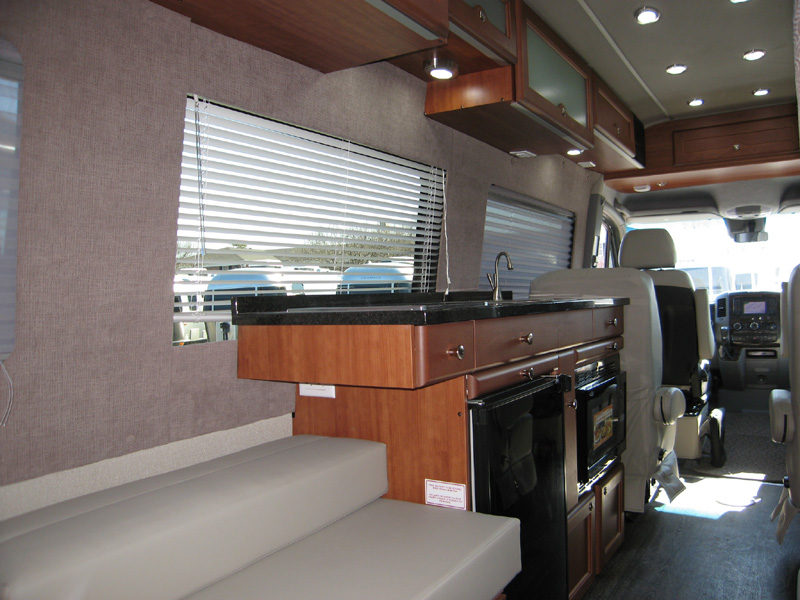

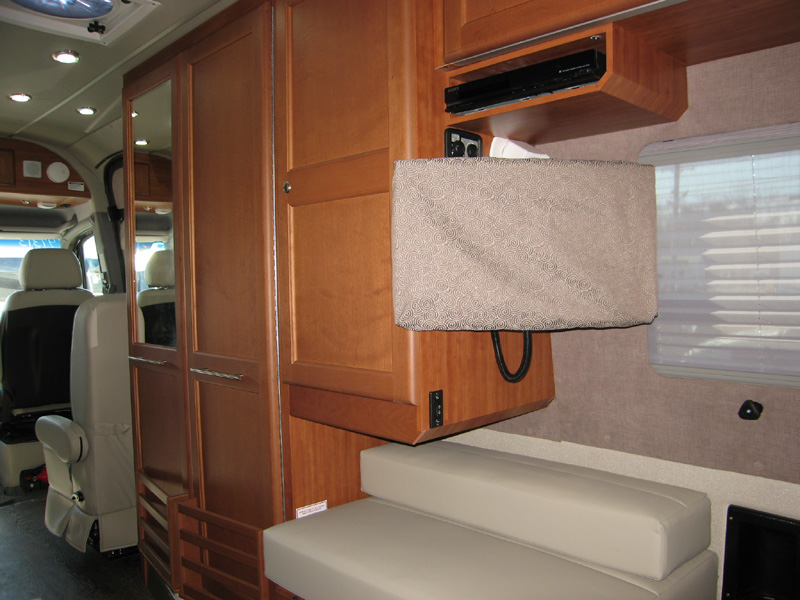

Cabinetry - real cherry wood doors and fronts
Connection - external - 110V - standard with detachable power cord (30 amp.)
Connection - external - TV cable - standard
Connection - external - water - standard with quick disconnect
Counter top - Paperstone (recycled paper & phenolic resin)
Detectors - smoke & CO
Faucet - galley - single lever
Flooring - 40 oz. 100% Dupont nylon mats, heavy duty vinyl

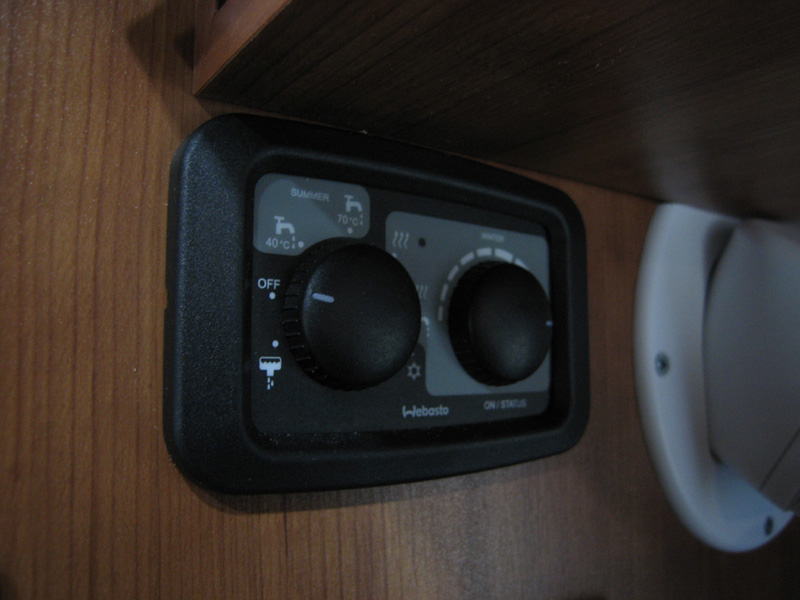

Furnace - dual top 'Webasto' combination furnace/water heater (diesel-powered w/12V ignition, 20000 BTU)

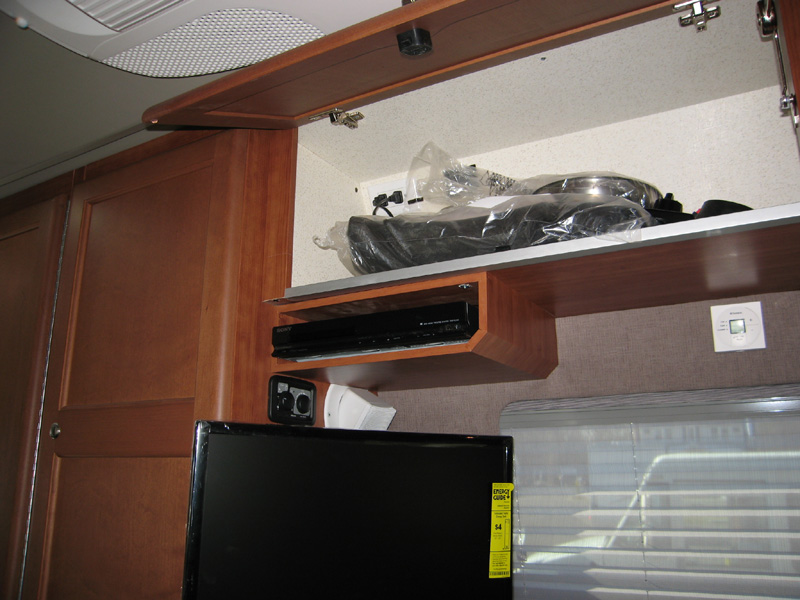

Home theatre system with 5.1 surround sound & dual center speakers - with DVD, CD, AM/FM radio, dual use rear speakers
Microwave oven - 110V - convection, 28 L/1.0 cu. ft., 1800 W convection/1000 W microwave
Monitor panel - water & battery charge levels, battery disconnect, surge protection & power monitoring on inverter panel
Power converter with charger - 110/12V - 3 step 45 amp. charger
Power inverter - 12/110V - 5000 W (w/ battery minder/ balancer)
Refrigerator - 'Norcold' 12V/110V compressor driven w/ thermostat, 3.6 cu. ft.

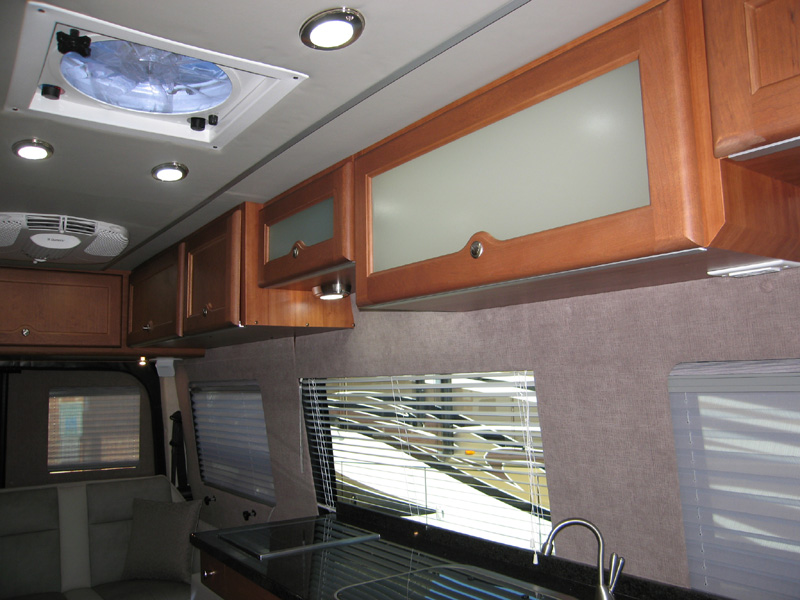

Roof vent - 'FanTastic' - 12V - low profile power with thermostat

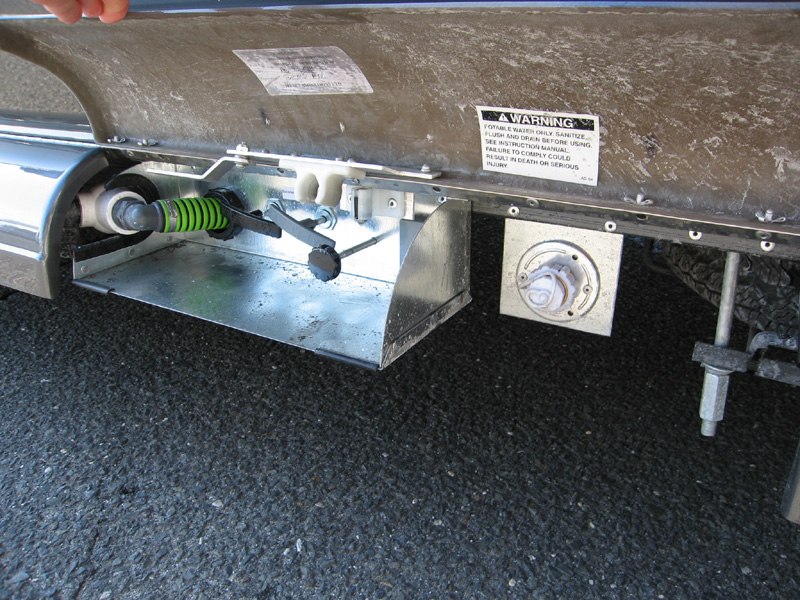

Sewage disposal system - macerator sewage pump - 12V

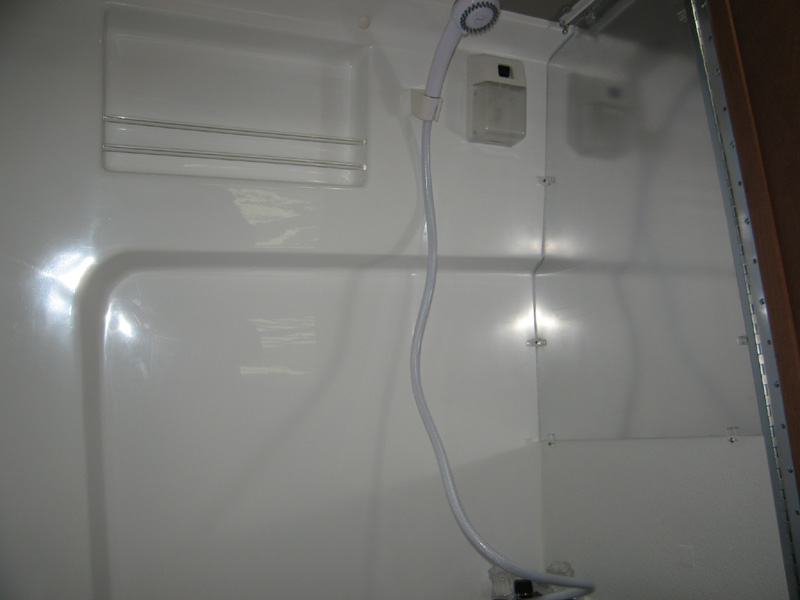

Shower - sit-down or stand-up in bathroom

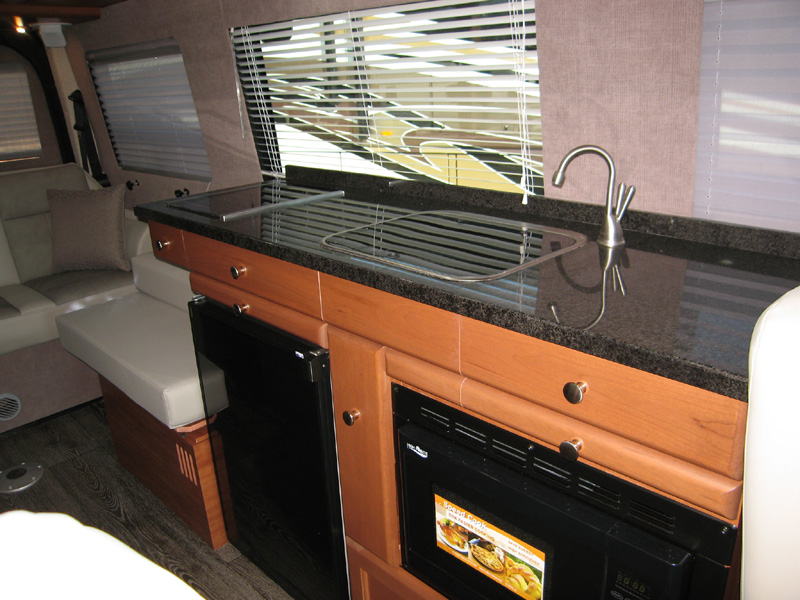

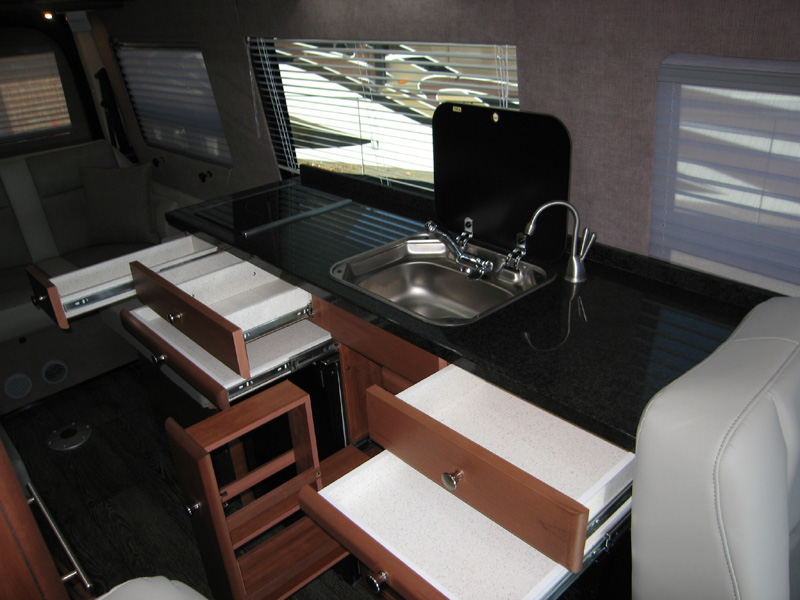

Sink - stainless steel with flush cover

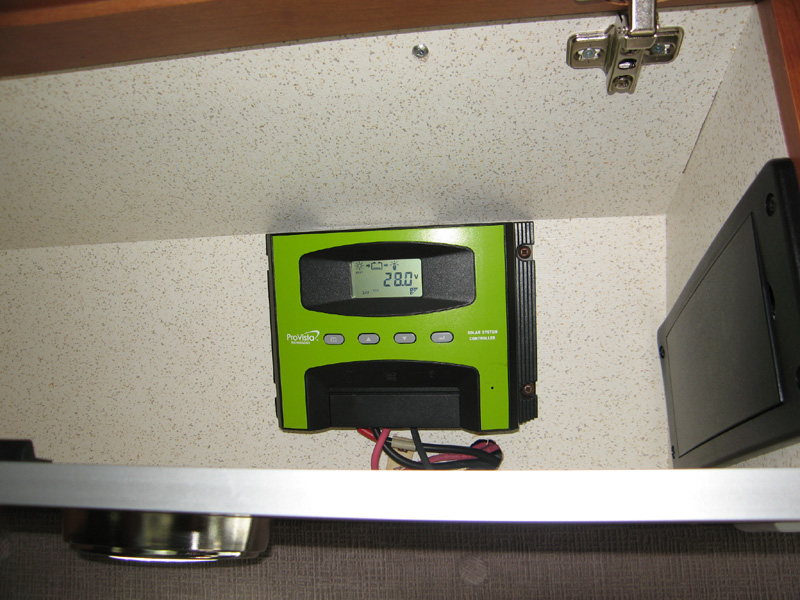

Solar charging system - daylight - 240 W
Storage area - across the rear
Storage capacity - standard (w/options) - 1550 L/55 cu.ft. (2290 L/81 cu. ft.)
Stove - ‘Frigidaire’ flush-mounted one burner inductive cook top

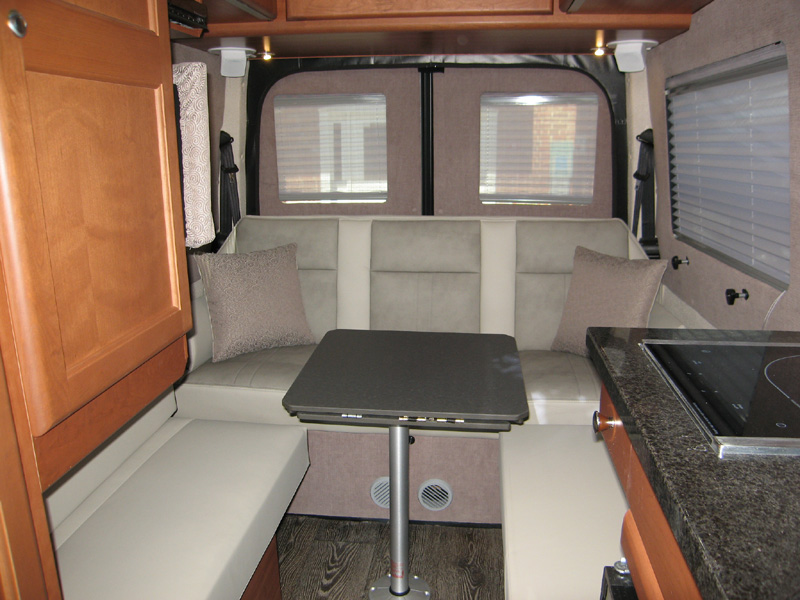

Table - dining - front and rear
Toilet - 'Thetford' - marine with foot pedal flush
TV antenna - ‘Sole’ fixed digital
Water capacity - black - 40 L/10 US gal.
Water capacity - fresh (w/water heater) - 135 L/36 US gal.
Water dispenser - in galley - instant hot & "cold" water - filtered
Water fill - fresh - location - front door post to reduce clutter & prevent tampering w/supply
Water heater - combination water heater/furnace (see furnace specs), instant hot drinking water, 110V 9 L/2.5 US gal.
Water system - on demand - 12V with 'Shurflo' water pump
Water tank - grey - 80 L/21 US gal.
Windows - frameless awning type
Windows - roof - faux
Standard Automotive Features
Air bag - driver & passenger - standard
Alternator - 200 amp.
Axle - rear - 4.10 ratio
Battery - 760 amp.
Brakes - anti lock (ABS) - four wheel disc

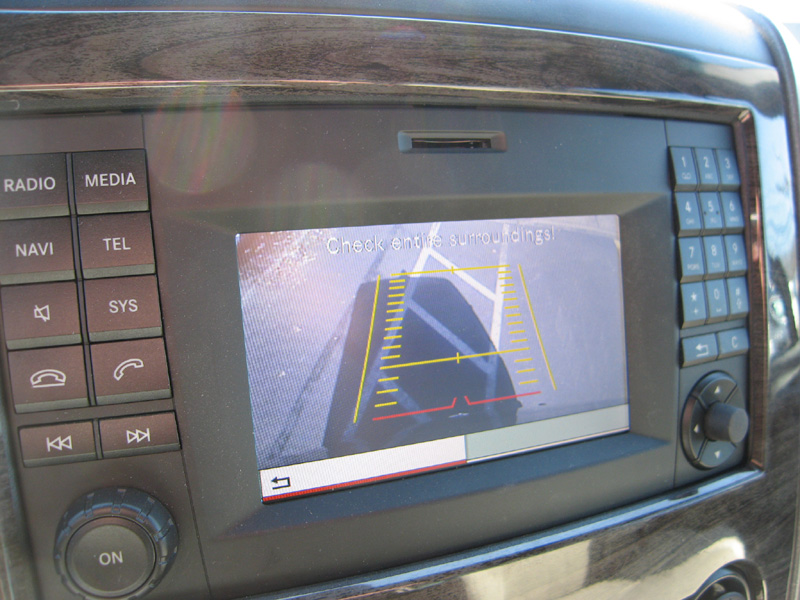

Camera – rearview backup - appears on screen of in-dash radio

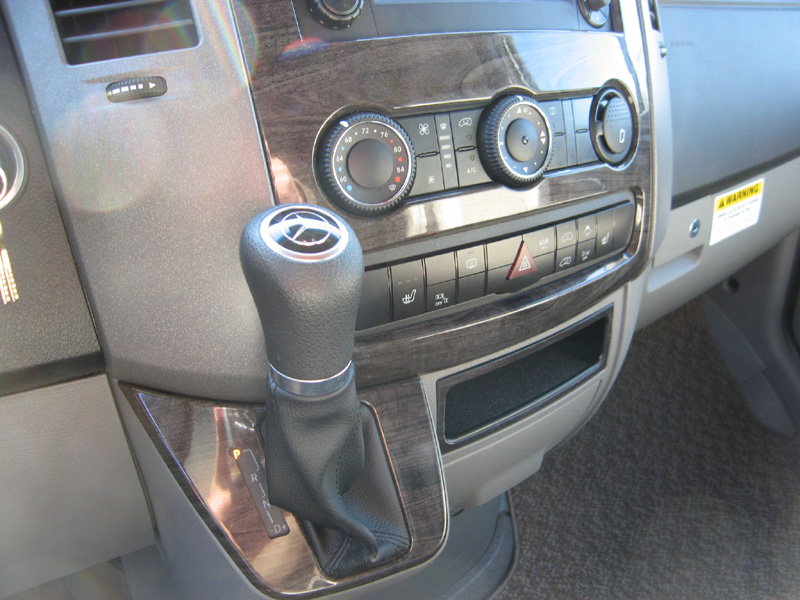

Climate control - electronic with glove box cooler
Cooling - transmission oil - external
Cruise control - standard
Defroster - rear window - standard
Door locks - with remote - power - all doors, single key

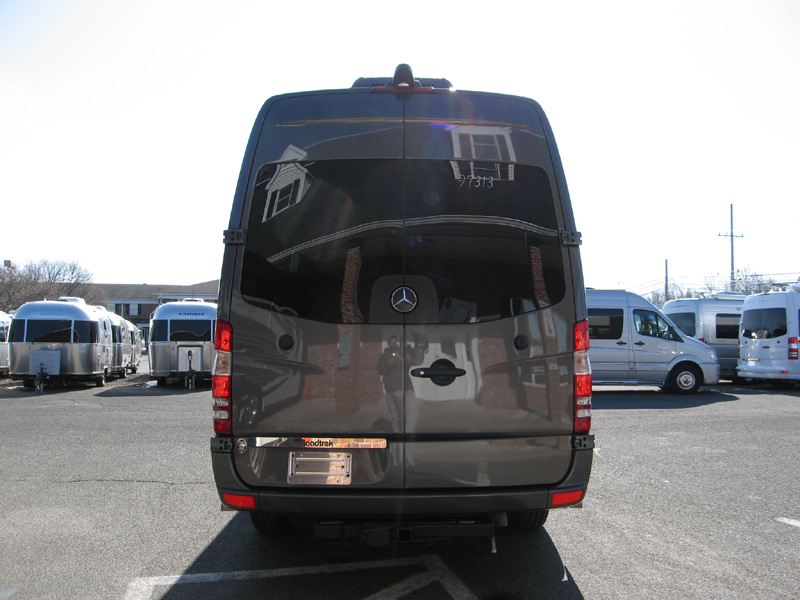

Doors & exits - tall sliding side & double rear
Engine - 3.0 L CRD V6 turbo diesel
Fuel capacity - 100 L/26 US gal.

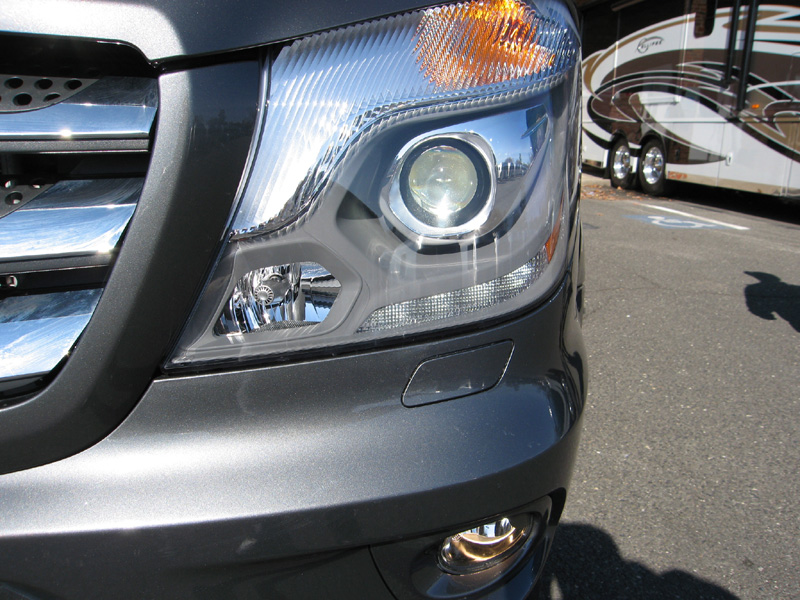

Headlights - automatic on/off
Mirrors - exterior - power, heated with aux. parabolic
Power - 140 kW/188 HP

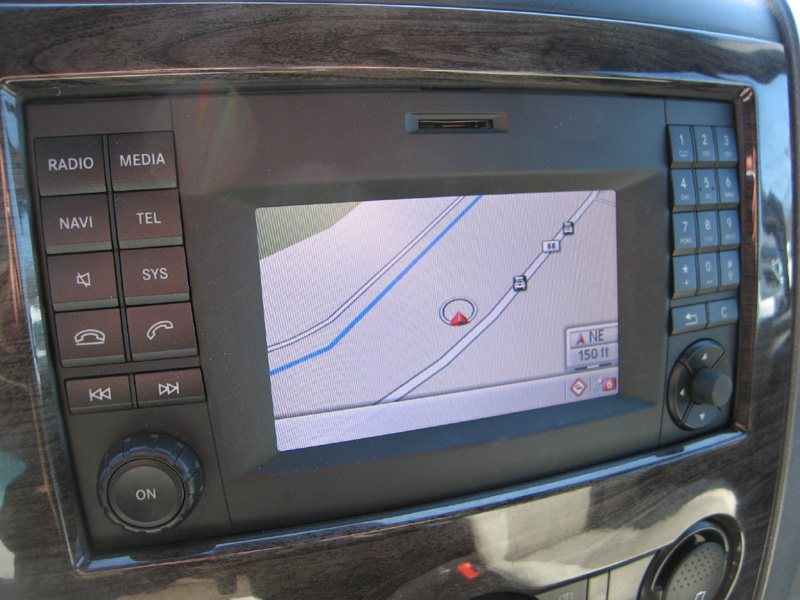

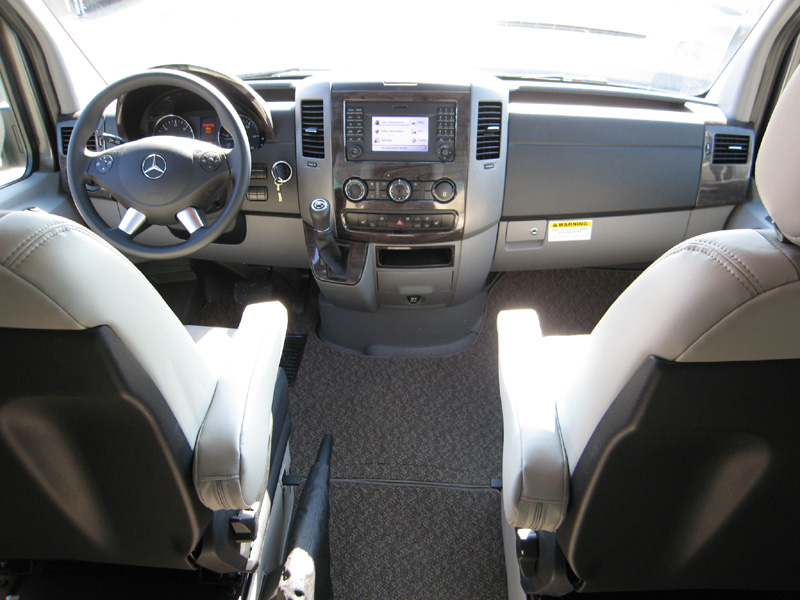

Radio - in-dash - AM/FM w/CD player - sat. radio, MP3 & DVD players, removable turn-by-turn GPS-based navigation system, iPod & Bluetooth phone interfaces, backup camera w/remote & motorized 4.3” LCD screen (4x50 W amplifier)
Receiver - class III
Seat belts in rear - three with optional rear sofa

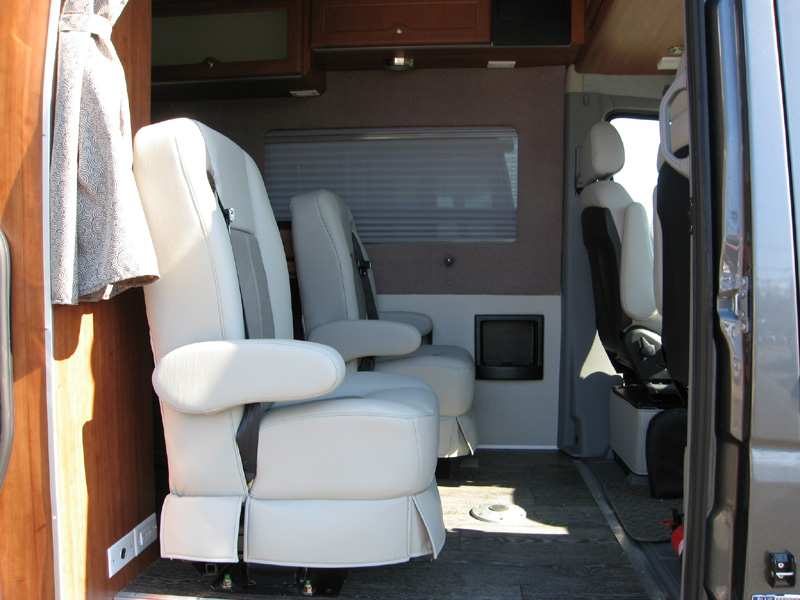

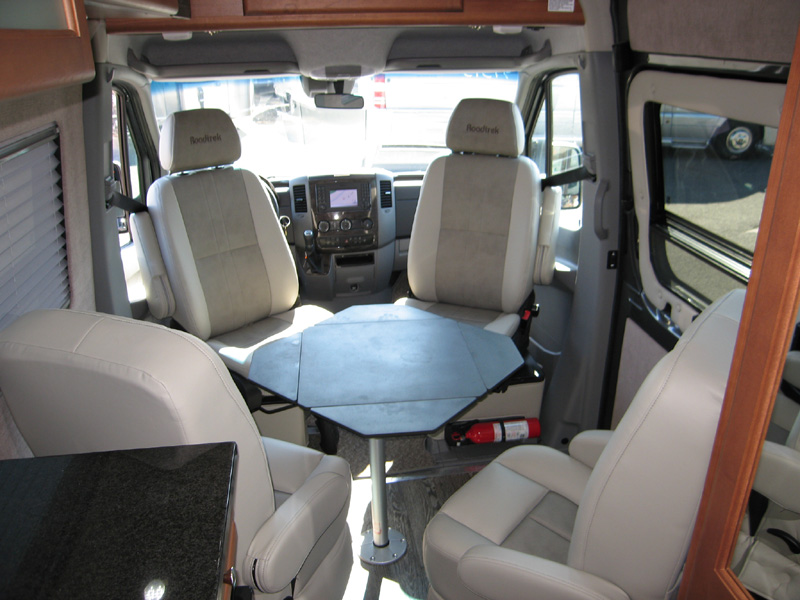

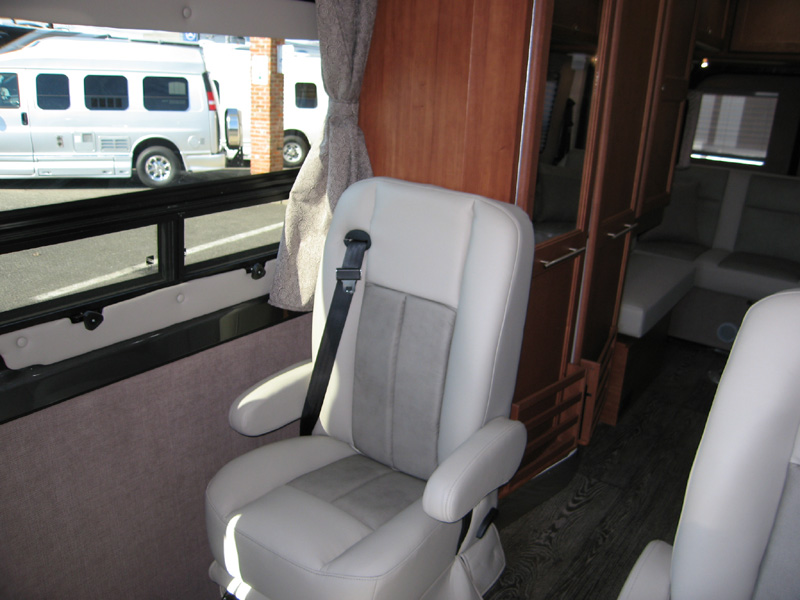

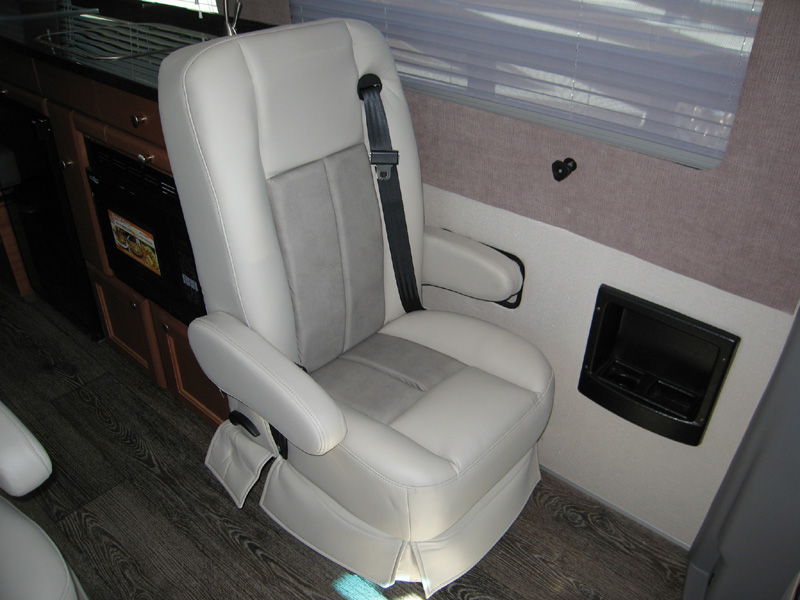

Seats - 2nd row - luxury captain’s seats - swiveling with dual armrests - faux leather

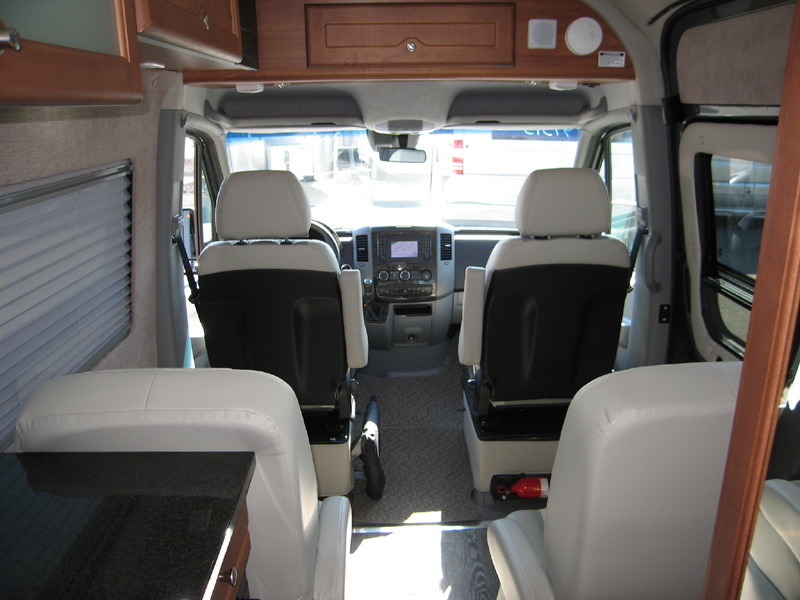

Seats - cab - Captain's - leather - faux - swiveling, height adjustable, manual lumbar support & dual armrests

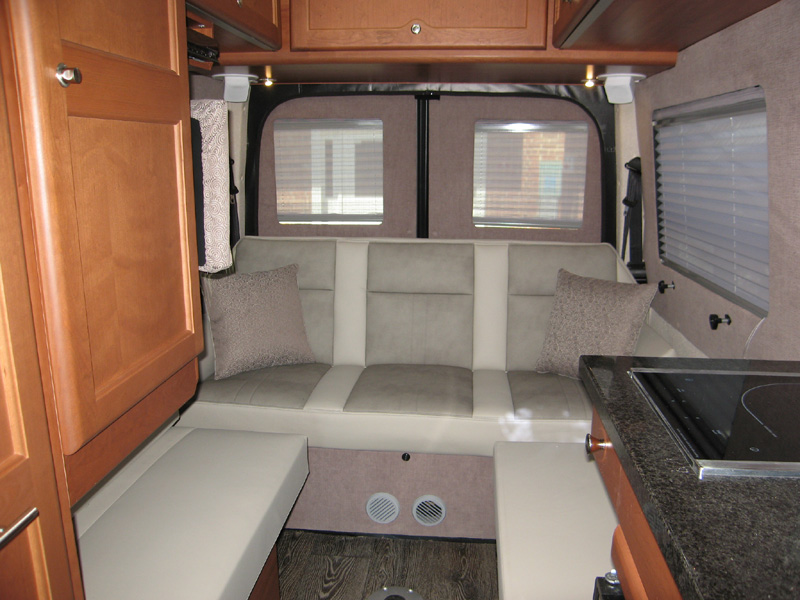

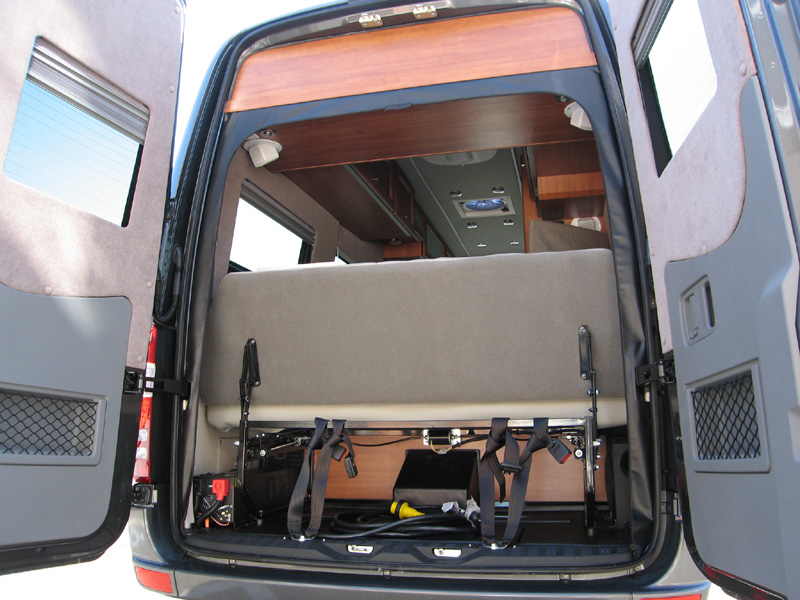

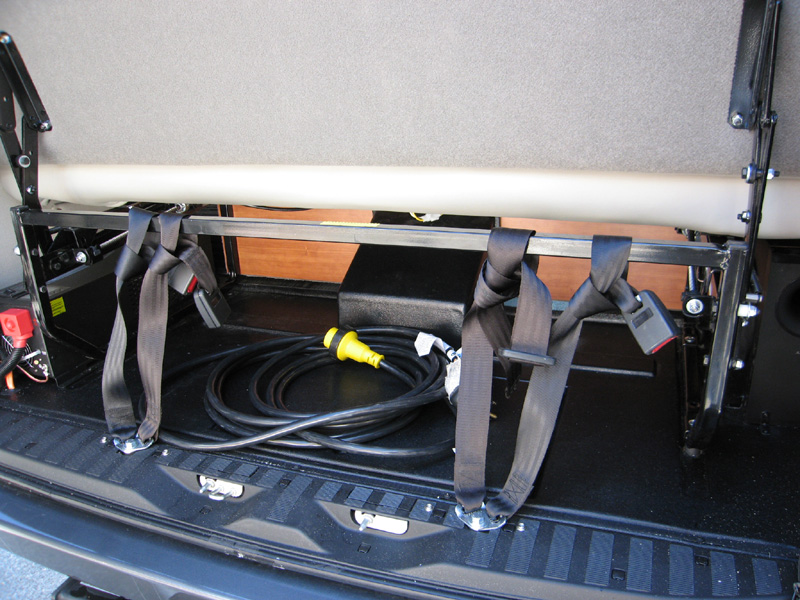

Sofa - rear - electric power - with 3 seat belts, converts to twins/king bed
Stability program - electronic (ESP) - adaptive (accounts for load)
Theft deterrent system - standard

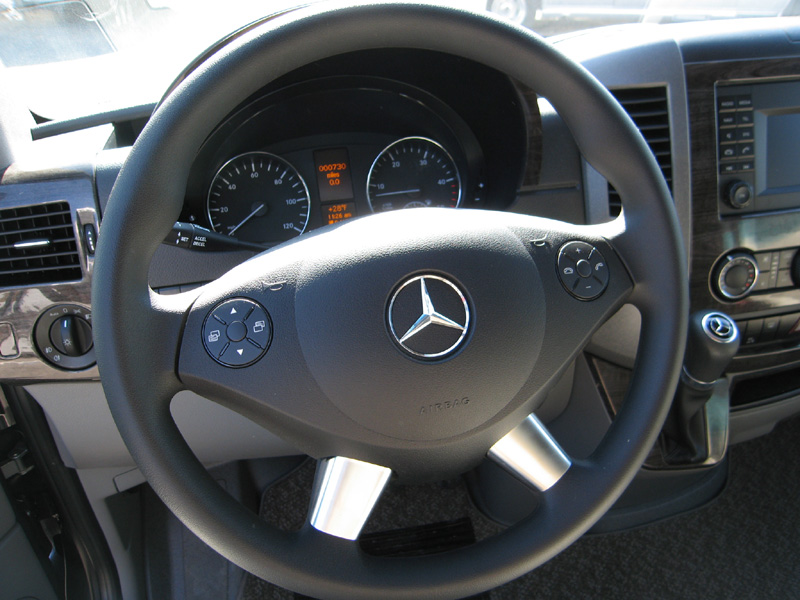

Tilt steering - standard

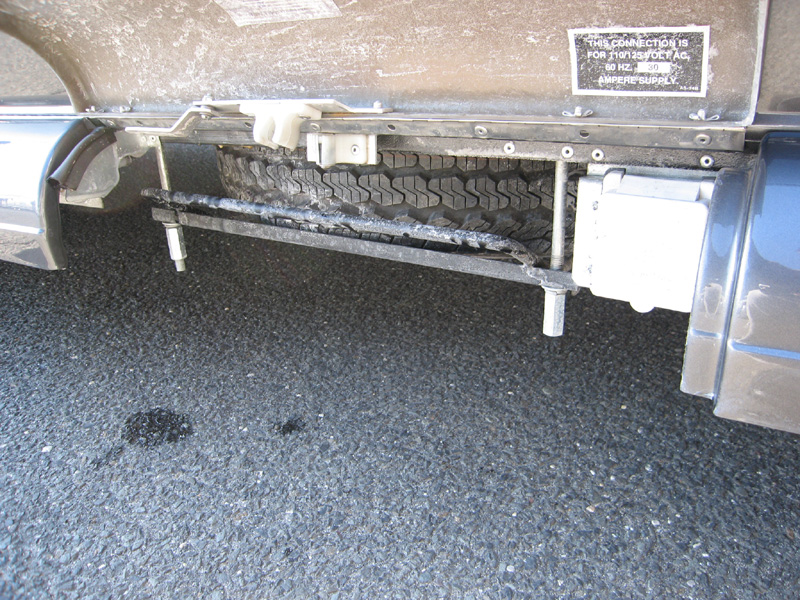

Tire storage - spare - vehicle underside between axles
Tires - LT215/85R16E black wall dual rear
Torque - 440 N-m/325 lb-ft
Traction control - standard
Transmission - automatic - 5 speed heavy duty
Trim - dash & front door panels - charcoal cherry

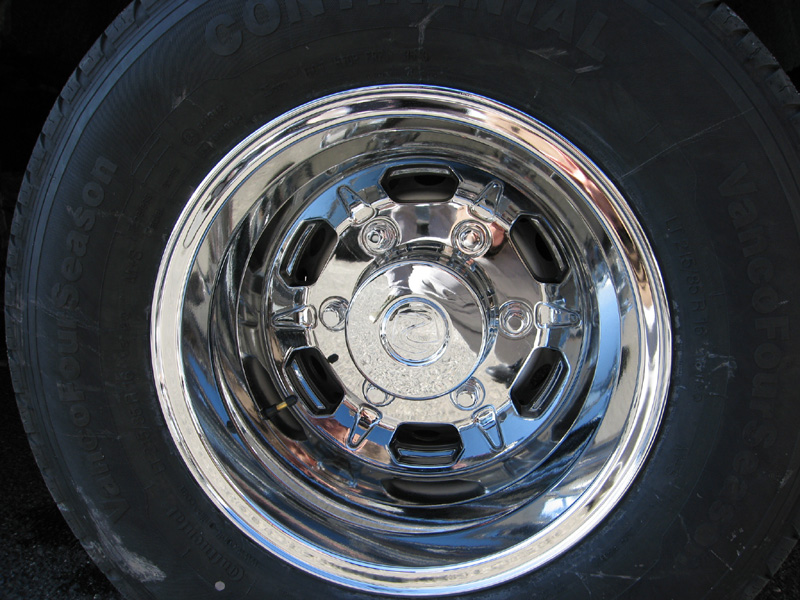

Wheels - 16" steel with trim
Window operation - power - front doors only
Window tint - deep tinted
Wiring harness for towing - 4 and 7 way (brake controller not included)
Interior Dimensions
Front single bed length - left, right - 1930 mm/76" (option)
Front single bed width - 560 mm/22" (option)

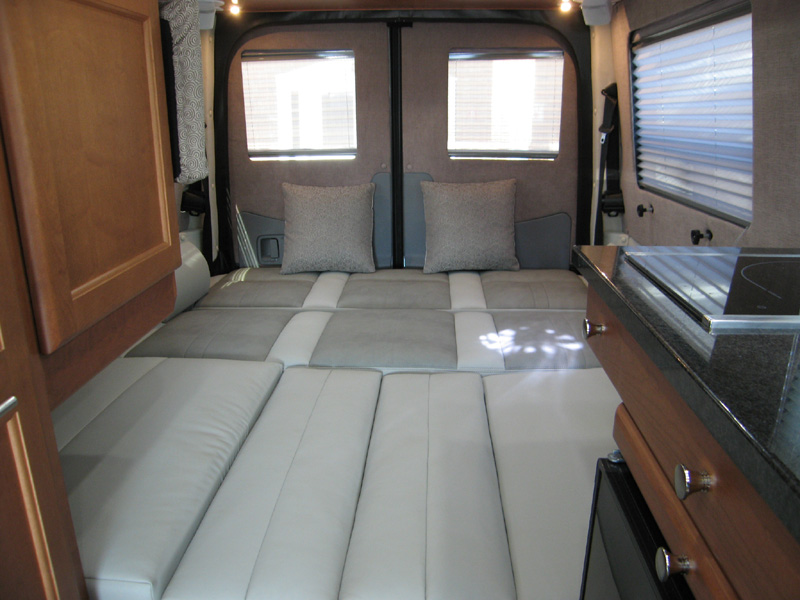

Rear king bed sleeping length (maximum) - 1980 mm/78"
Rear king bed width - 1750 mm/69"
Rear twin bed sleeping length - left, right - 1980 mm/78"
Rear twin bed width - 710 mm/28"
Standing height - 1910 mm/75"
Exterior Dimensions
01 Length - 6945 mm/22' 9" (1)
02 Height - overall - 2920 mm/9' 7" (with roof A/C)
03 Width - overall (w/o mirrors) - 2025 mm/6' 8"
04 Wheel base - 4325 mm/170"
05 Gross vehicle weight rating - 5003 Kg/11030 lbs.
06 Occupants & cargo carrying capacity – max. (2) - 1150 Kg/2500 lbs.
07 Gross combined weight rating (3) - 6915 Kg/15250 lbs.
08 Towing - tow weight (4) - 3200 Kg/7000 lbs.
09 Towing - tongue weight (5) - 340 Kg/750 lbs.
THE LISTED ITEMS ARE STANDARD ON THIS MODEL AT NO EXTRA CHARGE UNLESS REPLACED BY OPTIONAL EQUIPMENT.
Specifications are subject to change without notification.
|
