Itasca Cambria Motorhome

Itasca Fuse Class C MotorhomeSpecifications
Weights & Measures
  23A 23T
Length 24' 24'
Exterior Height1 10' 10'
Exterior Width2 7'6" 7'6"
Exterior Storage3 (cu. ft.) 23.1 38
Awning Length 16' 10'4"
Interior Height 6'8" 6'8"
Interior Width 7'3" 7'3"
Freshwater Tank Capacity4 (gal.) 27 33
Water Heater Capacity (gal.) 6 6
Holding Tank Capacity - Black/Gray4 (gal.) 43/41 41/43
LP Capacity5 (gal.) 13 13
Fuel Capacity (gal.) 25 25
GCWR6 (lbs.) 12,000 12,000
GVWR (lbs.) 10,360 10,360
GAWR - Front (lbs.) 4,130 4,130
GAWR - Rear (lbs.) 7,275 7,275
Wheelbase 156" 156"



Winnebago Fuse



The all-new Winnebago Fuse™ was built from the ground up to cater to your active lifestyle. It starts with the new Ford® Transit diesel cutaway chassis and its aggressive nose styling that begs you to cut through the wind on the open road, offering some of the best ergonomics and visibility you will find in a Class C motorhome. Available bike racks and sizable rear storage accommodate life on the go, while a private bedroom and overhead entertainment center are waiting for you when the day is done. If you have a spark for life, the Winnebago Fuse is waiting. Get yourself behind the wheel and let's get moving.

InventoryView Available Fuse Motorhome Inventory

Floor Plans

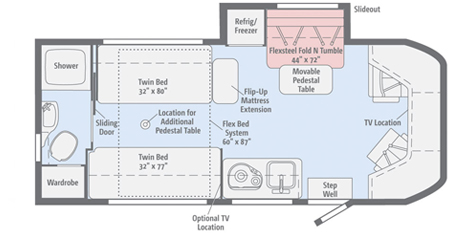

Model: 23A - Fuse

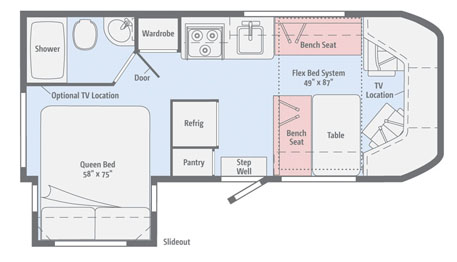

Model: 23T - Fuse


Optional Upgrade Package

Convenience Package cab steps, Coleman Mach 10 Powersaver low profile roof A/C w/1,800-watt heat strip, slide-out cover, swivel passenger cab seat w/booster cushion, additional coach battery, powered patio awning w/LED awning lights and Flexguard awning cover, rear ladder

Ford® Transit Chassis

185-hp. 3.2L I5 diesel engine, 6-speed automatic overdrive transmission w/SelectShift®

Trailer Hitch5 2,000-lb. drawbar/200-lb. maximum vertical tongue weight

4-pin trailer connector

Stainless steel wheel liners

Cab Conveniences

Cab seats armrests, fixed lumbar support, adjustable headrest, and multi-adjustable recline/slide (driver seat only)

Radio AM/FM stereo, CD, audio input jack, 4" multi-function display, HD and SiriusXM™ ready

Rearview Monitor System w/color camera

Airbags driver and front passenger

3-point seat belts

Cruise control

Power steering w/tilt wheel

12-volt powerpoints

Power door locks

Sunvisors

Power exterior mirrors w/defrost/turn signal

Cab window privacy panels

Rubber cab mat

Interior

32" HDTV

Coach Stereo System AM/FM, CD/DVD player, Bluetooth, front input jack, and alarm clock

Satellite system ready

MCD blackout roller shades

Tinted windows

Amplified digital HDTV antenna

Systems monitor panel

Roof vent

Vinyl ceiling

Mirror (23T)

LED lighting

Assist bar

Vinyl flooring throughout

USB charger

Optional Equipment

Powered ventilator fan

Galley

Laminate countertops

Flip-up countertop extension (23A)

Double-door refrigerator/freezer

2-burner range top w/glass cover (23A)

3-burner range top (23T)

Microwave oven w/touch control (23T)

Microwave/convection oven w/touch control (23A)

Decorative backsplash w/indirect lighting

Stainless steel sink w/sink cover

Optional Equipment

3-burner range top w/oven (23T)

Bath

Skylight

Flexible showerhead

Retractable, self-cleaning shower screen

Toilet w/foot pedal

Fiberglass sink molded into countertop

Shower w/wall surround

Powered roof vent

Mirror (23A)

Medicine cabinet (23A)

Robe hook(s)

Towel ring(s) (23A)

Tissue holder

Bedroom

Room divider curtain

Flex Bed System (23A)

Deluxe Sleep System w/adjustable headrest

Twin beds w/foam mattresses and access to storage below (23A)

Queen bed w/foam mattress and mattress cover (23T)

Optional Equipment

24" HDTV

Exterior

Porch light w/interior switch

Premium high-gloss skin

Lighted storage compartments

Exterior speaker system

Optional Equipment

Bike rack

Heating & Cooling System

20,000 BTU low-profile, ducted furnace

Electrical System

Exterior AC duplex receptacle and TV jack

2,500-watt Cummins® Onan® LP generator

AC/DC load center, 45-amp. converter/charger

30-amp power cord

Coach battery disconnect system

Automatic dual-battery charge control

Auxiliary start circuit

Deep-cycle, Group 24 AGM battery

Optional Equipment

Solar panel/battery charger

Plumbing System

Service Center city water hookup, exterior wash station w/lighted pump switch, sewer hose, coiled water hose, QuickConnect®, and sprayer head

Water tank fill w/lockable door

Water heater

TrueLevel™ holding tank monitoring system

Permanent-mount LP tank w/gauge

On-demand water pump

Optional Equipment

Heated drainage system

Safety

Child seat tether anchor (23T)

LP, smoke, and carbon monoxide detectors

10 BC fire extinguisher

Ground fault interrupter

Warranty6

12-month/15,000-mile basic limited warranty7

36-month/36,000-mile limited warranty on structure7

10-year limited parts-and-labor warranty on roof skin7

  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
  2. Floorplans feature a wide-body design - over 96" In making your purchase decision, you should be aware that some states restrict access on some or all state roads to 96" in body width. Before making your purchase decision, you should confirm the road usage laws in the states of interest to you.
  3. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
  4. Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
  5. Capacities shown are tank manufacturer's listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
  7. See separate chassis warranty.
  8. See your dealer for complete warranty information.
