Reyo Motorhome Specifications
|
Weights & Measures
|
|
25P |
25Q |
25T |
| Length |
25'5" |
25'5" |
25'5" |
| Exterior Height1 |
11' |
11' |
11' |
| Exterior Width |
7'6.25" |
7'6.25" |
7'6.25" |
| Exterior Storage2 (cu. ft.) |
70 |
54 |
92 |
| Awning Length |
16' |
16' |
16' |
| Interior Height |
6'5" |
6'5" |
6'5" |
| Interior Width |
7'3" |
7'3" |
7'3" |
| Freshwater Tank Capacity3 (gal.) |
29 |
27 |
28 |
| Water Heater Capacity (gal.) |
Continuous |
6 |
6 |
| Holding Tank Capacity - Black/Gray3 (gal.) |
34/40 |
40/30 |
36/36 |
| LP Capacity4 (gal.) |
13 |
13 |
13 |
| Fuel Capacity (gal.) |
26.4 |
26.4 |
26.4 |
| GCWR5 (lbs.) |
15,250 |
15,250 |
15,250 |
| GVWR (lbs.) |
11,030 |
11,030 |
11,030 |
| GAWR - Front (lbs.) |
4,410 |
4,410 |
4,410 |
| GAWR - Rear (lbs.) |
7,720 |
7,720 |
7,720 |
| Wheelbase |
170" |
170" |
170" |
Key Features of the Reyo RV:
- Benchmark - Presenting the dinette, reconsidered: the BenchMark® full comfort dinette. In place of the customary slab of foam, its seats feature innerspring construction like that found in fine furniture. The result is exceptionally comfortable dining — and since the BenchMark converts instantly from a dinette to a comfortable bed — exceptionally comfortable sleeping as well. And unlike ordinary dinettes that use side doors or drawers for storage, the BenchMark seats flip up, providing easy access to the storage underneath (as well as 40% more storage than a similar dinette with side-drawer access). Dining, sleeping, or storing, the BenchMark full comfort dinette leaves you sitting pretty.
- Comfort Sofa Sleeper - The sofa sleeper you’ve always wanted is here. By day, the Comfort Sofa Sleeper is an attractive couch with a soft Ultraleather finish. At night it quickly folds out into a large bed with self-inflating mattress that actively maintains proper comfort throughout the night. Never before has converting your sofa into a bed been so easy—or comfortable.
- Flex Bed System - The Flex Bed System allows you to quickly and easily convert the bedroom or living area spaces into bed configurations that accommodate your sleeping needs. For example, twin beds in the bedroom can be turned into a single queen-size bed. Or, in some floorplans, a sofa and dinette or bench seats and a dining table are easily made into a bed. There’s even a Flex Bed System that converts living area furniture into a lower bunk bed. No matter which Flex Bed System you choose, the sleeping arrangement can be just as easily switched back to its original setup.
- Infotainment Center with RV GPS - The Infotainment Center with Rand McNally RV GPS has it all: touch screen color monitor with split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio with CD/DVD player, handheld remote, SiriusXM™ (subscription not included), compass, outside temperature, iPod®/iPhone® audio integration, Bluetooth™, and so much more.
- MCD Roller Shades - The smooth-operating MCD solar/blackout roller shades set the ideal atmosphere in your coach, day or night. Besides providing ideal light and privacy, MCD solar/blackout roller shades offer upscale looks and performance and are easier to operate and clean than traditional pleated shades.
- OnePlace - The OnePlace® systems center allows you to monitor and control key systems from one convenient location. No more walking back and forth between the thermostat and generator, it’s all in one spot. The OnePlace panel features a streamlined appearance with a digital panel that is easy to read and operate. Stop the runaround with the OnePlace systems center.
- SmartSpace - The SmartSpace design philosophy encourages the use of innovative features to make the most efficient use of the available space in each coach. This philosophy has led to the creation of features such as the BenchMark® full comfort dinette that has hidden storage compartments below the flip-up seats, full-extension drawer slides, and an extendable sectional sofa found in several of our coaches. From the Rest Easy multi-position lounge to the unique pull-out pantries, you’ll find a variety of SmartSpace features across our entire lineup of motorhomes.
- Smart Storage - Smart Storage places bulky systems and tanks in improved configurations, leaving more room for basement storage. Exterior storage is also easy to access with innovative features such as a large trunk with multiple doors and sliding storage trays on select models. Other clever features you might find include a storage well with a drain plug and a compartment cover that converts into a picnic table.
- Studio Loft - The StudioLoft™ turns the cab of your coach into a second bedroom. It features a large bed that drops down from the ceiling for instant sleeping space. A curtain wraps around the bed for privacy. The cab seats fold back to sit beneath the bed. When the StudioLoft is tucked into the ceiling, the chairs raise up and rotate to become an integral part of the living area.
- SuperStructure - Unlike some manufacturers, we use steel, not wood, to create a strong, durable cab substructure. We mount our windshields securely in steel with nonhardening sealants, just like an automobile. By using an advanced laser alignment system when mounting the cab to the chassis, we ensure a sturdy, square foundation.
- TrueLevel - Mirus™ detector cell technology ensures accurate freshwater and wastewater tank level readings. Mirus detector cells produce a micro-electrical field that detects liquid levels from outside the tank. No more probes to corrode or clog. Just true, accurate readings time after time.
- Ultraleather - Winnebago Industries cab seats, sofas, loungers, and more can be covered in premium, soft Ultraleather™ fabric. Ultraleather gives you the softness, comfort, and luxury that is more durable than leather and incredibly easy to clean. Made with proprietary Takumi™ technology that combines four material layers including PVC-free polycarbonates, it has been tested and proven to surpass competitive fabrics for integrity and durability. Plus, Ultraleather offers superior thermal comfort—creating a comfortable, neutral body temperature regardless of the setting. With Ultraleather, you can stay pleasantly protected from the bumps, spills, and scrapes of life on the road.
|

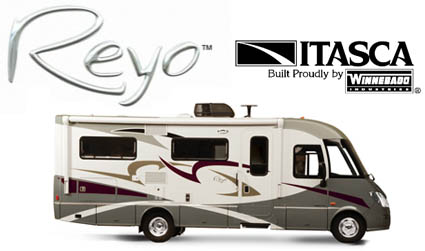

Itasca Motorhomes: Reyo by Winnebago
 Download Itasca Reyo Motorhome PDF
The Itasca Reyo® is no ordinary Class A motorhome. With the powerful, yet nimble, Mercedes-Benz® Sprinter chassis as its foundation, the Reyo offers a unique combination of fun and fuel-efficiency every time you grab the wheel. Innovative features such as the StudioLoft™ and Flex Bed System make the most of the available space, allowing more room for luxury features in the three 25-foot models. Joining the popular 25T and 25Q is the all-new 25P with a spacious lounge and large rear storage trunk. All models are built to Winnebago Industries’® legendary quality standards and feature bold exterior styling and three cabinet wood choices that set you apart from the crowd. It’s time to rethink what is possible in a Class A coach. Be extraordinary in an Itasca Reyo.
 View Available Reyo Motorhome Inventory

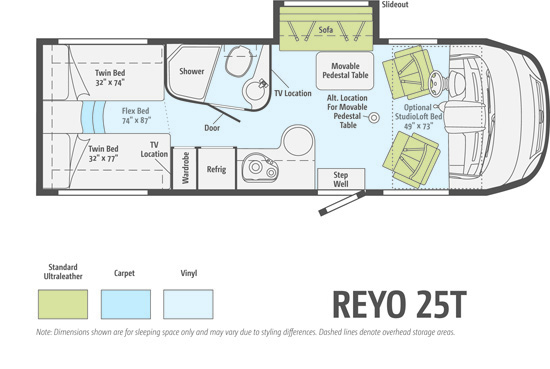

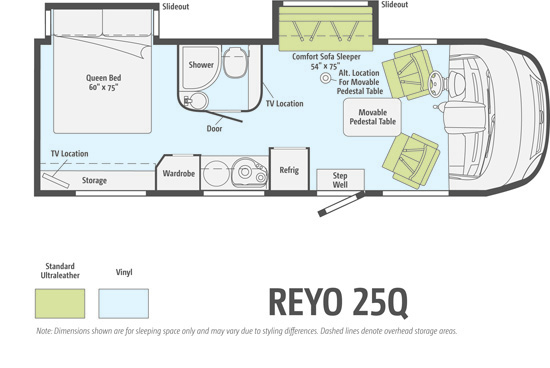

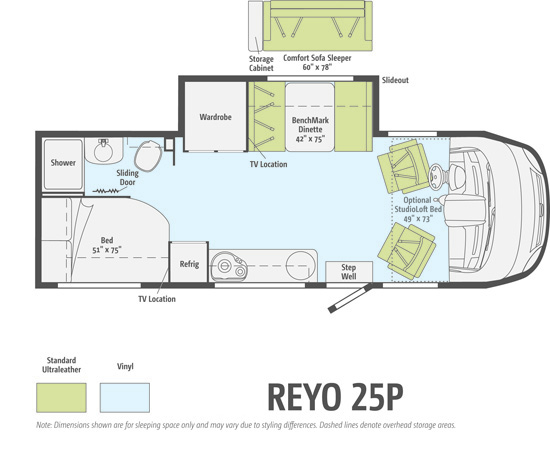

Floor Plans
Standard Features
|
|
|
|
|
|
- (Requires Sandrift or Pewter Premium Full-Body Paint)
- (Requires interior w/High-Gloss Marbella Cherry cabinetry)
- Polished stainless steel rocker panel trim, chrome exhaust tip, rearview mirrors and door handles, assist handle, stylized chrome wheels, galley backsplash upgrade w/accent lighting
|
|
|
|
| |
Mercedes-Benz® Sprinter F50 Chassis |
|
- 3.0L Mercedes-Benz 6-cylinder, 188-hp, turbo-diesel engine, 5-speed automatic Tip Shift transmission, 220-amp alternator
- Hydraulic brakes w/ABS
- Adaptive ESP® technology
- Trailer Hitch 5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
- Stainless steel wheel liners
|
|
Optional Equipment
|
|
|
|
- Cab seats armrests, adjustable lumbar support, headrest, swivel/slide, recline
- Cab seat lounge cushions
- Power steering w/tilt and telescoping wheel
- Power door lock w/remote for main entry door
- 3-point seat belts
- Dash appliqué package
- Removable 1-piece fitted carpet liner
- 12-volt powerpoints
- Power mirrors w/defrost and built-in sideview video camera system
- Cruise control
- Chassis/house battery radio power switch
- Sunvisors
- Front wraparound curtain
- Infotainment Center with Rand McNally RV GPS 6" touch screen color monitor w/split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio w/CD/DVD player, handheld remote, SiriusXM™ (subscription not included), compass, outside temperature, iPod®/iPhone® audio integration, Bluetooth™, color rearview camera
|
|
|
|
|
|
- OnePlace® Systems Center
- Soft vinyl ceiling
- Stereo System AM/FM, alarm clock, CD/DVD player, Bluetooth™ input jack
- 26" HDTV (25T, 25Q)
- 32" HDTV (25P)
- Satellite system ready
- Tinted windows
- LED ceiling lights (coach)
- MCD solar/blackout roller shades
- Amplified digital TV antenna system
- Powered roof vent (bath)
- Roof vent w/powered ventilator fan (galley 25P, 25Q)
|
|
Optional Equipment
- Satellite TV antenna system
- Dual-pane coach windows w/built-in screen and shade
- StudioLoft™ (NA 25Q)
|
|
|
|
- Microwave/convection oven
- Vented range hood (25T)
- 2-burner range top w/glass cover
- Norcold® double-door refrigerator/freezer
- Stainless steel sink w/glass cover and folding faucet
- Laminate countertops
- Decorative backsplash
- Water filtration system (cold water only)
|
|
|
|
|
|
- Flexible showerhead
- Retractable, self-cleaning shower screen (25P, 25T)
- Shower curtain (25Q)
- Skylight
- Toilet w/foot pedal and sprayer
|
|
|
|
|
|
- Flex Bed System twin beds/queen bed w/foam mattress, pillows w/shams, and access to storage below (25T)
- Double bed w/headboard, foam mattress, mattress cover, pillow shams (25P)
- Queen bed w/headboard, innerspring mattress, pillows, shams, bedspread, and access to storage below (25Q)
- 22" HDTV
|
|
|
|
|
|
- Premium high-gloss skin
- 16' powered patio awning w/LED lighting
- Threshold™ Quiet RV Door
- Retractable screen door
- Automatic entrance door steps
- Lighted storage compartment (in select compartments)
- Mud flaps (rear)
- Porch light
- Stepwell light
- Golf bag storage compartment w/framework and straps to secure 2 golf bags (25P)
|
|
Optional Equipment
- Driver-side door w/power lock and power window (NA w/StudioLoft)
- Lower front protective mask (requires full-body paint)
|
|
|
|
- 14,800 BTU air conditioner w/heat pump
- 20,000 BTU low-profile furnace
|
|
|
|
|
|
- Service Center cable TV input, 30-amp. power cord, portable satellite dish hook-up
- AC/DC load center, 45-amp. converter/charger
- Auxilary start circuit
- Battery disconnect system (coach)
- 2 deep-cycle, Group 24 RV batteries
- Automatic dual-battery charge control
- 3,600-watt Cummins Onan® MicroQuiet™ LP generator
- 1,000-watt DC/AC Inverter
- Exterior AC duplex receptacle
|
|
Optional Equipment
- 3,200-watt Cummins Onan diesel generator
|
|
|
|
- Service Center color-coded labels, city water hookup/tank diverter fill, drainage valves, 10' sewer hose, exterior wash station w/lighted pump switch
- TrueLevel™ holding tank monitoring system
- Tankless water heater (25P)
- 6-gallon water heater w/electric ignition, 110-volt/LP (NA 25P)
- Winterization Package w/siphon tube
- On-demand water pump
- Permanent-mount LP tank w/remote fill
- Water tank fill w/lockable door
|
|
Optional Equipment
|
|
|
|
- Child seat tether anchor (25P)
- LP, smoke, and carbon monoxide detectors
- 10 BC fire extinguisher
- Ground fault interrupter
- High-mount brake lamps
- Daytime running lights
- Fog lights
|
|
|
|
|
|
- 12-month/15,000-mile basic limited warranty 7
- 36-month/36,000-mile limited warranty on structure 7
- 10-year limited parts-and-labor warranty on roof skin 7
|
|
|
|
|
