Tribute Motorhome Specifications
|
Weights & Measures
|
|
26A |
27B |
31C |
| Length |
27'8" |
29'4" |
32'11" |
| Exterior Height1 |
11'9" |
11'9" |
11'11" |
| Exterior Width |
8'5.5" |
8'5.5" |
8'5.5" |
| Exterior Storage2 (cu. ft.) |
92 |
113 |
94 |
| Awning Length |
19' |
18' |
19' |
| Interior Height |
6'9" |
6'9" |
6'9" |
| Interior Width |
8'0.5" |
8'0.5" |
8'0.5" |
| Freshwater Tank Capacity3 (gal.) |
40 |
54 |
52 |
| Water Heater Capacity (gal.) |
6 |
6 |
6 |
| Holding Tank Capacity - Black/Gray3 (gal.) |
42/42 |
41/53 |
45/62 |
| LP Capacity4 (gal.) |
18 |
18 |
18 |
| Fuel Capacity (gal.) |
80 |
80 |
80 |
| GCWR5 (lbs.) |
23,000 |
23,000 |
23,000 |
| GVWR (lbs.) |
16,000 |
16,000 |
18,000 |
| GAWR - Front (lbs.) |
6,500 |
7,000 |
7,000 |
| GAWR - Rear (lbs.) |
11,000 |
11,000 |
12,000 |
| Wheelbase |
158" |
178" |
208" |
Key Features of the Tribute:
- Flex Bed System - The Flex Bed System allows you to quickly and easily convert the bedroom or living area spaces into bed configurations that accommodate your sleeping needs. For example, twin beds in the bedroom can be turned into a single queen-size bed. Or, in some floorplans, a sofa and dinette or bench seats and a dining table are easily made into a bed. There’s even a Flex Bed System that converts living area furniture into a lower bunk bed. No matter which Flex Bed System you choose, the sleeping arrangement can be just as easily switched back to its original setup.
- MCD Roller Shades - The smooth-operating MCD solar/blackout roller shades set the ideal atmosphere in your coach, day or night. Besides providing ideal light and privacy, MCD solar/blackout roller shades offer upscale looks and performance and are easier to operate and clean than traditional pleated shades.
- Primera - Primera™ is the first collection in a newly-created category of value-engineered polyurethanes from Ultrafabrics. Utilizing performance-equipped polymers and a sturdy rayon/polyester blended backcloth, Primera’s construction meets or exceeds demanding performance standards. This fabric is the ideal upholstery solution with proven stain resistance and durability.
- SmartSpace - The SmartSpace design philosophy encourages the use of innovative features to make the most efficient use of the available space in each coach. This philosophy has led to the creation of features such as the BenchMark® full comfort dinette that has hidden storage compartments below the flip-up seats, full-extension drawer slides, and an extendable sectional sofa found in several of our coaches. From the Rest Easy multi-position lounge to the unique pull-out pantries, you’ll find a variety of SmartSpace features across our entire lineup of motorhomes.
- Smart Storage - Smart Storage places bulky systems and tanks in improved configurations, leaving more room for basement storage. Exterior storage is also easy to access with innovative features such as a large trunk with multiple doors and sliding storage trays on select models. Other clever features you might find include a storage well with a drain plug and a compartment cover that converts into a picnic table.
- Studio Loft - The StudioLoft™ turns the cab of your coach into a second bedroom. It features a large bed that drops down from the ceiling for instant sleeping space. A curtain wraps around the bed for privacy. The cab seats fold back to sit beneath the bed. When the StudioLoft is tucked into the ceiling, the chairs raise up and rotate to become an integral part of the living area.
- SuperStructure - Unlike some manufacturers, we use steel, not wood, to create a strong, durable cab substructure. We mount our windshields securely in steel with nonhardening sealants, just like an automobile. By using an advanced laser alignment system when mounting the cab to the chassis, we ensure a sturdy, square foundation.
- TrueLevel - Mirus™ detector cell technology ensures accurate freshwater and wastewater tank level readings. Mirus detector cells produce a micro-electrical field that detects liquid levels from outside the tank. No more probes to corrode or clog. Just true, accurate readings time after time.
|
Itasca Motorhomes: Tribute by Winnebago
Winnebago® ignited the motorhome craze of the late ’60s, with its famous “eyebrow” coach design leading the way. The all-new Tribute™ took Winnebago’s trailblazing heritage with a fresh take on this iconic design. It is a look that conjures up the youthful enthusiasm you had when you first experienced the motorhome lifestyle, and it is an opportunity to share that lifestyle with your own family. While the look brings you back, the amenities will keep you moving forward in comfort for years to come. With two versatile floorplans, exciting color schemes, and a price to fit the budget of a young, traveling family, the Tribute is a testament to both our rich history and your bright future in the motorhome lifestyle
.

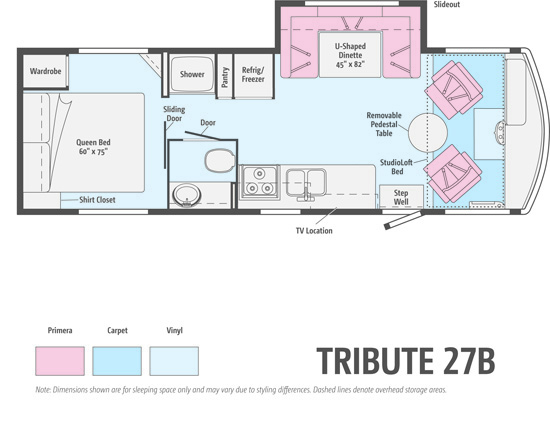

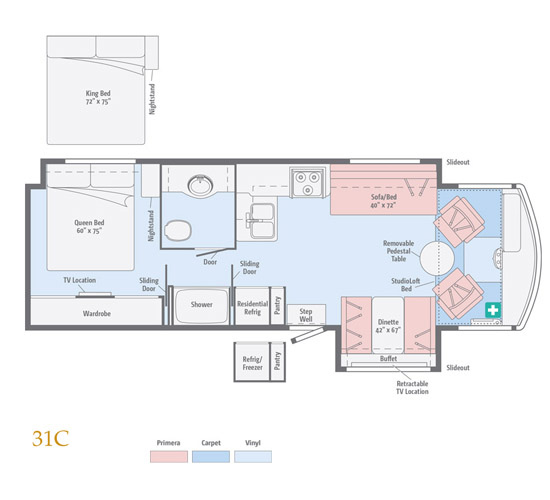

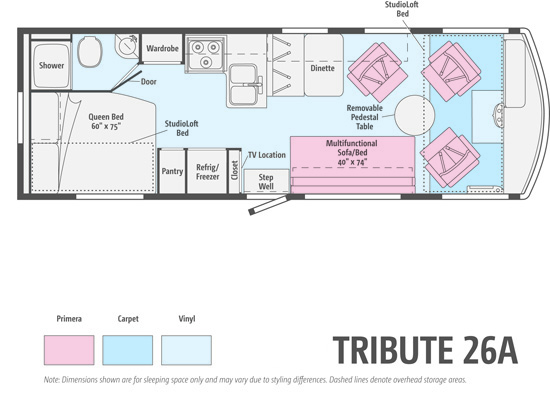

Floor Plans
Standard Features
|
|
- 362-hp 6.8L 3-valve Triton® V10 SEFI engine, TorqShift™ 5-speed automatic transmission w/tow/haul, Hydroboost power brakes, 4-wheel ABS, 175-amp. alternator
- 7-pin trailer wiring
- Trailer Hitch 6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
- Automatic hydraulic leveling jacks
- Stainless steel wheel liners
|
|
|
|
|
|
- Cab seats hinged armrests, lumbar support, and multi-adjustable slide/recline/swivel
- 3-point seat belts
- Radio AM/FM, Bluetooth™ ready, time/alarm clock, front auxiliary input, 4 speakers
- Passenger workstation w/12-volt powerpoint/USB
- Movable console w/Rearview Monitor System w/Rand McNally RV GPS
- Chassis/house battery radio power switch
- Power-assist steering w/tilt wheel
- Cruise control
- Power mirrors w/defrost
- Front wraparound curtain
- Sunvisors
|
|
|
|
|
|
- 28" HDTV (26A)
- 32" HDTV (27B)
- Dining table/buffet w/46" retractable HDTV (31C)
- StudioLoft™ w/power lift and ladder (dome lights) (cab overhead)
- Amplified digital TV antenna system
- LED ceiling lights
- MCD blackout roller shades
- Full-extension drawers w/roller bearing slides
- Systems monitor panel
- Roof vent (lounge)
- Powered roof vent (bath)
|
|
Optional Equipment
|
|
|
|
- Laminate countertop w/decorative backsplash
- 2-door refrigerator/freezer (26A, 27B)
- 2-door refrigerator/freezer w/icemaker (31C)
- Microwave oven
- 3-burner range top w/oven
- Flip-up countertop extension (26A)
- Vented range hood
|
|
Optional Equipment
- 2-door refrigerator/freezer w/2 deep-cycle, Group 31 batteries (31C)
|
|
|
|
- Laminate countertop
- Medicine cabinet
- Flexible showerhead
- Shower curtain (26A)
- Textured glass shower door (27B, 31C)
- Skylight
- Toilet w/foot pedal
- Water pump switch
|
|
|
|
|
|
- Queen bed w/bedspread (27B, 31C)
- Queen bed w/mattress cover (26A)
- StudioLoft™ bunk bed w/power lift (26A)
- 32" HDTV (31C)
|
|
Optional Equipment
- King bed w/bedspread (31)
|
|
|
|
- Automatic entrance door steps
- Porch light
- Trunk storage compartment
- Powered patio awning
- Exterior speaker system
|
|
|
|
|
|
- 1-15,000 BTU ducted air conditioner w/ChillGrille™ (26A, 27B)
- 2-13,500 BTU high-efficiency air conditioners w/Energy Management System w/ChillGrille (31C)
- 30,000 BTU low-profile ducted furnace (26A, 27B)
- 35,000 BTU low-profile ducted furnace (31C)
|
|
|
|
|
|
- AC/DC load center, 45-amp. converter/charger (26A, 27B)
- AC/DC electrical distribution system, 45-amp. converter/charger (31C)
- 30-amp. power cord (26A, 27B)
- 50-amp. power cord (31C)
- 4,000-watt Cummins Onan® MicroQuiet™ gas generator (26A, 27B)
- 5,500-watt Cummins Onan Marquis Gold™ gas generator (31C)
- 2 deep-cycle, Group 24 batteries (26A, 27B)
- 3 deep-cycle, Group 31 batteries (31C)
- Chassis and coach battery disconnect systems
- Automatic dual-battery charge control
- Shoreline/generator automatic changeover switch (31C)
- 2,000-watt inverter/charger (31C)
- Automatic start system, generator (31C) (NA w/optional 2-door refrigerator/freezer)
- Auxiliary start circuit
- Exterior antenna jack and AC duplex receptacle
|
|
|
|
|
|
- Permanent-mount LP tank
- On-demand water pump
- TrueLevel™ holding-tank monitoring system
- Winterization Package water heater bypass valve and siphon tube
- 6-gallon electric ignition/LP water heater
- Gravity water tank fill w/lockable door
- LPG accessory connection (patio area)
- City water hookup
- 10' sewer hose
|
|
Optional Equipment
|
|
|
|
- Fog lamps
- Child seat tether anchor
- LP, smoke, and carbon monoxide detectors
- 10 BC fire extinguisher
- Ground fault interrupter
|
|
|
|
|
|
- 12-month/15,000-mile basic limited warranty 8
- 36-month/36,000-mile limited warranty on structure 8
- 10-year limited parts-and-labor warranty on roof skin 8
|
|
|
|
|
