2016 Navion Motorhome Specifications
Weights & Measures
24G 24J 24M 24V
Length 25'5" 25'5" 25'5" 25'5"
Exterior Height1 11'1" 11'1" 11'1" 11'1"
Exterior Width 7'6" 7'6" 7'6" 7'6"
Exterior Storage2 (cu. ft.) 43 48 39.7 43
Awning Length 16' 16' 16' 16'
Interior Height 6'8" 6'8" 6'8" 6'8"
Interior Width 7'3" 7'3" 7'3" 7'3"
Freshwater Tank Capacity3 (gal.) 31 33 32 31
Water Heater Capacity (gal.) 6 6 6 6
Holding Tank Capacity - Black/Gray3 (gal.) 36/36 34/40 32/36 36/36
LP Capacity4 (gal.) 13 13 13 13
Fuel Capacity (gal.) 26.4 26.4 26.4 26.4
GCWR5 (lbs.) 15,250 15,250 15,250 15,250
GVWR (lbs.) 11,030 11,030 11,030 11,030
GAWR - Front (lbs.) 4,410 4,410 4,410 4,410
GAWR - Rear (lbs.) 7,720 7,720 7,720 7,720
Wheelbase 170" 170" 170" 170"

Key Features of the 2016 Navion RV:

BenchMark® - Eliminate Pain in the You–Know–Where - Presenting the dinette, reconsidered: the BenchMark® full comfort dinette. In place of the customary slab of foam, its seats feature innerspring construction like that found in fine furniture. The result is exceptionally comfortable dining — and since the BenchMark converts instantly from a dinette to a comfortable bed — exceptionally comfortable sleeping as well. And unlike ordinary dinettes that use side doors or drawers for storage, the BenchMark seats flip up, providing easy access to the storage underneath (as well as 40% more storage than a similar dinette with side-drawer access). Dining, sleeping, or storing, the BenchMark full comfort dinette leaves you sitting pretty.

Extendable Sectional Dinette - Everything a Dinette Should Be - Only one dinette can make claim as the most comfortable, versatile motorhome dinette: the Extendable sectional dinette. Its unique design expands to seat the whole family for dinner, games or movie night. The removable table is self-standing and can be used as a coffee table when you want to stretch your legs in the expanded dinette.

Flex Bed System - Flexibility to Meet Your Sleeping Needs - The Flex Bed System allows you to quickly and easily convert the bedroom or living area spaces into bed configurations that accommodate your sleeping needs. For example, twin beds in the bedroom can be turned into a single queen-size bed. Or, in some floorplans, a sofa and dinette or bench seats and a dining table are easily made into a bed. There’s even a Flex Bed System that converts living area furniture into a lower bunk bed. No matter which Flex Bed System you choose, the sleeping arrangement can be just as easily switched back to its original setup.

Infotainment Center with RV GPS - Infotainment is at your fingertips. - The Infotainment Center with Rand McNally RV GPS has it all: touch screen color monitor with split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio with CD/DVD player, handheld remote, SiriusXM™ (subscription not included), compass, outside temperature, iPod®/iPhone® audio integration, Bluetooth™, and so much more.

MCD Roller Shades - Day or Night - The smooth-operating MCD solar/blackout roller shades set the ideal atmosphere in your coach, day or night. Besides providing ideal light and privacy, MCD solar/blackout roller shades offer upscale looks and performance and are easier to operate and clean than traditional pleated shades.

OnePlace® Systems Center - Control It All at OnePlace - The OnePlace® systems center allows you to monitor and control key systems from one convenient location. No more walking back and forth between the thermostat and generator, it’s all in one spot. The OnePlace panel features a streamlined appearance with a digital panel that is easy to read and operate. Stop the runaround with the OnePlace systems center.

Primera® by Ultrafabrics® - The next class of polyurethane fabrics has arrived! - The Primera® Collezione is the first collection in a newly-created category of value-engineered polyurethanes from Ultrafabrics®. Utilizing performance-equipped polymers and a sturdy rayon/polyester blended backcloth, Primera’s construction meets or exceeds demanding performance standards. This fabric is the ideal upholstery solution with proven stain resistance and durability.

QuickPort® - A Better Way to Manage Hoses and Cords - Say good–bye to wrestling power cords and water hoses through small holes. The QuickPort® service connection hatch makes hookups a snap—and helps keep your service area clean and tidy. It even allows the bay door to close with hookups connected.

SmartSpace™ - Make the Most of Every Inch - The SmartSpace design philosophy encourages the use of innovative features to make the most efficient use of the available space in each coach. This design philosophy has led to the creation of features such as the BenchMark® full comfort dinette that has hidden storage compartments below the flip-up seats, full-extension drawer slides, and an extendable sectional sofa found in several of our coaches. From the Rest Easy multi-position lounge to the unique pull-out pantries, you’ll find a variety of SmartSpace features across our entire lineup of motorhomes.

Smart Storage™ – a Better Way to Store Your Gear - Smart Storage places bulky systems and tanks in improved configurations, leaving more room for basement storage. Exterior storage is also easy to access with innovative features such as a large trunk with multiple doors and sliding storage trays on select models. Other clever features you might find include a storage well with a drain plug and a compartment cover that converts into a picnic table.

SuperStructure® - Creating Coaches of Lasting Beauty - Unlike some manufacturers, we use steel, not wood, to create a strong, durable cab substructure. We mount our windshields securely in steel with nonhardening sealants, just like an automobile. By using an advanced laser alignment system when mounting the cab to the chassis, we ensure a sturdy, square foundation.

TrueLevel™ - Always Accurate - Mirus™ detector cell technology ensures accurate freshwater and wastewater tank level readings. Mirus detector cells produce a micro-electrical field that detects liquid levels from outside the tank. No more probes to corrode or clog. Just true, accurate readings time after time.
Itasca Motorhomes:

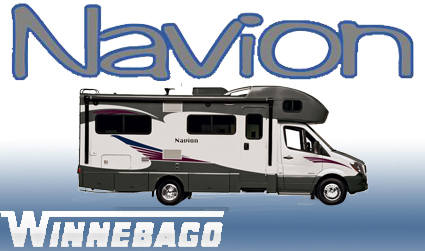

2016 NAVION by Winnebago

2014 Navion Motorhome

If you want comfort and style in a go-anywhere motorhome that is built to last, the Navion® stands alone. Combining the heralded Mercedes-Benz Sprinter chassis with Winnebago’s legendary SuperStructure® construction, you get a coach that is fuel-effcient, powerful, and built to the highest standards. Four distinct floorplans give you choices on dining and sleeping configurations to fit your traveling needs, including a spacious U-shaped dinette in the 24J, the queen bed in the 24G, or the Flex Bed system in the 24V that can convert from a queen bed into separate twin beds. Thoughtful touches such as swivel cab seats with boosters and LED lighting show you that every detail was carefully considered. Make your way to the head of the class in your new Navion.

InventoryView Available Navion Motorhome Inventory

Floor Plans

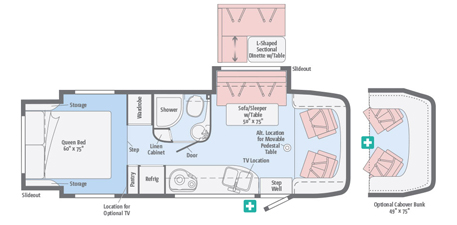

Model: 24G

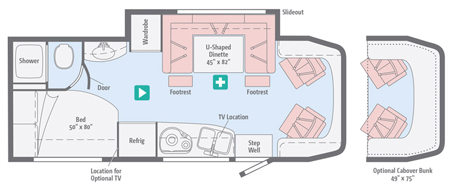

Model: 24J

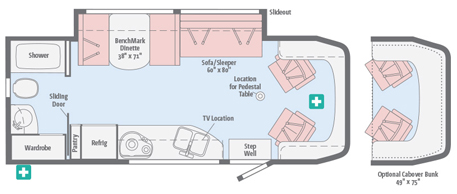

Model: 24M

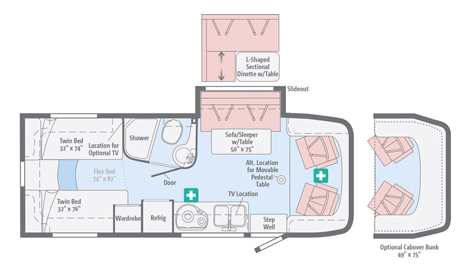

Model: 24V

Model: 2016 Navion Standard Features

Mercedes-Benz® Sprinter Chassis

3.0L 6-cylinder, 188-hp, turbo-diesel engine, 5-speed automatic tip-shift transmission, 220-amp. alternator

Adaptive ESP® technology

Hydraulic brakes w/ABS

Trailer Hitch5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector

Stainless steel wheel liners

Optional Equipment

Stylized chrome wheels

Stylized aluminum wheels (24J, 24V)

Powered stabilizing jacks (24J, 24V)

2.1L 4-cylinder, 161-hp, turbo-diesel engine, 7-speed automatic transmission, 220-amp. alternator

Cab Conveniences

Radio/Rearview Monitor System 6" touch screen color monitor, handheld remote, iPod®/MP3 input, color rear camera

Cab seats armrest, adjustable lumbar support, headrest, recline, swivel and slide

Airbags driver and passenger

3-point seat belts

Power door locks w/remote

Power windows

Power mirrors w/defrost and turn signals

Cruise control

Chassis/house battery radio power switch

Power steering w/tilt wheel

Sunvisors

12-volt powerpoints

Pleated windshield blinds

Privacy curtain (cab windows)

Dash appliqué package

Optional Equipment

Infotainment Center with Rand McNally RV GPS 6" touch screen color monitor w/split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio w/CD/DVD player, handheld remote, SiriusXM™ (subscription not included), iPod/iPhone® audio integration, Bluetooth™, color rearview camera, USB connection

2 cab seat lounge cushions

Sliding, pleated windshield blinds (24J, 24V)

Collision avoidance system (24J, 24V)

Interior

Stereo System AM/FM, alarm clock, CD/DVD player, input jack, Bluetooth™, 2 speakers and subwoofer

28" HDTV

LED lights

Satellite system ready

Monitor panel

Amplified digital HDTV antenna

Roof vent w/electric lift and ventilator fan (NA w/available powered skylight)

Mini blinds (galley)

Skylight w/shade

MCD solar/blackout roller shades

Tinted coach windows

Soft vinyl ceiling

Vinyl flooring throughout

Assist bar

Mirror (24V)

USB charger (24J, 24V)

Interior Upgrade Package frosted galley backsplash w/accent lighting, 2 sink covers

Optional Equipment

Powered skylight/roof vent w/sliding screen and pleated shade

Dual-pane acrylic windows

Galley

Laminate countertops

Microwave/convection oven w/touch control

2-burner range top w/glass cover

Norcold® double-door refrigerator/freezer

Cold water filtration system

Bath

Shower curtain (24G)

Retractable, self-cleaning shower screen (24J, 24M, 24V)

Flexible showerhead

Skylight

Water-pump switch

Porcelain toilet

Powered roof vent

Towel ring(s)

Towel bar(s)

Tissue holder

Robe hook(s) (NA 24V)

Optional Equipment

Powered ventilator fan

Bedroom

Corner bed w/headboard, foam mattress, mattress cover, and access to storage below (24J)

Memory foam mattress w/cover (24G)

Flex Bed System twin beds/queen bed w/foam mattresses and access to storage below (24V)

MCD blackout roller shades

Optional Equipment

22" HDTV (24G)

24" HDTV (24J, 24V)

Froli deluxe sleep system (NA 24M)

Exterior

Automatic entrance door step(s)

LED porch light w/interior switch

Stepwell light w/interior switch

Front and rear mud flaps

Premium high-gloss skin

Powered patio awning w/LED lights (full-body paint option includes metal wrap)

Lighted storage compartments

Exterior speakers

Optional Equipment

Bike rack (24J, 24V)

Heating & Cooling

15,000 BTU air conditioner

20,000 BTU low-profile furnace

Optional Equipment

15,000 BTU air conditioner w/heat pump

Electrical System

Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch

Auxiliary start circuit

Exterior AC duplex

Exterior antenna jack

Battery disconnect system (coach)

Automatic dual-battery charge control

AC/DC load center, 45-amp. converter/charger

2 deep-cycle, Group 24 RV batteries

3,600-watt Cummins Onan MicroQuiet™ LP generator

1,000-watt DC/AC inverter

Optional Equipment

3,200-watt Cummins Onan® diesel generator

Solar panel/battery charger (24J, 24V)

Plumbing System

Service Center color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch

10' sewer hose

TrueLevel™ holding tank monitoring system

6-gallon 110-volt/LP water heater w/Energy Management System

Permanent-mount LP Tank w/remote fill w/power switches

Winterization Package water heater bypass valve and siphon tube

On-demand water pump

Lockable water tank fill

Sewage pump macerator (24V)

Holding tank flushing system

Optional Equipment

Heated drainage system

Tankless water heater (24J, 24V)

Safety

LP, smoke, and carbon monoxide detectors

10 BC fire extinguisher

Ground fault interrupter

Child seat tether anchor (24J, 24M)

High-mount brake lamps

Daytime running lamps

Warranty6

12-month/15,000-mile basic limited warranty7

36-month/36,000-mile limited warranty on structure7

10-year limited parts-and-labor warranty on roof skin7

  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
  2. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
  3. Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
  4. Capacities shown are tank manufacturer's listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  5. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
  6. See separate chassis warranty.
  7. See your dealer for complete warranty information.

Interior

Rain Interior Finishes

2014 Navion Interior: Lagoon

Linden Interior Finishes

2012 Navion Interior: Springfield

Shatter Interior Finishes

2012 Navion Interior: Skyline
