New Itasca Navion IQ By Winnebago!



Itasca Navion IQ by Winnegbago

Navion IQ Motorhome Specifications
Weights & Measures
24G 24V
Length 25'5" 25'5"
Exterior Height1 11'3" 11'3"
Exterior Width 7'6" 7'6"
Exterior Storage2 (cu. ft.) 43 43
Awning Length 16' 16'
Interior Height 6'8" 6'8"
Interior Width 7'3" 7'3"
Freshwater Tank Capacity3 (gal.) 31 31
Water Heater Capacity (gal.) 6 6
Holding Tank Capacity - Black/Gray3 (gal.) 36/36 36/36
LP Capacity4 (gal.) 13 13
Fuel Capacity (gal.) 26.4 26.4
GCWR5 (lbs.) 15,250 15,250
GVWR (lbs.) 11,030 11,030
GAWR - Front (lbs.) 4,410 4,410
GAWR - Rear (lbs.) 7,720 7,720
Wheelbase 170" 170"

Key Features of the 2014 Navion IQ RV:

  • BechMark - Presenting the dinette, reconsidered: the BenchMark® full comfort dinette. In place of the customary slab of foam, its seats feature innerspring construction like that found in fine furniture. The result is exceptionally comfortable dining — and since the BenchMark converts instantly from a dinette to a comfortable bed — exceptionally comfortable sleeping as well. And unlike ordinary dinettes that use side doors or drawers for storage, the BenchMark seats tilt up, providing easy access to the storage underneath (as well as 40% more storage than a similar dinette with side-drawer access). Dining, sleeping or storing, the BenchMark full comfort dinette leaves you sitting pretty.
  • Comfort Sofa Sleeper - The sofa sleeper you’ve always wanted is here. By day, the Comfort Sofa Sleeper is an attractive couch with a soft Ultraleather finish. At night it quickly folds out into a large bed with self-inflating mattress that actively maintains proper comfort throughout the night. Never before has converting your sofa into a bed been so easy—or comfortable.
  • Extendable Sectional Dinette- Only one dinette can make claim as the most comfortable, versatile motor homedinette: the Extendable sectional dinette. Its unique design expands to seat the whole family for dinner, games or movie night. The removable table is self-standing and can be used as a coffee table when you want to stretch your legs in the expanded dinette.
  • Flex Bed System - The Flex Bed System allows you to quickly and easily reinvent the bedroom based on your sleeping needs. Use the Flex Bed System kit to convert the twin beds into a single queen-size bed. They can be separated back into twin beds at any time. Large drawers beneath the bed house additional storage.
  • Infotainment Center with RV GPS - The Infotainment Center with Rand McNally RV GPS has it all: touch screen color monitor with split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, CD/DVD player, SiriusXM™ (subscription not included), compass, outside temperature, iPod®/iPhone® audio integration, Bluetooth™, and so much more.
  • MCD Roller Shades - The smooth-operating MCD solar/blackout roller shades set the ideal atmosphere in your coach, day or night. Besides providing ideal light and privacy, MCD solar/blackout roller shades offer upscale looks and performance and are easier to operate and clean than traditional pleated shades.
  • Quickport - Say good–bye to wrestling power cords and water hoses through small holes. The QuickPort® service connection hatch makes hookups a snap—and helps keep your service area clean and tidy. It even allows the bay door to close with hookups connected.
  • SiriusXM - SiriusXM satellite radio brings you over 140 commercial-free channels, full of live sports coverage, live traffic and weather reports, and the best in news, talk, and entertainment. High-altitude satellites ensure crystal-clear programming wherever your travels take you.
  • SmartSpace - The SmartSpace design philosophy encourages the use of innovative features to make the most efficient use of the available space in each coach. This philosophy has led to the creation of features such as the BenchMark full-comfort dinette that has hidden storage compartments below the flip-up seats, full-extension drawer slides, and the new extendable sectional sofa found in several of our coaches. From the Rest Easy multi-position lounge to the unique pullout pantries, you’ll find a variety of SmartSpace features across our entire lineup of motorhomes.
  • SuperStructure - Unlike some manufacturers, we use steel, not wood, to create a strong, durable cab substructure. We mount our windshields securely in steel with nonhardening sealants, just like an automobile. By using an advanced laser alignment system when mounting the cab to the chassis, we ensure a sturdy, square foundation.
  • TrueLevel - Mirus™ detector cell technology ensures accurate fresh and wastewater tank level readings. Mirus detector cells produce a micro-electrical field that detects liquid levels from outside the tank. No more probes to corrode or clog. Just true, accurate readings time after time.
  • Ultraleather - Winnebago Industries cab seats, sofas, loungers and more can be covered in premium, soft Ultraleather™ fabric. Ultraleather gives you the softness, comfort and luxury that is more durable than leather and incredibly easy to clean. The secret is that it is made from a PVC-free polyurethane that has been tested and proven to surpass competitive fabrics for integrity and durability. With Ultraleather, you are surrounded in comfort while staying protected from the bumps, spills and scrapes of life on the road.


Itasca Motorhomes: NAVION IQ by Winnebago

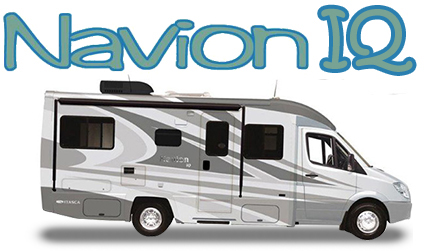

Navion IQ Motorhome

Do not let their size fool you—the Itasca Navion® and Navion® iQ offer a surprising amount of luxury and functionality in a nimble Class C motorhome. Built on the Mercedes-Benz® Sprinter chassis, both models offer a combination of fuel economy and towing power that no other chassis can deliver. Two Navion floorplans offer an overhead bunk, providing an extra sleeping space for family or friends. The sleeker design of the Navion iQ makes it ideal for those who want comfort and convenience in a fun-to-drive package. With Sprinter efficiency and reliability, and the confidence that comes from Winnebago Industries’® legendary SuperStructure® construction, there is no smarter choice in motorhomes than the Itasca Navion and Navion iQ.

Comfort Sofa Sleeper?a couch and lounge.

Comfort Sofa Sleeper?a Couch and Lounge.
Effortlessly doubles as a bed.

Effortlessly Doubles as a Bed

 Self-inflatable mattress.

Self-inflatable Mattress

InventoryView Available Navion IQ Motorhome Inventory

Floor Plans

Navion IQ 24G RV Floor Plan
Model: 24G - 2014 Navion iQ by Winnebago

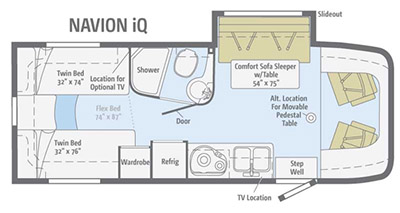

2013 Navion IQ 24V
Model: 24V - 2014 Navion iQ by Winnebago

Model: Navion IQ 24G: Standard Features

MERCEDES-BENZ SPRINTER CHASSIS:

  • Mercedes-Benz 3.0L 6-cylinder, 188-hp turbo-diesel engine
  • Adaptive ESP® technology
  • 5-speed automatic transmission w/Tip Shift technology
  • 4-wheel ABS
  • 220-amp. alternator
  • Trailer Hitch 5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
  • Stainless steel wheel liners

CAB CONVENIENCES:

  • Radio/Rearview Monitor System 6" touch screen color monitor, handheld remote, iPod®/MP3 input, rear camera
  • Cab Seats armrest, adjustable lumbar support, headrest, recline, swivel and slide
  • Airbags driver and passenger
  • 3-point seat belts
  • Power door locks w/remote
  • Power windows
  • Power mirrors w/defrost and turn signal indicators
  • Cruise control
  • Chassis/house battery radio power switch
  • Power steering w/tilt and telescope wheel
  • Sunvisors
  • 12-volt powerpoints
  • Pleated cab window blinds (24G, 24V)

INTERIOR:

  • Front overhead bunk w/ladder and bunk privacy curtain (24J, 24M)
  • Stereo System AM/FM, alarm clock, CD/DVD player, input jack, Bluetooth™, 2 speakers and subwoofer
  • 22" HDTV (24J, 24V)
  • 26" HDTV (24G, 24M)
  • LED lights
  • Satellite system ready
  • Monitor panel
  • Amplified digital HDTV antenna
  • Key-activated slideroom master lock switch
  • Skylight w/shade (24G, 24V)
  • Cab divider curtain (24J, 24M)
  • Insulated roof vent w/electric lift, ventilator fan and rain sensor (NA w/available powered skylight)
  • Powered roof vent (bath)
  • MCD blackout roller shades (lounge, dinette, galley, bedroom)
  • Tinted coach windows
  • Soft vinyl ceiling

GALLEY:

  • Laminate countertops
  • Flip-up countertop extension (24V)
  • Microwave/convection oven
  • 2-burner range top w/glass cover
  • Vented range hood
  • Norcold® two-door refrigerator/freezer

BATH:

  • Shower curtain (24G)
  • Retractable, self-cleaning shower screen (24J, 24M, 24V)
  • Flexible showerhead
  • Skylight
  • Water-pump switch

BEDROOM:

  • Memory foam mattress w/cover (24G)
  • Foam mattress underbed storage, mattress cover, pillows and pillow shams (24J)
  • Flex Bed System twin beds/queen bed w/foam mattresses, pillows w/shams and access to storage below (24V)

EXTERIOR:

  • Automatic entrance door step(s)
  • Ladder (24J, 24M, 24V)
  • LED porch light
  • Step well light
  • Front and rear mud flaps
  • Premium high-gloss skin
  • Electric patio awning w/LED lights (full-body paint option includes metal wrap)

HEATING & COOLING SYSTEM:

  • 15,000 BTU roof-mounted air conditioner
  • 20,000 BTU furnace

ELECTRICAL SYSTEM:

  • Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® (24G, 24M, 24V) service connection hatch
  • Auxiliary start circuit
  • Exterior AC duplex and antenna jack
  • Battery disconnect system (coach)
  • Automatic dual-battery charge control
  • LP generator prep kit
  • AC/DC load center, 45-amp. converter/charger
  • Two deep-cycle, Group 24 RV batteries

PLUMBING SYSTEM:

  • Service Center Colored labels, city water hookup/tank diverter fill, drainage valves, exterior wash station w/lighted pump switch
  • 10' sewer hose
  • TrueLevel™ holding-tank monitoring system
  • 6-gallon 110 V/LP water heater w/Energy Management System
  • LP Tank w/remote fill w/power switches
  • Winterization Package water heater bypass valve and siphon tube
  • On-demand water pump
  • Lockable water tank fill

SAFETY:

  • LP, smoke and carbon monoxide detectors
  • 10 BC fire extinguisher
  • Ground fault interrupter
  • Child seat tether anchor (24J, 24M)
  • High-mount brake lamps
  • Daytime running lamps

WARRANTY:

  • 12-month/15,000-mile basic warranty 7
  • 36-month/36,000-mile limited warranty on structure 7
  • 10-year limited parts-and-labor warranty on roof skin 7

FOOTNOTES:

1The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
2The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
3Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
4Capacities shown are tank manufacturer's listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
5Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
6See separate chassis warranty.
7See your dealer for complete warranty information.

Interior

Rain Interior Finishes

2014 Navion Interior: Lagoon

Linden Interior Finishes

2012 Navion Interior: Springfield

Shatter Interior Finishes

2012 Navion Interior: Skyline
