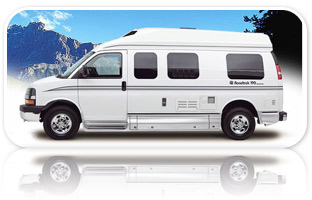

Roadtrek 190-Simplicity Chevrolet
  |
MODEL: 2013 - 190-SIMPLICITY |
Standard Motorhome FeaturesAir conditioner - 110V - 'Dometic' recessed air conditioner & heat pump, 10200 BTU
Aisle - 760 mm wide/30"
Awning - box - optional 3500 mm/11' 6"
Bathroom - temporarily enclosed with bifold doors (creates private change area as well)
Batteries - auxiliary - one 12V AGM deep cycle, 95 total amp-hrs.
Battery storage - auxiliary - below floor
Beds - dual density foam - 130 mm/5"
Cabinetry - real cherry wood doors and fronts
Connection - external - 110V - standard
Connection - external - TV cable - standard
Connection - external - water - standard with quick disconnect
Counter top - laminate
Detectors - smoke, propane & CO
Faucet - galley - single lever
Floor - lowered - 1730 mm x 880 mm x 50 mm/68" x 35" x 2"
Flooring - 40 oz. 100% Dupont nylon carpet, fiberglass lowered floor
Furnace - 'Suburban' - propane automatic, 16000 BTU
Generator ready package - for gasoline 'Onan'
Microwave oven - 110V - 20 L/0.7 cu. ft., 700 W
Monitor panel - water & propane levels, battery charge & battery disconnect
Power converter with charger - 110/12V - 3 step 45 amp. charger
Refrigerator - 'Dometic' - 12V/110V/propane - 3.0 cu. ft. with auto source selection
Roof vent - 'FanTastic' - 12V - low profile power with thermostat
Sewage disposal system - 12V - macerator sewage pump
Shower - stand-up in aisle
Sink - stainless steel with curtting board cover
Storage area - across the rear
Storage capacity - 62 cu. ft., 80 w/options
Stove - two burner - propane - recessed with glass cover
Table - dining - front and rear
Toilet - 'Thetford' - marine with foot pedal flush
TV - flat screen - optional w/DVD player (TV ready)
Water fill - fresh - location - front/rear door posts to reduce clutter & prevent tampering w/supply
Water heater - 'Suburban' - propane with bypass, 23L/6 US gal., 12000 BTU
Water system - on demand - 12V with 'Shurflo' water pump
Water tank - black - 40 L/10 US gal.
Water tank - fresh - 55 L/15 US gal.
Water tank - grey - 85 L/23 US gal.
Windows - frameless awning type
Windows - roof - 3 frameless with removable panels
Standard Automotive FeaturesAir bag - driver & passenger - with passenger on/off switch
Alternator - 145 amp.
Axle - rear - 3.42 ratio
Battery - 600 amp.
Brakes - anti lock (ABS) - four wheel disc
Climate control - standard
Cooling - transmission oil - external
Cruise control - standard
Door locks - with remote - power - all doors, single key
Doors & exits - double 40/60 side & 50/50 rear
Engine - 4.8 L SFI gas V8
Fuel capacity - 117 L/31 US gal.
Headlights - automatic on/off
Mirrors - exterior - manual
Power - 213 kW/285 HP
Radio - in-dash - AM/FM with CD player
Receiver - class IV
Seat belts in rear - three
Seats - 2nd row - lounge - cloth
Seats - cab - Captain's - OEM cloth - swiveling
Stability program - electronic (ESP) - standard
Theft deterrent system - standard
Tilt steering - standard
Tire pressure monitoring system - standard
Tire storage - spare - rear storage area
Tires - LT245/75R16E black wall
Torque - 398 N-m/295 lb-ft
Transmission - automatic - 6 speed heavy duty
Wheels - 16" steel with chrome look covers
Window operation - power - front doors only
Wiring harness for towing - 4 way
Interior DimensionsFront single bed length - left, right - 1660 mm/65", 1880 mm/74"
Front single bed width - 560 mm/22" (maximum)
Rear king bed sleeping length (maximum) - 1930 mm/76"
Rear twin bed sleeping length - left, right - 1930 mm/76", 1830 mm/72"
Standing height - 1855 mm/73"
Exterior Dimensions01 Length - 6220 mm/20' 5" (1)
02 Height - overall - 2660 mm/8' 9"
03 Width - overall (w/o mirrors) - 2130 mm/7' 0"
04 Wheel base - 3940 mm/155"
05 Gross vehicle weight rating - 4355 Kg/9600 lbs.
06 Occupants & cargo carrying capacity – max. (2) - 1050 Kg/2300 lbs.
07 Gross combined weight rating (3) - 5897 Kg/13000 lbs.
08 Towing - tow weight (4) - 2500 Kg/5500 lbs.
|
